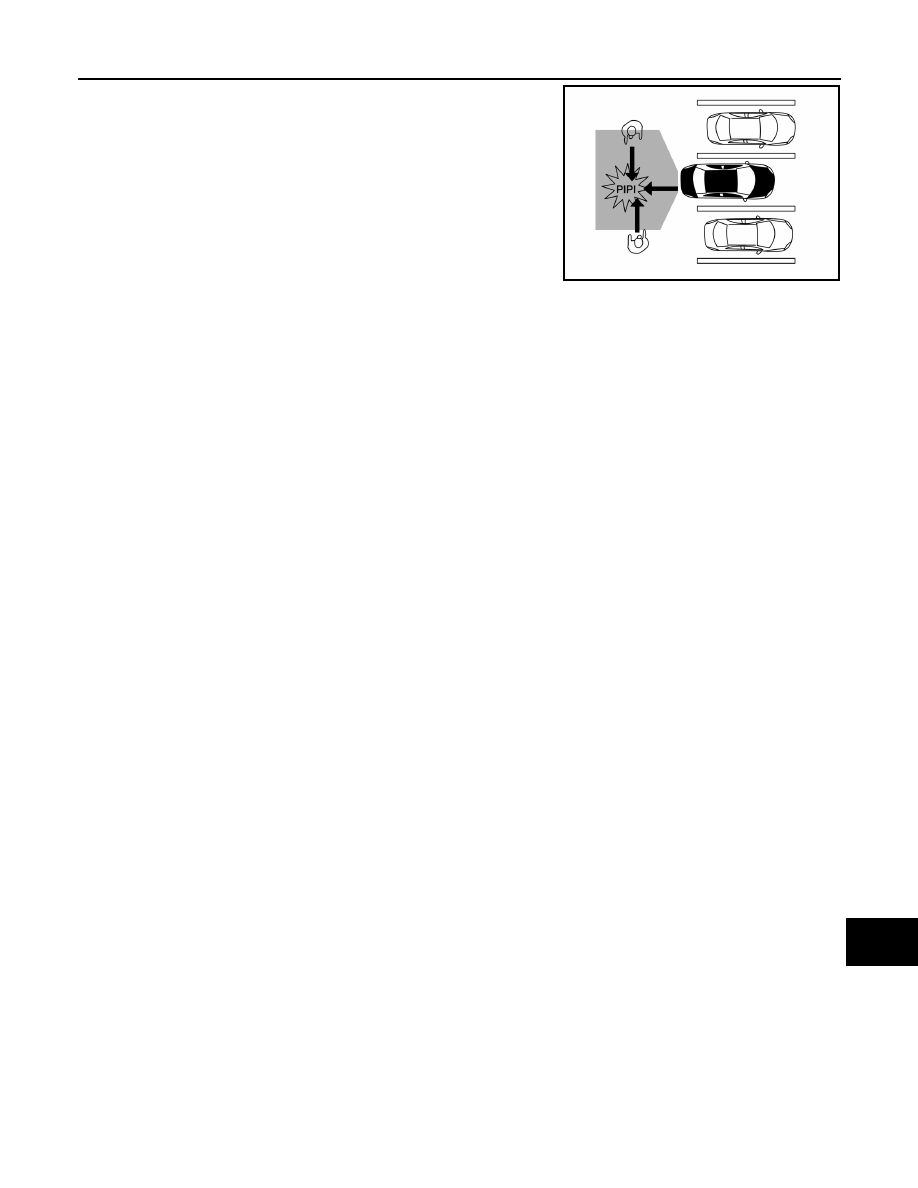

• The MOD system can detect moving objects on either side out

approximately 10 feet (3 m).

OPERATION DESCRIPTION

• Around view monitor control unit enables Moving Object Detection system.

• AV control unit turns ON the Moving Object Detection (MOD) indicator on the AV control unit display.

• Around view monitor control unit starts the control as follows, based on a moving object detection signal.

Operation Condition

• MOD indicator: ON

• Warning systems indicator: ON

• When the vehicle is moving in R (reverse) at 5 MPH (8 km/h) or less.

• When the MOD system setting on the combination meter is ON.

NOTE:

MOD system ON/OFF can be set on the combination meter.

• Moving Object Detection braking will not operate or will stop operating and only a warning chime will sound

under the following conditions:

- When driving with a tire that is not within normal tire conditions (pressure, wear, chain, spare, etc).

- When the vehicle is equipped with non-original brake parts or suspension parts.

• Do not use the MOD system when towing a trailer.

• Excessive noise such as the audio system will interfere with the chime sound, and it may not be heard.

FCW

ALOIA0164ZZ

DAS-28

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

FCW : System Description

INFOID:0000000011277179

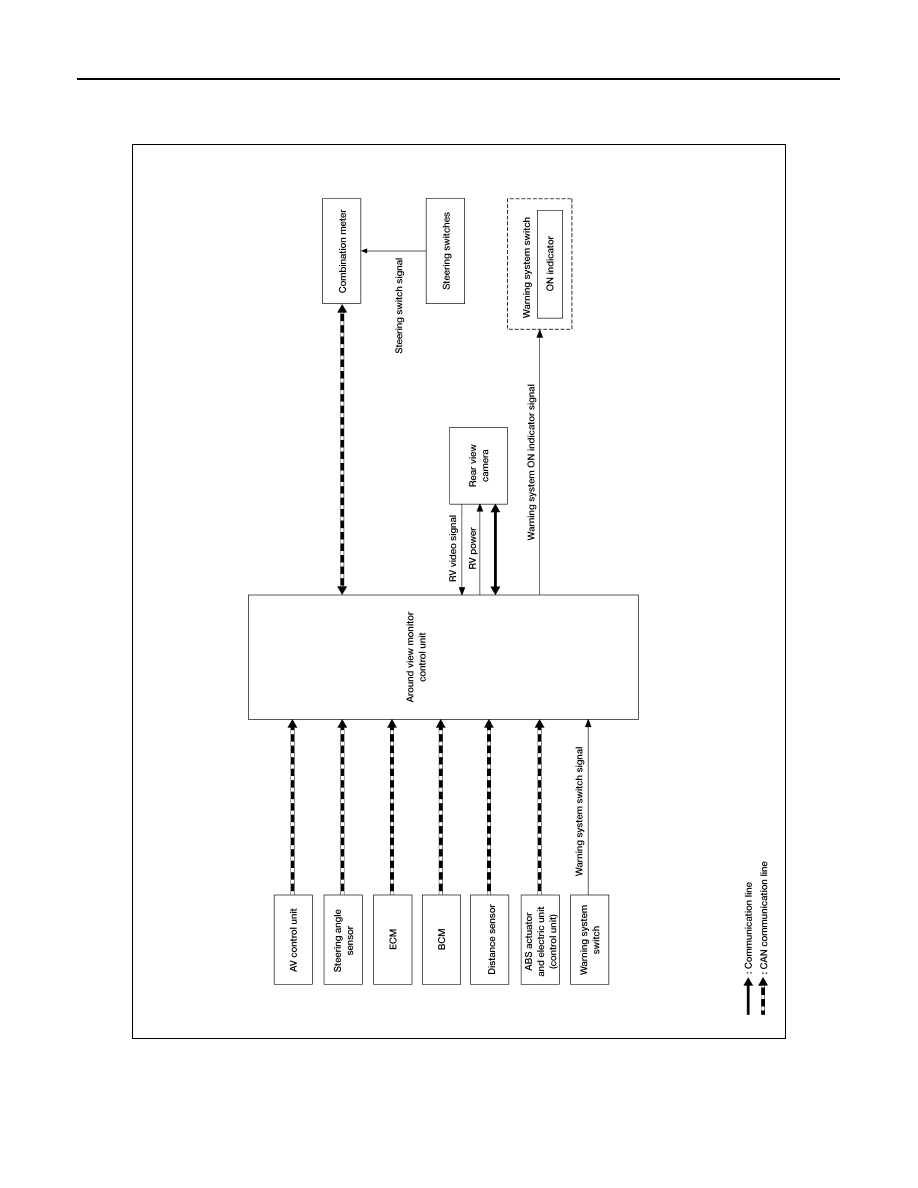

SYSTEM DIAGRAM

AROUND VIEW MONITOR CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

Input Signal Item

AWOIA0068GB

DAS

SYSTEM

DAS-29

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Output Signal Item

DESCRIPTION

• The Forward Collision Warning (FCW) System alerts the driver by a warning lamp (vehicle ahead detection

indicator) and chime when own vehicle is getting close to the vehicle ahead in the traveling lane.

• The FCW system will function when own vehicle is driven at speeds of approximately 10 MPH (15 km/h) and

above.

FUNCTION DESCRIPTION

The distance from the vehicle ahead and a relative speed are calculated by using the distance sensor signal

transmitted to the combination meter via CAN communication. When judging the necessity of warning from

the received distance sensor signal, the distance sensor transmits a buzzer signal and warning signal to the

combination meter via CAN communication.

FCW Operating Condition

• Warning system switch: ON

• Vehicle speed: Approximately 10 MPH (15 km/h) and above.

Transmit unit

Signal name

Description

ABS actuator and elec-
tric unit (control unit)

CAN communication Wheel speed signal

Receives wheel speed.

Combination meter

CAN communication System selection signal

Receives a selection state each item in “Driver Aids” se-
lected with the steering switch.

Distance sensor

CAN communication Distance sensor signal

Receives detection results, such as the presence or ab-
sence of a leading vehicle and distance from the vehicle.

Warning system switch

Warning system switch signal

Receives an ON/OFF state of the warning system switch.

Reception unit

Signal name

Description

Combination
meter

CAN commu-
nication

Meter display
signal

Vehicle ahead detec-
tion indicator signal

Transmits a signal to display a state of the system on
the information display.

Buzzer signal

Transmits a output signal to activate the buzzer.

Distance sen-
sor

CAN commu-
nication

Vehicle speed signal

Transmits a vehicle speed calculated by the distance
sensor.

DAS-30

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

OPERATION

OPERATION

BSW
BSW : Switch Name and Function

INFOID:0000000011277180

BSW : System Display and Warning

INFOID:0000000011277181

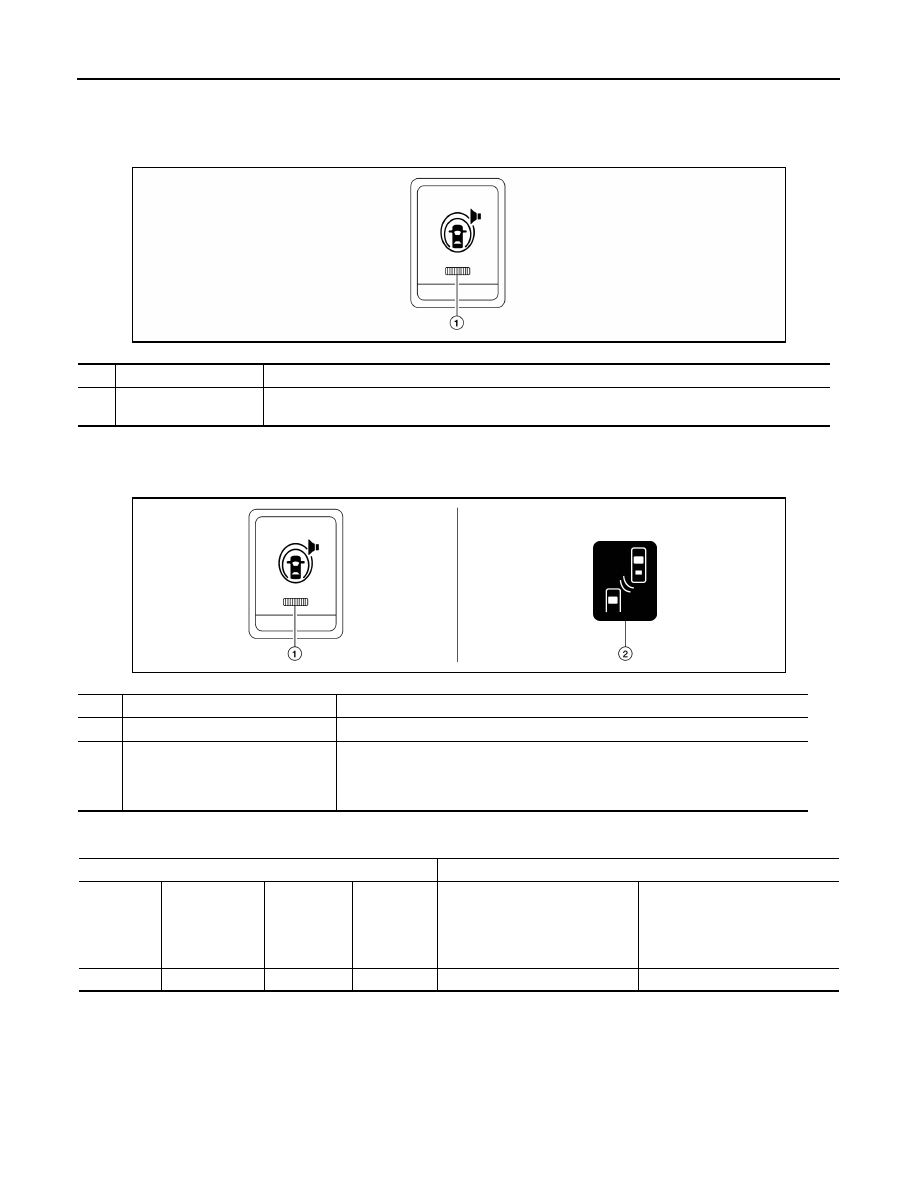

INDICATOR AND WARNING LAMP

DISPLAY AND WARNING OPERATION

ALOIA0109ZZ

No.

Name

Function

1.

Warning systems switch

Turns BSW system ON/OFF (when the BSW system is enabled on the combination meter informa-
tion display).

AWOIA0087ZZ

No.

Name

Description

1.

Warning systems ON indicator

Indicates that the LDW system is ON.

2.

Blind Spot Warning lamp (orange)

• Turns ON when Blind Spot Warning system is malfunctioning.
• Blinks during the following conditions:
- DTC is detected or system is temporarily disabled.
- When rear view camera blockage is detected.

Vehicle condition/Driver's operation

Action

Warning

systems ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of ve-

hicle detec-

tion within

detection

area

Indication on the

Blind Spot Warning indicator

Buzzer

OFF

OFF

OFF
