CO-24

< REMOVAL AND INSTALLATION >

WATER OUTLET AND WATER PIPING

5. Remove the upper radiator hose from water outlet.
6. Disconnect harness connector from water temperature sensor.
7. Remove water temperature sensor from water outlet, (if necessary).
8. Remove heater hoses from water outlet.

NOTE:

Note location of heater hoses prior to removal to serve as an installation aid.

9. Remove water hoses from water outlet.

NOTE:

Note location of heater hoses prior to removal to serve as an installation aid.

10. Remove water hoses from electric throttle control actuator.
11. Remove the water outlet.

INSTALLATION

Installation of remaining components is in the reverse order of removal.

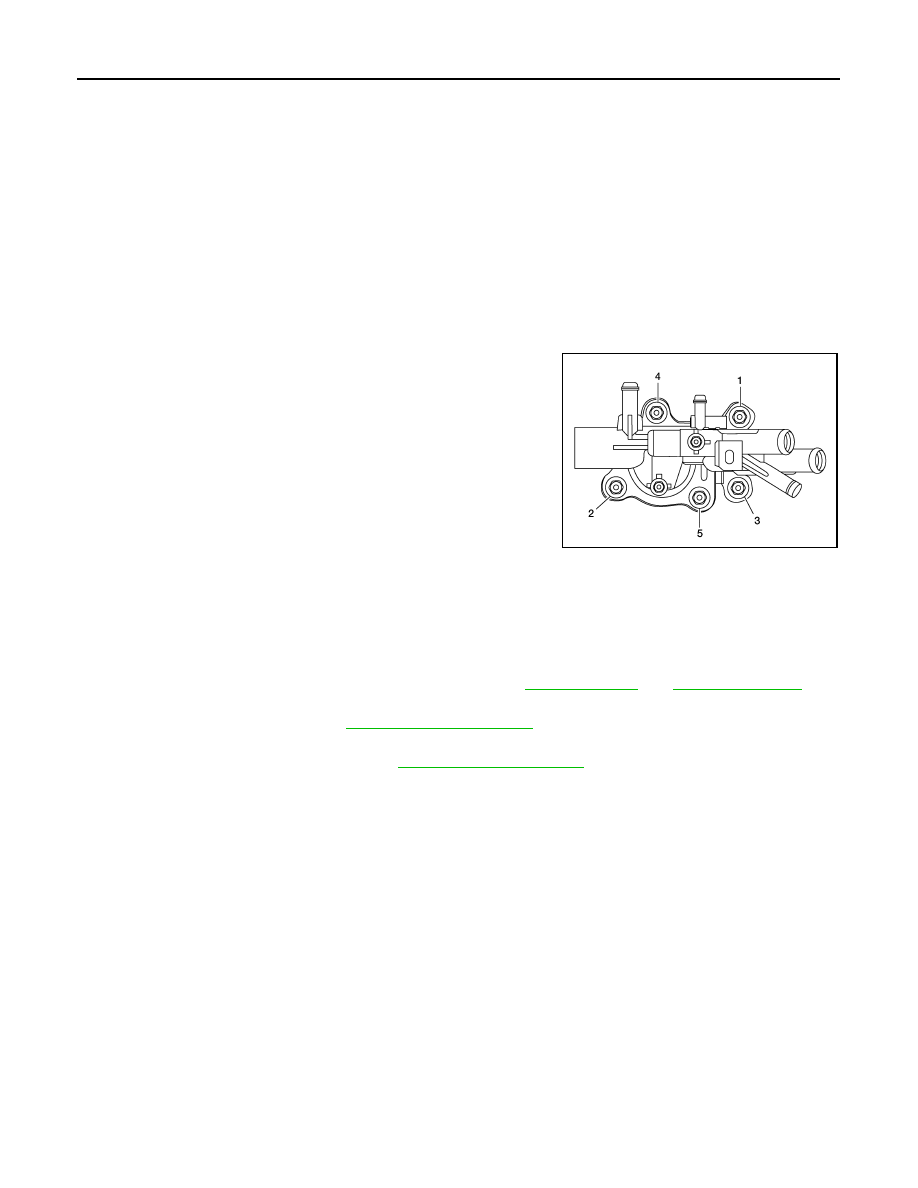

1. Tighten water outlet bolts in sequence to specification.

CAUTION:

• Do not reuse heater pipe O-ring.

• Do not reuse water outlet O-ring.

• To install heater pipe, first apply a mild soap to the O-ring and quickly insert the heater pipe into the

housing.

• Do not spill coolant in engine compartment. Use a shop cloth to absorb coolant.
2. After installation, refill coolant and check for leaks. Refer to

CO-9, "Refilling"

 and

CO-8, "Inspection"

3. Perform the “Throttle Valve Closed Position Learning” when harness connector of electric throttle control

actuator is disconnected. Refer to

EC-143, "Work Procedure"

.

4. Perform the “Accelerator Pedal Released Position Learning” when harness connector of electric throttle

control actuator is disconnected. Refer to

EC-142, "Work Procedure"

.

22 N·m (2.2 kg-m, 16 ft-lb)

AWBIA1968ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-25

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000011279720

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:   (US qt, Imp qt)

Radiator

INFOID:0000000011279721

Unit: kPa (kg/cm

2

, psi)

Thermostat

INFOID:0000000011279722

Standard

Engine coolant capacity (With reservoir tank at “MAX” level)

8.1 (8-5/8, 7-1/8)

Reservoir tank

0.61 (5/8, 1/2)

Cap relief pressure

Standard

78.2 - 97.8 (0.8 - 1.0, 11 - 14)

Limit

59 (0.6, 9)

Minimum seal pressure

118 (1.20, 17.1)

Valve opening temperature

80.5 - 83.5

°C (177 - 182°F)

Maximum valve lift

8 mm/95

°C (0.315 in/203°F)

Valve closing temperature

77

°C (171°F)
