CO-20

< REMOVAL AND INSTALLATION >

WATER PUMP

Do not reuse water pump gasket.

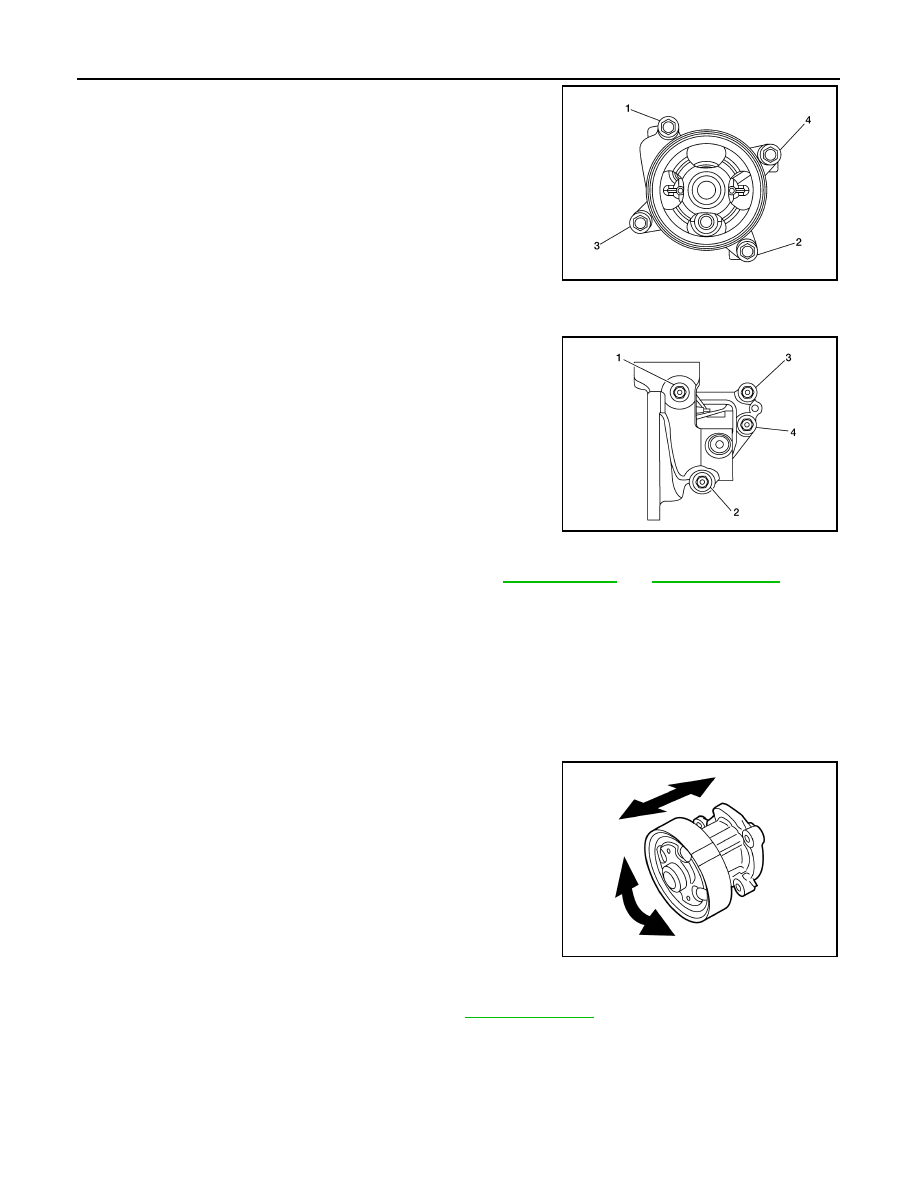

2. Tighten water pump housing bolts in sequence to specification.

CAUTION:

Do not reuse water pump housing gasket.

Installation of remaining components is in the reverse order of removal.

• After installation, refill coolant and check for leaks. Refer to

CO-9, "Refilling"

 and

CO-8, "Inspection"

.

CAUTION:

• Do not spill coolant in engine compartment. Use a shop cloth to absorb coolant.

• Do not reuse water pump gasket.

• Do not reuse water pump housing gasket.

Inspection

INFOID:0000000011279714

INSPECTION AFTER REMOVAL

• Check visually that there is no significant dirt or rusting on water pump body and vane.

• Check that there is no looseness in vane shaft, and that it turns

smoothly when rotated by hand.

• Replace water pump, if necessary.

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-8, "Inspection"

.

• Start and warm up engine. Check visually that there is no leakage of engine coolant.

25 N·m (2.6 kg-m, 18 ft-lb)

AWBIA1964ZZ

22 N·m (2.2 kg-m, 16 ft-lb)

AWBIA1965ZZ

KBIA0155E

THERMOSTAT AND WATER CONTROL VALVE

CO-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

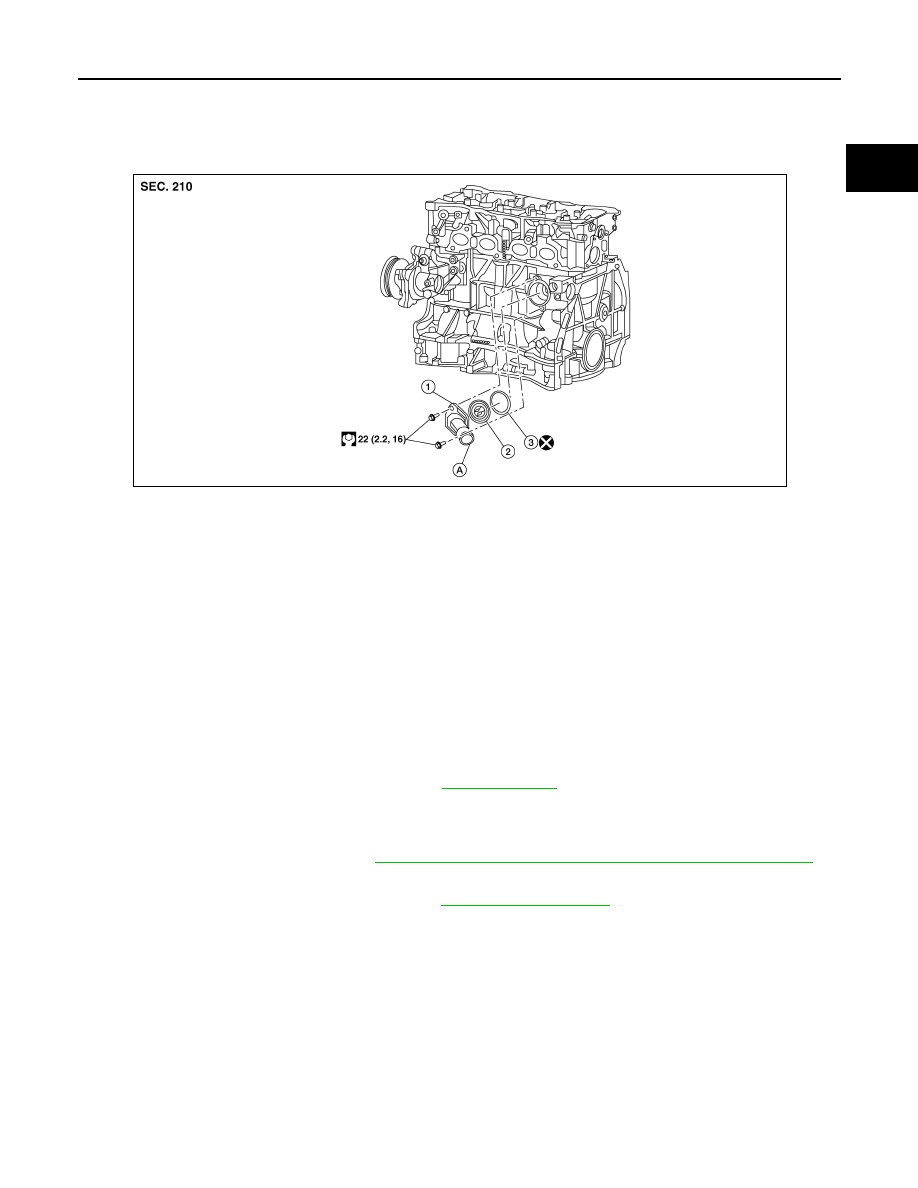

THERMOSTAT AND WATER CONTROL VALVE

Exploded View

INFOID:0000000011279715

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

Removal and Installation

INFOID:0000000011279716

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and

turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down

and turning it all the way.

REMOVAL

1. Drain engine coolant from the radiator. Refer to

CO-8, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.

• Do not spill coolant on drive belt.

2. Remove engine under cover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

.

3. Remove radiator hose (lower) from the water inlet side.
4. Remove exhaust manifold heat shield. Refer to

EM-32, "Exploded View"

.

5. Remove water inlet and thermostat.

INSTALLATION

Installation is in the reverse order of removal.

• Install the thermostat with the whole circumference of the flange fitting securely inside the rubber ring.

CAUTION:

• Do not reuse rubber ring.

• Ensure thermostat rubber ring mounting surface is free from dents or flaws.

1.

Water inlet

2.

Thermostat

3.

Rubber ring

A.

To radiator hose (lower)

AWBIA1966ZZ

CO-22

< REMOVAL AND INSTALLATION >

THERMOSTAT AND WATER CONTROL VALVE

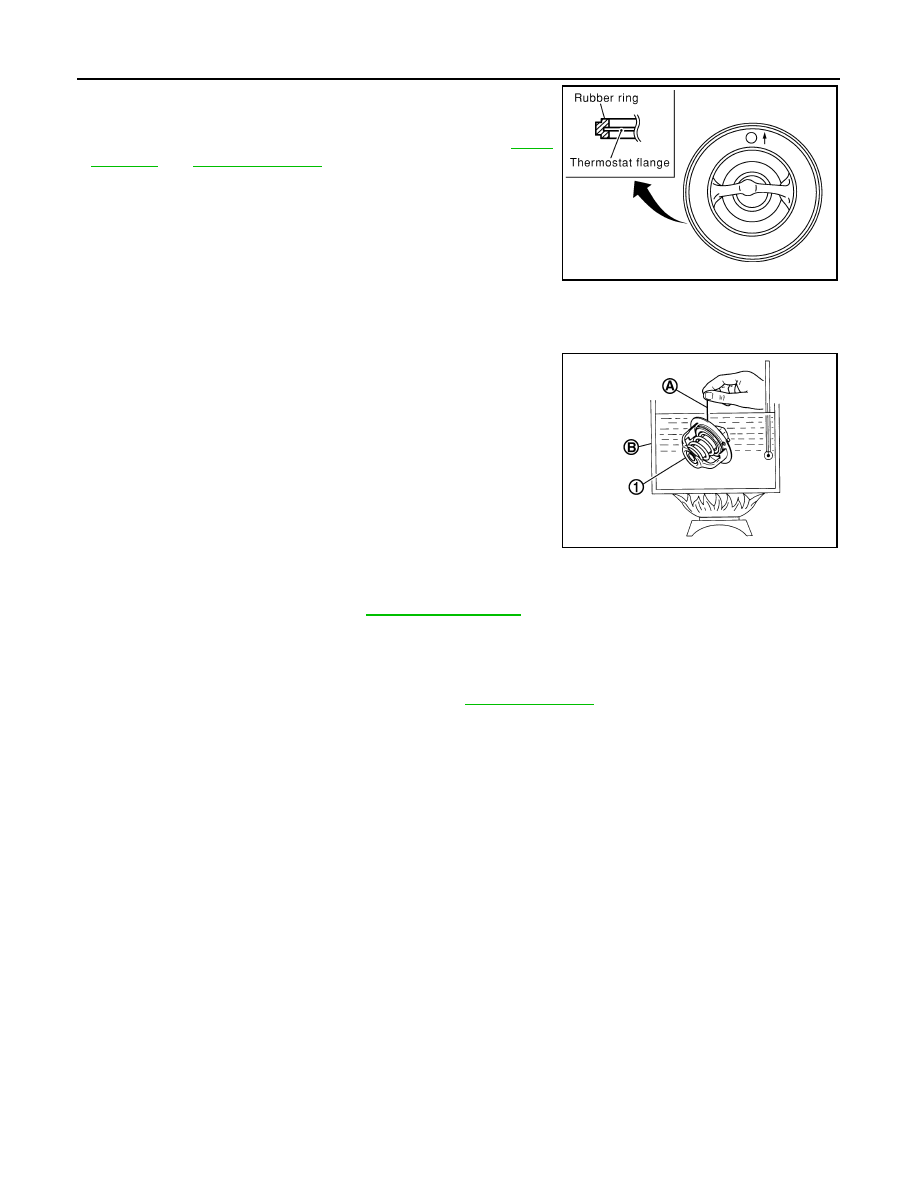

• Install the thermostat with the jiggle valve facing upwards. The

position deviation may be within the range of

±20°.

• After installation, refill coolant and check for leaks. Refer to

CO-9,

"Refilling"

 and

CO-8, "Inspection"

.

Inspection

INFOID:0000000011279717

INSPECTION AFTER REMOVAL

• Place a thread (A) so that it is caught in the valves of thermostat

(1) and water control valve. Immerse fully in a container (B) filled

with water. Heat while stirring. (The example in the figure shows

thermostat.)

• The valve opening temperature is the temperature at which the

valve opens and falls from the thread.

• Continue heating. Check the maximum valve lift amount.

NOTE:

The maximum valve lift amount standard temperature for water

control valve is the reference value.

• After checking the maximum valve lift amount, lower the water

temperature and check the valve closing temperature.

• If out of the standard, replace either or both thermostat and water control valve.

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-8, "Inspection"

.

• Start and warm up engine. Check visually that there is no leakage of engine coolant.

PBIC0157E

Standard
Thermostat

: Refer to

CO-25, "Thermostat"

.

PBIC3314J

WATER OUTLET AND WATER PIPING

CO-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

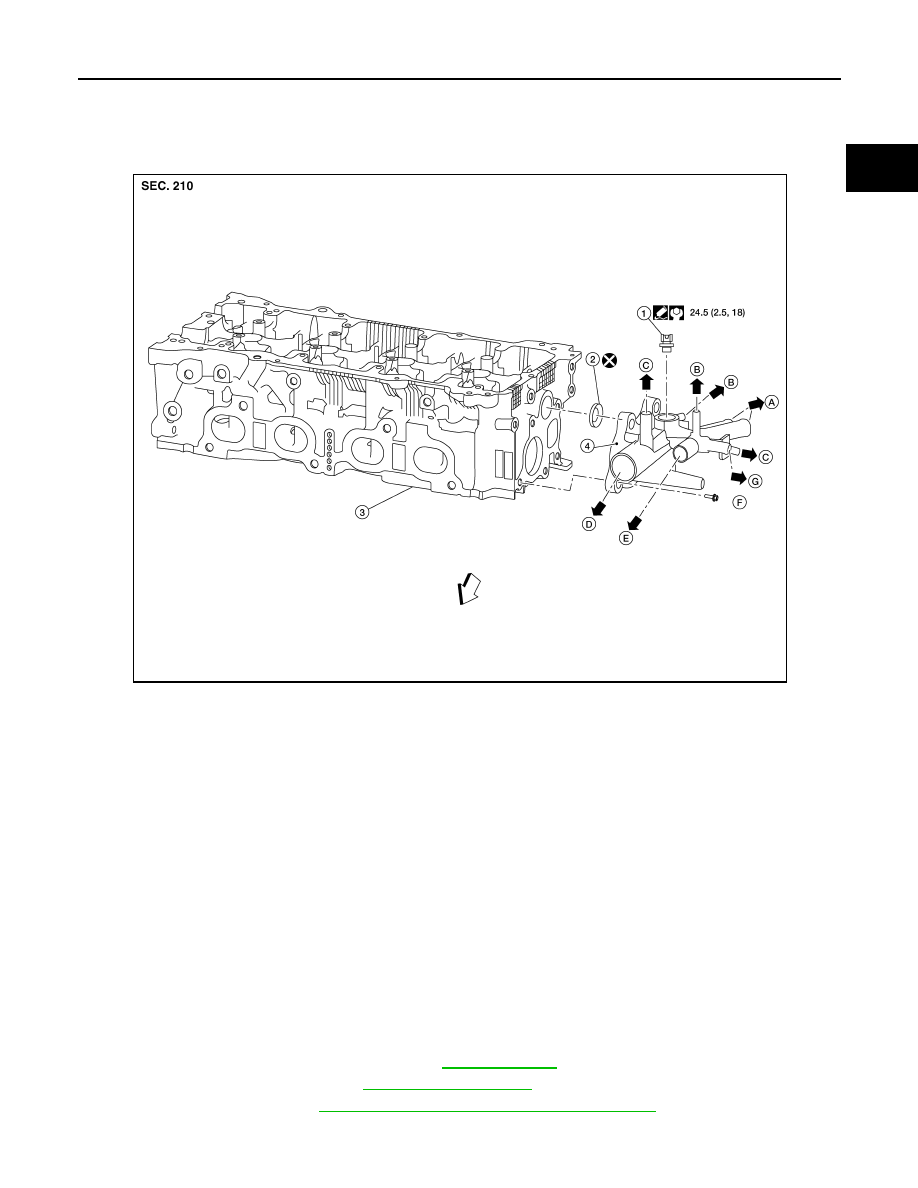

WATER OUTLET AND WATER PIPING

Exploded View

INFOID:0000000011279718

Removal and Installation

INFOID:0000000011279719

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and

turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down

and turning it all the way.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

CAUTION:

Perform when the engine cold.

REMOVAL

1. Drain engine coolant from the radiator. Refer to

CO-8, "Draining"

.

2. Remove air duct assembly. Refer to

EM-26, "Exploded View"

.

3. Remove battery tray. Refer to

PG-79, "Removal and Installation (Battery Tray)"

.

4. Remove ECM/TCM bracket.

1. Water temperature sensor

2.

Water outlet O-ring

3.

Cylinder head

4. Water outlet

A.

To heater core

B.

To electric throttle control ac-
tuator

C. Oil cooler

D.

To radiator hose (upper)

E.

To cylinder block

F. Refer to INSTALLATION

G.

To CVT oil warmer

AWBIA2284ZZ
