CO-16

< REMOVAL AND INSTALLATION >

RADIATOR

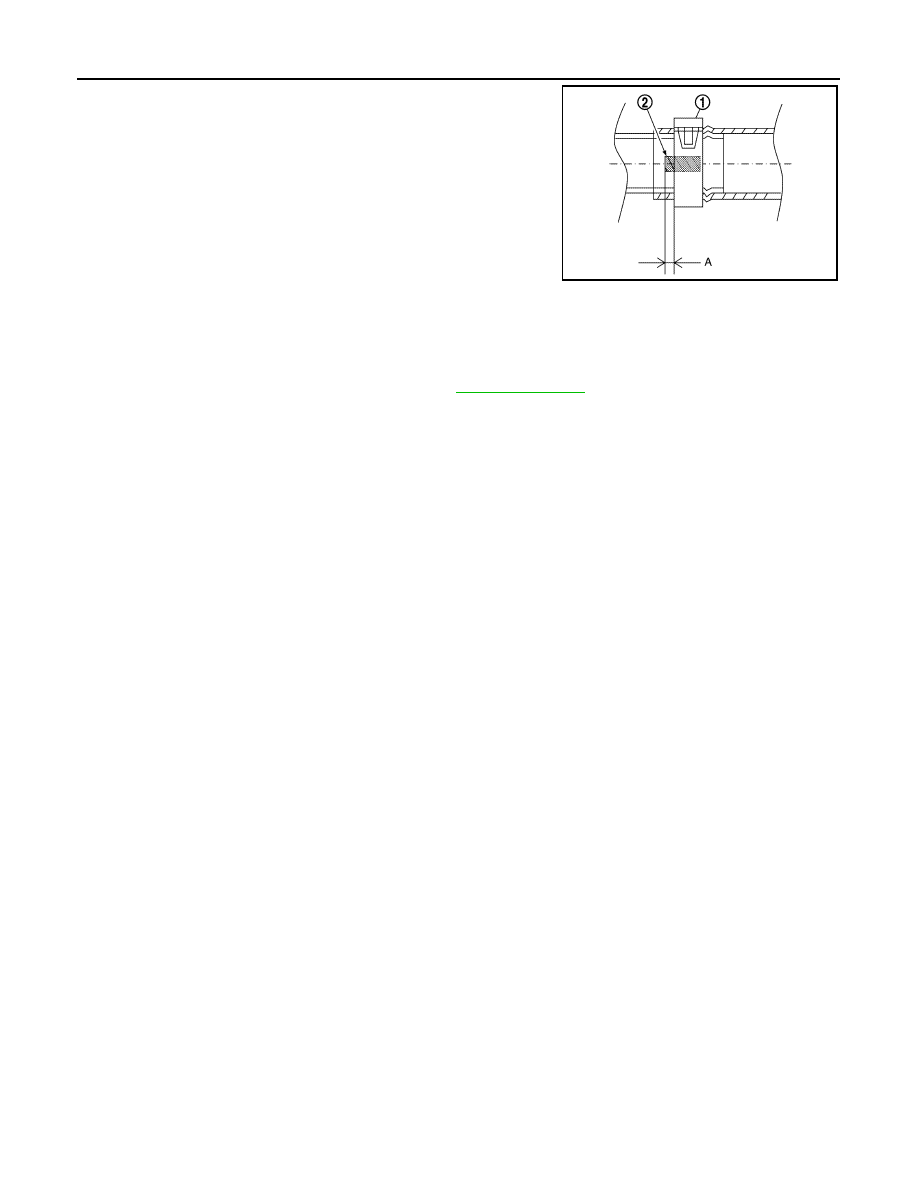

• To install hose clamps (1), check that the dimension (A) from the

end of the hose clamp on the radiator hose (2) to the hose clamp is

within the reference value.

Inspection

INFOID:0000000011279707

INSPECTION AFTER INSTALLATION

• Start and warm up the engine. Check visually and verify that there are no engine coolant leaks, if engine

coolant leaks are found perform inspection. Refer to

CO-8, "Inspection"

.

Dimension “A”

: (-3) – (+3) mm [(-0.12)

− (+0.12) in]

JSBIA0241ZZ

COOLING FAN

CO-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

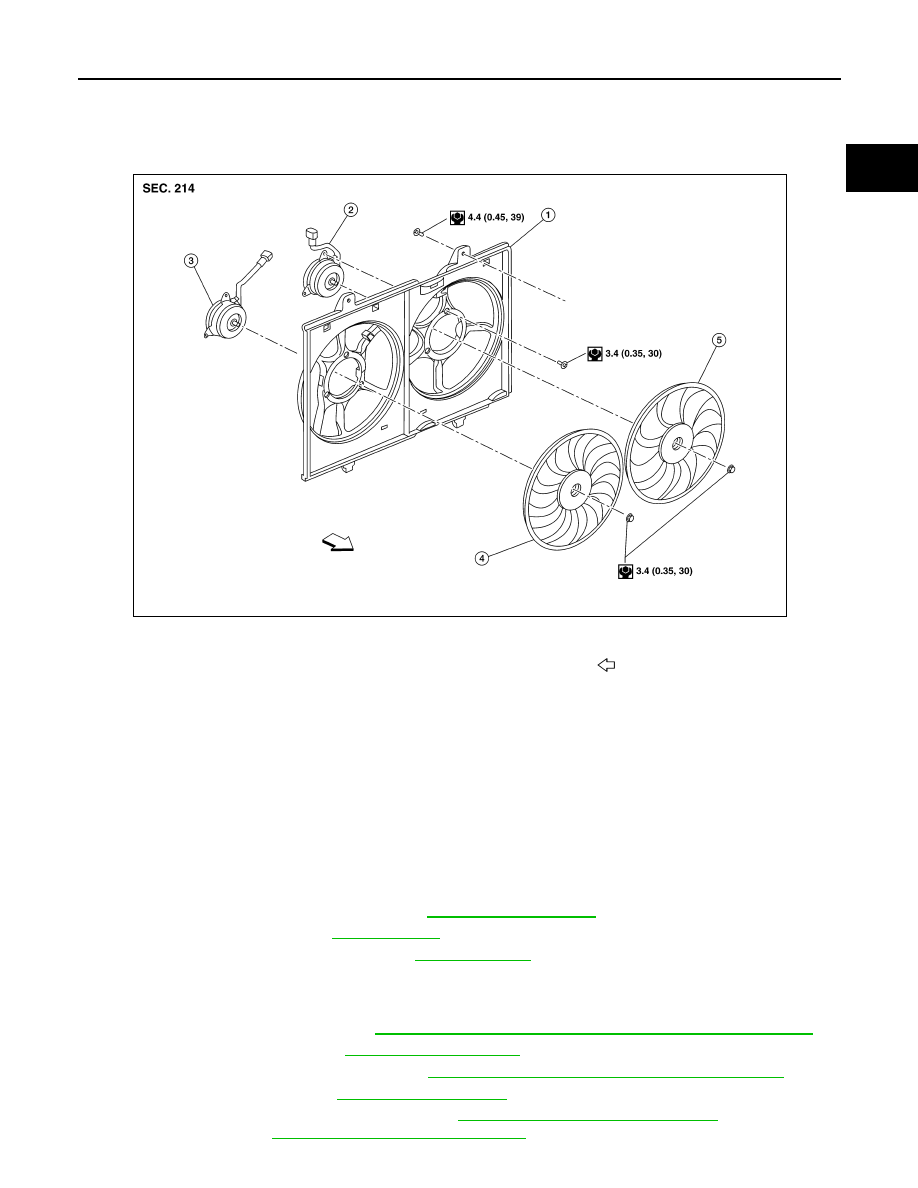

COOLING FAN

Exploded View

INFOID:0000000011279708

Removal and Installation

INFOID:0000000011279709

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter

turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Disconnect battery negative terminal.
2. Disconnect battery positive terminal. Refer to

PG-80, "Exploded View"

.

3. Depower SRS system. Refer to

SR-2, "Service"

.

4. Drain engine coolant from radiator. Refer to

CO-8, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on the drive belt.

5. Remove engine under cover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

.

6. Remove front air spoiler. Refer to

EXT-16, "Exploded View"

.

7. Remove fender protector side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

8. Remove air duct (inlet). Refer to

EM-26, "Exploded View"

.

9. Remove radiator core support (upper). Refer to

DLK-244, "Removal and Installation"

 (WITH INTELLI-

GENT KEY SYSTEM),

DLK-365, "Removal and Installation"

 (WITHOUT INTELLIGENT KEY SYSTEM).

1.

Fan shroud

2.

Fan motor (LH)

3.

Fan motor (RH)

4.

Cooling fan (RH)

5.

Cooling fan (LH)

Front

AWBIA1962ZZ

CO-18

< REMOVAL AND INSTALLATION >

COOLING FAN

10. Remove radiator hose (upper) from radiator. Refer to

CO-13, "Exploded View"

.

CAUTION:

Do not spill engine coolant on the drive belt.

11. Disconnect harness connector from cooling fan controller.
12. Remove harness retainers from fan shroud.
13. Remove CVT cooler hose retainers from fan shroud.
14. Remove reservoir tank hose from fan shroud. Refer to

CO-13, "Exploded View"

.

15. Remove fan shroud. Refer to

CO-17, "Exploded View"

.

CAUTION:

Be careful not to damage the radiator.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not spill engine coolant in the engine compartment. Use a shop cloth to absorb engine coolant.

NOTE:

Cooling fan is controlled by ECM. For details, refer to

EC-66, "On Board Diagnosis Function"

.

Disassembly and Assembly

INFOID:0000000011279710

DISASSEMBLY

1. Remove cooling fan mounting nuts, and then remove the cooling fans (RH and LH).
2. Remove fan motor cover and fan motors (RH and LH).

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

Apply high thread locking sealant to cooling fan motor shaft.

Inspection

INFOID:0000000011279711

INSPECTION AFTER DISASSEMBLY

Cooling Fan

Inspect cooling fan for cracks or unusual bends.

• If anything is found, replace cooling fan.

WATER PUMP

CO-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

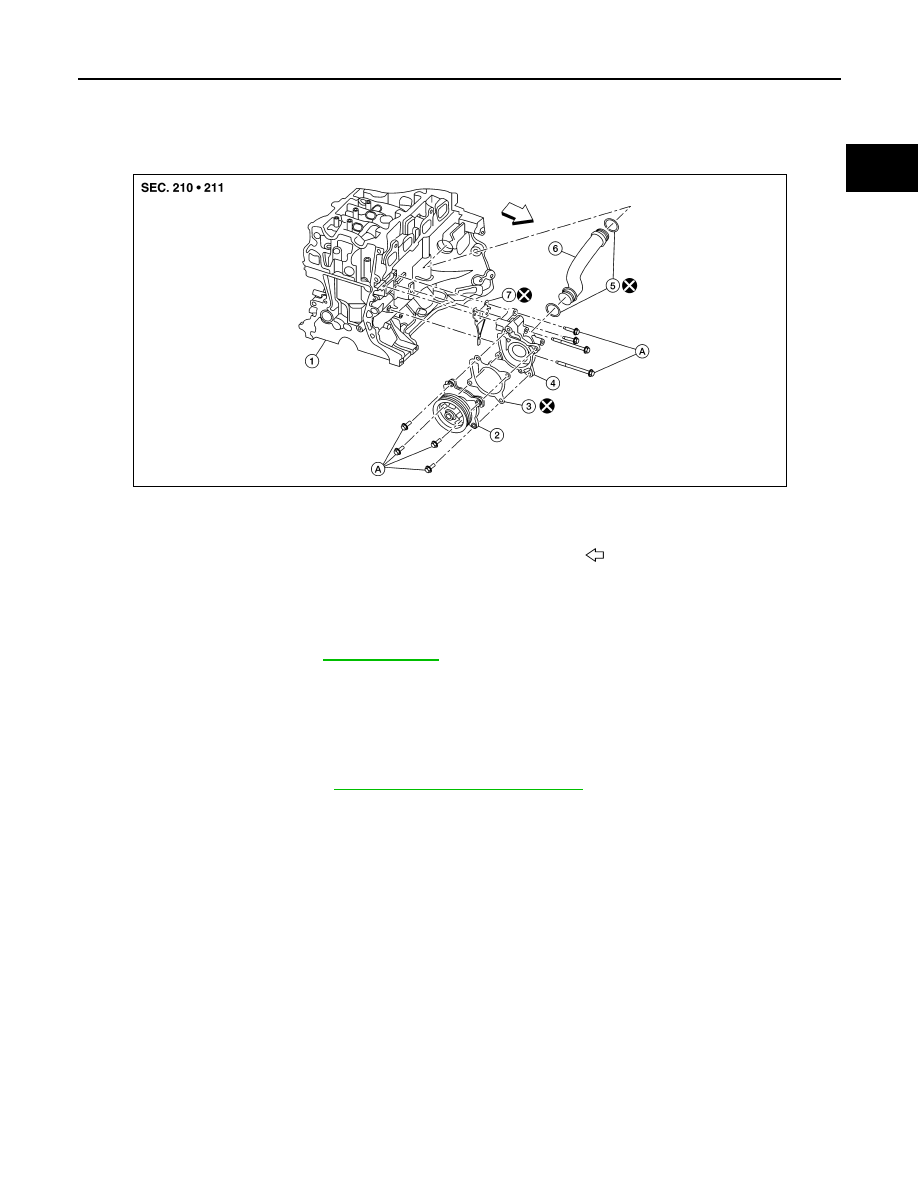

WATER PUMP

Exploded View

INFOID:0000000011279712

Removal and Installation

INFOID:0000000011279713

REMOVAL

1. Drain engine coolant. Refer to

CO-8, "Draining"

.

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pres-

sure coolant escaping from the radiator.

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on the drive belt.

2. Remove the generator. Rafer to

CHG-20, "Removal and Installation"

.

3. Remove water pump.

• Engine coolant will leak from the cylinder block.

CAUTION:

• Handle water pump vane so that it does not contact any other parts.

• Water pump cannot be disassembled and should be replaced as a unit.

INSTALLATION

1. Tighten water pump bolts in sequence to specification.

CAUTION:

1.

Cylinder block

2.

Water pump

3.

Water pump gasket

4.

Water pump housing

5.

O-ring

6.

Water pipe

7.

Water pump housing gasket

A.

Refer to INSTALLATION

Front

AWBIA1963ZZ
