BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

«The others»

Unit: mm (in)

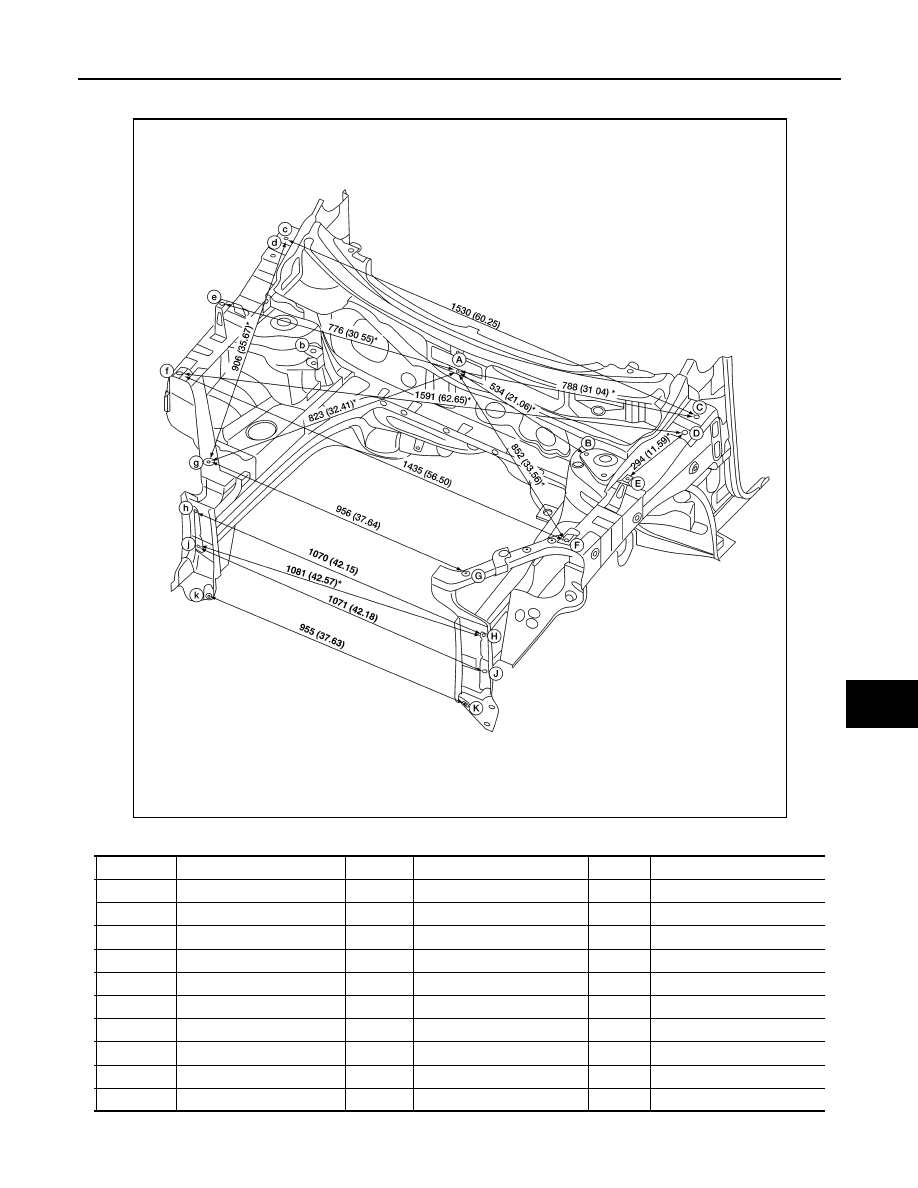

ALKIA3291ZZ

Point

Dimension

Point

Dimension

Point

Dimension

A - D

774 (30.49)*

B - F

432 (17.04)*

C - G

906 (35.67)*

A - E

776 (30.49)*

    B - f

1305 (51.41)*

C - g

1511 (59.50)*

A - G

832 (32.41)*

B - G

596 (23.48*)

D - g

1472 (57.98)*

B - b

1057 (41.64)

B - g

1189 (46.83)*

F - f

1435 (56.50)*

B - C

357 (14.06)*

C - D

70.0 (2.76)*

F - g

1216 (47.91)*

B - c

1321 (52.02)*

C - d

1520 (59.84)*

E - e

1509 (59.43)

B - D

308 (12.13)*

    C - E

361 (14.22)*

E - f

1500 (59.07)*

B - d

1309 (51.54)*

C - e

1562 (61.50)*

G - e

1334 (52.54)*

B - E

263 (10.37)*

C - F

648 (25.53)*

H - J

152 (6.01)*

B - e

1290 (50.81)*

C - f

1617 (63.68)*

H - k

1081 (42.59)*

BRM-46

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

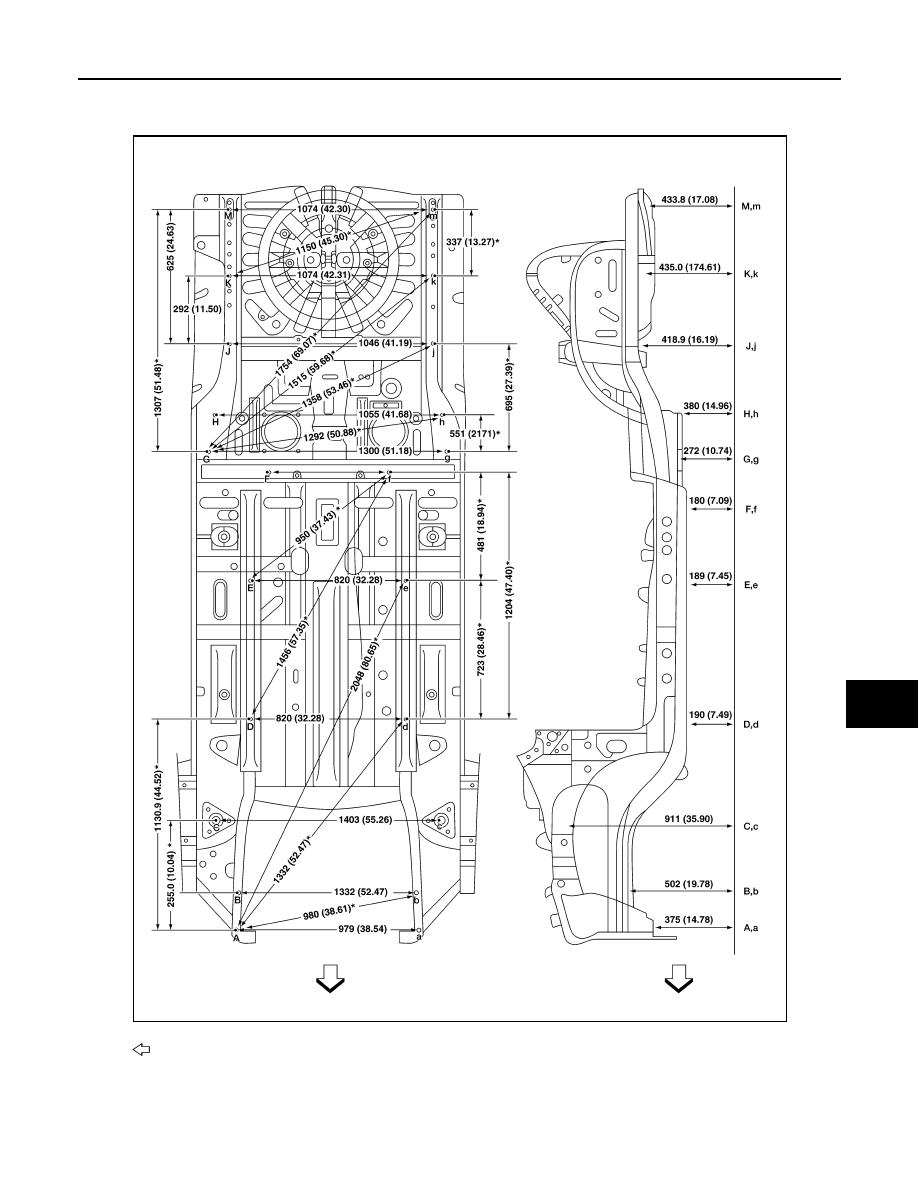

MEASUREMENT POINTS

Unit: mm (in)

Underbody

INFOID:0000000011280098

MEASUREMENT

Front

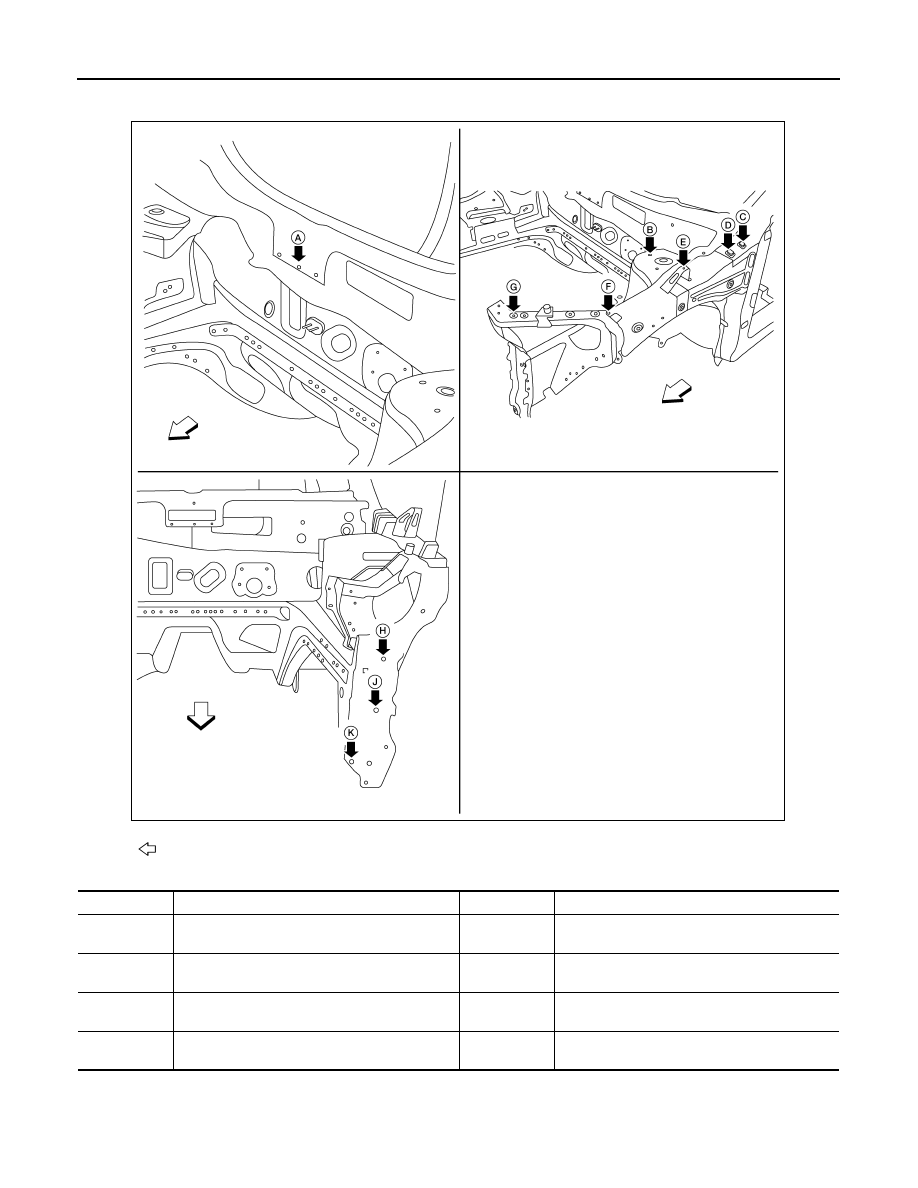

ALKIA3294ZZ

Point

Material

Point

Material

A

Cowl top extension hole center of center position-
ing mark

φ8 (0.31)

 G, g

Hole for headlight bracket

φ7 (0.28)

B, b

Front strut installing hole center 16

×10

(0.63

×0.39)

H, h

Front side member hole center front bumper

φ11

(0.43)

C,c D,d

Hood hinge installing hole center

φ12 (0.47)

J, j

Front side member hole center front bumper

φ13

(0.51)

 E, e, F, f

Upper front fender bracket hole center

φ7 (0.28)

 K, k

Radiator lower bracket hole
φ11 (0.43)

BODY ALIGNMENT

BRM-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

Front

ALKIA3295ZZ

BRM-48

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

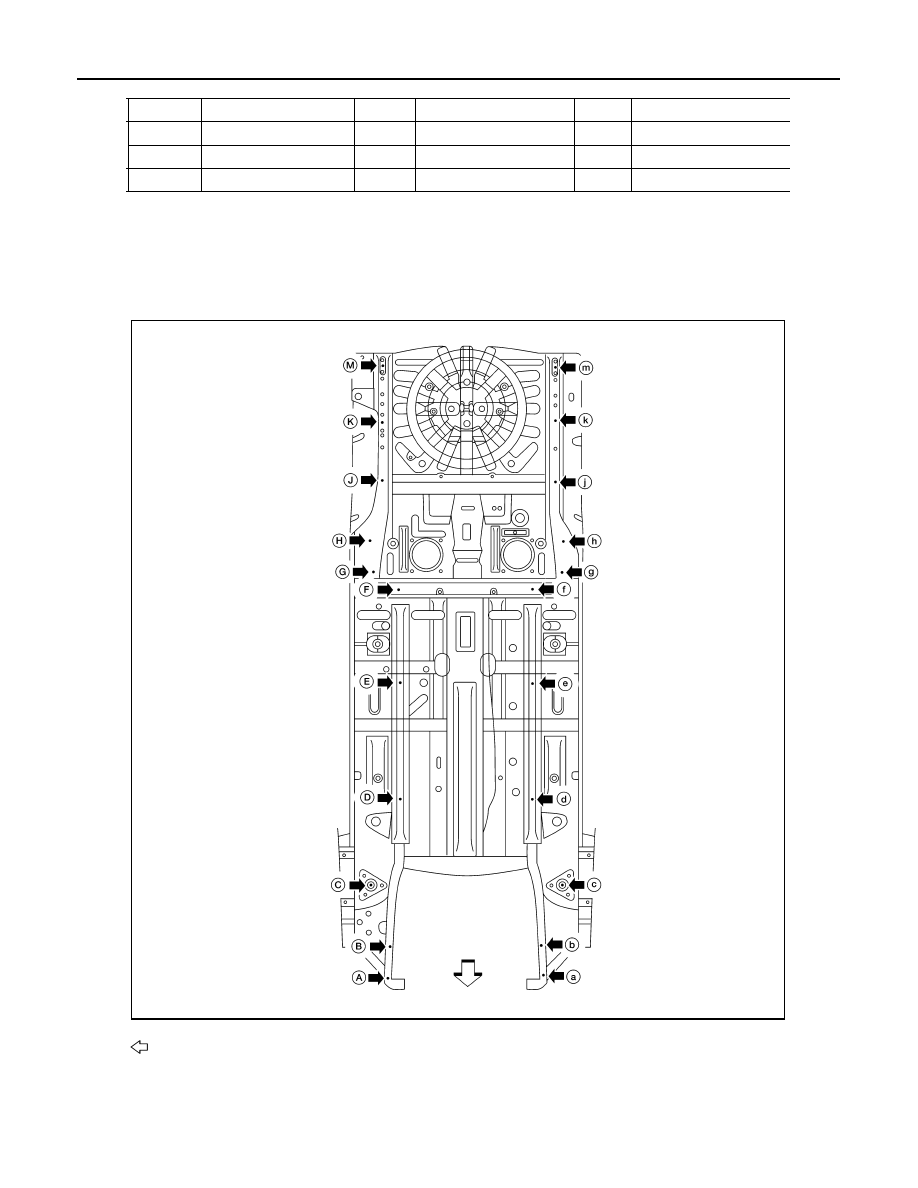

MEASUREMENT Points

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

MEASUREMENT POINTS

Point

Dimension

Point

Dimension

Point

Dimension

A - B

255 (10.04)

G - J

1358 (53.46)

J - k

1084 (42.68)

A - E

1847 (72.73)

g - k

975 (38.42)

K - M

337 (13.27)

D - e

1093 (43.04)

Front

ALKIA3300ZZ
