Replacement part

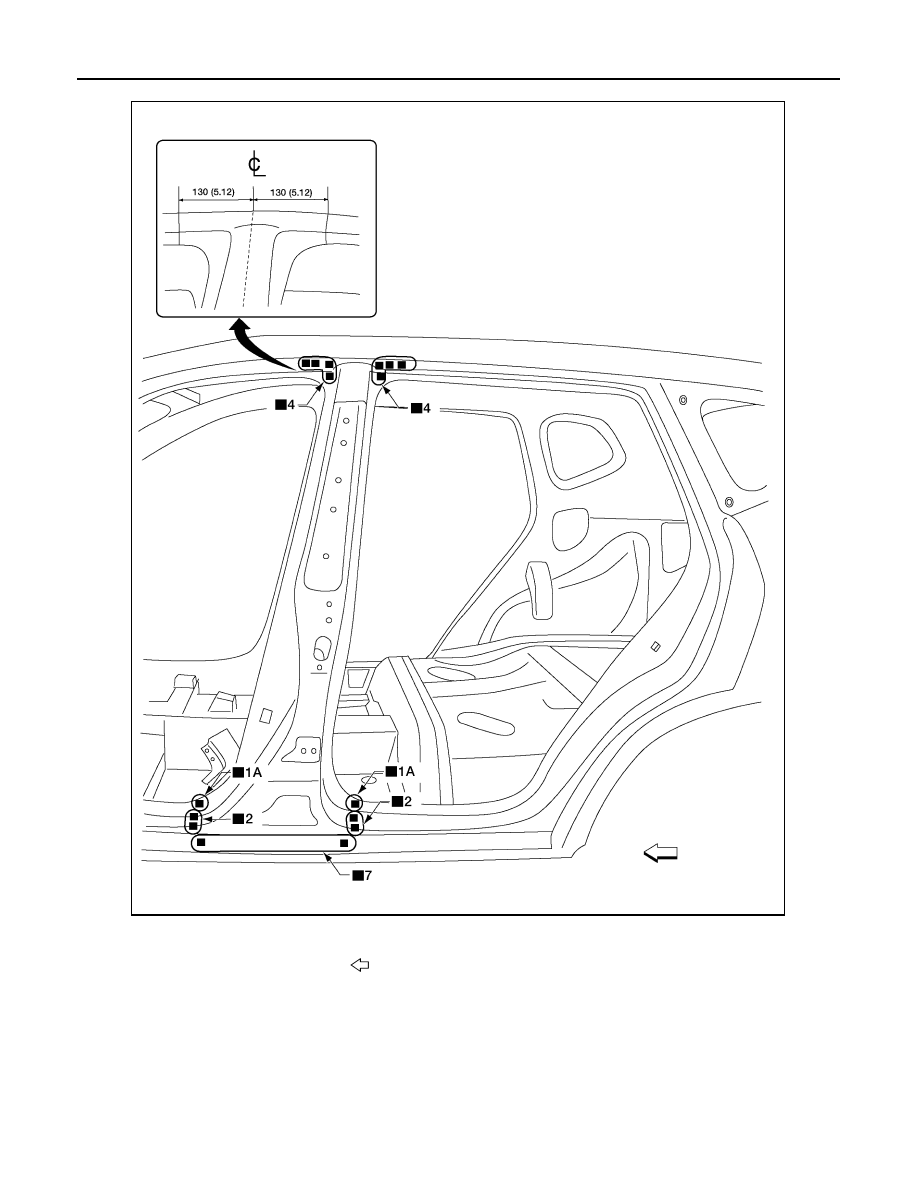

z Outer center pillar

Front

ALKIA3315ZZ

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

Replacement part

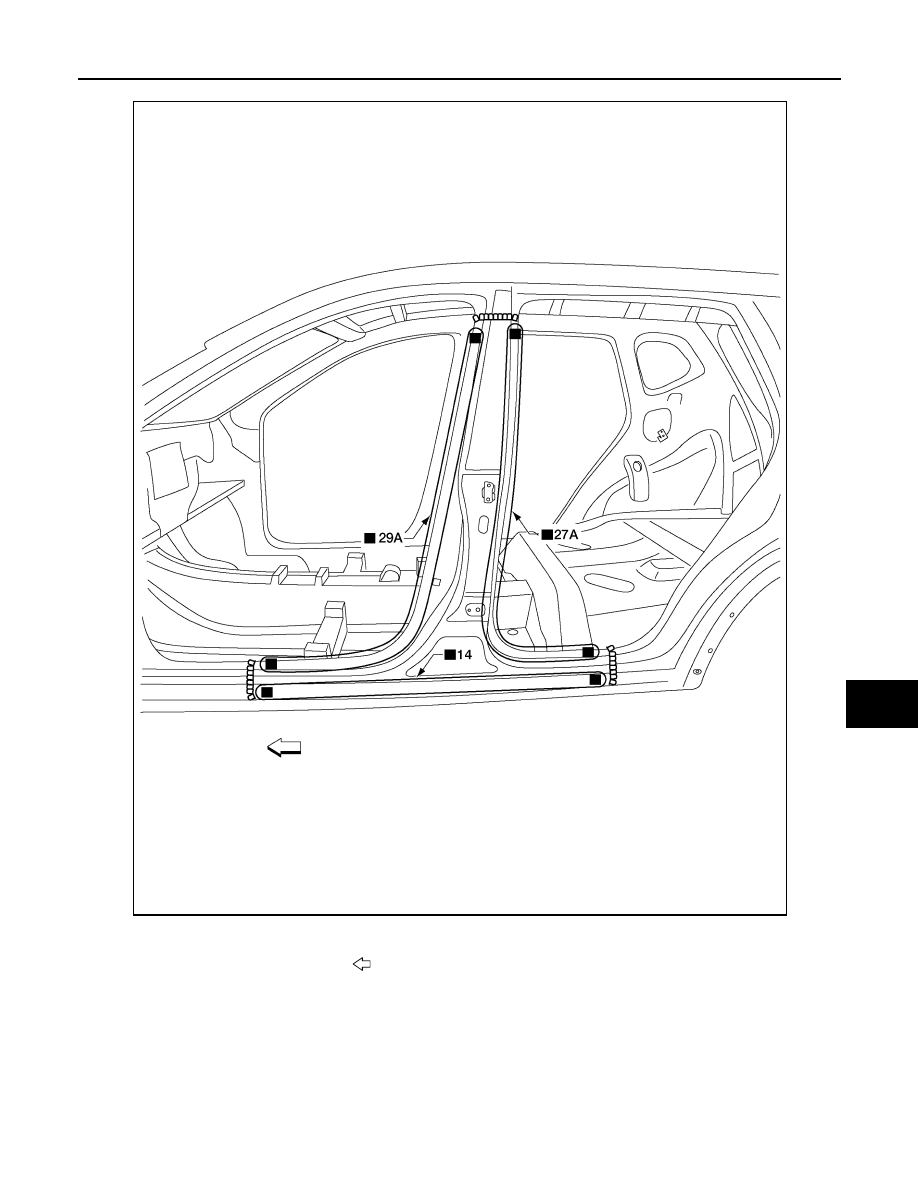

z Center pillar reinforcement

Front

ALKIA3316ZZ

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

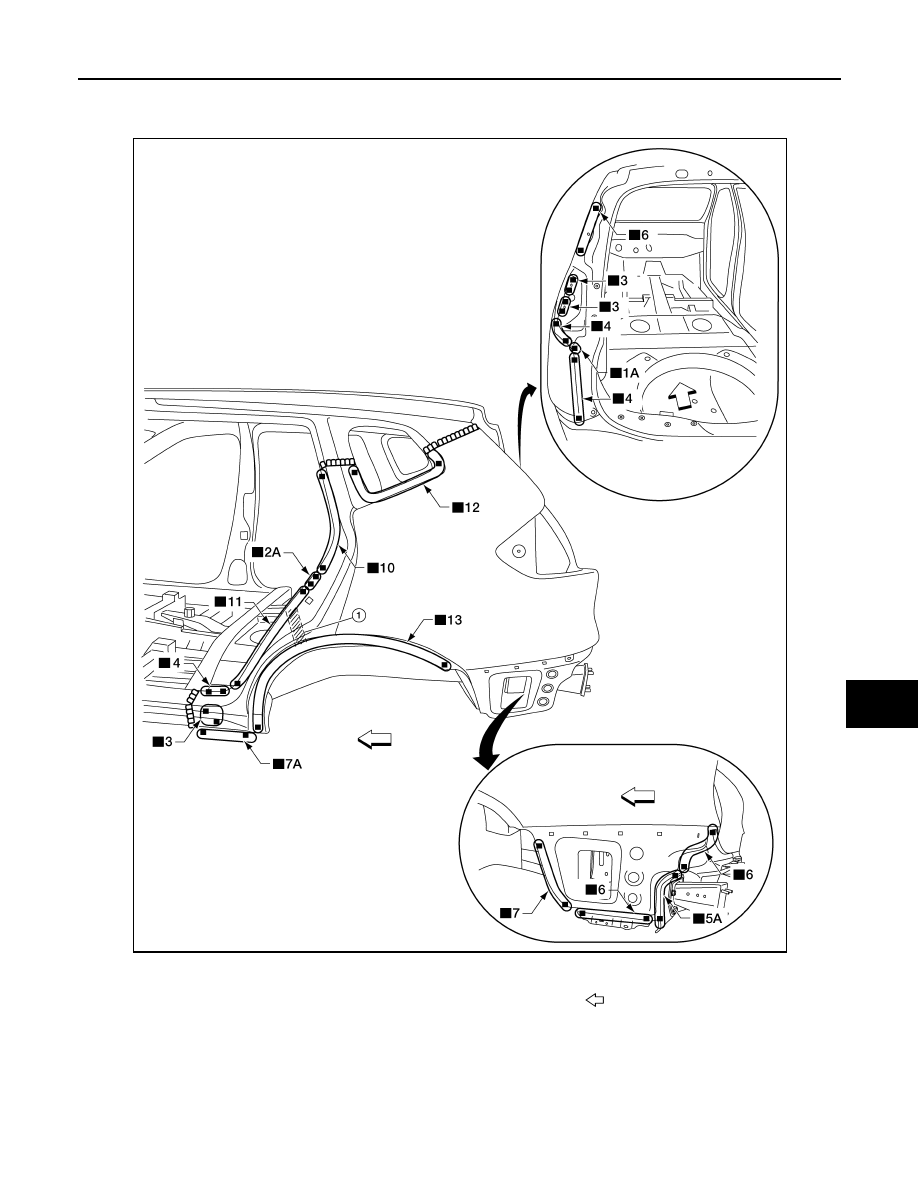

Rear Fender

INFOID:0000000011280091

Replacement parts

z

Rear fender assembly (LH)

1.

Urethane foam

Front

AWKIA2873ZZ

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Panel

INFOID:0000000011280092

Rear Floor Rear

INFOID:0000000011280093

Work after rear panel has been removed.

Replacement parts

z

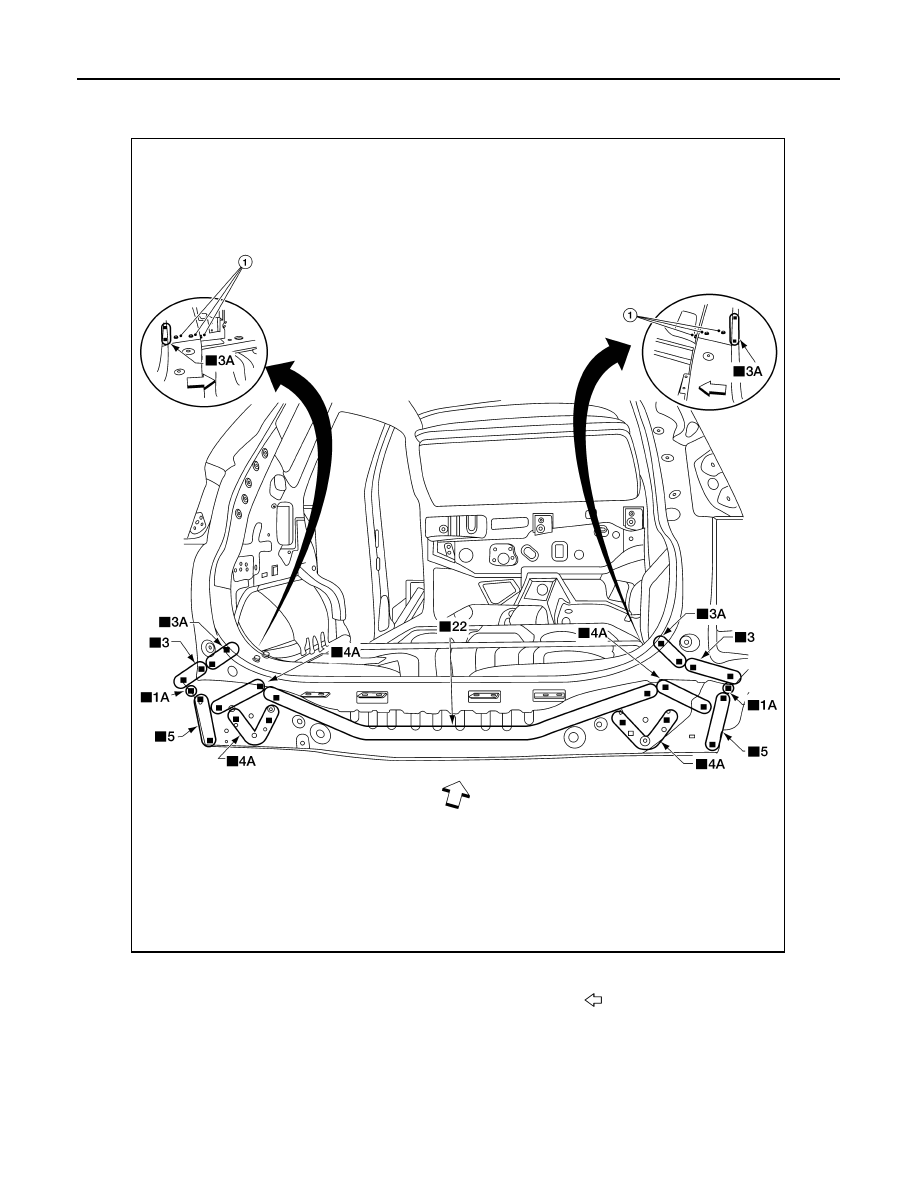

Rear panel assembly

1.

Bolt

Front

ALKIA2861ZZ
