Nissan Rogue. Manual - part 147





BR-58

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000011590396

Unit: mm (in)

Brake Pedal

INFOID:0000000011590397

Unit: mm (in)

Front disc brake
(One piston caliper)

Cylinder bore diameter

60.33 (2.375)

Pad length

× width × thickness

123.6

× 46.5 × 11.0 (4.87 × 1.870 × 0.433)

Disc brake rotor outer diameter

× thickness

296

× 26.0 (11.65 × 1.024)

Front disc brake
(Two piston caliper)

Cylinder bore diameter

60.33 (2.375)

Pad length

× width × thickness

133.6

× 47.5 × 11.0 (5.26 × 1.909 × 0.433)

Disc brake rotor outer diameter

× thickness

320

× 28.0 (12.60 × 1.102)

Rear disc brake

Cylinder bore diameter

38.1 (1.5)

Pad length

× width × thickness

83.0

× 31.9 × 8.5 (3.268 × 1.256 × 0.335)

Disc brake rotor outer diameter

× thickness

292

× 16.0 (11.50 × 0.630)

Master cylinder

Cylinder bore diameter

23.8 (15/16)

Control valve

Valve type

Electric brake force distribution

Recommended brake fluid

Refer to

MA-11, "Fluids and Lubricants"



Item

Standard

Brake pedal height (H)

175.9 – 185.9 (6.93 – 7.32)

Clearance (A) between brake pedal stopper bracket (2), stop lamp switch (4) and brake
pedal position switch (1) contact ends

0.20 – 1.96 (0.0079 – 0.0772)

Brake pedal full stroke (S)

135.1 (5.32)

Brake pedal play

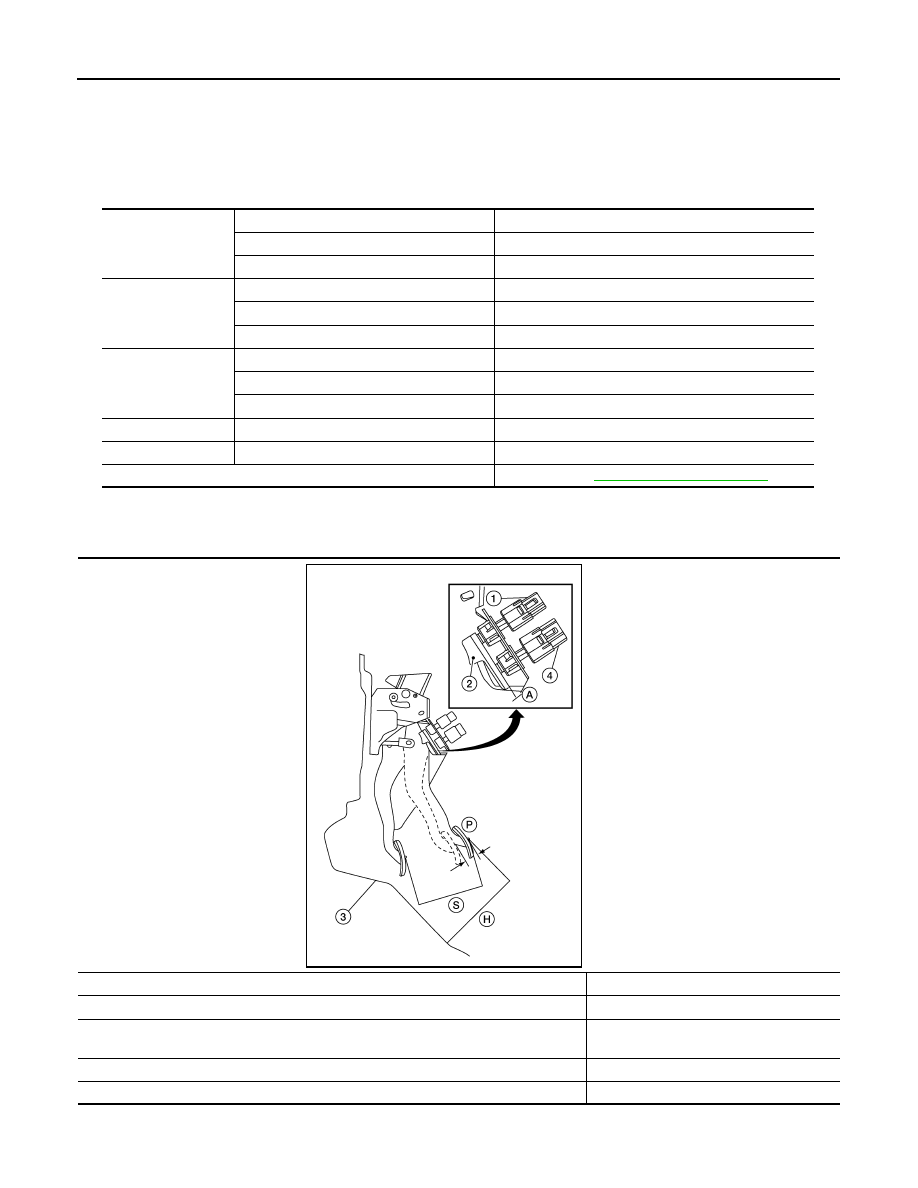

ALFIA0437ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-59

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Brake Booster

INFOID:0000000011590398

Unit: mm (in)

Front Disc Brake

INFOID:0000000011590399

Unit: mm (in)

Rear Disc Brake

INFOID:0000000011590400

Unit: mm (in)

Item

Standard

Input rod length

159.7 (6.29)

Item

Limit

Brake pad

Wear limit thickness

2.0 (0.079)

Disc brake rotor

Wear limit thickness

24.0 (0.945)

Thickness variation (measured at 8 positions)

0.020 (0.0008)

Runout limit (with it attached to the vehicle)

0.035 (0.0014)

Item

Limit

Brake pad

Wear limit thickness

1.5 (0.059)

Disc brake rotor

Wear limit thickness

14.0 (0.551)

Thickness variation (measured at 8 positions)

0.020 (0.0008)

Runout limit (with it attached to the vehicle)

0.070 (0.0028)

BRC-1
