Nissan Rogue. Manual - part 141





BR-34

< REMOVAL AND INSTALLATION >

FRONT DISC BRAKE

FRONT DISC BRAKE

BRAKE PAD (1 PISTON TYPE)

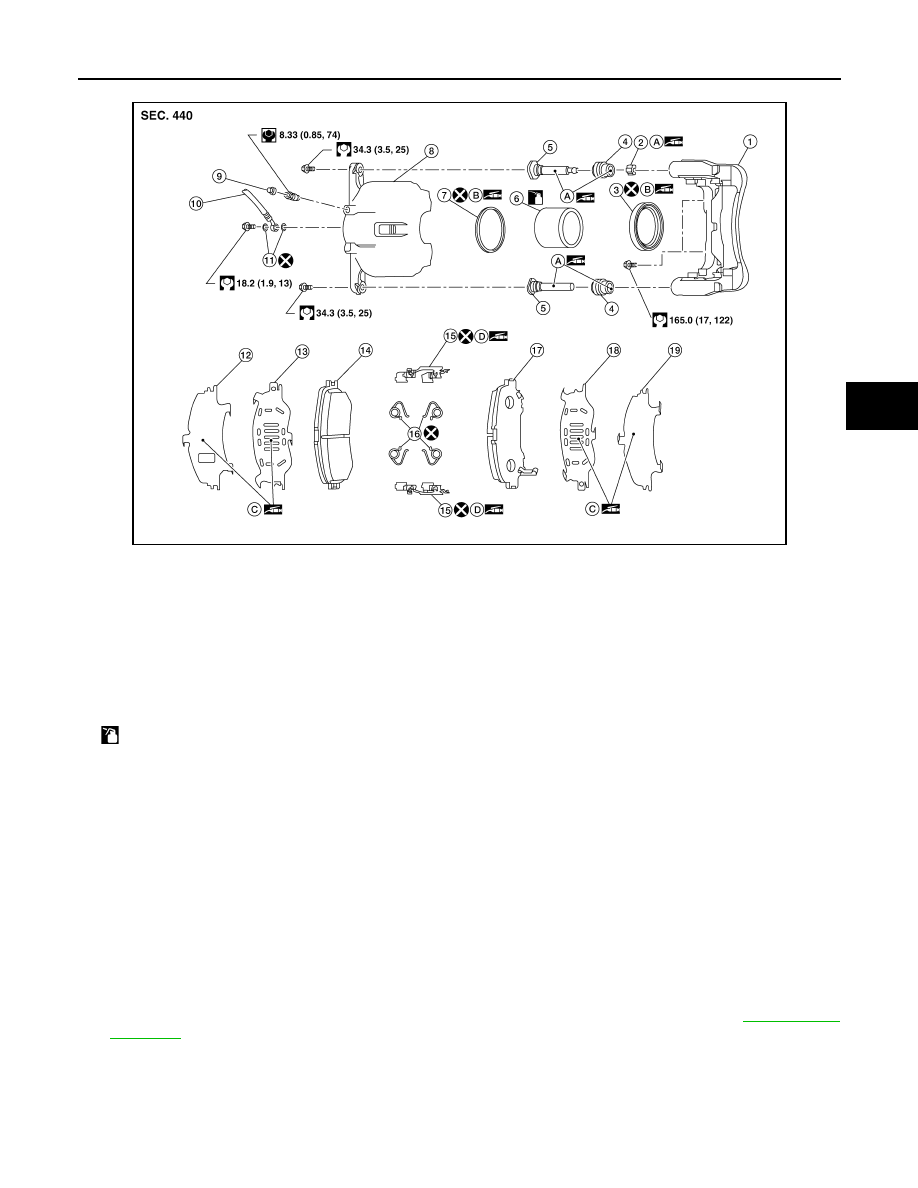

BRAKE PAD (1 PISTON TYPE) : Exploded View

INFOID:0000000011279887

USA Production

AWFIA1112ZZ

1.

Torque member

2.

Bushing

3.

Piston boot

4.

Slide pin boot

5.

Slide pin

6.

Piston

7.

Piston seal

8.

Brake caliper body

9.

Bleeder cap

10. Brake hose

11. Copper sealing washers

12. Inner shim cover

13. Inner shim

14. Inner pad

15. Pad retainer

16. Anti-rattle clip

17. Outer pad

18. Outer shim

19. Outer shim cover

A.

Niglube Rx-2

B.

Rubber grease

C.

Molykote® AS-880N

D.

Molykote® 7439

: Apply brake fluid.

FRONT DISC BRAKE

BR-35

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Korea Production

BRAKE PAD (1 PISTON TYPE) : Removal and Installation

INFOID:0000000011279888

REMOVAL

WARNING:

Clean dust on brake caliper and brake pad with a vacuum dust collector to minimize the hazards of air-

borne particles or other material.

CAUTION:

• Do not depress the brake pedal while removing the brake pads because the pistons may pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of brake caliper. For brake pad removal, hang brake caliper with a wire so as not to

stretch brake hose.

• If brake fluid or grease adheres to the brake caliper or disc brake rotor, quickly wipe it off.

• Do not reuse drained brake fluid.
1. Observe brake fluid level in reservoir tank. Partially drain brake fluid if necessary. Refer to

BR-16, "Drain

and Refill"

.

2. Remove the front wheels and tires using power tool.
3. Remove slide pin bolts.
4. Remove the front brake caliper from the torque member. Leaving brake hose attached, reposition the

brake caliper aside with wire.

5. Remove the brake pads, shims, shim covers, pad retainers, and anti-rattle clips from the torque member.

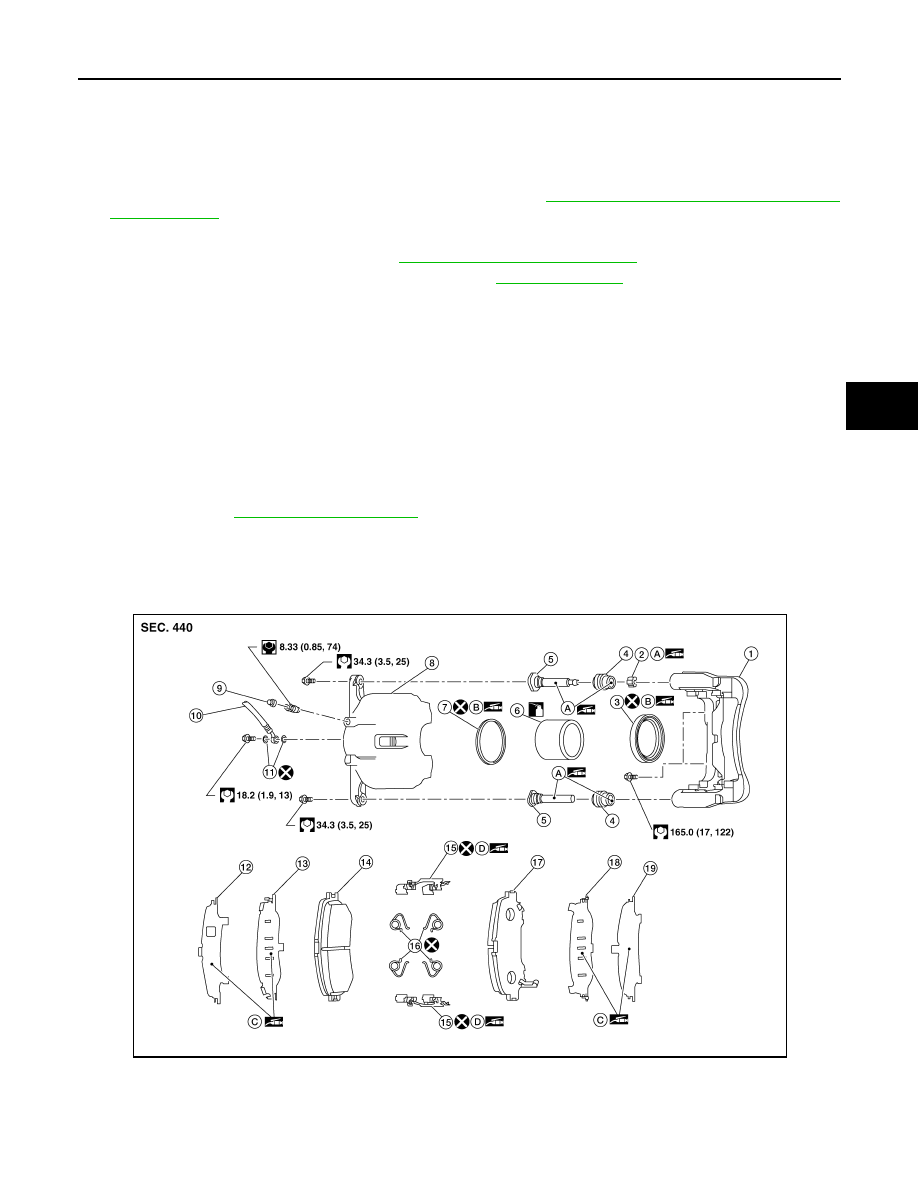

AWFIA1129ZZ

1.

Torque member

2.

Bushing

3.

Piston boot

4.

Slide pin boot

5.

Slide pin

6.

Piston

7.

Piston seal

8.

Brake caliper body

9.

Bleeder cap

10. Brake hose

11. Copper sealing washers

12. Inner shim cover

13. Inner shim

14. Inner pad

15. Pad retainer

16. Anti-rattle clip

17. Outer pad

18. Outer shim

19. Outer shim cover

A.

Niglube Rx-2

B.

Rubber grease

C.

Molykote® AS-880N

D.

Molykote® 7439

: Apply brake fluid.

BR-36

< REMOVAL AND INSTALLATION >

FRONT DISC BRAKE

CAUTION:

• Do not reuse the pad retainers and anti-rattle clips.

• Do not damage the piston boot.

• Do not drop the brake pads, shims, or the shim covers.

• Note the position of components during removal to aid with installation.

6. Compress the front caliper piston.

INSTALLATION

1. Install the new pad retainers and anti-rattle clips to the torque member.

CAUTION:

• Do not reuse the pad retainers and anti-rattle clips.

• Do not deform the pad retainers.

• Verify that the pad retainers are secured properly to the torque member.

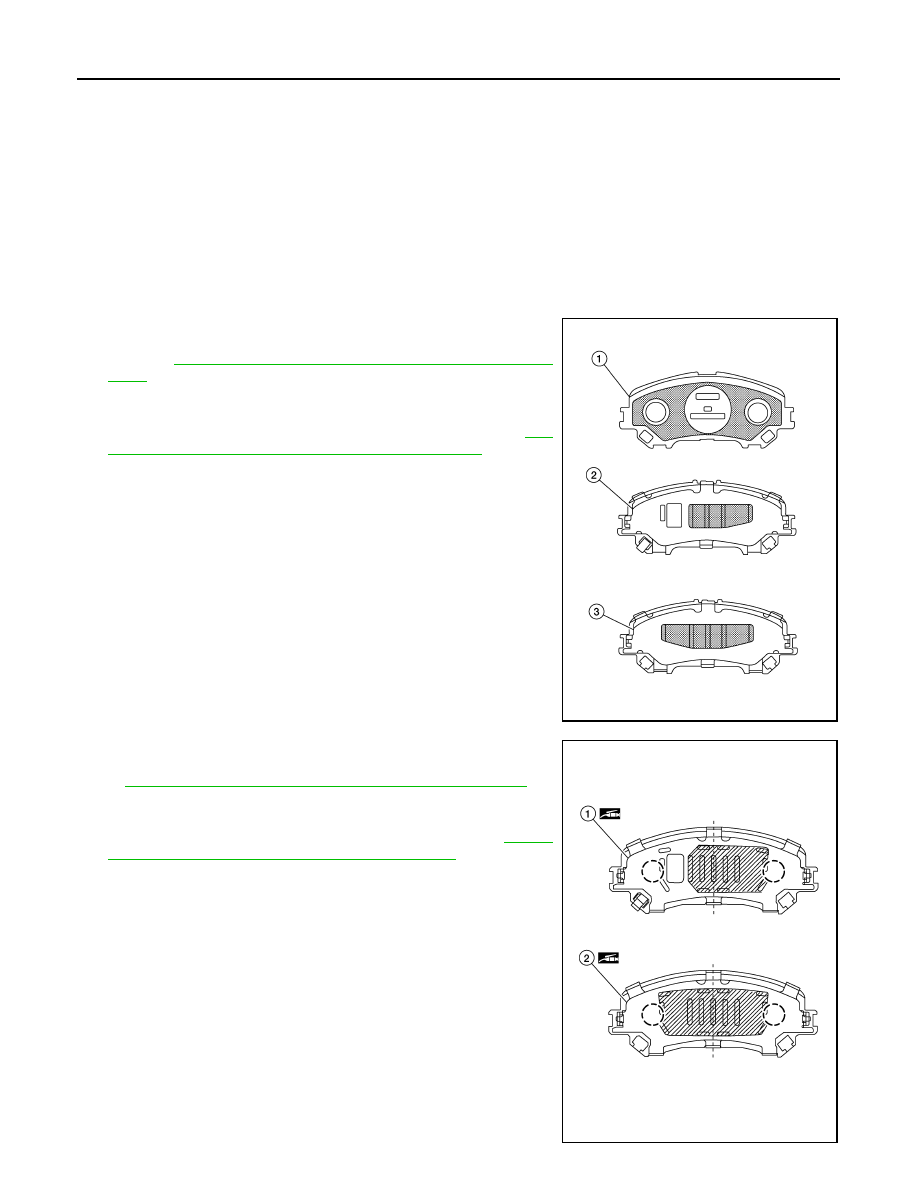

2. For USA Production apply Molykote® AS-880N grease to the

mating faces between the brake pads (1) and pad retainers.

Refer to

BR-34, "BRAKE PAD (1 PISTON TYPE) : Exploded

View"

.

3. For USA Production apply Molykote® AS-880N grease to the

mating faces between the brake pads (1), inner shim (2) and

outer shim (3), and install them to the brake pad. Refer to

BR-

34, "BRAKE PAD (1 PISTON TYPE) : Exploded View"

.

CAUTION:

When installing new brake pads, replace the shims and

shim covers.

4. For Korea Production, apply Molykote® AS-880N grease to the

mating faces between the brake pads and pad retainers. Refer

to

BR-34, "BRAKE PAD (1 PISTON TYPE) : Exploded View"

.

5. For Korea Production, apply Molykote® AS-880N grease to the

mating faces between the brake pads inner shim (1) and outer

shim (2), and install them to the brake pad. Refer to

BR-34,

"BRAKE PAD (1 PISTON TYPE) : Exploded View"

.

CAUTION:

When installing new brake pads, replace the shims and

shim covers.

ALFIA0445ZZ

ALFIA0504ZZ

FRONT DISC BRAKE

BR-37

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

6. Install the brake pads to the torque member.
7. Using a suitable tool, press the piston into the brake caliper.

CAUTION:

Do not damage the piston boot.

8. Install the brake caliper to the torque member.
9. Install the slide pin bolts and tighten to specification. Refer to

BR-34, "BRAKE PAD (1 PISTON TYPE) :

Exploded View"

.

10. Depress the brake pedal several times and verify that drag does not exist.
11. Install the front wheels and tires. Refer to

WT-67, "Removal and Installation"

.

12. Check brake fluid level and refill as necessary. Refer to

BR-8, "Inspection"

.

INSPECTION AFTER INSTALLATION

1. Check the drag of front disc brake. If any drag is found, follow the procedure described below.
2. Remove brake pads.
3. Using a suitable tool, press the piston into the brake caliper body.

CAUTION:

Do not damage the piston boots.

4. Install brake pads.
5. Depress the brake pedal several times.
6. Check the drag of front disc brake again. If any drag is found, disassemble the brake caliper body.
7. Burnish contact surfaces after refinishing or replacing disc brake rotors or if a soft pedal occurs at very low

mileage. Refer to

BR-18, "Brake Burnishing"

.

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)

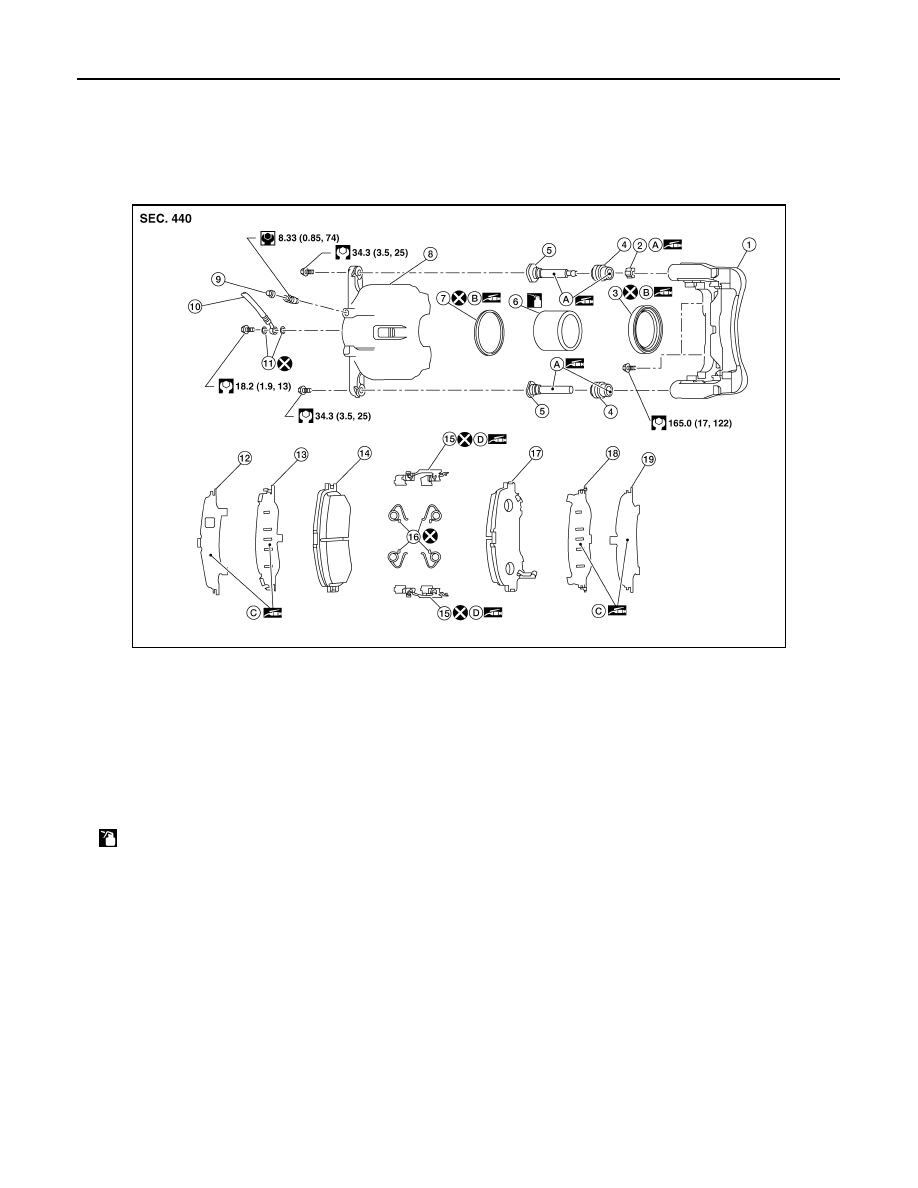

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View

INFOID:0000000011279889

1.

Torque member

2.

Bushing

3.

Piston boot

4.

Slide pin boot

5.

Slide pin

6.

Piston

7.

Piston seal

8.

Brake caliper body

9.

Bleeder cap

AWFIA1112ZZ
