BR-30

< REMOVAL AND INSTALLATION >

BRAKE MASTER CYLINDER

2. Tilt the reservoir tank so that the pin can be inserted. Insert a pin

using suitable tools.

JPFIA0303ZZ

BRAKE BOOSTER

BR-31

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE BOOSTER

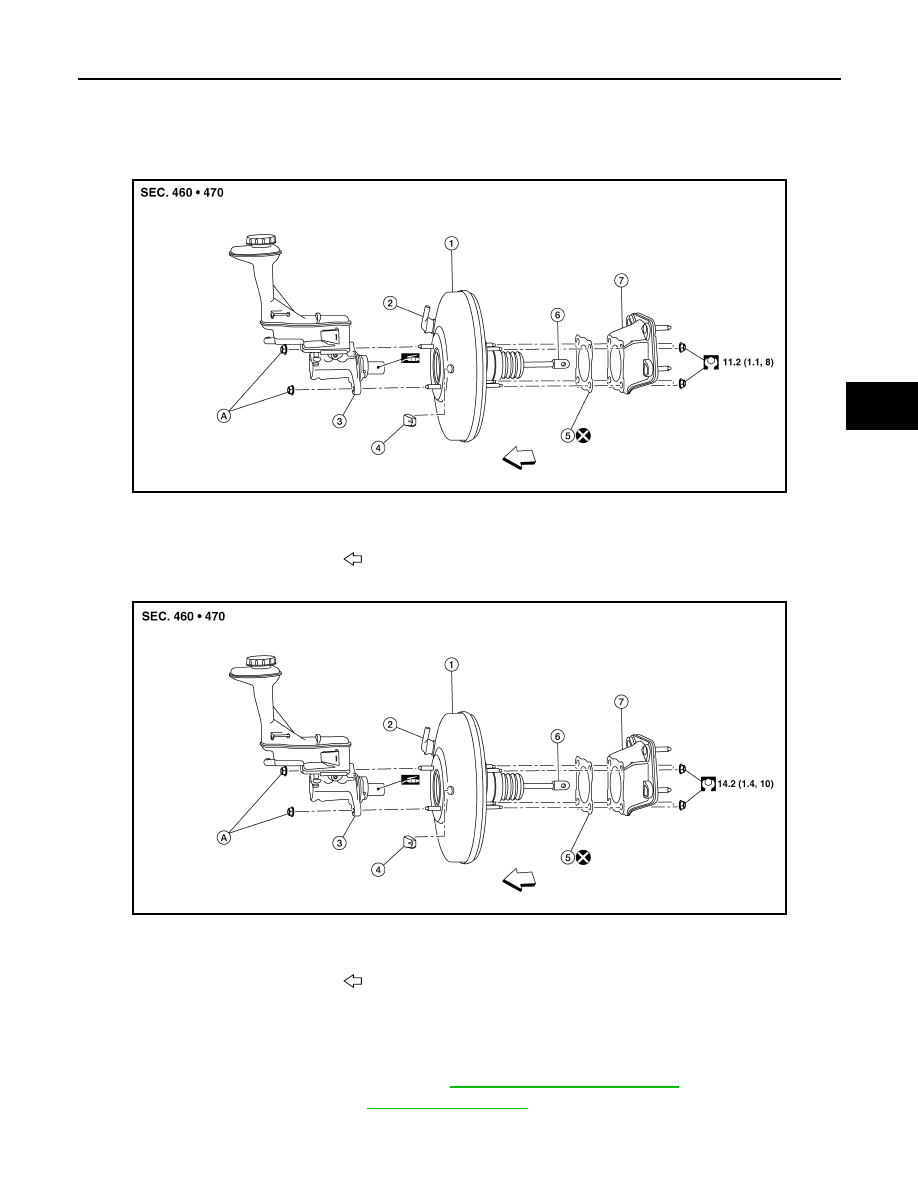

Exploded View

INFOID:0000000011279883

USA Production

Korea Production

Removal and installation

INFOID:0000000011279884

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

2. Remove the knee protector. Refer to

IP-14, "Exploded View"

.

ALFIA0487ZZ

1.

Brake booster

2.

Check valve

3.

Master cylinder

4.

Brake booster pressure sensor

5.

Gasket

6.

Clevis pin

7.

Spacer

Front

AWFIA1128ZZ

1.

Brake booster

2.

Check valve

3.

Master cylinder

4.

Brake booster pressure sensor

5.

Gasket

6.

Clevis pin

7.

Spacer

Front

BR-32

< REMOVAL AND INSTALLATION >

BRAKE BOOSTER

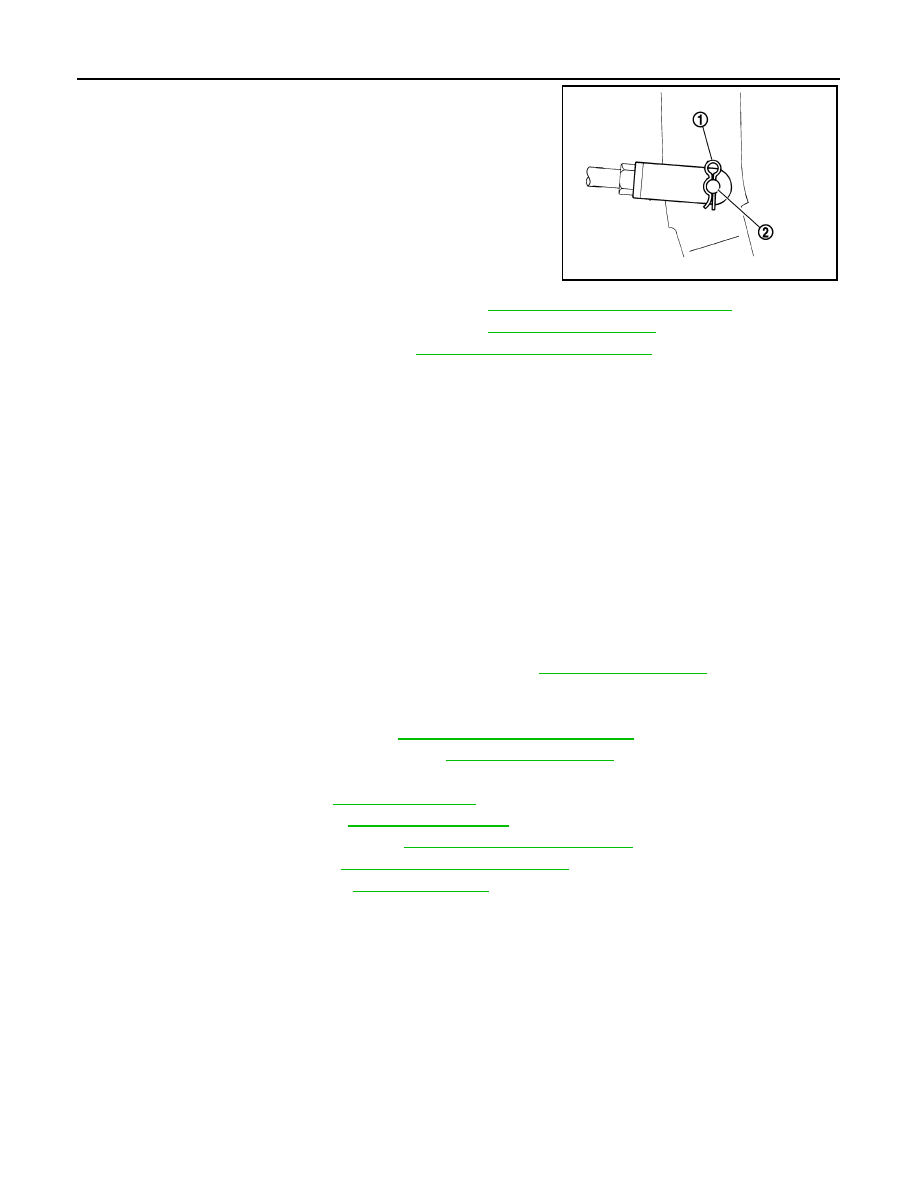

3. Remove the snap pin (1) and clevis pin (2) from the brake pedal.

4. Remove the cowl top and cowl top extension. Refer to

EXT-25, "Removal and Installation"

.

5. Disconnect vacuum hose from brake booster. Refer to

BR-33, "Exploded View"

.

6. Remove master cylinder assembly. Refer to

BR-28, "Removal and Installation"

.

7. Disconnect the harness connector from the brake booster pressure sensor.
8. Remove the brake booster pressure sensor.
9. Remove the nuts on the brake booster and brake pedal.

CAUTION:

Secure the brake booster to avoid damage to components.

10. Remove the brake booster.

CAUTION:

Do not deform or bend the brake pipes.

INSTALLATION

1. Install a new gasket between the brake booster and dash panel.

CAUTION:

Do not reuse the gasket.

2. Install the brake booster to the dash panel from the engine room side.

CAUTION:

Do not damage brake booster stud bolt threads during installation.

3. Install the nuts to the brake booster and brake pedal. Refer to

BR-31, "Exploded View"

.

4. Install the brake booster pressure sensor.
5. Connect the harness connector to the brake booster pressure sensor.
6. Install master cylinder assembly. Refer to

BR-28, "Removal and Installation"

.

7. Connect vacuum hose to brake booster. Refer to

BR-33, "Exploded View"

.

8. Install the clevis pin and snap pin to the brake pedal.
9. Adjust the brake pedal. Refer to

BR-15, "Adjustment"

.

10. Install the knee protector. Refer to

IP-14, "Exploded View"

.

11. Install instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

12. Bleed the brake system. Refer to

BR-16, "Bleeding Brake System"

.

13. Inspect the brake booster. Refer to

BR-10, "Inspection"

.

JPFIA0019ZZ

VACUUM LINES

BR-33

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

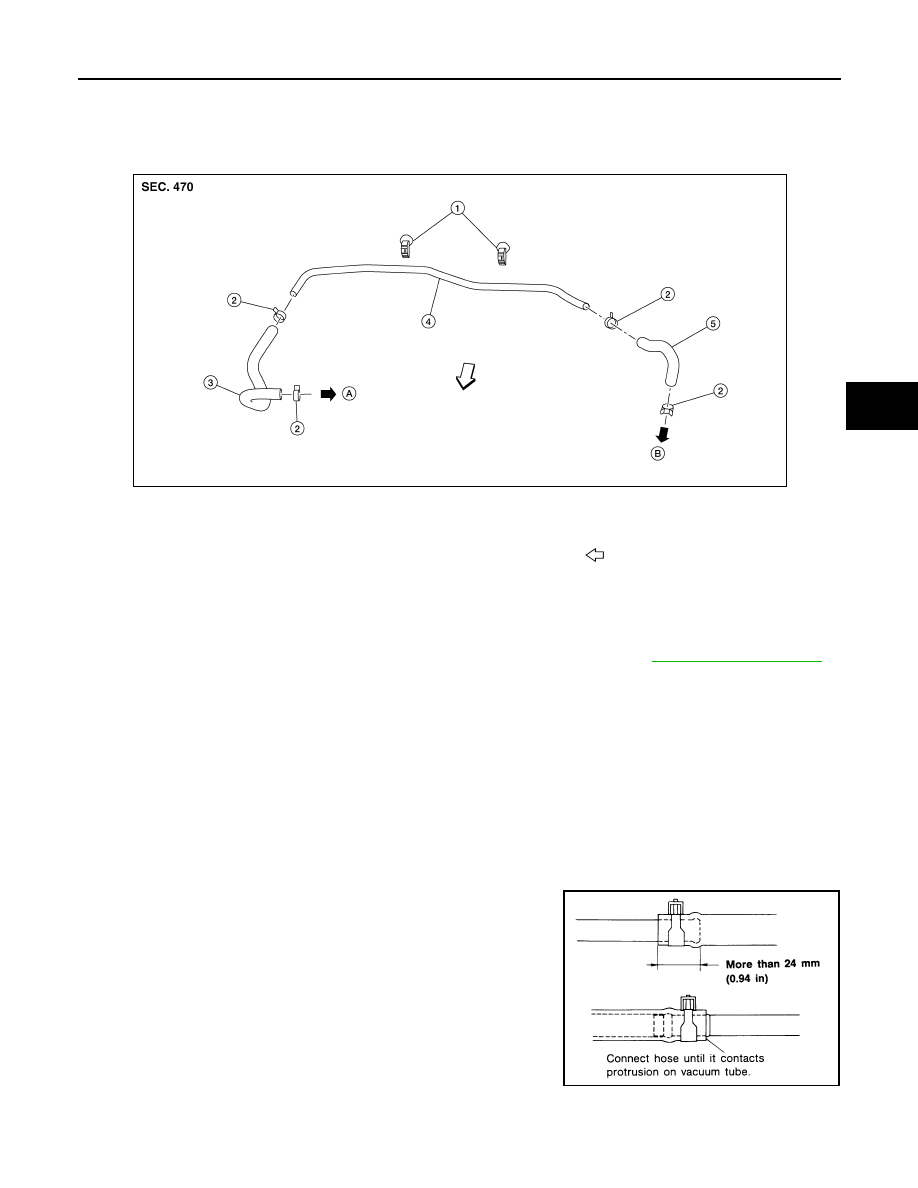

VACUUM LINES

Exploded View

INFOID:0000000011279885

Removal and Installation

INFOID:0000000011279886

REMOVAL

1. Remove the air duct assembly to the electric throttle control actuator. Refer to

EM-26, "Exploded View"

.

2. Disconnect the vacuum hose from the engine intake manifold.
3. Disconnect the vacuum hose from the brake booster.
4. Disconnect the vacuum hose from the clip.
5. Remove the vacuum hoses.

INSPECTION AFTER REMOVAL

Visual Inspection

Check for correct installation, damage and deterioration of the vacuum hoses and pipe.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Insert the vacuum pipe into the vacuum hose at least 24 mm

(0.94 in) as shown.

• Do not use lubricating oil during installation.

1.

Clip

2.

Clamp

3.

Vacuum hose

4.

Vacuum tube

5.

Vacuum hose

A.

To intake manifold

B.

To brake booster

Front

ALFIA0488ZZ

SBR225B
