BR-2

BRAKE BOOSTER ............................................

31

Exploded View ........................................................

31

Removal and installation  ........................................

31

VACUUM LINES  ................................................

33

Exploded View ........................................................

33

Removal and Installation  ........................................

33

FRONT DISC BRAKE ........................................

34

BRAKE PAD (1 PISTON TYPE)  ...............................

34

BRAKE PAD (1 PISTON TYPE) : Exploded View ...

34

BRAKE PAD (1 PISTON TYPE) : Removal and In-
stallation .................................................................

35

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) ...

37

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Exploded View ......................................................

37

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Removal and Installation  ......................................

38

BRAKE PAD (2 PISTON TYPE)  ...............................

39

BRAKE PAD (2 PISTON TYPE) : Exploded View ...

40

BRAKE PAD (2 PISTON TYPE) : Removal and In-
stallation .................................................................

40

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) ...

42

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Exploded View ......................................................

42

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Removal and Installation  ......................................

42

REAR DISC BRAKE ..........................................

45

BRAKE PAD  .............................................................

45

BRAKE PAD : Exploded View  ................................

45

BRAKE PAD : Removal and Installation .................

45

BRAKE CALIPER ASSEMBLY  ................................

47

BRAKE CALIPER ASSEMBLY : Exploded View  ....

47

BRAKE CALIPER ASSEMBLY : Removal and In-
stallation ..................................................................

47

UNIT DISASSEMBLY AND ASSEMBLY ...

49

FRONT DISC BRAKE  .......................................

49

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) ...

49

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Exploded View  ......................................................

49

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Disassembly and Assembly  ..................................

49

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) ...

51

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Exploded View  ......................................................

51

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Disassembly and Assembly  ..................................

52

REAR DISC BRAKE ..........................................

55

Exploded View  ........................................................

55

Disassembly and Assembly  ....................................

55

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

58

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

58

General Specifications  ............................................

58

Brake Pedal  ............................................................

58

Brake Booster  .........................................................

59

Front Disc Brake  .....................................................

59

Rear Disc Brake ......................................................

59

PRECAUTIONS

BR-3

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011279853

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000011279854

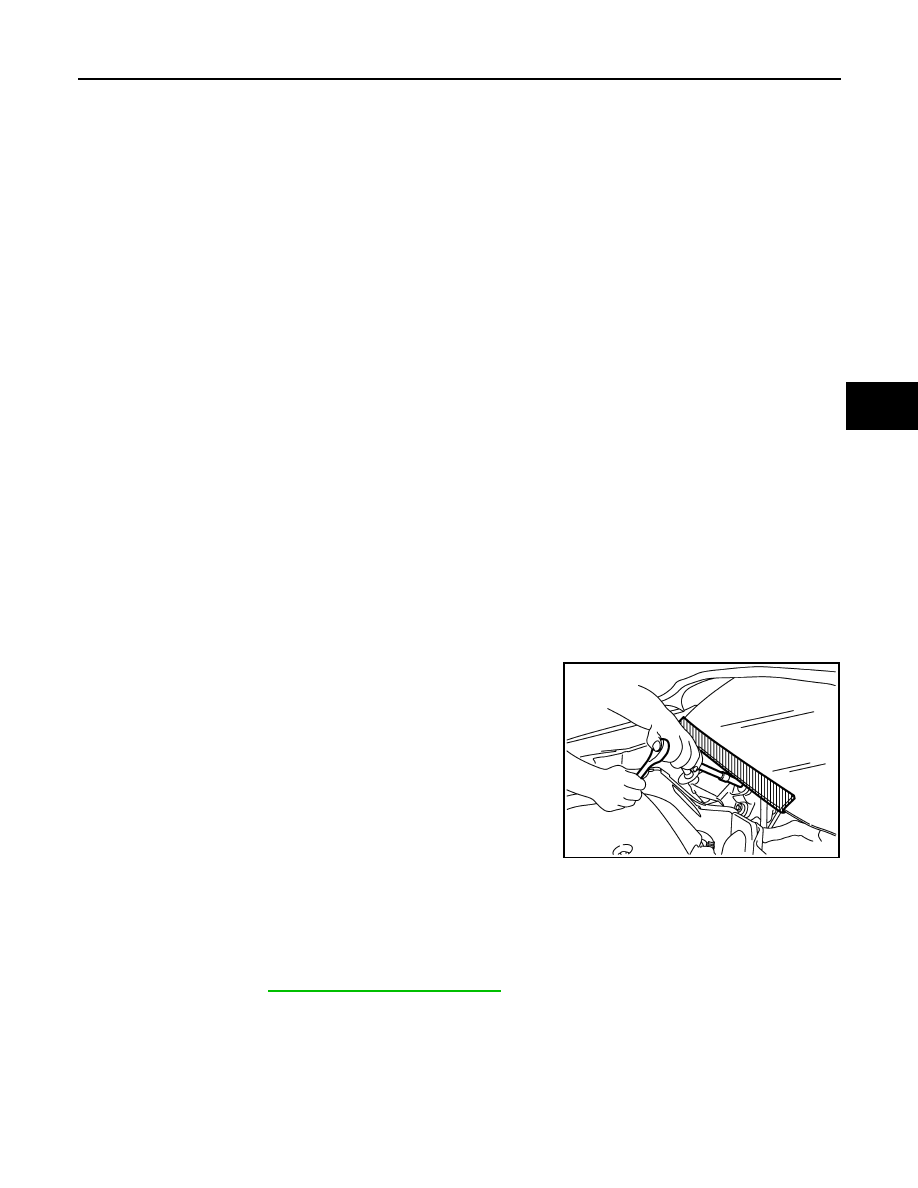

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc. to prevent damage to

windshield.

Precaution for Brake System

INFOID:0000000011279855

WARNING:

Clean any dust from the front brake and rear brake with a vacuum dust collector. Do not blow with

compressed air.

CAUTION:

• Brake fluid use refer to

MA-11, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.

• Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe

it off immediately and wash with water if it gets on a painted surface.

• Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other com-

ponents.

• Do not use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and

cause improper operation.

• Always loosen the brake tube flare nut with a flare nut wrench.

PIIB3706J

BR-4

< PRECAUTION >

PRECAUTIONS

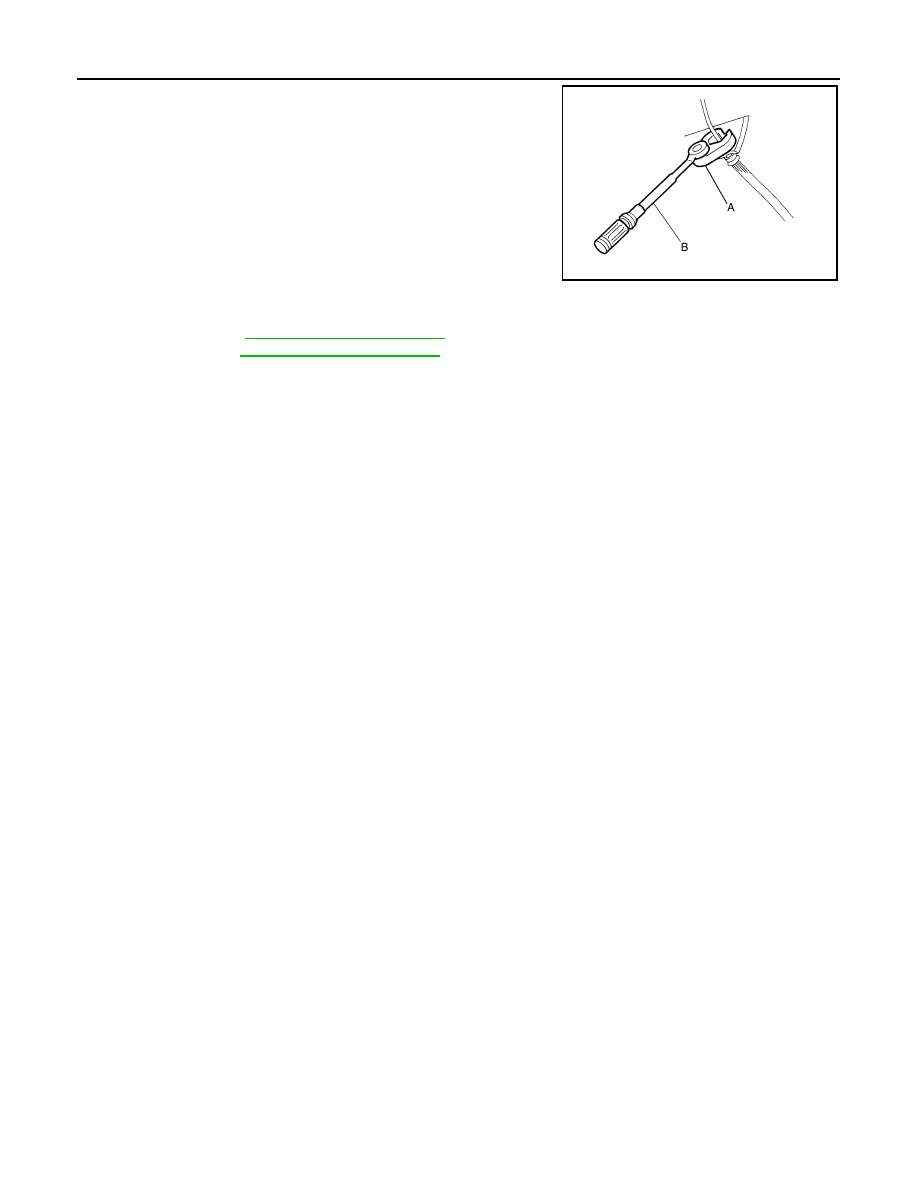

• Tighten the brake tube flare nut to the specified torque with

flare nut crowfoot (A) and torque wrench (B).

• Always confirm the specified tightening torque when install-

ing the brake pipes.

• Turn the ignition switch OFF and disconnect the ABS actuator

and electric unit (control unit) connector or the battery nega-

tive terminal before performing the work.

• Always connect the battery terminal when moving the vehicle.

• Check that no brake fluid leakage is present after replacing

the parts.

• Check for bends, cracks and damage to the brake pedal.

Adjust brake pedal if it is outside the standard value.

• Burnish the brake contact surfaces after refinishing or replacing rotors, after replacing pads, or if a

soft pedal occurs at very low mileage.

- Front brake: refer to

BR-18, "Brake Burnishing"

.

- Rear brake: refer to

BR-19, "Brake Burnishing"

.

JPFIA0001ZZ

PREPARATION

BR-5

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PREPARATION

PREPARATION

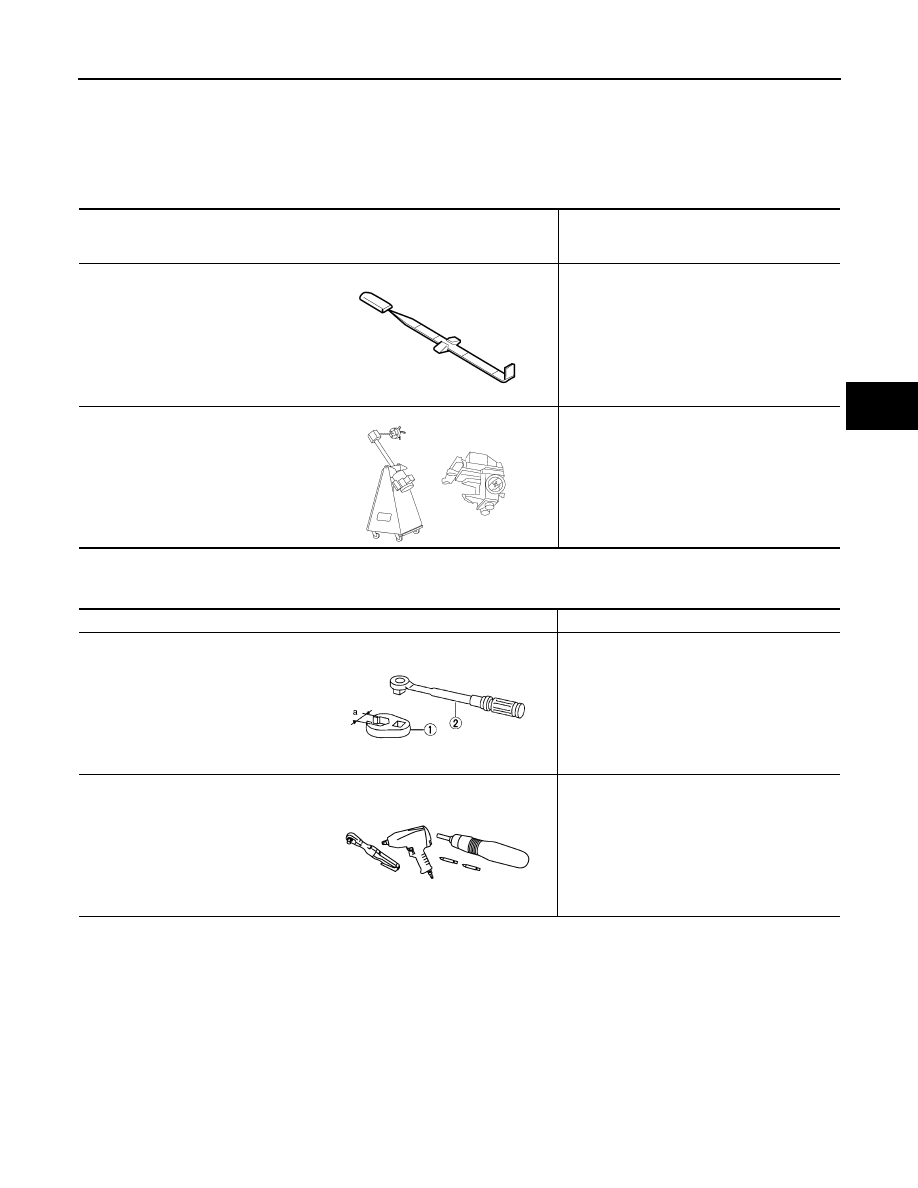

Special Service Tool

INFOID:0000000011279856

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000011279857

Tool number
(TechMate No.)
Tool name

Description

—

(J-46532)
Brake height tool

Measuring brake pedal height

38-PFM92
( — )
ProCut™ PFM Series Lathe

Refinishing rotors

LFIA0227E

ALFIA0092ZZ

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

Tightening brake tube flare nuts
a: 10 mm (0.39 in)/12 mm (0.47 in)

Power tool

Loosening nuts, screws and bolts

S-NT360

PIIB1407E
