Nissan Rogue. Manual - part 132

BCS-134

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000011280282

SHIPPING MODE

• Shipping mode inhibits battery power consumption during transportation or storage of the vehicle. Vehicle is

set to shipping mode before being shipped from the factory.

• When ignition switch is OFF, BCM operates shipping mode.

• BCM control function is limited in shipping mode. Remote keyless entry function is not operated during the

shipping mode.

• For shipping mode cancel operation, refer to

BCS-123, "Work Procedure"

.

NOTE:

Do not cancel shipping mode during storage of the vehicle. Always cancel shipping mode before delivery of

the vehicle to customer.

BCS

BCM (BODY CONTROL MODULE)

BCS-135

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Removal and Installation

INFOID:0000000011280283

CAUTION:

Before replacing the BCM, perform “READ CONFIGURATION” to save or print current vehicle specifi-

cation. Refer to

BCS-120, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work

Procedure"

.

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-80, "Removal and Installation"

.

2. Remove the front kicking plate (LH). Refer to

INT-23, "KICKING PLATE : Removal and Installation - Front

Kicking Plate"

.

3. Remove the dash side finisher (LH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

4. Disconnect the fuse box and the harness connectors.
5. Remove the instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

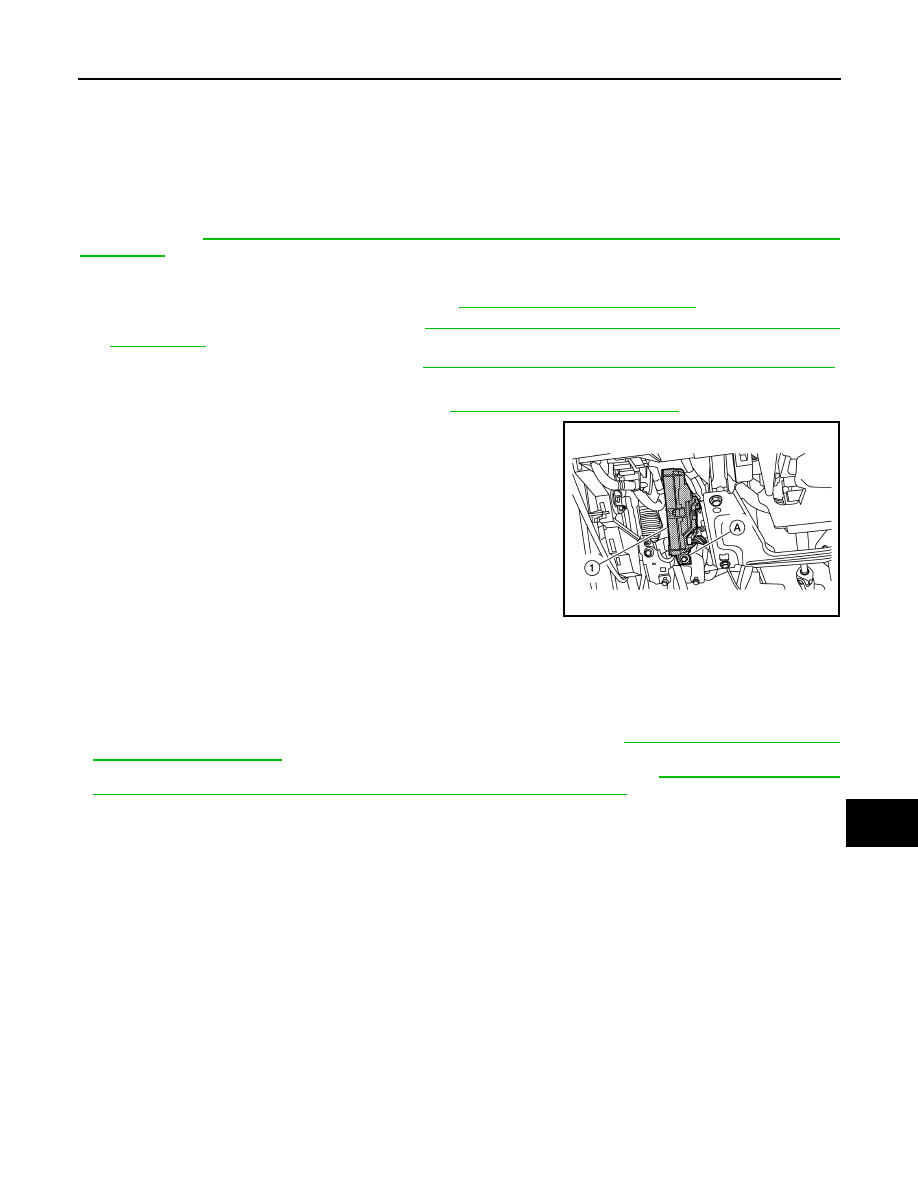

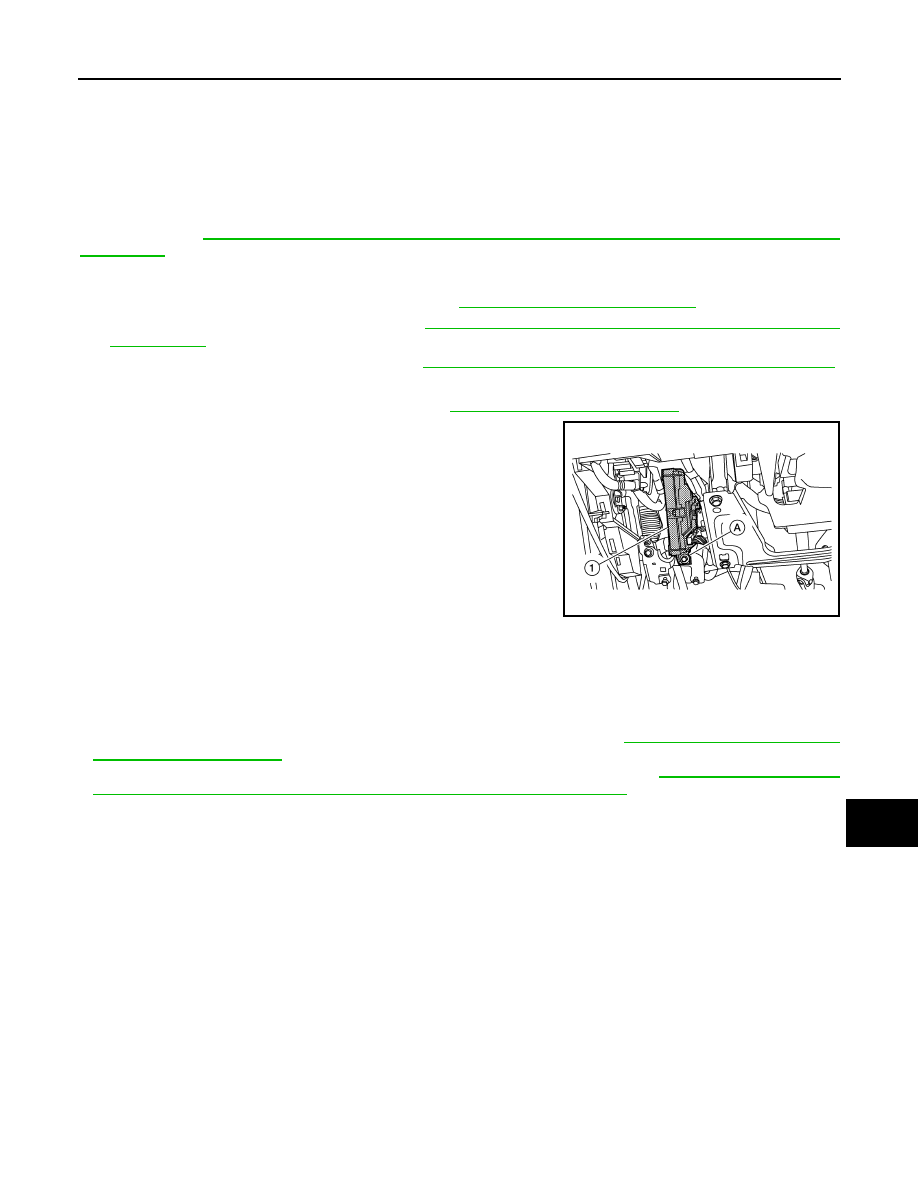

6. Remove the bolt (A), then pull out the BCM (1).

7. Disconnect the harness connectors from the BCM and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing BCM, perform “WRITE CONFIGURATION” Refer to

BCS-121, "CONFIGURATION

(BCM) : Work Procedure"

.

• When replacing BCM, perform the system initialization (NATS). Refer to

BCS-120, "ADDITIONAL

SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure"

.

• When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be

re-registered. Refer to the CONSULT immobilizer mode and follow the on screen instructions.

ALMIA0690ZZ

BCS-136

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH

COMBINATION SWITCH

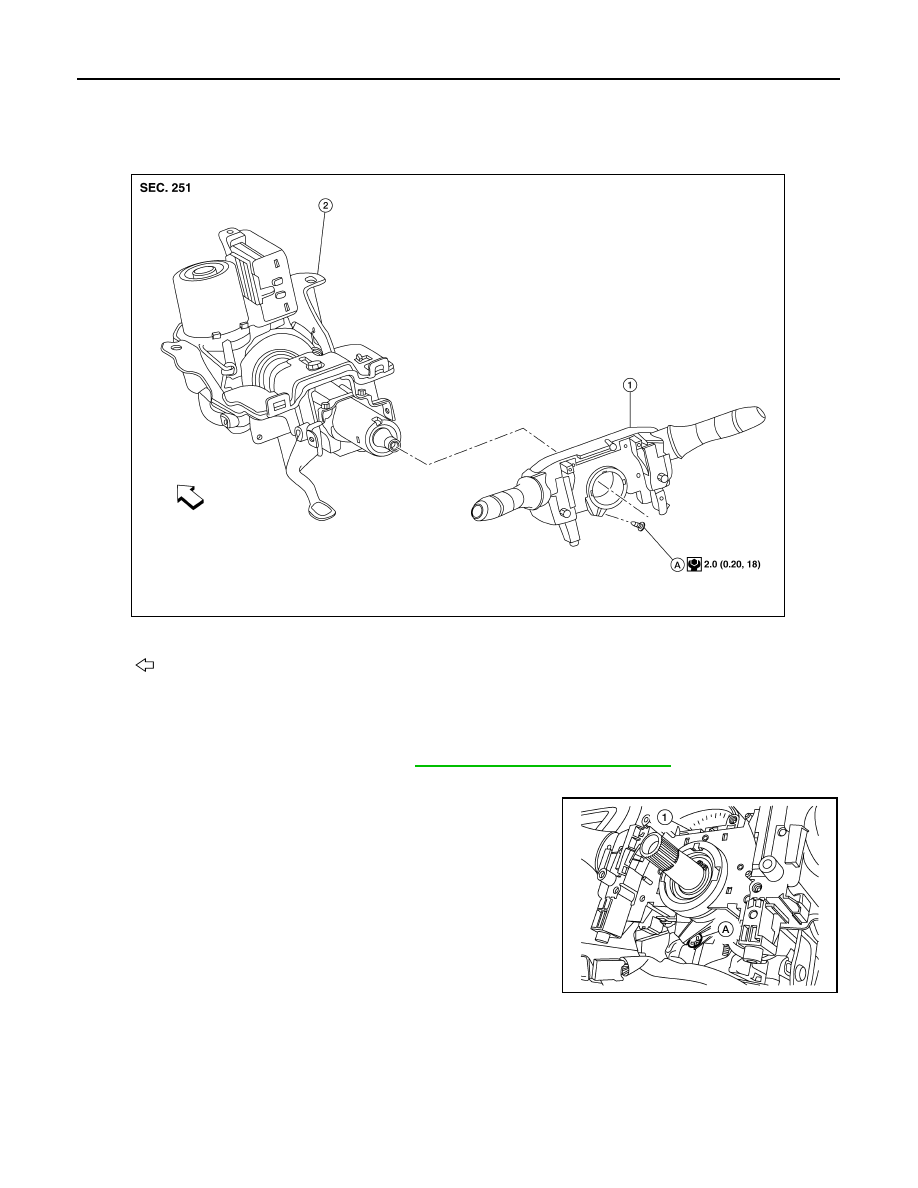

Exploded View

INFOID:0000000011280284

Removal and Installation

INFOID:0000000011280285

REMOVAL

1. Remove the steering angle sensor. Refer to

BRC-137, "Removal and Installation"

.

2. Disconnect harness connector from combination switch.
3. Remove screw (A) and combination switch (1).

INSTALLATION

Installation is in the reverse order of removal.

1.

Combination switch

2. Steering column

A. Screw

Front

AWMIA1520ZZ

AWMIA0709ZZ

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P
