Nissan Rogue. Manual - part 1223





WCS

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

WCS-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ACTIVE TEST

Monitor Item [Unit]

Description

TAIL LAMP SW [On/Off]

Indicates condition of combination switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

Test Item

Description

SEAT BELT WARN TEST

This test is able to check seat belt warning chime operation [On/Off].

LIGHT WARN ALM

This test is able to check light warning chime operation [On/Off].

REVERSE WARNING

This test is able to check reverse warning chime operation [On/Off].

ID REGIST WARNING

This test is able to check TPMS sensor ID regist warning chime operation [On/Off].

WCS-22

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000011386493

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[mph or km/h]

Ignition switch ON

While driving.

Input value of vehicle speed signal (CAN
communication signal).

SPEED OUTPUT
[mph or km/h]

Ignition switch ON

While driving.

Output value of vehicle speed signal (CAN
communication signal).

ODO OUTPUT
[mph or km/h]

Ignition switch ON

Output value of odometer signal (CAN com-
munication signal).

TACHO METER
[rpm]

Ignition switch ON

Engine running.

Input value of engine speed signal (CAN
communication signal).

FUEL METER
[L]

Ignition switch ON

Input value of fuel level sensor signal.

W TEMP METER
[

°F] or [°C]

Ignition switch ON

Input value of engine coolant temperature
signal (CAN communication signal).

ABS W/L

Ignition switch ON

ABS warning lamp ON.

On

ABS warning lamp OFF.

Off

VDC/TCS IND

Ignition switch ON

VDC OFF indicator lamp ON.

On

VDC OFF indicator lamp OFF.

Off

SLIP IND

Ignition switch ON

VDC warning lamp ON.

On

VDC warning lamp OFF.

Off

BRAKE W/L

Ignition switch ON

Brake warning lamp ON.

On

*1

Brake warning lamp OFF.

Off

DOOR W/L

Ignition switch ON

Door or lift gate open warning displayed.

On

Other than the above

Off

HI-BEAM IND

Ignition switch ON

High beam indicator lamp ON.

On

High beam indicator lamp OFF.

Off

TURN IND

Ignition switch ON

Turn signal indicator lamp ON.

On

Turn signal indicator lamp OFF.

Off

FR FOG IND

Ignition switch ON

Front fog lamp indicator lamp ON.

On

Front fog lamp indicator lamp OFF.

Off

LIGHT IND

Ignition switch ON

Position lamp indicator lamp ON.

On

Position lamp indicator lamp OFF.

Off

OIL W/L

Ignition switch ON

Engine oil pressure warning displayed.

On

Other than the above.

Off

O/D OFF IND

Ignition switch ON

O/D OFF indicator lamp ON.

On

Other than the above

Off

DDS W/L

Ignition switch ON

Hill descent warning indicator ON.

On

Other than the above.

Off

MIL

Ignition switch ON

Malfunction indicator lamp ON.

On

Malfunction indicator lamp OFF.

Off

4WD W/L

Ignition switch ON

AWD warning displayed.

On

Other than the above.

Off

WCS

COMBINATION METER

WCS-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4WD LOCK IND

Ignition switch ON

AWD LOCK indicator lamp ON.

On

Other than the above.

Off

FUEL W/L

Ignition switch ON

Low fuel warning displayed.

On

Low fuel warning lamp OFF.

Off

WASHER W/L

Ignition switch ON

Low washer fluid warning displayed.

On

Other than the above.

Off

AIR PRES W/L

Ignition switch ON

Low tire pressure warning lamp ON.

On

Low tire pressure warning lamp OFF.

Off

KEY G/Y W/L

Ignition switch ON

Intelligent Key system warning indication.

On

Other than the above.

Off

EPS W/L

Ignition switch ON

Power steering warning lamp ON.

On

Power steering warning lamp OFF.

Off

SPORT IND

Ignition switch ON

Sport mode indicator ON.

On

Sport mode indicator OFF.

Off

ECO MODE IND

Ignition switch ON

ECO mode indicator ON.

On

ECO mode indicator OFF.

Off

CHAGE W/L

Ignition switch ON

Charge warning lamp ON.

On

Charge warning lamp OFF.

Off

SHIFT IND

Ignition switch ON

Shift position indicator displayed.

[P, R, N, D, L]

FUEL CAP W/L

Ignition switch ON

Fuel filler cap warning displayed.

On

Other than the above.

Off

O/D OFF SW

Ignition switch ON

O/D off switch ON.

On

O/D off switch OFF.

Off

PKB SW

Ignition switch ON

Parking brake switch ON.

On

Parking brake switch OFF.

Off

BUCKLE SW

Ignition switch ON

Driver seat belt not fastened.

On

Driver seat belt fastened.

Off

ECO MODE SW

Ignition switch ON

ECO mode switch ON.

On

ECO mode switch OFF.

Off

PASS BUCKLE
SW

Ignition switch ON

Passenger seat belt not fastened.

On

Passenger seat belt fastened.

Off

BRAKE OIL SW

Ignition switch ON

Brake fluid level switch ON.

On

Brake fluid level switch OFF.

Off

DISTANCE
[mi] or [km]

Ignition switch ON

Distance to empty .

OUTSIDE TEMP
[

°F] or [°C]

Ignition switch ON

Displays the ambient air temperature which
is input from the ambient sensor.

FUEL LOW SIG

Low fuel level warning.

On

Except during low fuel level warning.

Off

BUZZER

Ignition switch ON

Buzzer ON.

On

Buzzer OFF.

Off

LCD

Ignition switch ON

Engine start information.

B&P

Monitor Item

Condition

Value/Status

WCS-24

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

*: DDS (hill descent control)

NOTE:

Some items are not available according to vehicle specification.

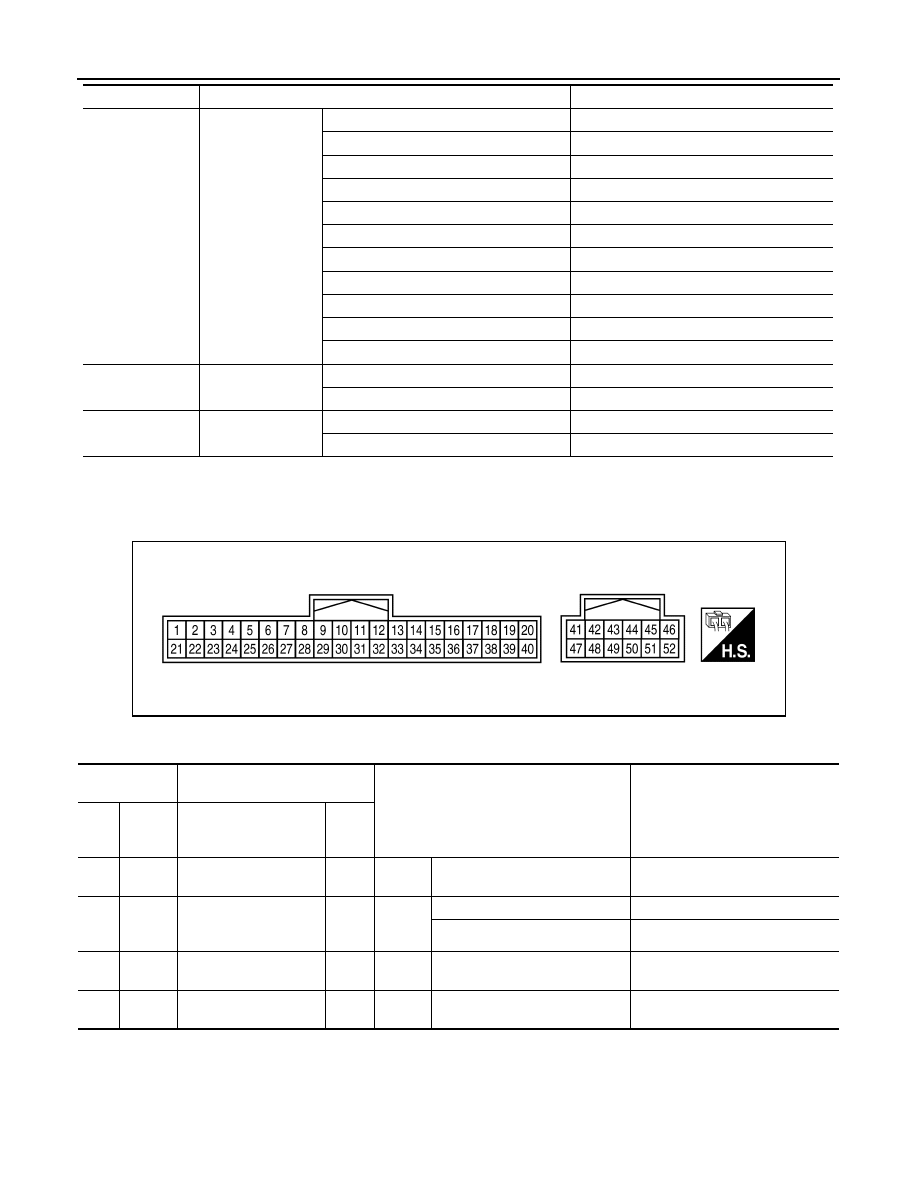

TERMINAL LAYOUT

PHYSICAL VALUES

STRG SW INPUT

Ignition switch ON

BACK switch is pressed.

SW1

MENU UP switch is pressed.

SW2

MENU DOWN switch is pressed.

SW3

Voice recognition switch is pressed.

SW4

MENU OK switch is pressed.

SW5

VOL DOWN switch is pressed.

SW6

VOL UP switch is pressed.

SW7

TEL switch is pressed.

SW8

Display back switch is pressed.

SW9

Display next switch is pressed.

SW10

Other than above.

NO INPUT

BSW IND

Ignition switch ON

Blind spot warning lamp ON.

On

Blind spot warning lamp OFF.

Off

BSW W/L

Ignition switch ON

Blind spot warning displayed.

On

Other than above.

Off

Monitor Item

Condition

Value/Status

JSNIA6097ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Out-

put

1

(B)

Ground

Ground

0 V

7

(BG)

Ground Security signal

Input

Ignition
switch
OFF

Security indicator ON.

0 V

Security indicator OFF.

Battery voltage

9

(GR)

Ground ECO mode switch

10

(P)

Ground O/D OFF switch
