Nissan Rogue. Manual - part 1218





WCS

WCS-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

WCS

A

O

P

CONTENTS

WARNING CHIME SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Combination Meter ....................................................

5

SYSTEM ..............................................................

6

WARNING CHIME SYSTEM  .......................................

6

WARNING CHIME SYSTEM : System Description

......

6

WARNING CHIME SYSTEM : Fail-safe ....................

7

LIGHT REMINDER WARNING CHIME  .......................

7

LIGHT REMINDER WARNING CHIME : Light Re-
minder Warning .......................................................
..

7

PARKING BRAKE RELEASE WARNING CHIME ......

8

PARKING BRAKE RELEASE WARNING CHIME
: Parking Brake Release Warning Chime ................
..

8

SEAT BELT REMINDER WARNING CHIME  ..............

9

SEAT BELT REMINDER WARNING CHIME :
Seat belt Warning ....................................................
..

9

KEY WARNING CHIME .............................................

10

KEY WARNING CHIME : Key Warning Chime  .......

10

DIAGNOSIS SYSTEM (COMBINATION
METER) ..............................................................

12

Description ..............................................................

12

CONSULT Function (METER/M&A)  .......................

14

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .........................................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

18

BUZZER .....................................................................

18

BUZZER : CONSULT Function (BCM - BUZZER) ....

19

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  .............................

20

COMMON ITEM  .........................................................

20

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

20

BUZZER .....................................................................

20

BUZZER : CONSULT Function (BCM - BUZZER) ....

20

ECU DIAGNOSIS INFORMATION ..............

22

COMBINATION METER  ...................................

22

Reference Value ......................................................

22

Fail-safe ...................................................................

27

DTC Index  ...............................................................

28

BCM (BODY CONTROL MODULE)  .................

29

List of ECU Reference .............................................

29

WIRING DIAGRAM ......................................

30

WARNING CHIME SYSTEM .............................

30

Wiring Diagram ........................................................

30

BASIC INSPECTION  ...................................

37

DIAGNOSIS AND REPAIR WORK FLOW  .......

37

Work Flow ................................................................

37

DTC/CIRCUIT DIAGNOSIS  .........................

39

POWER SUPPLY AND GROUND CIRCUIT  ....

39

COMBINATION METER  ............................................

39

COMBINATION METER : Diagnosis Procedure  .....

39

WCS-2

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM)  ...........................................
.

39

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM) : Diagnosis Procedure  ....
.

39

BCM (BODY CONTROL SYSTEM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  ....................................
.

40

BCM (BODY CONTROL SYSTEM) (WITHOUT
INTELLIGENT KEY SYSTEM) : Diagnosis Proce-
dure .......................................................................
.

40

METER BUZZER CIRCUIT ................................

42

Description ..............................................................

42

Component Function Check  ...................................

42

Diagnosis Procedure .............................................

42

SEAT BELT BUCKLE SWITCH SIGNAL CIR-
CUIT ...................................................................

43

Description ..............................................................

43

Component Function Check .................................

43

Diagnosis Procedure .............................................

43

Component Inspection ............................................

44

PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................

45

Component Function Check  ...................................

45

Diagnosis Procedure  ..............................................

45

Component Inspection ............................................

46

KEY SWITCH SIGNAL CIRCUIT (WITHOUT
INTELLIGENT KEY)  ..........................................

47

Description ..............................................................

47

Component Function Check ..................................

47

Diagnosis Procedure ..............................................

47

Component Inspection  ............................................

48

SYMPTOM DIAGNOSIS  ............................

49

WARNING CHIME SYSTEM SYMPTOMS ........

49

Symptom Table .......................................................

49

THE PARKING BRAKE RELEASE WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ..............................................................

50

Description ..............................................................

50

Diagnosis Procedure ...............................................

50

THE SEAT BELT REMINDER WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ..............................................................

51

Description ..............................................................

51

Diagnosis Procedure ...............................................

51

THE LIGHT REMINDER WARNING DOES
NOT SOUND ......................................................

52

Description ..............................................................

52

Diagnosis Procedure ...............................................

52

THE KEY WARNING DOES NOT SOUND
(WITHOUT INTELLIGENT KEY)  .......................

53

Description ..............................................................

53

Diagnosis Procedure ...............................................

53

WCS

PRECAUTIONS

WCS-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011386492

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

WCS-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

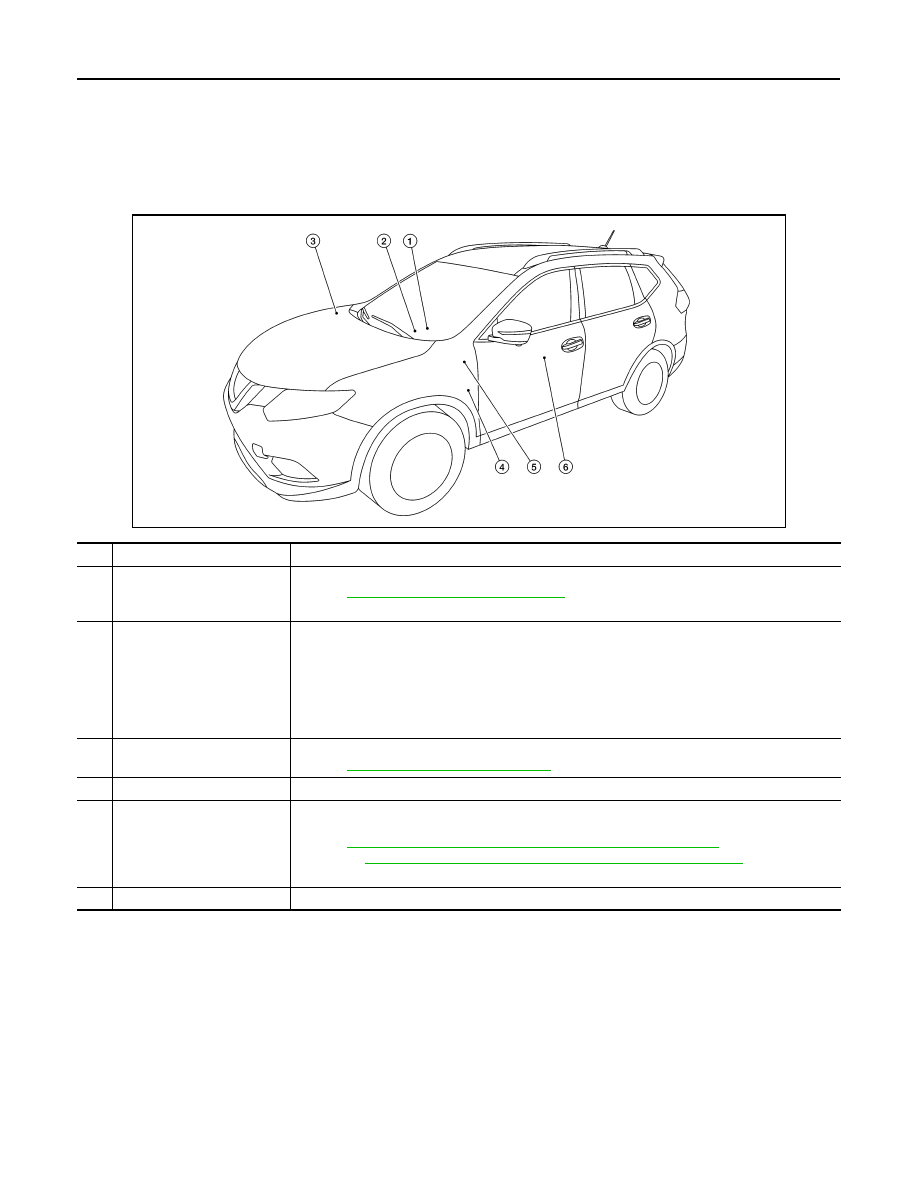

Component Parts Location

INFOID:0000000011276452

ALNIA1645ZZ

No.

Component

Function

1.

Key switch

Transmits the key switch signal to the BCM.
Refer to

SEC-121, "Component Parts Location"

 (without Intelligent Key system) for detailed in-

stallation location.

2.

Combination meter

• Receives a buzzer output signal from the BCM with CAN communication line and sounds the

buzzer.

• Controls the following with the vehicle speed signal received from ABS actuator and electric

unit (control unit) via CAN communication and the signals from switches:

- Seat belt reminder warning chime
- Parking brake release warning chime
- Key warning chime

3.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.
Refer to

BRC-7, "Component Parts Location"

 for detailed installation location.

4.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

5.

BCM

Based on the signals received from various units and switches, transmits the buzzer output signal
to the combination meter via CAN communication.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 (with Intelligent Key

system) or

BCS-79, "BODY CONTROL SYSTEM : Component Parts Location"

 (without Intelli-

gent Key system) for detailed installation location.

6.

Seat belt buckle switch LH

Transmits a seat belt buckle switch signal LH to the combination meter.
