VTL-14

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

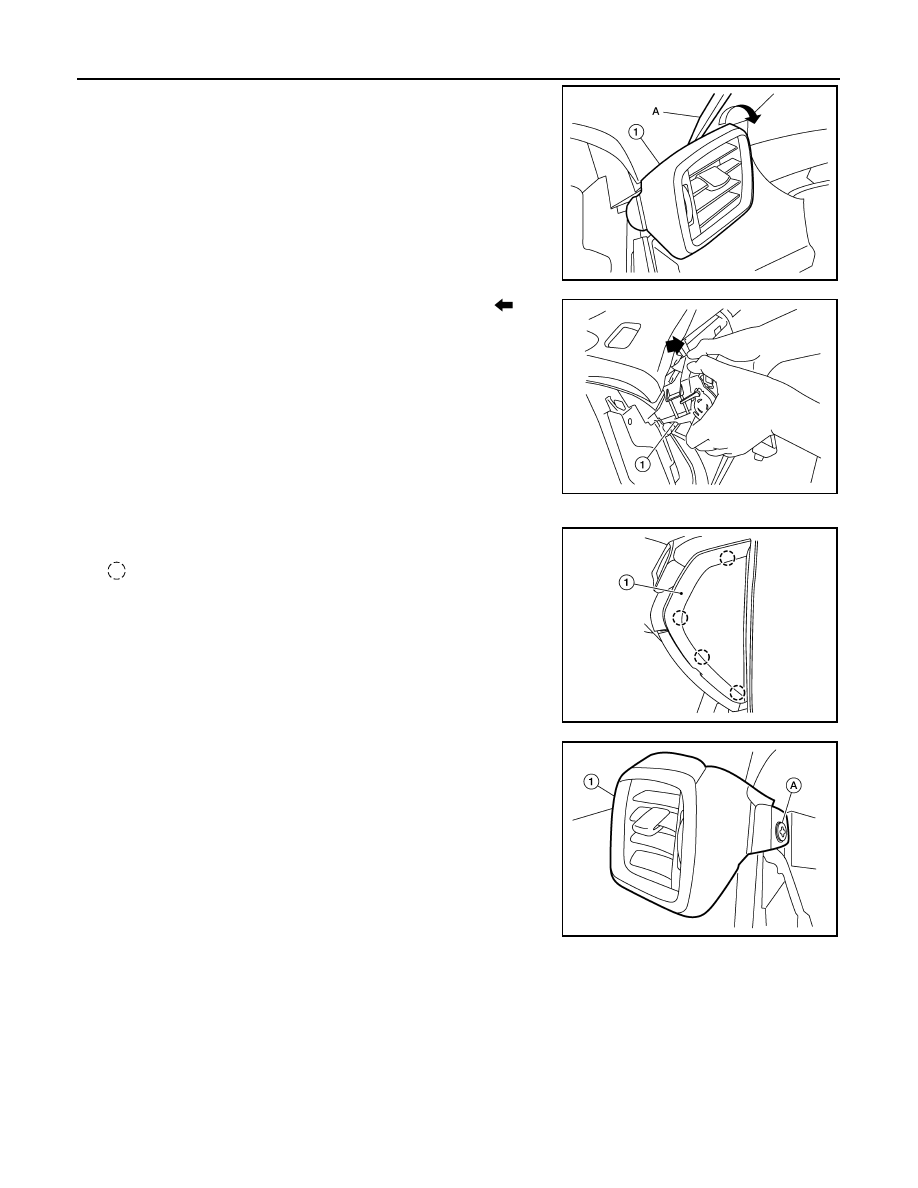

2. Insert a suitable tool (A) at the top of the side ventilator grille

(LH) (1) and release as shown.

3. Remove side ventilator grille (1) in the direction shown (

).

Side ventilator grille (RH)

1. Release the pawls using a suitable tool and remove instrument

side finisher (1).

: Pawl

2. Remove side ventilator grille (RH) screw (A).

AWIIA1797ZZ

ALIIA0968ZZ

ALIIA0904ZZ

ALIIA0907ZZ

DUCTS AND GRILLES

VTL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

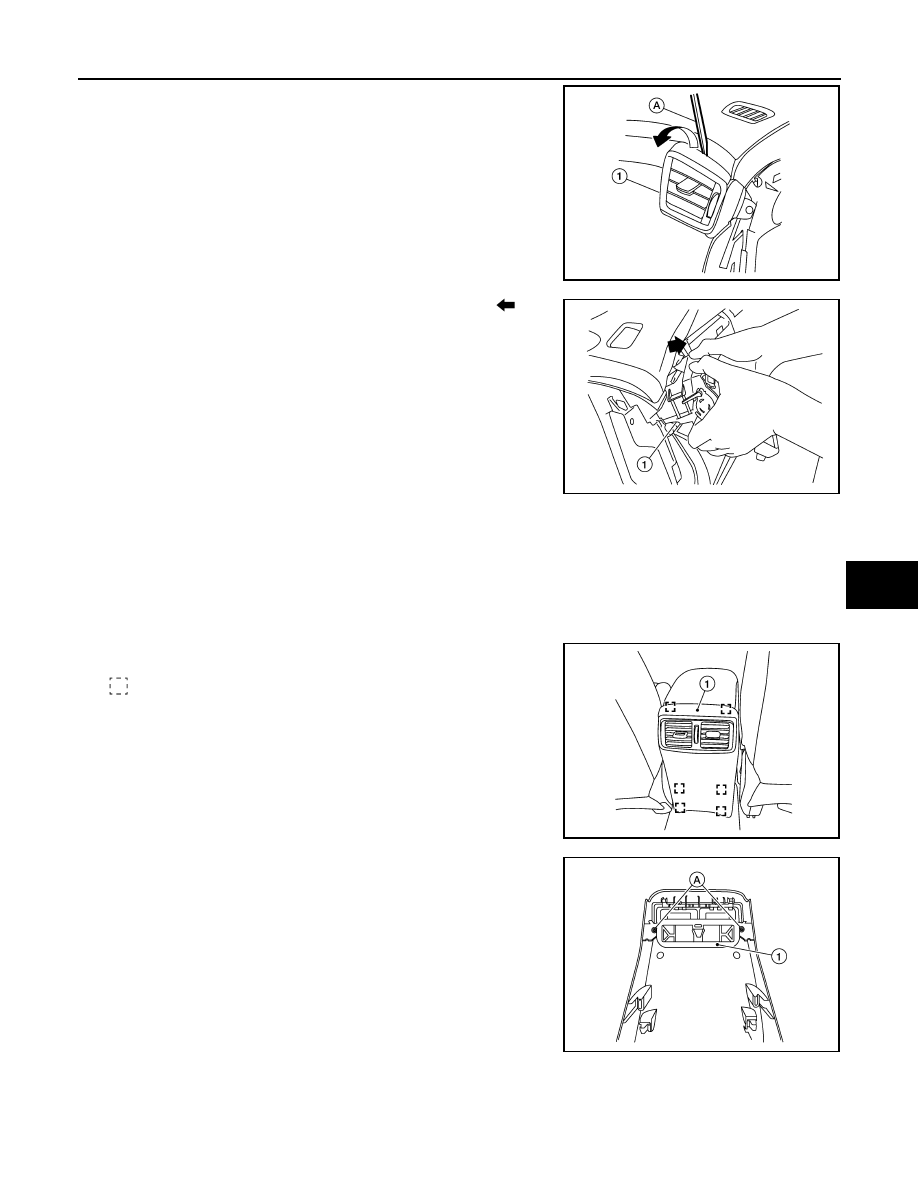

3. Insert a suitable tool (A) at the top of the side ventilator grille (1)

and release as shown.

4. Remove side ventilator grille (1) in the direction shown (

).

NOTE:

LH side shown; RH side similar.

INSTALLATION

Installation is in the reverse order of removal.

REAR CENTER VENTILATOR GRILLE
REAR CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000011280014

REMOVAL

1. Release clips using a suitable tool and remove center console

rear finisher (1).

: Metal clip

2. Remove screws (A) and rear center ventilator grille (1).

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1871ZZ

ALIIA0968ZZ

ALJIA1393ZZ

ALIIA0894ZZ

VTL-16

< REMOVAL AND INSTALLATION >

BLOWER MOTOR

BLOWER MOTOR

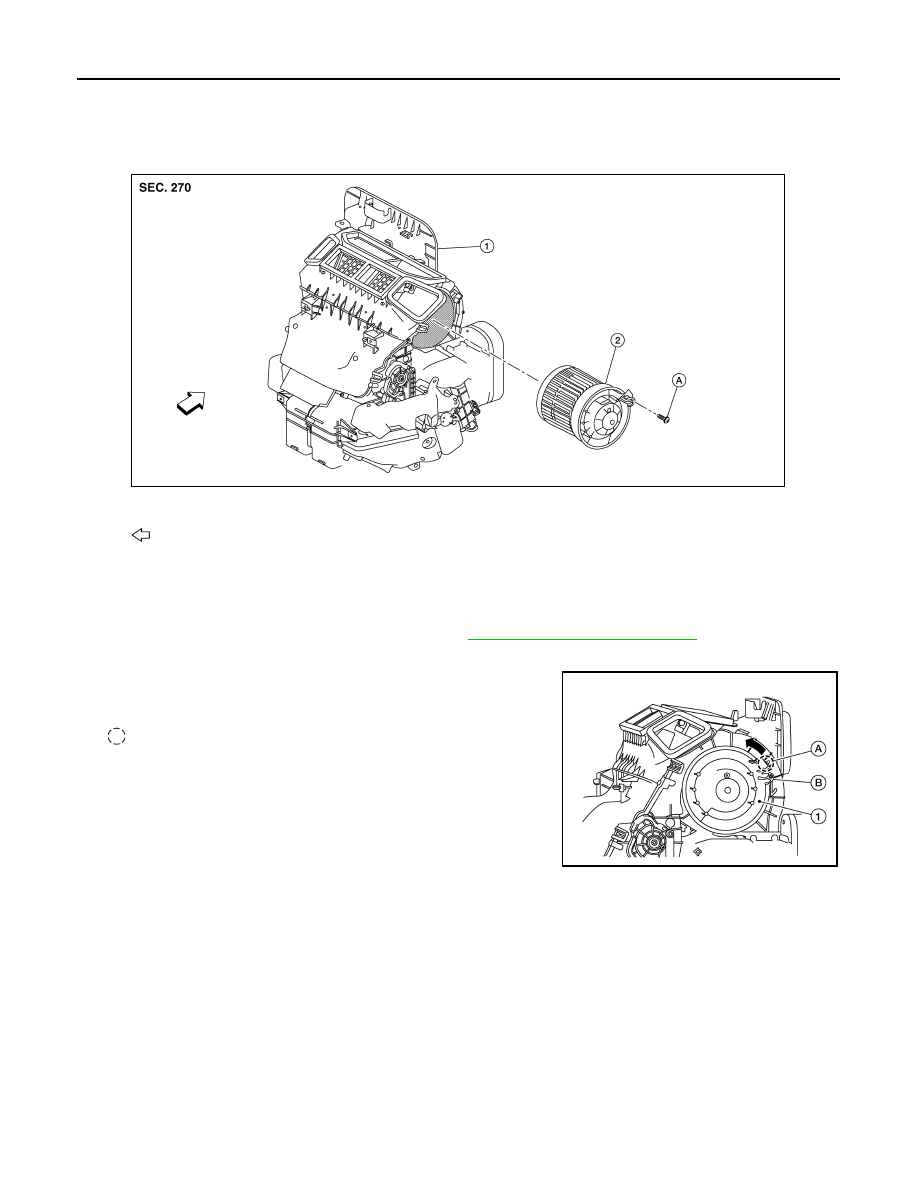

Exploded View

INFOID:0000000011280015

Removal and Installation

INFOID:0000000011280016

REMOVAL

1. Remove glove box assembly and housing. Refer to

IP-24, "Removal and Installation"

.

2. Disconnect the harness connector from the blower motor.
3. Remove blower motor screw (B).
4. Release hook (A) then rotate the blower motor (1) counterclock-

wise and remove.

: Hook

INSTALLATION

Installation is in the reverse order of removal.

1.

Heating and cooling unit assembly

2.

Blower motor

A.

Screw

Front

ALIIA0965ZZ

ALIIA0897ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

VTL-17

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

In-cabin Microfilter

INFOID:0000000011280017

Replacement interval

Refer to

MA-7, "Introduction of Periodic Maintenance"

.
