Nissan Rogue. Manual - part 1216

VTL-10

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

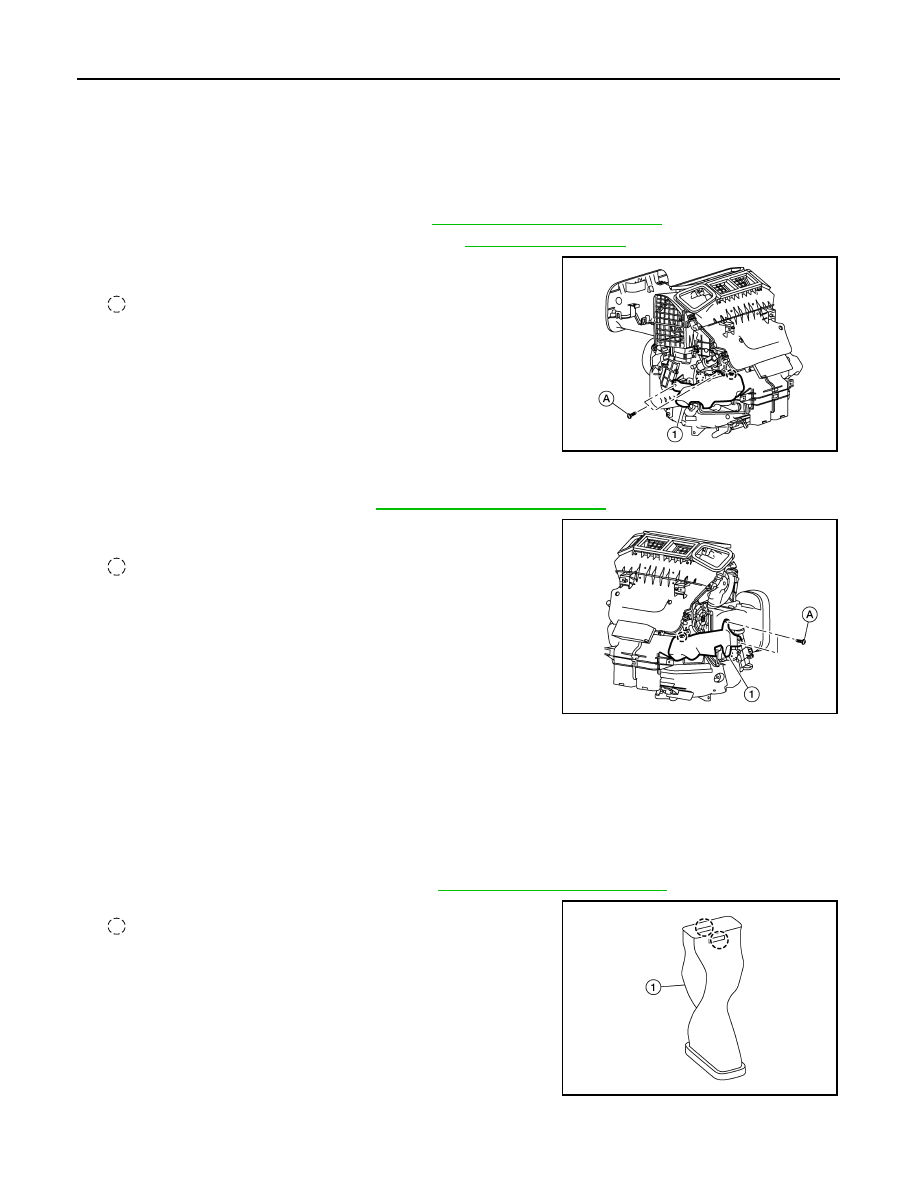

FRONT FOOT DUCT
FRONT FOOT DUCT : Removal and Installation

INFOID:0000000011280005

REMOVAL

Front foot duct (LH)

1. Remove instrument lower panel (LH). Refer to

IP-23, "Removal and Installation"

.

2. Remove center console side finisher (LH). Refer to

IP-19, "Exploded View"

.

3. Remove front foot duct (LH) screws (A).
4. Release the pawl and remove front foot duct (LH) (1).

: Pawl

Front foot duct (RH)

1. Remove glove box assembly. Refer to

IP-24, "Removal and Installation"

.

2. Remove front foot duct (RH) screws (A).
3. Release the pawl and remove front foot duct (RH) (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

FRONT FLOOR DUCT
FRONT FLOOR DUCT : Removal and Installation - Front Floor Connecting Duct

INFOID:0000000011280006

REMOVAL

1. Remove the center console assembly. Refer to

IP-19, "Removal and Installation"

.

2. Release the pawls and remove front floor connecting duct (1).

: Pawl

NOTE:

LH side shown; RH similar.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0960ZZ

ALIIA0961ZZ

ALIIA0959ZZ

DUCTS AND GRILLES

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

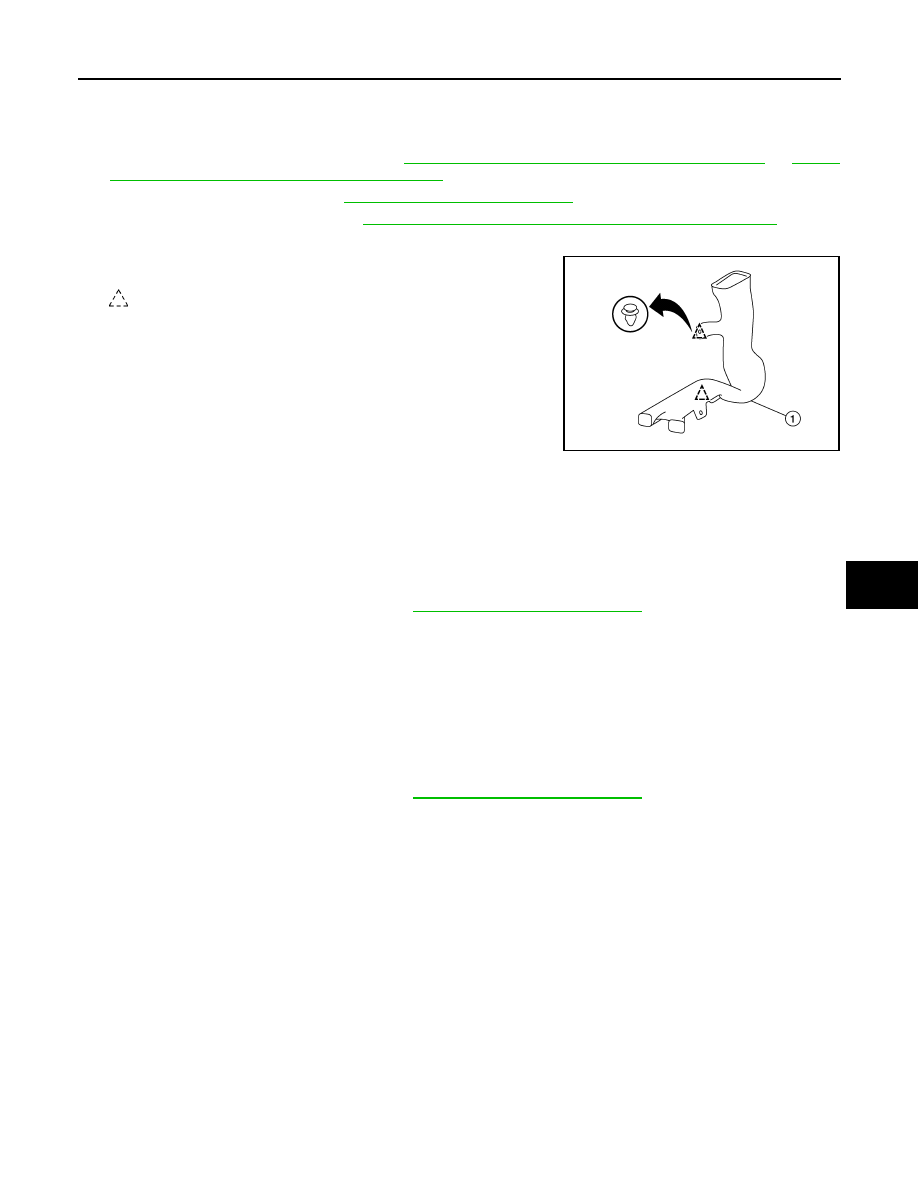

FRONT FLOOR DUCT : Removal and Installation - Front Floor Duct

INFOID:0000000011280007

REMOVAL

1. Remove front seat (LH or RH). Refer to

SE-32, "DRIVER SIDE : Removal and Installation"

 or

SE-35,

"PASSENGER SIDE : Removal and Installation"

.

2. Remove center console. Refer to

IP-19, "Removal and Installation"

.

3. Remove dash side finisher. Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

4. Partially remove front floor trim.
5. Release clips using a suitable tool and remove front floor duct

(1).

: Clip

NOTE:

RH side shown; LH similar.

INSTALLATION

Installation is in the reverse order of removal.

ADAPTOR DUCT
ADAPTOR DUCT : Removal and Installation

INFOID:0000000011280008

REMOVAL

1. Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

2. Remove the adaptor duct.

INSTALLATION

Installation is in the reverse order of removal.

REAR CENTER VENTILATOR DUCT
REAR CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000011280009

REMOVAL

1. Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

ALIIA0957ZZ

VTL-12

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

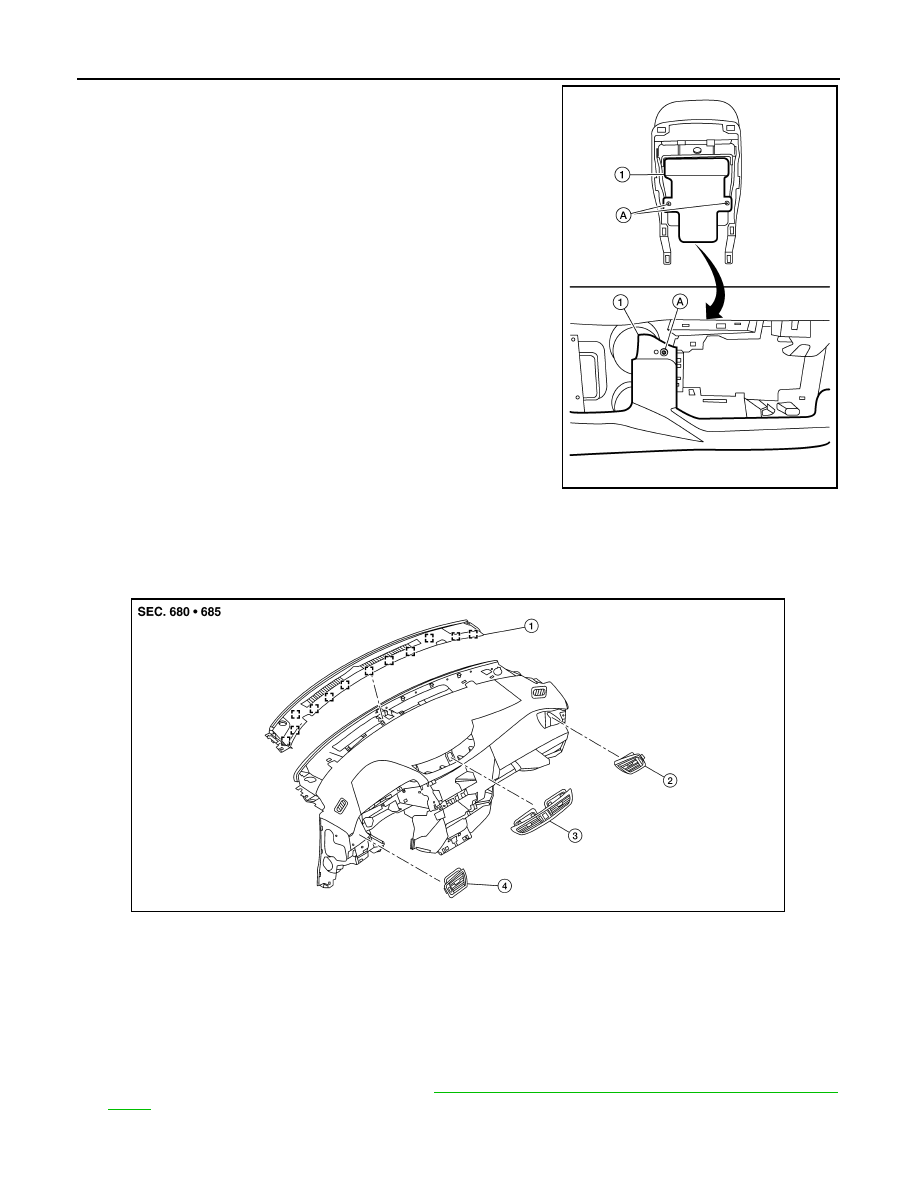

2. Remove screws (A) and rear center ventilator duct (1).

INSTALLATION

Installation is in the reverse order of removal.

Exploded View

INFOID:0000000011280010

DEFROSTER GRILLE
DEFROSTER GRILLE : Removal and Installation

INFOID:0000000011280011

REMOVAL

1. Remove front pillar finishers (LH/RH). Refer to

INT-20, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

2. Release defroster grille clips using a suitable tool.

ALIIA0962ZZ

1.

Defroster grille

2.

Side ventilator grille (RH)

3.

Center ventilator grille

4.

Side ventilator grille (RH)

AWIIA1868ZZ

DUCTS AND GRILLES

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

3. Disconnect the harness connectors and remove defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

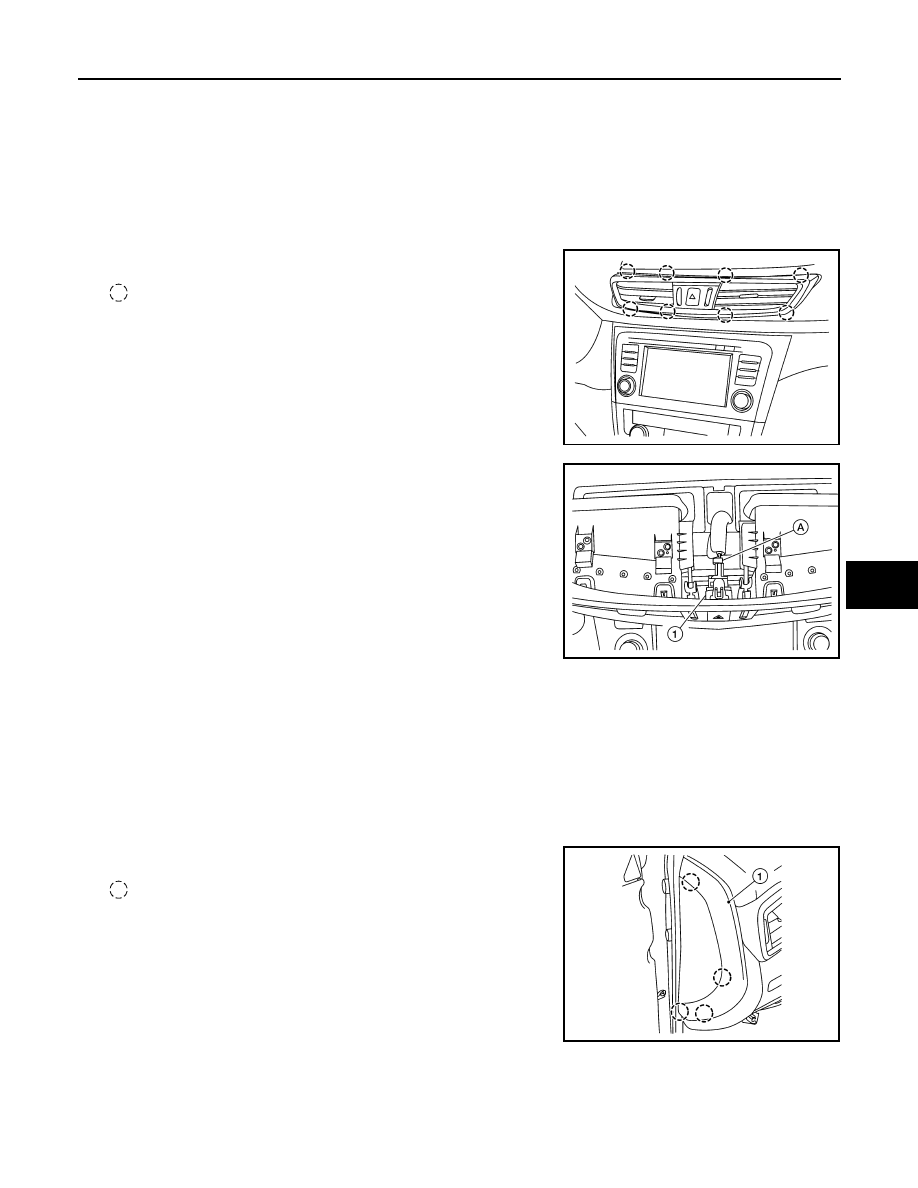

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000011280012

REMOVAL

1. Release the pawls using a suitable tool and remove center ven-

tilator grille from instrument panel.

: Pawl

2. Disconnect the harness connector (A) from hazard switch (1).

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000011280013

REMOVAL

Side ventilator grille (LH)

1. Release the pawls using a suitable tool and remove instrument

side finisher (LH) (1).

: Pawl

ALIIA0969ZZ

ALLIA1415ZZ

ALJIA1394ZZ
