TM-56
< ECU DIAGNOSIS INFORMATION >
[CVT: RE0F10D]

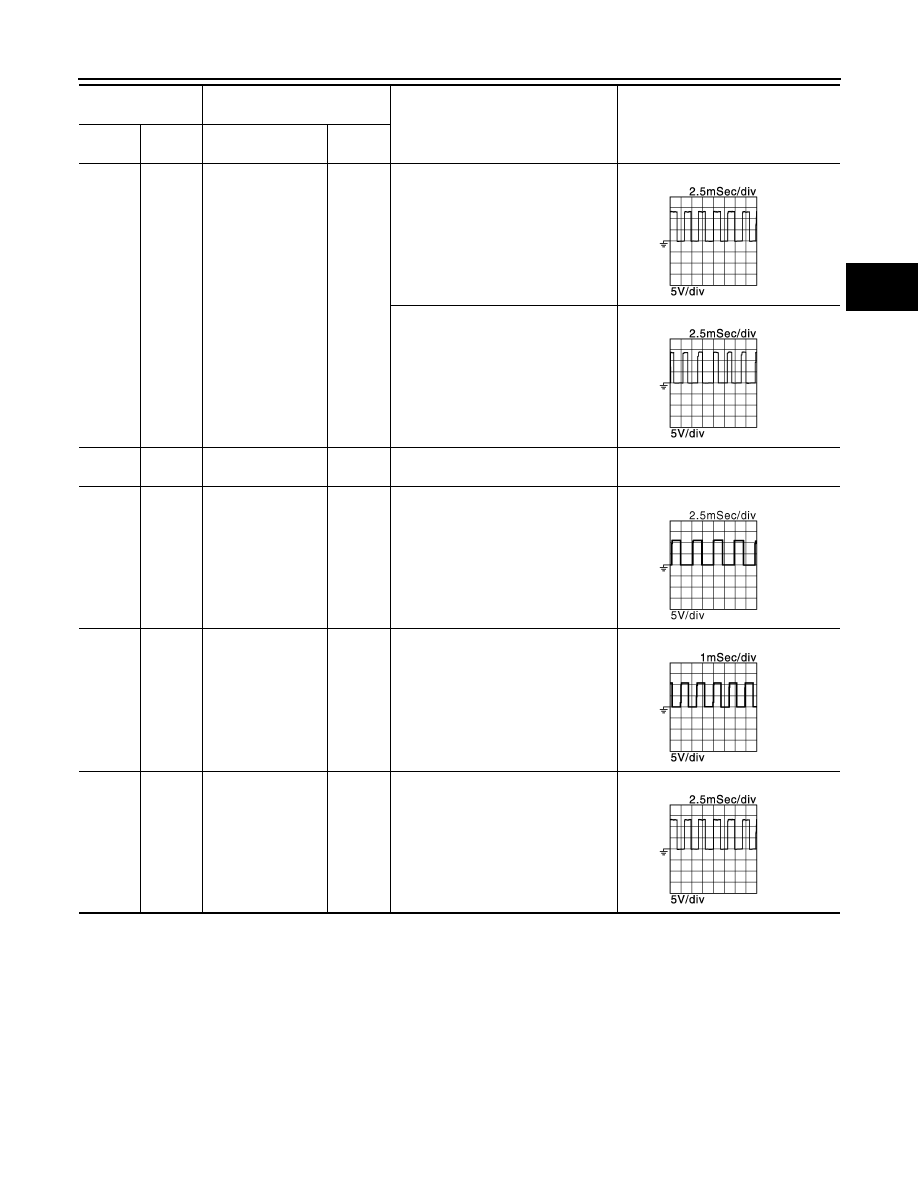

TCM
Terminal No.
(Wire color)
Description
Condition
Value (Approx.)
+
−
Signal
Input/
Output
2
(GR)
Ground
L range switch
Input
Ignition
switch
ON
Selector lever: “L” position
10
− 16 V
Other than the above
0 V
4
(Y)
Ground
D range switch
Input
Selector lever: “D” position
10
− 16 V
Other than the above
0 V
5
(BR)
Ground
N range switch
Input
Selector lever: “N” position
10
− 16 V
Other than the above
0 V
6
(G)
Ground
R range switch
Input
Selector lever: “R” position
10
− 16 V
Other than the above
0 V
7
(V)
Ground
P range switch
Input
Selector lever: “P” position
10
− 16 V
Other than the above
0 V
11
(LG)
Ground
Sensor ground
Input
Always
0 V
12
(BR)
Ground
CVT fluid tempera-
ture sensor
Output
Ignition
switch
ON
CVT fluid: Approx. 20
°C
(68
°F)
2.01 – 2.05 V
CVT fluid: Approx. 50
°C
(122
°F)
1.45 – 1.50 V
CVT fluid: Approx. 80
°C
176
°F)
0.90 – 0.94 V
16
(SB)
Ground
Secondary pres-
sure sensor
Input
• After engine warm up
• Selector lever: “N” position
• At idle
1.23 – 1.25 V
17
(R)
Ground
Primary pressure
sensor
Input
• After engine warm up
• Selector lever: “N” position
• At idle
0.75 – 0.82 V
23
(P)
—
CAN-L
Input/
Output
—
—
24
(LG)
Ground
Input speed sensor
Input
• Shift position: “L” position
• Vehicle speed: 20 km/h (12 MPH)
880 Hz
26
(BG)
Ground
Sensor power sup-
ply
Output
Ignition switch: ON
5.0 V
Ignition switch: OFF
0 V
JSDIA3769GB
