< PRECAUTION >
[CVT: RE0F10D]
PRECAUTIONS
CAUTION:
• Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal
before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.
• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
• Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.
• Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Removal and Installation Procedure for CVT Unit Connector
INFOID:0000000011279242
REMOVAL

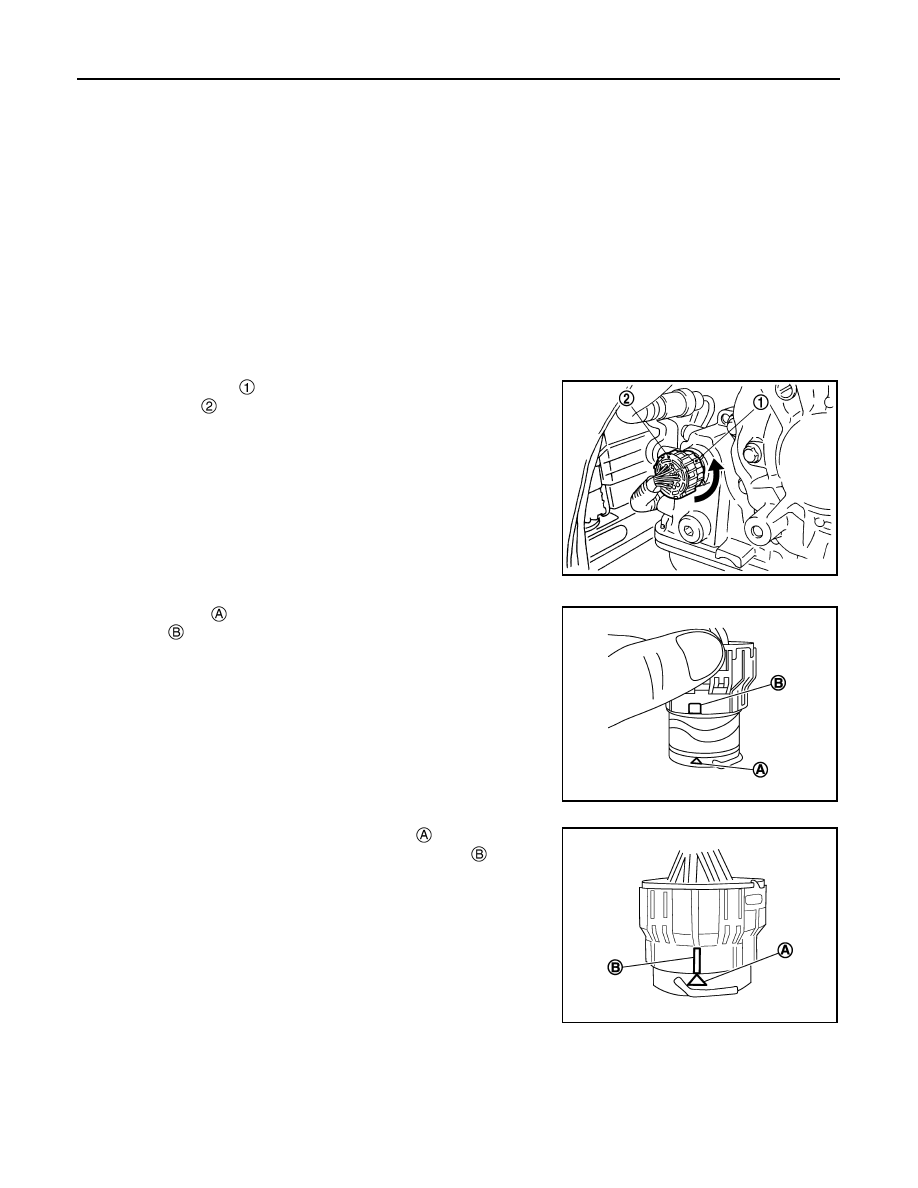

• Rotate bayonet ring counterclockwise. Pull out CVT unit har-
ness connector upward and remove it.
INSTALLATION

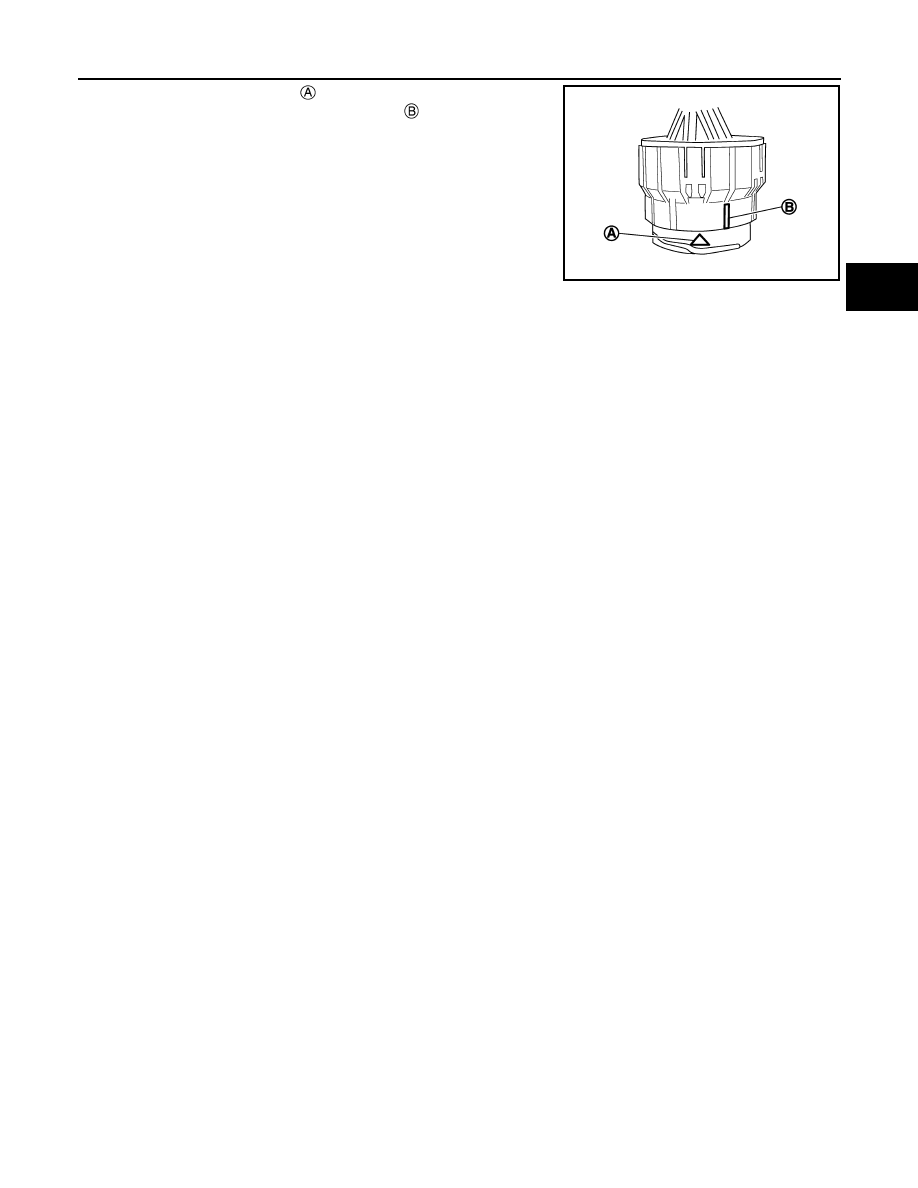

1. Align marking on CVT unit harness connector terminal with
marking on bayonet ring. Insert CVT unit harness connector.
2. Rotate bayonet ring clockwise.
3. Rotate bayonet ring clockwise until marking on CVT unit har-
ness connector terminal body is aligned with the slit on bayo-
net ring as shown in the figure (correctly fitting condition).
CAUTION:
SCIA6685J
JPDIA0294ZZ
