TM-6

< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011279237

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000011279238

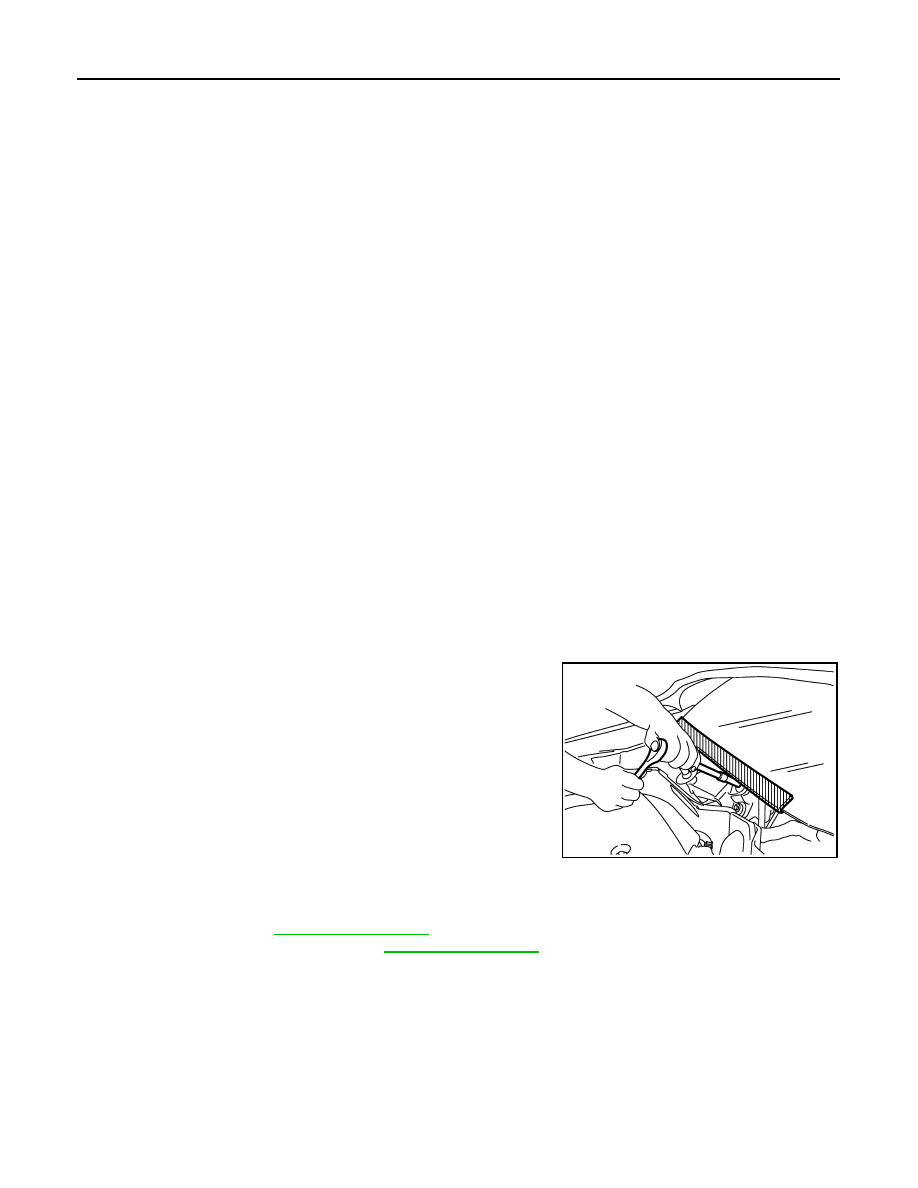

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precaution for TCM and Transaxle Assembly Replacement

INFOID:0000000011279239

CAUTION:

• To replace TCM, refer to

TM-81, "Description"

• To replace transaxle assembly, refer to

TM-83, "Description"

PIIB3706J

PRECAUTIONS

TM-7

< PRECAUTION >

[CVT: RE0F10D]

General Precautions

INFOID:0000000011279240

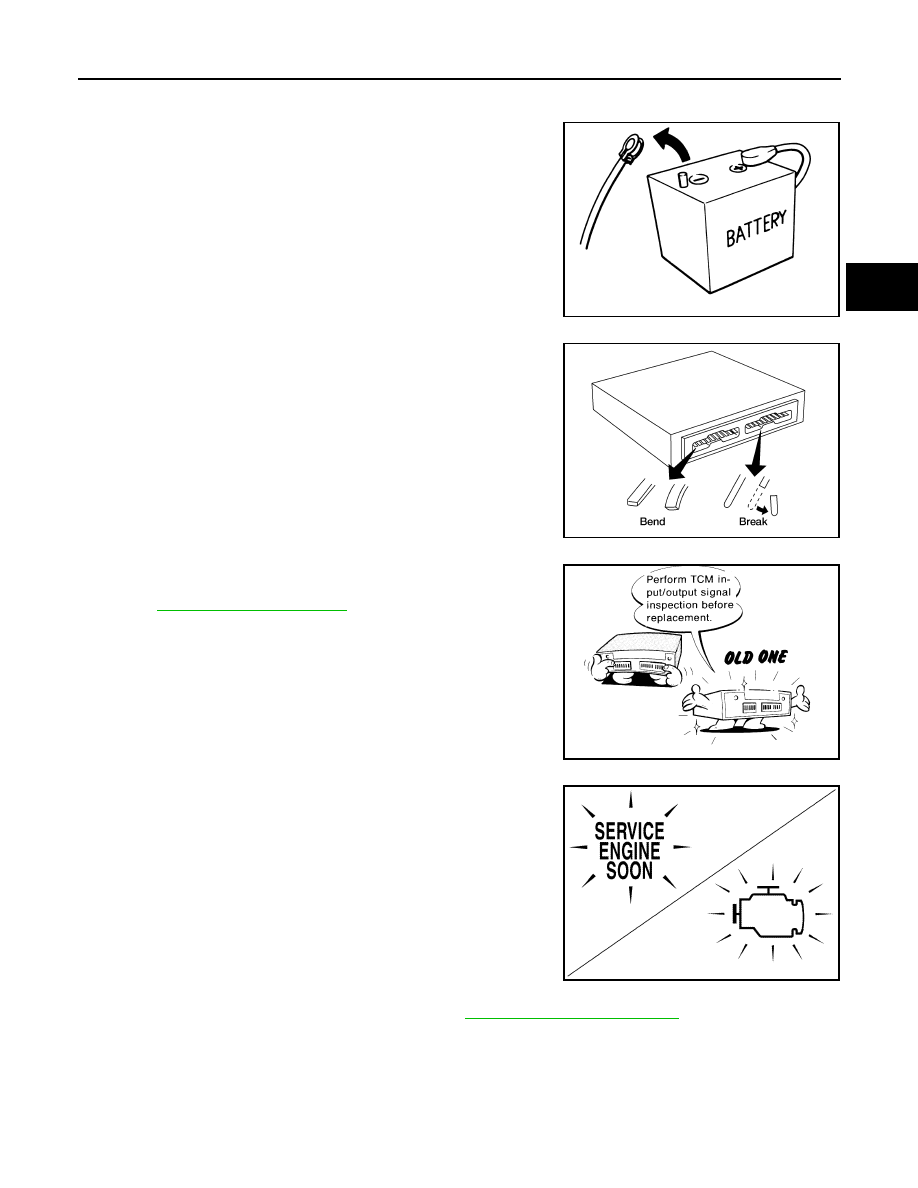

• Turn ignition switch OFF and disconnect the battery cable

from the negative terminal before connecting or disconnect-

ing the CVT assembly harness connector. Because battery

voltage is applied to TCM even if ignition switch is turned

OFF.

• When connecting or disconnecting pin connectors into or

from TCM, do not damage pin terminals (bend or break).

Check that there are not any bends or breaks on TCM pin ter-

minal, when connecting pin connectors.

• Perform TCM input/output signal inspection and check

whether TCM functions normally or not before replacing TCM.

Refer to

TM-52, "Reference Value"

• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION

PROCEDURE”.

If the repair is completed DTC should not be displayed in the

“DTC CONFIRMATION PROCEDURE”.

• Always use the specified brand of CVT fluid. Refer to

MA-11, "Fluids and Lubricants"

• Use lint-free paper not cloth rags during work.

• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.

On Board Diagnosis (OBD) System of CVT and Engine

INFOID:0000000011279241

The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to

warn the driver of a malfunction causing emission deterioration.

SEF289H

AAT470A

MEF040DA

JSBIA1315ZZ
