B TERMINAL CIRCUIT

YES

>> “B” terminal circuit is OK. Further inspection is necessary. Refer to

STR-11, "Work Flow (With

GR8-1200 NI)"

 or

STR-15, "Work Flow (Without GR8-1200 NI)"

.

NO

>> Check the starter motor case to engine mounting for high resistance.

S CONNECTOR CIRCUIT

STR-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

S CONNECTOR CIRCUIT

Description

INFOID:0000000011279740

The starter motor magnetic switch is supplied with power when the ignition switch is turned to the START posi-

tion while the selector lever is in the P (Park) or N (Neutral) position.

Diagnosis Procedure

INFOID:0000000011279741

Regarding Wiring Diagram information, refer to

STR-7, "Wiring Diagram"

.

CAUTION:

Perform diagnosis under the condition that engine cannot start by the following procedure.

1. Remove fuel pump fuse.

2. Crank or start the engine (where possible) until the fuel pressure is released.

1.

CHECK “S” CONNECTOR CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect starter motor connector.

3. Shift selector lever to “P” (Park) or “N” (Neutral) position.

4. Check voltage between starter motor harness connector and ground.

Is the inspection result normal?

YES

>> “S” circuit is OK. Further inspection is necessary. Refer to

STR-11, "Work Flow (With GR8-1200

NI)"

 or

STR-15, "Work Flow (Without GR8-1200 NI)"

.

NO

>> GO TO 2.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect IPDM E/R connector.

2. Check continuity between starter motor harness connector and the IPDM E/R harness connector.

3. Check continuity between starter motor terminal S and ground.

Is the inspection result normal?

YES

>> Further inspection is necessary. Refer to

STR-11, "Work Flow (With GR8-1200 NI)"

 or

STR-15,

"Work Flow (Without GR8-1200 NI)"

.

NO

>> Repair or replace the harness or connectors.

(+)

(-)

Condition

Voltage

(Approx.)

Connector Terminal

F34

S

Ground

When the ignition switch is in START position

Battery voltage

Starter motor harness connector

IPDM E/R harness connector

Continuity

Connector

Terminal

Connector

Terminal

F34

S

F41

83

Yes

Connector Terminal

—

Continuity

F34

S

Ground

No

STR-20

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000011279742

Symptom

Reference

No normal cranking

Refer to

STR-11, "Work Flow (With GR8-1200 NI)"

 or

STR-15,

"Work Flow (Without GR8-1200 NI)"

.

Starter motor does not rotate

STARTER MOTOR

STR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

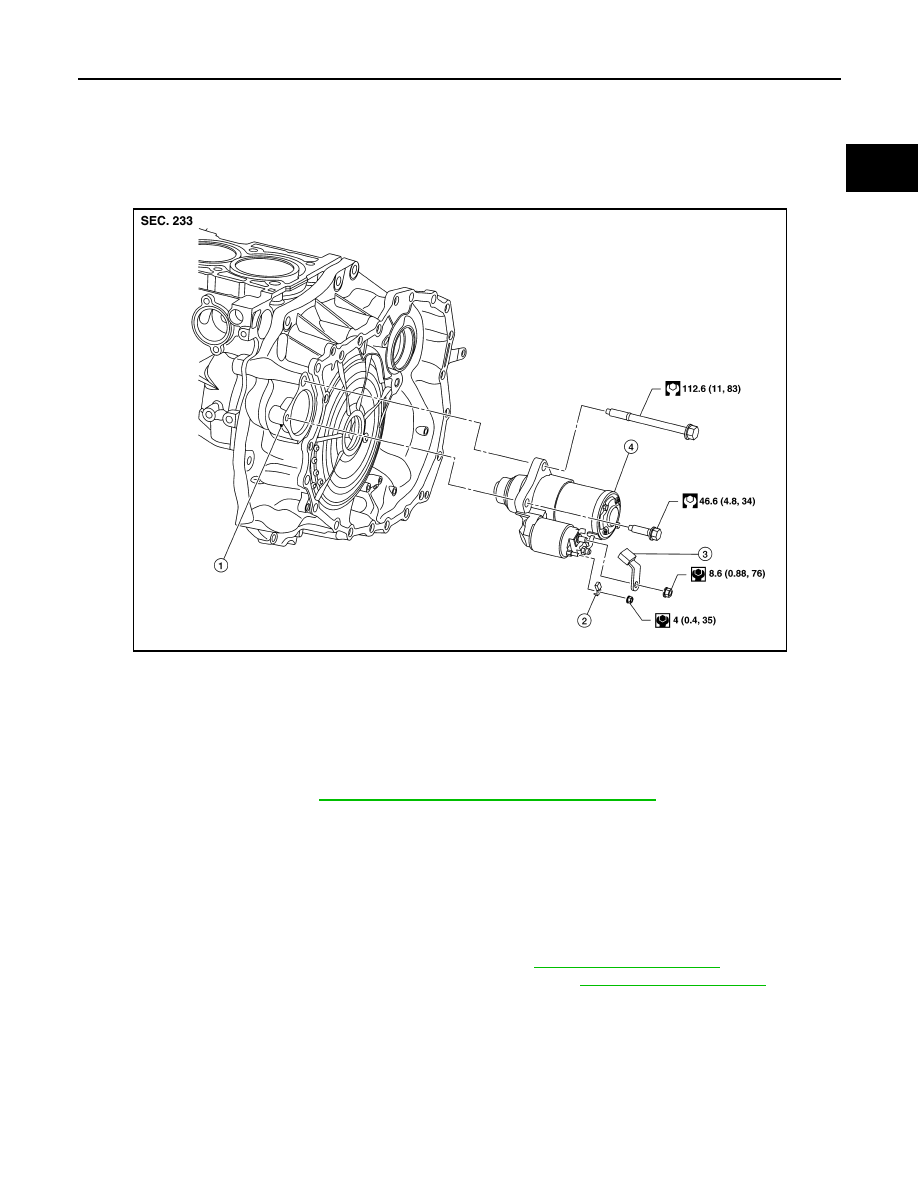

Exploded View

INFOID:0000000011279743

Removal and Installation

INFOID:0000000011279744

REMOVAL

1. Remove battery tray. Refer to

PG-79, "Removal and Installation (Battery Tray)"

.

2. Remove terminal B nut and terminal B harness.
3. Remove terminal S nut and terminal S harness.
4. Remove starter motor mounting bolts.
5. Remove starter motor upward from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• Perform the "Throttle Valve Closed Position Learning". Refer to

EC-143, "Work Procedure"

.

• Perform the "Accelerator Pedal Released Position Learning". Refer to

EC-142, "Work Procedure"

.

1.

Transaxle assembly

2.

"B" terminal harness

3.

"S" connector

4.

Starter motor

AWBIA1296GB
