ST-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011328187

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Service Notice or Precautions for Steering System

INFOID:0000000011280287

• In case of removing steering gear, make the final tightening with grounded and unloaded vehicle condition,

and then check wheel alignment.

• Observe the following precautions when disassembling.

- Before disassembly, thoroughly clean the outside of the unit.

- Disassembly should be done in a clean work area. It is important to prevent the internal parts from becoming

contaminated by dirt or other foreign matter.

- For easier and proper assembly, place disassembled parts in order on a parts rack.

- Use nylon cloth or paper towels to clean the parts; common shop rags can leave lint that might interfere with

their operation.

- Do not reuse non-reusable parts.

- Before assembling, apply the specified grease to the directed parts.

• During quick steering, rasping noise may be heard from around the steering wheel. This is not a malfunction.

The noise is an operating noise of the EPS system under normal conditions. If the rasping noise occurs dur-

ing slow steering, this may not be an operating noise of the system. In this case, it is necessary to find out

the location of the noise and repair, if necessary.

• Do not repeat static steering. (Motor and EPS control unit could be heated.)

PREPARATION

ST-3

< PREPARATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000011280289

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000011280290

Tool number
(TechMate No.)
Tool name

Description

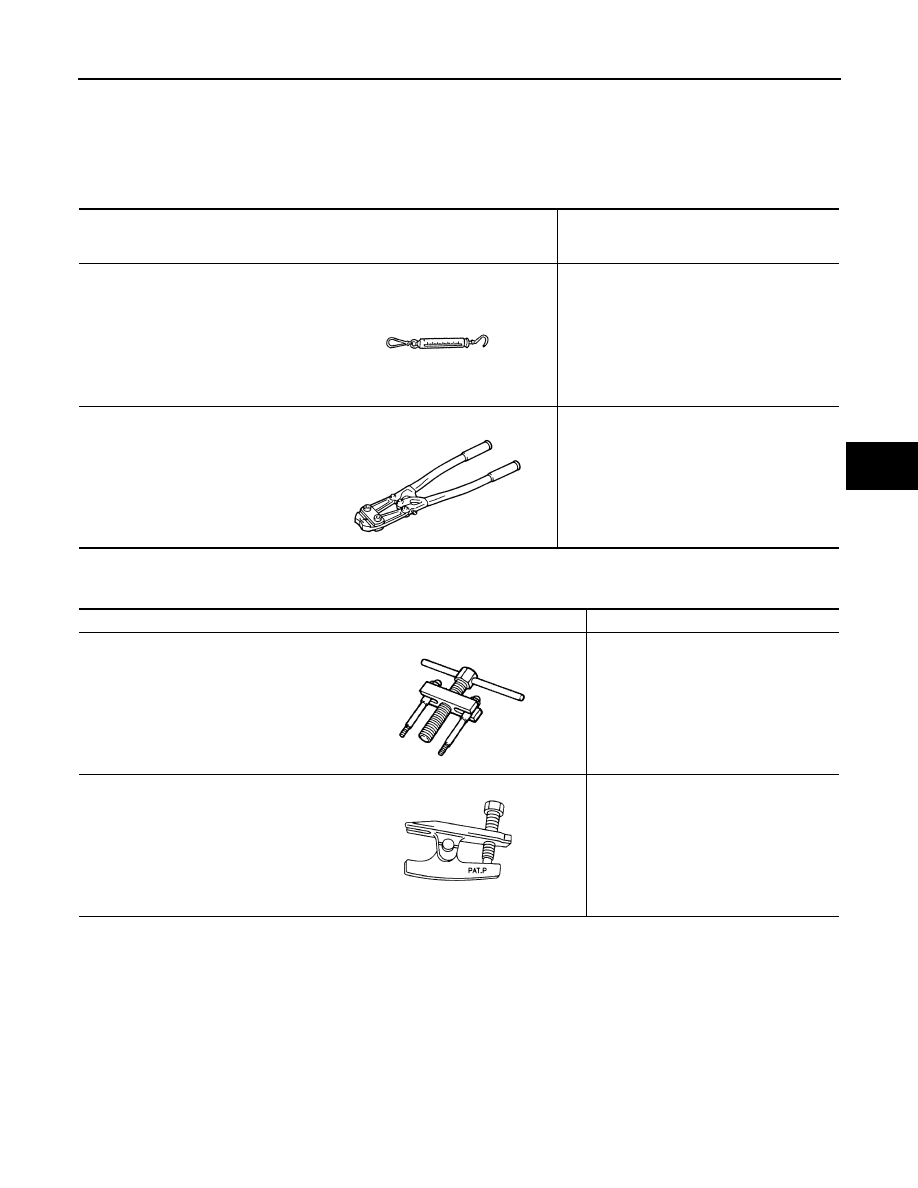

(J-44372)
Pull gauge

Measuring steering wheel turning force, rack
sliding force and ball joint swinging force

KV40107300
(

)

Boot band crimping tool

Installing boot bands (large diameter)

LST024

ZZA1229D

Tool name

Description

Steering wheel puller

Removing steering wheel

Ball joint remover

Removing ball joint

ZZA0819D

NT146

ST-4

< PREPARATION >

PREPARATION

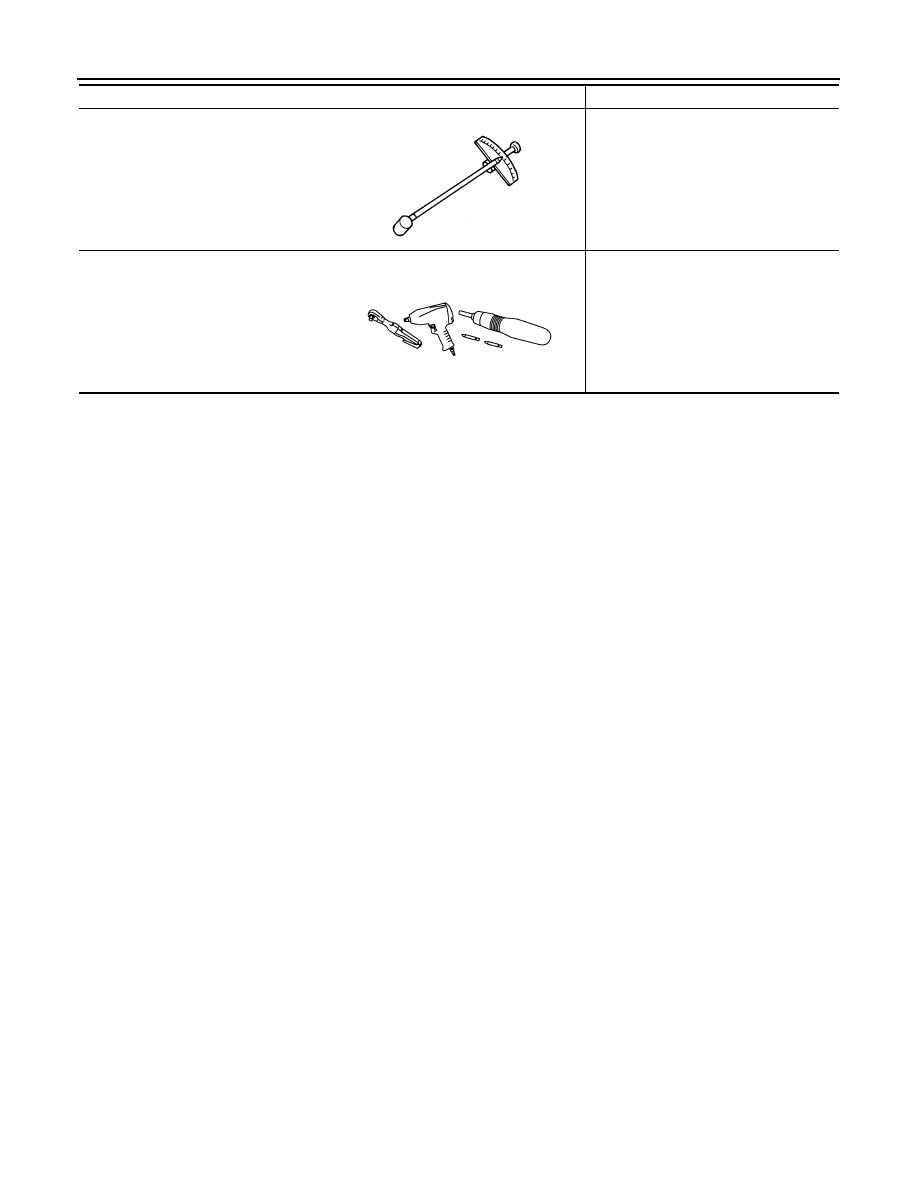

Torque wrench

Inspecting of rotating torque for ball joint
and steering column

Power tool

Loosening nuts, screws and bolts

Tool name

Description

ZZA0806D

PIIB1407E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

ST-5

< SYMPTOM DIAGNOSIS >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000011280291

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference

ST

-9

ST

-9

ST

-9

ST

-6

ST

-6

ST

-6

ST

-8

ST

-8

ST

-9

DLN-98

DLN-1

11

FS

U-

5

F

AX-6

WT

-6

2

F

AX-44

BR-6

Possible cause and SUSPECTED PARTS

Out

er/i

nn

er socket

ba

ll j

oi

nt

swin

gi

ng

 to

rqu

e

Out

er/i

nn

er

socket ba

ll

jo

in

t rot

a

tin

g torq

ue

Ou

te

r/

in

ne

r so

cke

ba

ll jo

in

en

d pl

ay

S

tee

rin

g wh

ee

l p

lay

Im

pr

op

er st

ee

ring

 whe

e

l

Im

pro

pe

r in

st

al

lat

ion

 o

r lo

os

en

es

of

tilt

 lo

ck

 le

ve

r

M

ou

nti

ng

 lo

os

en

es

s

S

tee

rin

g c

ol

um

n d

ef

orm

ati

on

 or

da

ma

ge

Im

pro

pe

r in

st

al

lat

ion

 o

r lo

os

en

es

of

ste

eri

ng

 co

lu

mn

S

tee

rin

g l

ink

ag

loo

sene

ss

PROPELLER SHAFT (A

W

D

)

DIF

F

ERENTIA

L (A

WD)

SUSP

ENSION

AXLE

WHEE

L AND

TIRE

DRIVE

 SHAFT

BRAK

E

Symptom

Steering

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

Shudder

×

×

×

×

×

×

×
