NATS ANTENNA AMP.

SEC-115

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

REMOVAL AND INSTALLATION

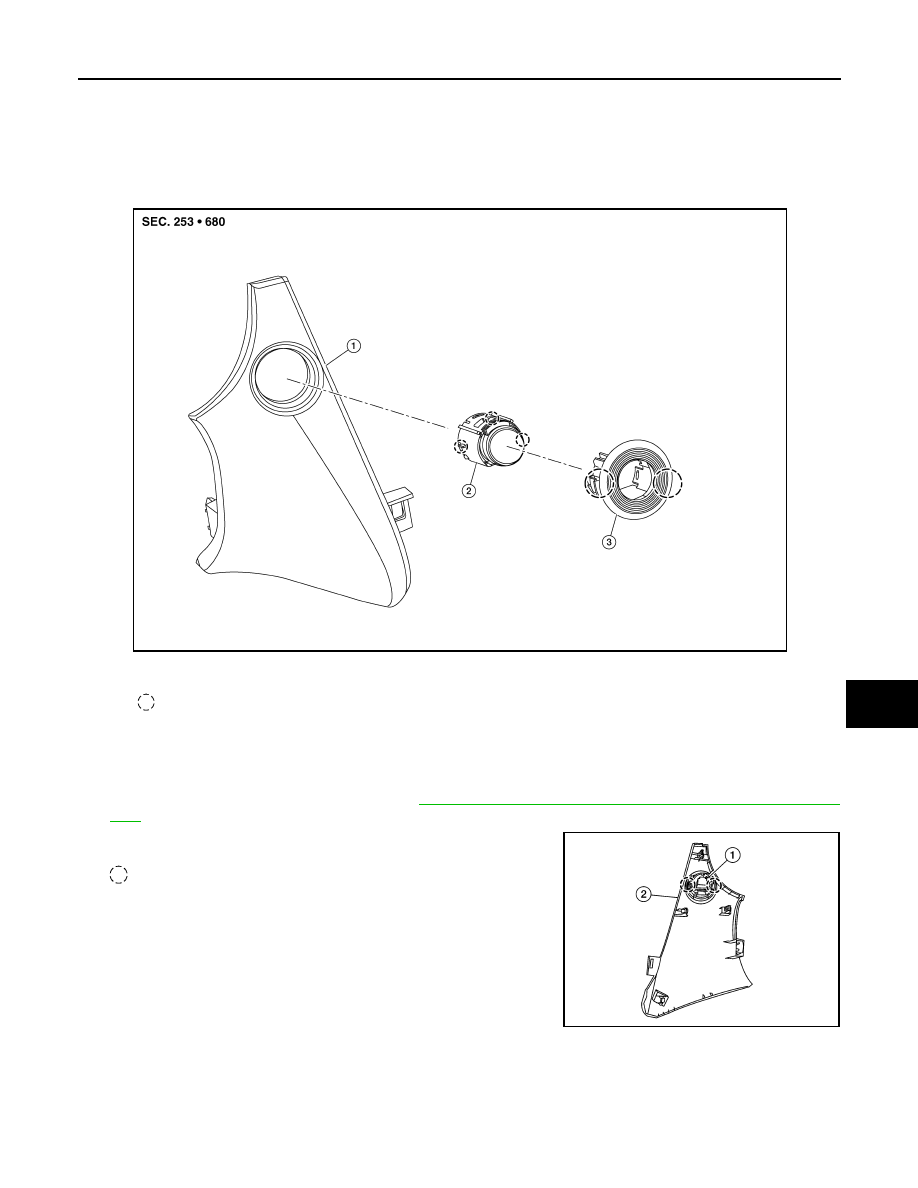

NATS ANTENNA AMP.

Exploded View

INFOID:0000000011278538

Removal and Installation

INFOID:0000000011278539

REMOVAL

1. Remove the instrument finisher B. Refer to

IP-16, "INSTRUMENT FINISHER B : Removal and Installa-

tion"

.

2. Release pawls using suitable tool and remove NATS antenna

amp. (1) from instrument finisher B (2).

: Pawl

1.

Instrument finisher B

2.

Push button ignition switch

3.

NATS antenna amp.

Pawl

AWKIA2910ZZ

ALKIA3435ZZ

2015 Rogue NAM

SEC-116

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

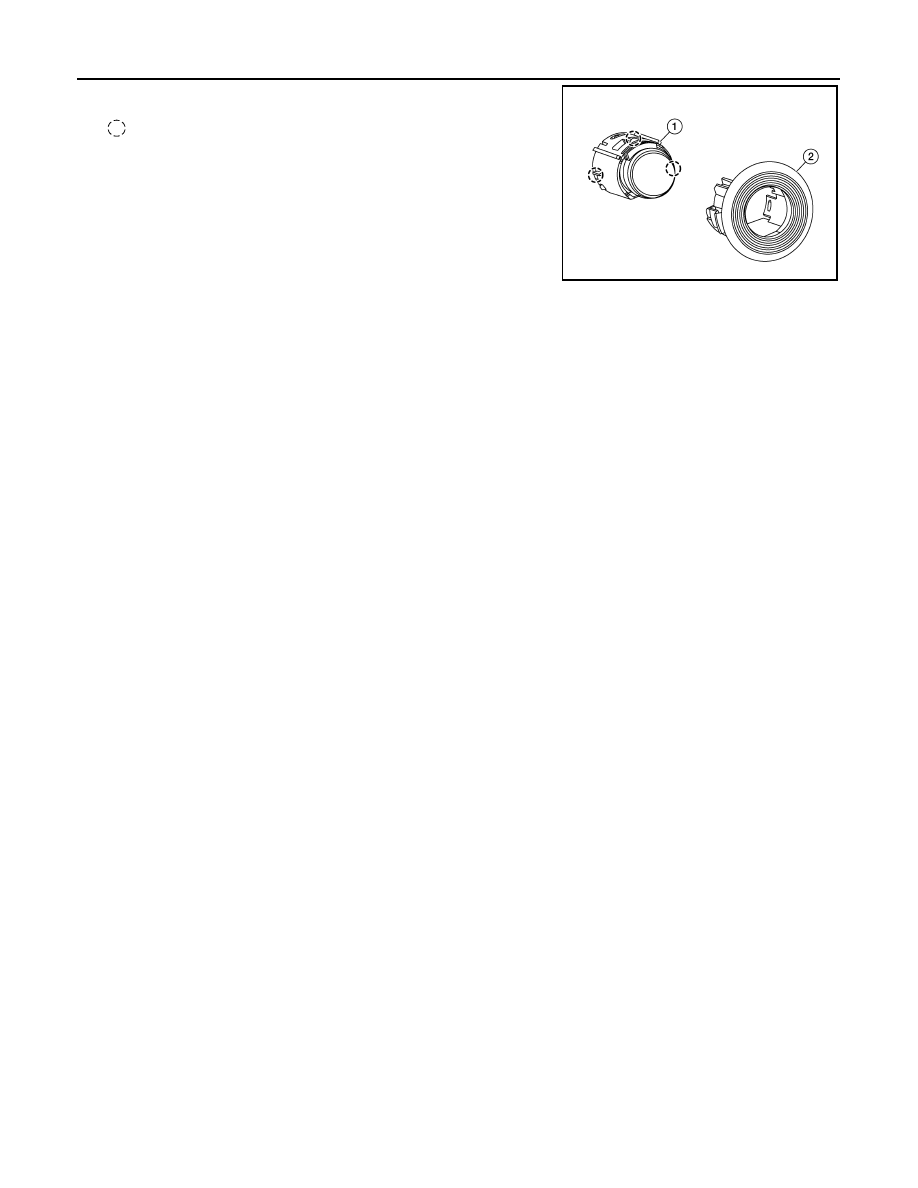

NATS ANTENNA AMP.

3. Release pawls using suitable tool and remove NATS antenna

amp. (2) from push button ignition switch (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

AWKIA2911ZZ

2015 Rogue NAM

PUSH-BUTTON IGNITION SWITCH

SEC-117

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

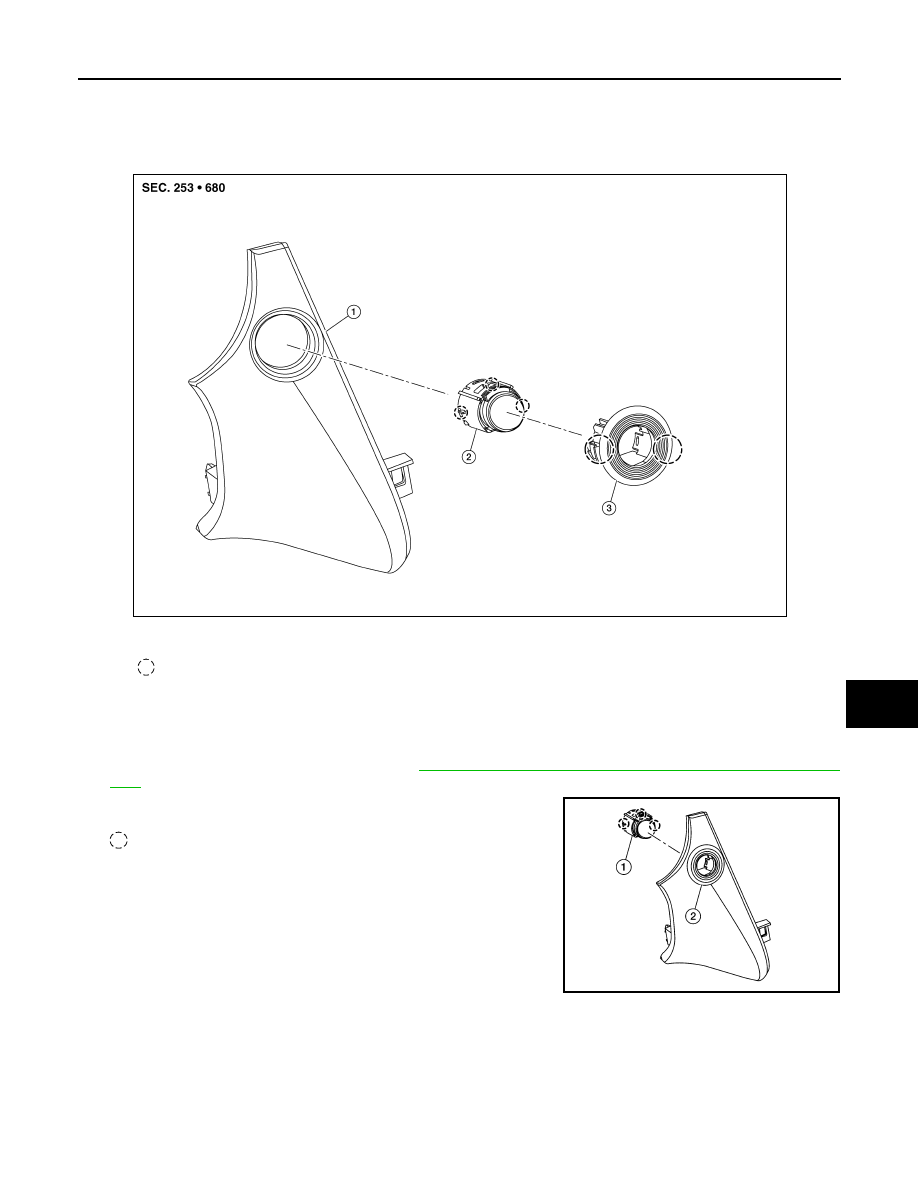

PUSH-BUTTON IGNITION SWITCH

Exploded View

INFOID:0000000011278540

Removal and Installation

INFOID:0000000011278541

REMOVAL

1. Remove the instrument finisher B. Refer to

IP-16, "INSTRUMENT FINISHER B : Removal and Installa-

tion"

.

2. Release pawls using suitable tool and remove push button igni-

tion switch (1) from NATS antenna amp. (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

1.

Instrument finisher B

2.

Push button ignition switch

3.

NATS antenna amp.

Pawl

AWKIA2910ZZ

AWKIA3218ZZ

2015 Rogue NAM

SEC-118

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

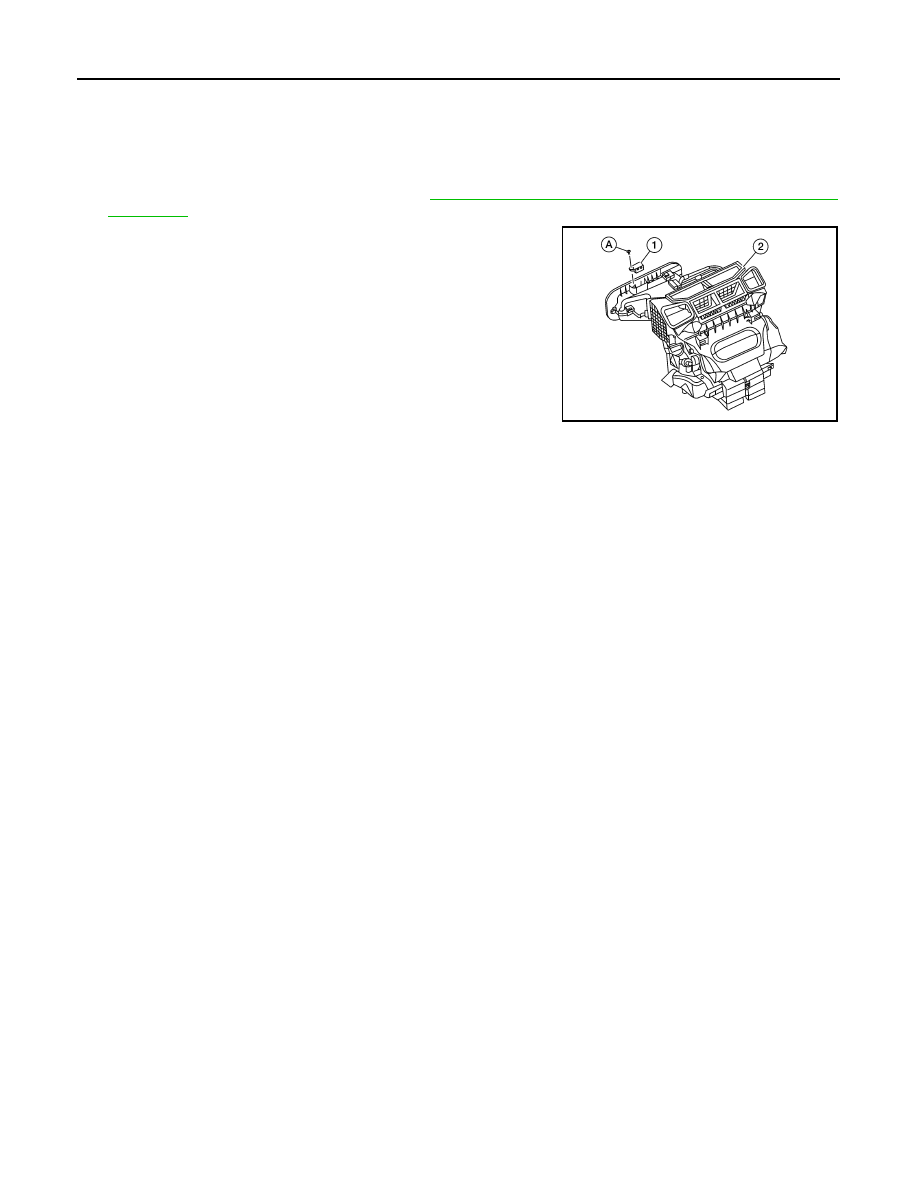

DONGLE UNIT

DONGLE UNIT

Removal and Installation

INFOID:0000000011301835

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and

Installation"

.

2. Disconnect the harness connector from the dongle unit (1).
3. Remove screw (A) and dongle unit (1) from the heating and

cooling unit assembly (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3662ZZ

2015 Rogue NAM
