Nissan Rogue. Manual - part 1085





PRECAUTIONS

SEC-119

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011278542

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000011343368

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

2015 Rogue NAM

SEC-120

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000011343369

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

  —
(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

2015 Rogue NAM

COMPONENT PARTS

SEC-121

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

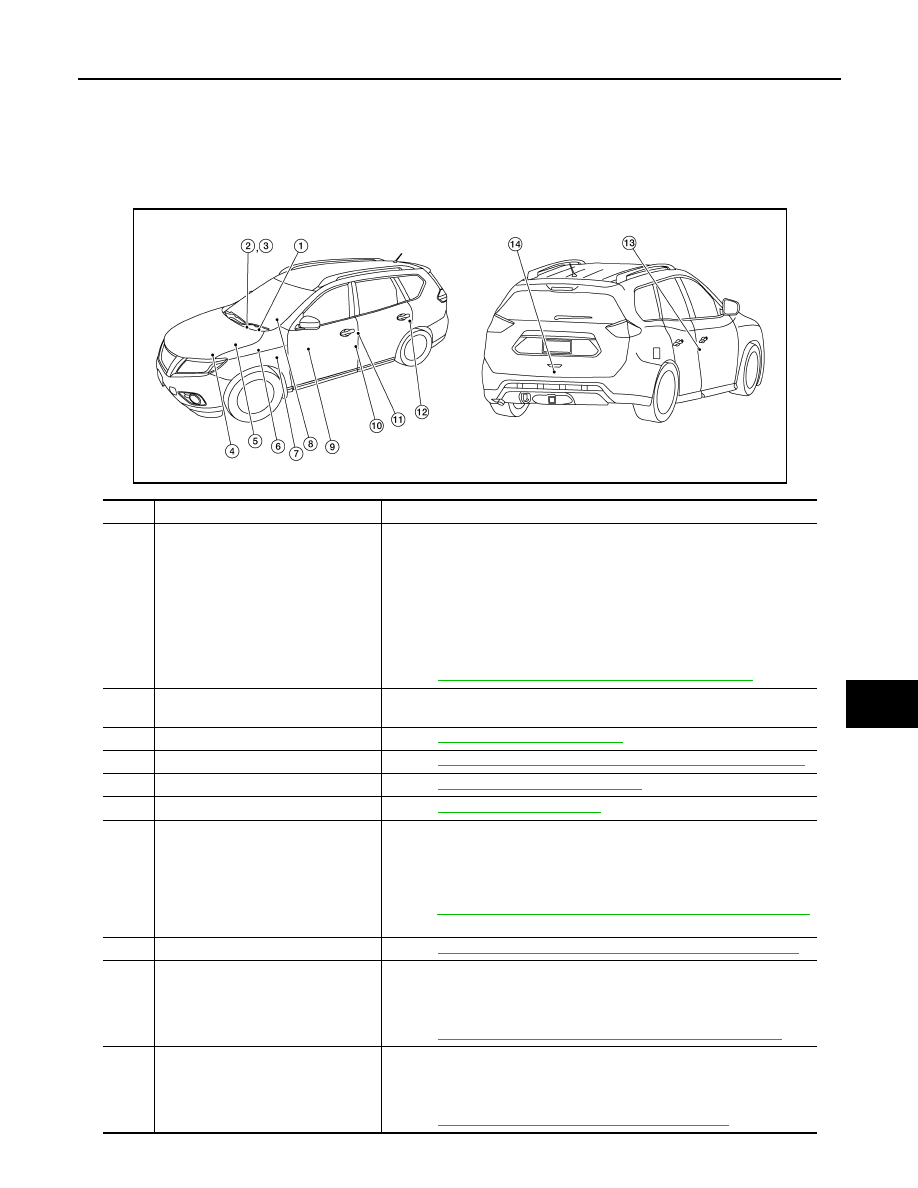

Component Parts Location

INFOID:0000000011278543

No.

Component

Function

1.

Combination meter

Combination meter transmits the vehicle speed signal to BCM via CAN com-
munication.
BCM also receives the vehicle speed signal from ABS actuator and electric
unit (control unit) via CAN communication. BCM compares both signals to
detect the vehicle speed.
Security indicator lamp is located on combination meter.
Security indicator lamp blinks when ignition switch is in any position other
than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"

.

2.

Ignition switch

Ignition switch transmits ON/OFF signal to BCM. BCM changes the ignition
switch position with the operation of ignition switch.

3.

NATS antenna amp.

Refer to

SEC-122, "NATS Antenna Amp."

.

4.

Transmission range switch

Refer to

TM-14, "CVT CONTROL SYSTEM : Transmission Range Switch"

.

5.

IPDM E/R

Refer to

PCS-6, "Component Parts Location"

.

6.

Stop lamp switch

Refer to

BRC-10, "Stop Lamp Switch"

.

7.

BCM

BCM controls NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS
(NATS)] and VEHICLE SECURITY SYSTEM.
Then, when the ignition switch is turned ON, BCM performs ID verification
between BCM and ECM. If the ID verification result is OK, ECM can start en-
gine.
Refer to

BCS-79, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

8.

CVT shift selector

Refer to

TM-12, "CVT CONTROL SYSTEM : Component Parts Location"

.

9.

Main power window and door lock/un-
lock switch

Door lock and unlock switch is integrated into the main power window and
door lock/unlock switch.
Door lock and unlock switch transmits door lock/unlock operation signal to
BCM.
Refer to

PWC-7, "Main Power Window And Door Lock/Unlock Switch"

.

10.

Front door lock assembly LH

Door key cylinder switch is integrated into front door lock assembly (driver
side).
Door key cylinder switch detects door LOCK/UNLOCK operation using me-
chanical key, and then transmits the operation signal to BCM.
Refer to

DLK-291, "Front Door Lock Assembly (Driver Side)"

.

ALKIA3685ZZ

2015 Rogue NAM

SEC-122

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

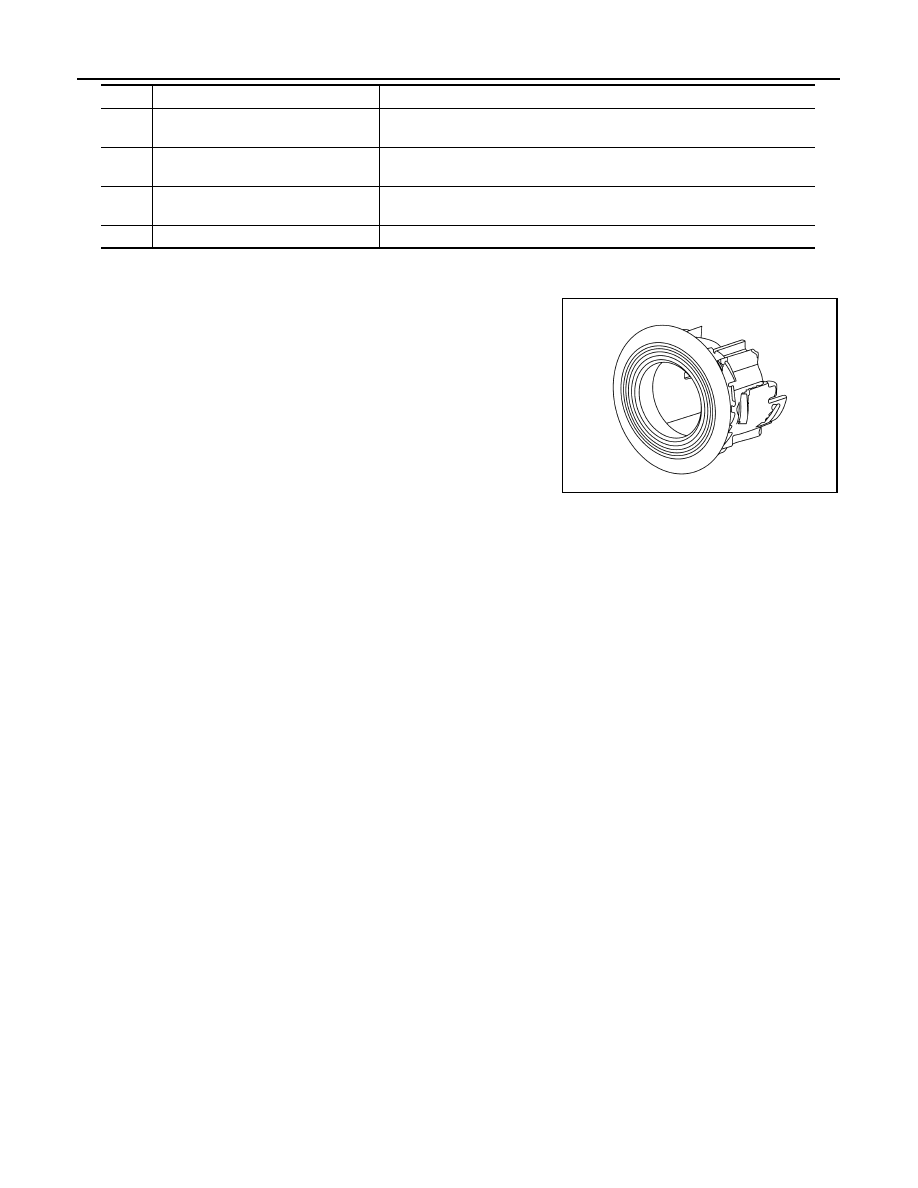

NATS Antenna Amp.

INFOID:0000000011278544

The ID verification is performed between BCM and transponder inte-

grated into key via NATS antenna amp. when key backside is con-

tacted to ignition switch in case that key battery is discharged. If the

ID verification result is OK, the operation of ignition switch is avail-

able.

11.

Front door switch LH

Door switch detects door open/close condition and then transmits ON/OFF
signal to BCM.

12.

Rear door switch LH

Door switch detects door open/close condition and then transmits ON/OFF
signal to BCM.

13.

Front door switch RH

Door switch detects door open/close condition and then transmits ON/OFF
signal to BCM.

14.

Back door lock assembly

Back door lock actuator locks/unlocks the back door latch assembly.

No.

Component

Function

JMKIB1434ZZ

2015 Rogue NAM
