Nissan Rogue. Manual - part 1076





B2198 NATS ANTENNA AMP.

SEC-83

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

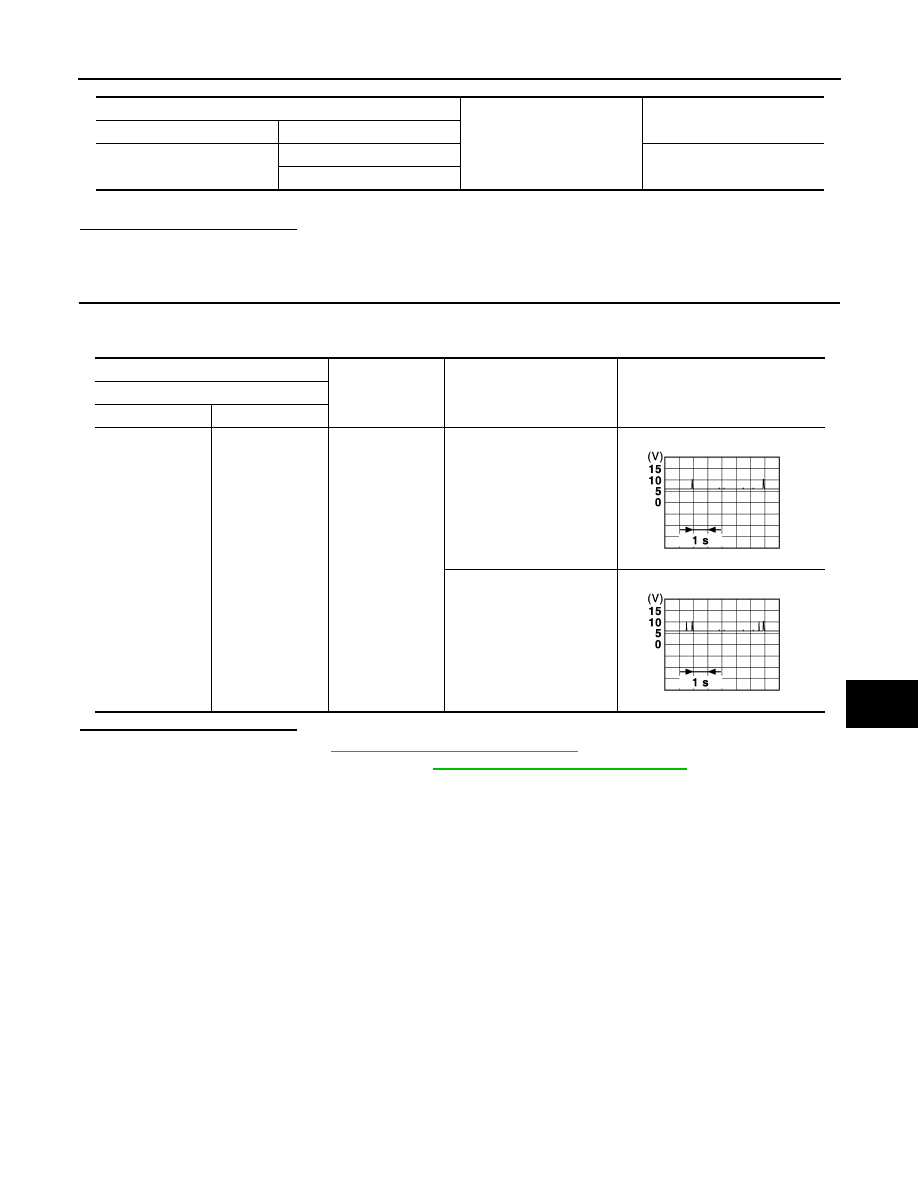

CHECK NATS ANTENNA AMP INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Replace NATS antenna amp. Refer to

SEC-115, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

M19

114

No

115

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M19

114, 115

Ground

When Intelligent Key is in the
antenna detection area

When Intelligent Key is not in
the antenna detection area

JMKIA3839GB

JMKIA5951GB

2015 Rogue NAM

SEC-84

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2556 PUSH-BUTTON IGNITION SWITCH

B2556 PUSH-BUTTON IGNITION SWITCH

DTC Logic

INFOID:0000000011278488

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Press push-button ignition switch under the following condition:

-

Brake pedal: Not depressed

2. Release push-button ignition switch and wait 100 seconds or more.

3. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?

YES

>> GO TO

SEC-84, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000011278489

Regarding Wiring Diagram information, refer to

SEC-28, "Wiring Diagram"

.

1.

CHECK PUSH-BUTTON IGNITION SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect push-button ignition switch connector.

3. Check voltage between push-button ignition switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT

1. Disconnect BCM connector and IPDM E/R connector.

2. Check continuity between push-button ignition switch harness connector and BCM harness connector.

3. Check continuity between push-button ignition switch harness connector and ground.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2556

PUSH-BTN IGN SW

BCM detects the push-button ignition switch
stuck at ON for 100 seconds or more.

• Harness or connectors

(Push-button ignition switch circuit is
shorted.)

• Push-button ignition switch
• BCM

(+)

(–)

Voltage (V)

(Approx.)

Push-button ignition switch

Connector

Terminal

M17

5

Ground

Battery voltage

Push-button ignition switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

5

M19

89

Yes

Push-button ignition switch

Ground

Continuity

Connector

Terminal

M17

5

No

2015 Rogue NAM

B2556 PUSH-BUTTON IGNITION SWITCH

SEC-85

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

REPLACE BCM

1. Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

2. Perform initialization of BCM and registration of all Intelligent Keys using CONSULT. Refer to the CON-

SULT Immobilizer mode and follow the on-screen instructions.

>> Inspection End.

4.

CHECK PUSH-BUTTON IGNITION SWITCH

Refer to

SEC-85, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace push-button ignition switch. Refer to

SEC-117, "Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011278490

1.

CHECK PUSH-BUTTON IGNITION SWITCH

1. Turn ignition switch OFF.

2. Disconnect push-button ignition switch connector.

3. Check continuity between push-button ignition switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace push-button ignition switch. Refer to

SEC-117, "Removal and Installation"

.

Push-button ignition switch

Condition

Continuity

Terminal

4

5

Push-button ignition
switch

Pressed

Yes

Not pressed

No

2015 Rogue NAM

SEC-86

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2557 VEHICLE SPEED

B2557 VEHICLE SPEED

DTC Logic

INFOID:0000000011278491

DTC DETECTION LOGIC

NOTE:

• If DTC B2557 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

BCS-64, "DTC Logic"

.

• If DTC B2557 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

BCS-65, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and wait 10 seconds or more.

2. Drive the vehicle at a vehicle speed of 10 km/h (6.2 MPH) or more for 10 seconds or more.

3. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?

YES

>> GO TO

SEC-86, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000011278492

1.

CHECK DTC OF “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”

Check DTC in “Self Diagnostic Result” of “ABS” using CONSULT.
Is DTC detected?

YES

>> Perform the trouble diagnosis related to the detected DTC. Refer to

BRC-53, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC OF “COMBINATION METER”

Check DTC in “Self Diagnostic Result” of “METER/M&A” using CONSULT.
Is DTC detected?

YES

>> Perform the trouble diagnosis related to the detected DTC. Refer to

MWI-31, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible causes

B2557

VEHICLE SPEED

BCM detects one of the following conditions for 10
seconds continuously.
• Vehicle speed signal from combination meter is 10

km/h (6.2 MPH) or more, and vehicle speed signal
from ABS actuator and electric unit (control unit) is
4 km/h (2.5 MPH) or less.

• Vehicle speed signal from combination meter is 4

km/h (2.5 MPH) or less, and vehicle speed signal
from ABS actuator and electric unit (control unit) is
10 km/h (6.2 MPH) or more.

• Harness or connectors

(The CAN communication line is
open or shorted.)

• Combination meter
• ABS actuator and electric unit

(control unit)

2015 Rogue NAM
