B2190 NATS ANTENNA AMP.

SEC-75

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> Replace NATS antenna amp. Refer to

SEC-115, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK NATS ANTENNA COMMUNICATION SIGNAL CIRCUIT

1. Disconnect BCM connector and NATS antenna connector.

2. Check continuity between NATS antenna amp. harness connector and BCM harness connector.

3. Check continuity between NATS antenna amp. connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

REPLACE BCM

Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

(+)

(-)

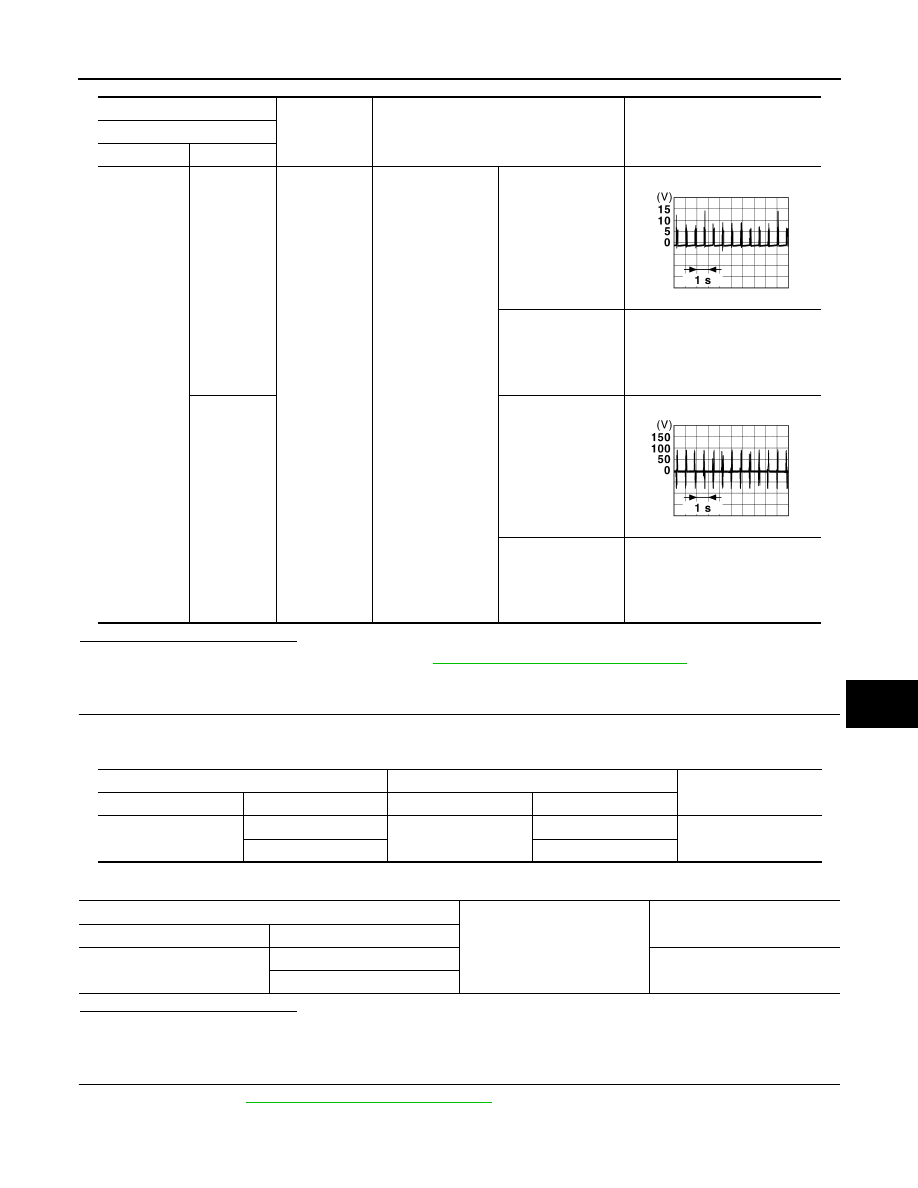

Condition

Voltage

(Approx.)

NATS antenna amp.

Connector

Terminal

M25

1

Ground

Intelligent Key bat-
tery is removed and
brake pedal is de-
pressed.

Other than above.

When a registered
Intelligent Key back-
side is contacted to
push-button ignition
switch.

0 V

3

Other than above.

When a registered
Intelligent Key back-
side is contacted to
push-button ignition
switch.

0 V

JMMIA1651GB

JMMIA1650GB

NATS antenna amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M25

1

M19

115

Yes

3

114

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M25

1

No

3

2015 Rogue NAM

SEC-76

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2190 NATS ANTENNA AMP.

>> Inspection End.

2015 Rogue NAM

B2191 DIFFERENCE OF KEY

SEC-77

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2191 DIFFERENCE OF KEY

DTC Logic

INFOID:0000000011278477

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self Diagnostic Result” using CONSULT.
Is DTC detected?

YES

>> Refer to

SEC-77, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000011278478

1.

INTELLIGENT KEY REGISTRATION

Using CONSULT, register all Intelligent Keys again.
Can engine be started with the registered Intelligent Key?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

REPLACE INTELLIGENT KEY

1. Prepare Intelligent Key that matches the vehicle.

2. Registration of all Intelligent Key using CONSULT.
Can engine be started with the registered Intelligent Key?

YES

>> Inspection End.

NO

>> GO TO 3.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2191

DIFFERENCE OF
KEY

The ID verification results between BCM and Intel-
ligent Key are NG. The registration is necessary.

Intelligent Key

2015 Rogue NAM

SEC-78

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2192 ID DISCORD, IMMU-ECM

B2192 ID DISCORD, IMMU-ECM

DTC Logic

INFOID:0000000011278479

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?

YES

>> GO TO

SEC-78, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000011278480

1.

PERFORM INITIALIZATION

Perform initialization of BCM and reregistration of all Intelligent Keys using CONSULT. Refer to the CONSULT

Immobilizer mode and follow the on-screen instructions.
Can the system be initialized and can the engine be started with reregistered Intelligent Key?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK SELF-DIAGNOSTIC RESULT

1. Select “Self Diagnostic Result” of “BCM” using CONSULT.

2. Erase DTC.

3. Perform DTC CONFIRMATION PROCEDURE for DTC B2192. Refer to

SEC-78, "DTC Logic"

.

Is DTC detected?

YES

>> GO TO 3.

NO

>> Inspection End.

3.

REPLACE BCM

1. Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

2. Perform initialization of BCM and reregistration of all Intelligent Keys using CONSULT. Refer to the CON-

SULT Immobilizer mode and follow the on-screen instructions.

Can the system be initialized and can the engine be started with registered Intelligent Key?

YES

>> Inspection End.

NO

>> GO TO 4.

4.

REPLACE ECM

1. Replace ECM. Refer to

EC-502, "Removal and Installation"

.

2. Perform “ADDITIONAL SERVICE WHEN REPLACING ECM”. Refer to

EC-139, "Work Procedure"

.

>> Inspection End.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2192

ID DISCORD BCM-ECM

The ID verification results between
BCM and ECM are NG.

• Harness or connectors

(The CAN communication line is open
or shorted.)

• BCM
• ECM
