ENGINE START FUNCTION

SEC-39

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA2316GB

2015 Rogue NAM

SEC-40

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

ENGINE START FUNCTION

AAKIA2317GB

2015 Rogue NAM

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-41

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

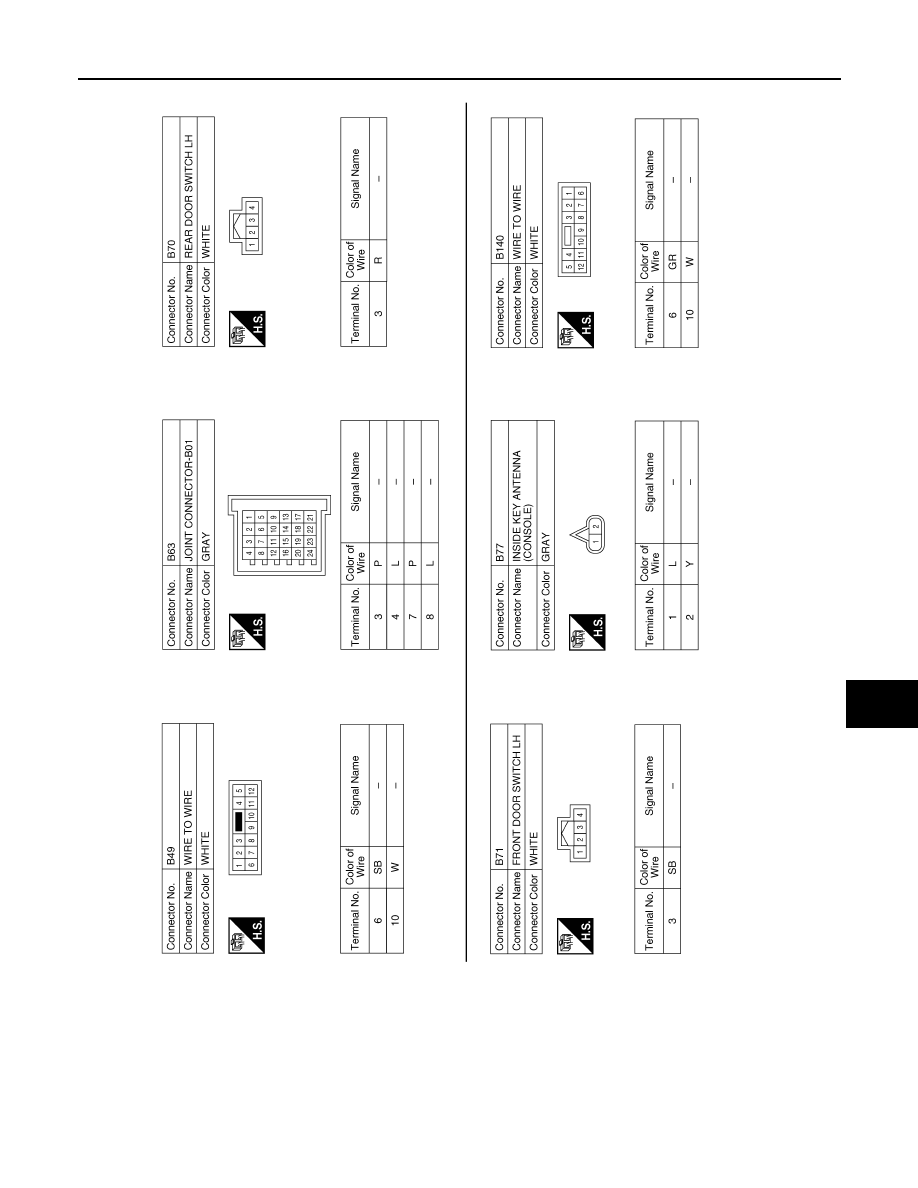

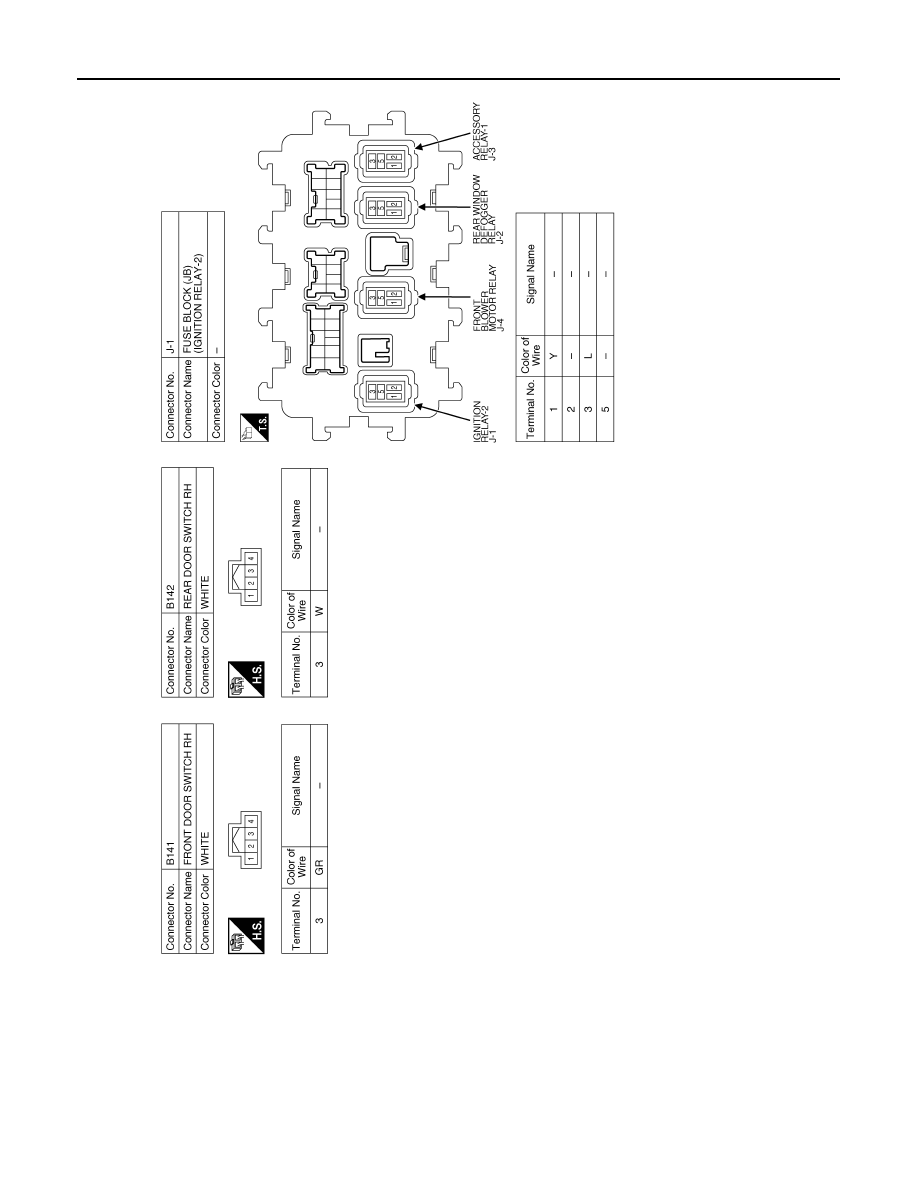

Wiring Diagram

INFOID:0000000011278454

AAKWA0988GB

2015 Rogue NAM

SEC-42

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

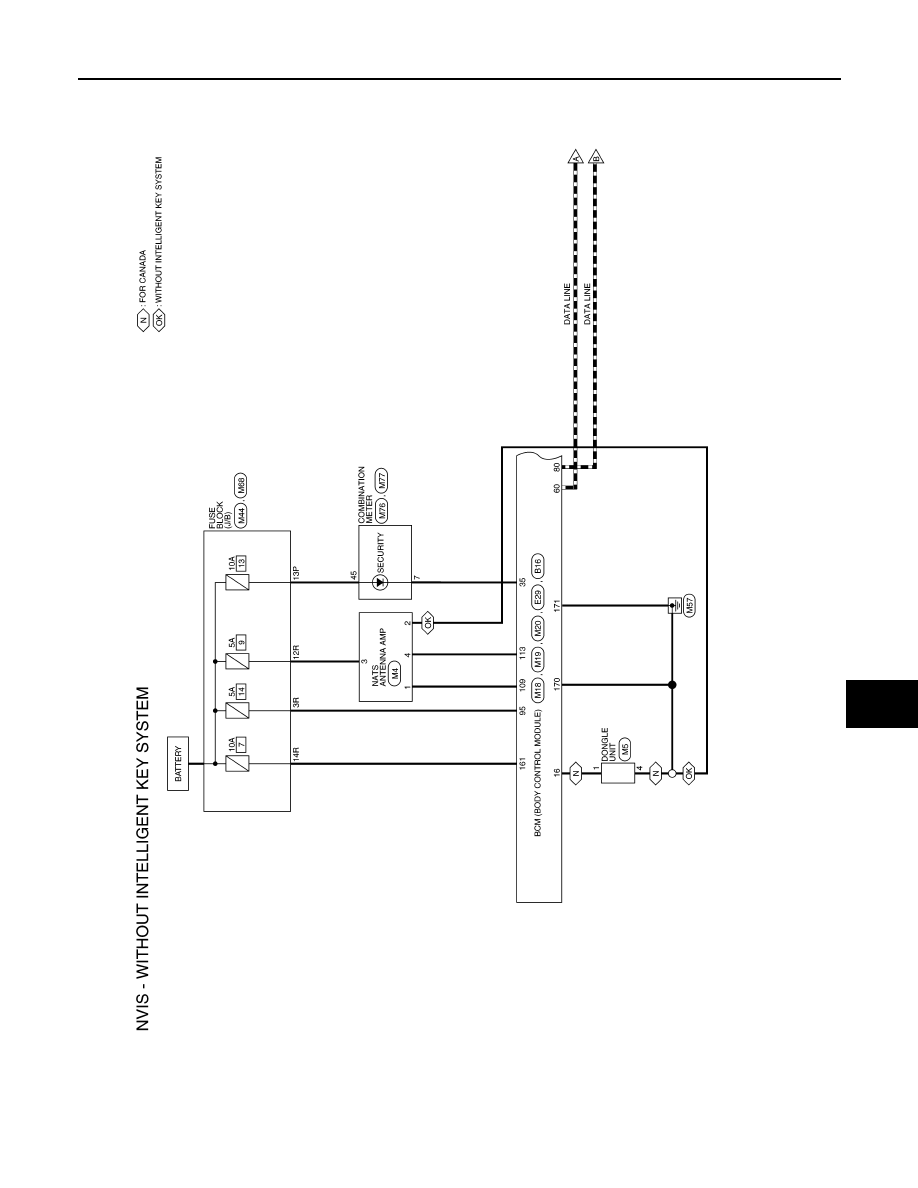

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

AAKWA0989GB

2015 Rogue NAM
