NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-43

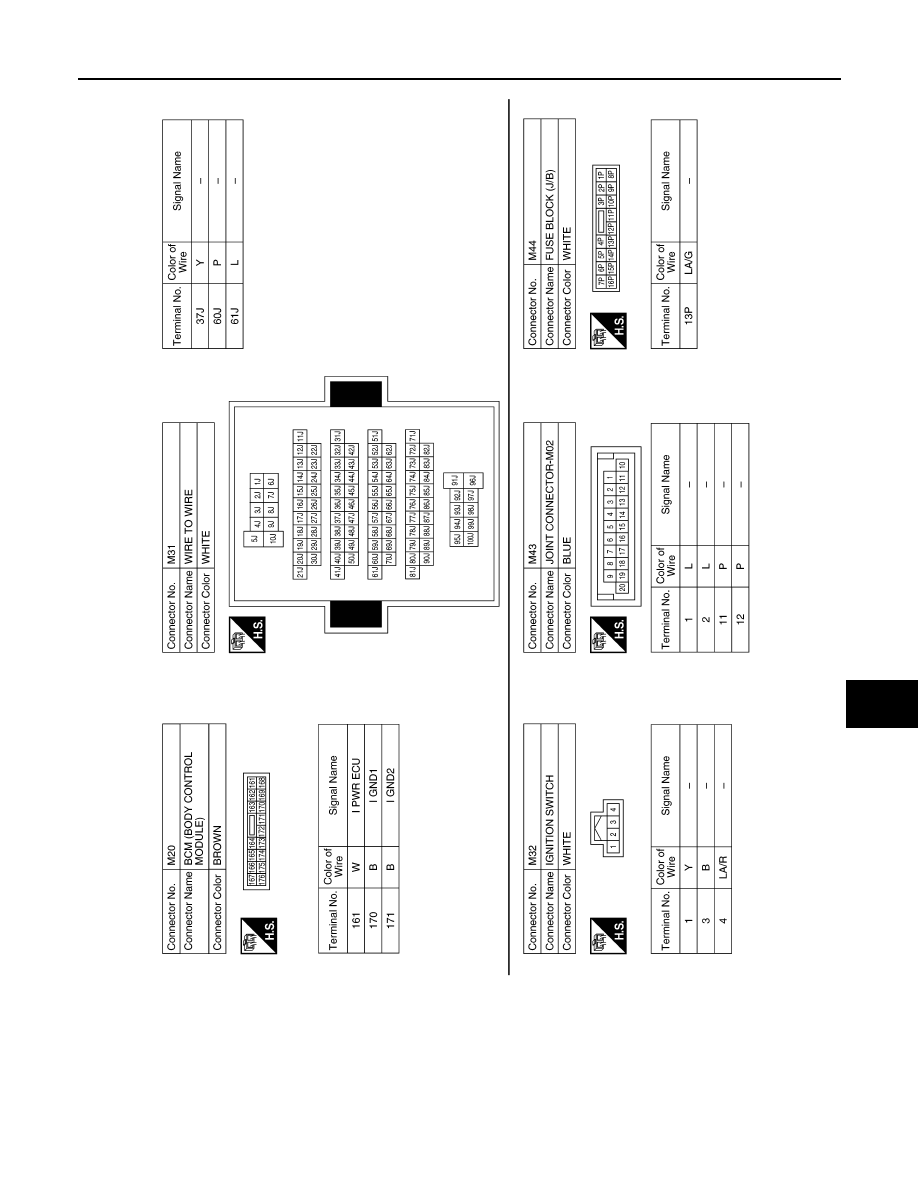

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0990GB

2015 Rogue NAM

SEC-44

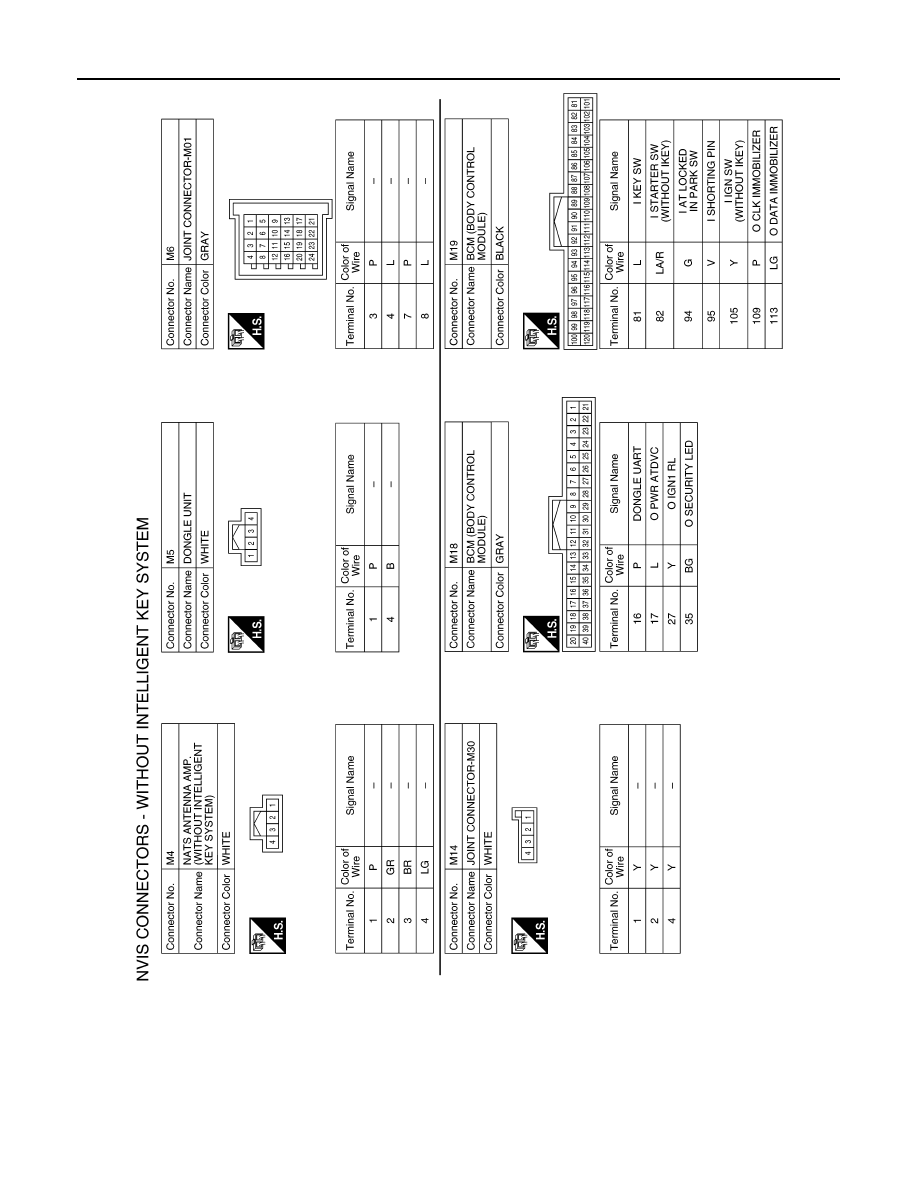

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

AAKIA2341GB

2015 Rogue NAM

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-45

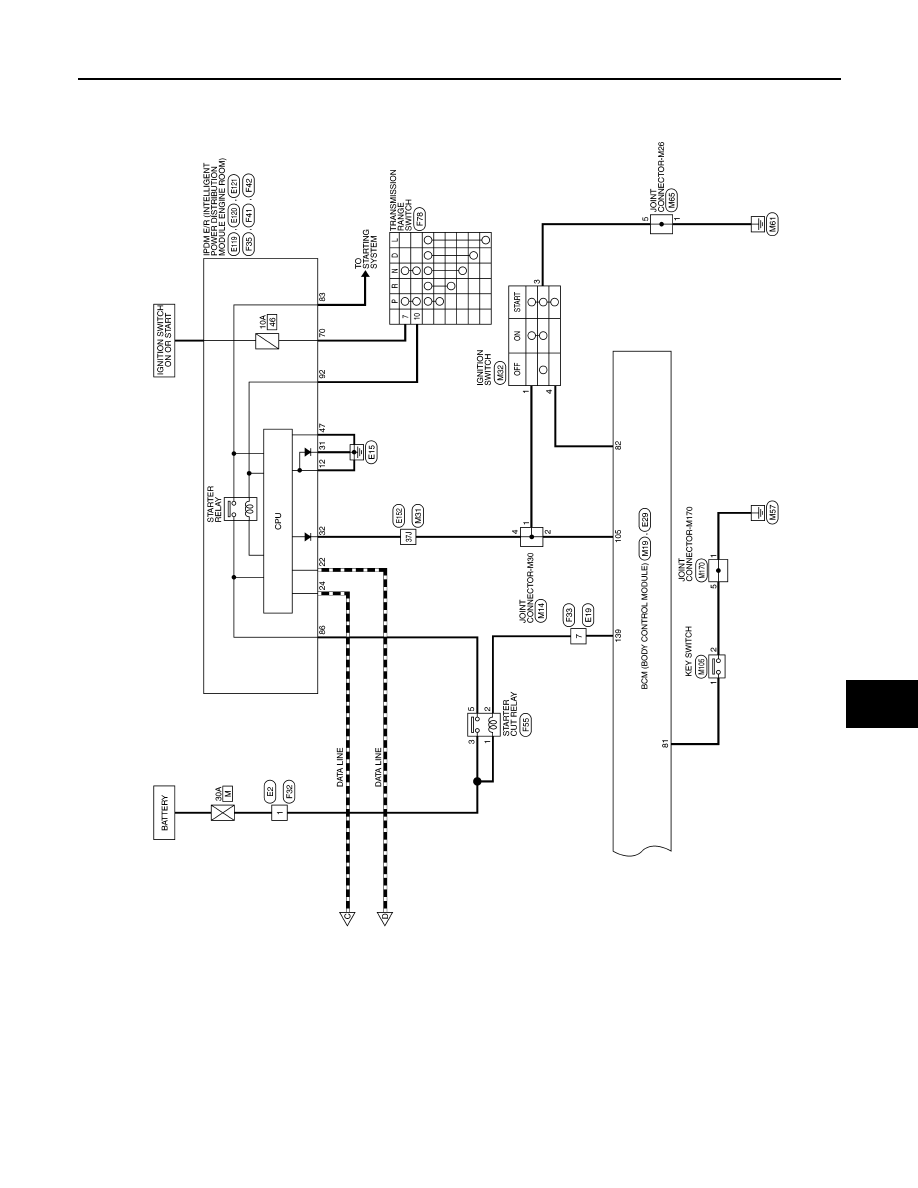

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA2342GB

2015 Rogue NAM

SEC-46

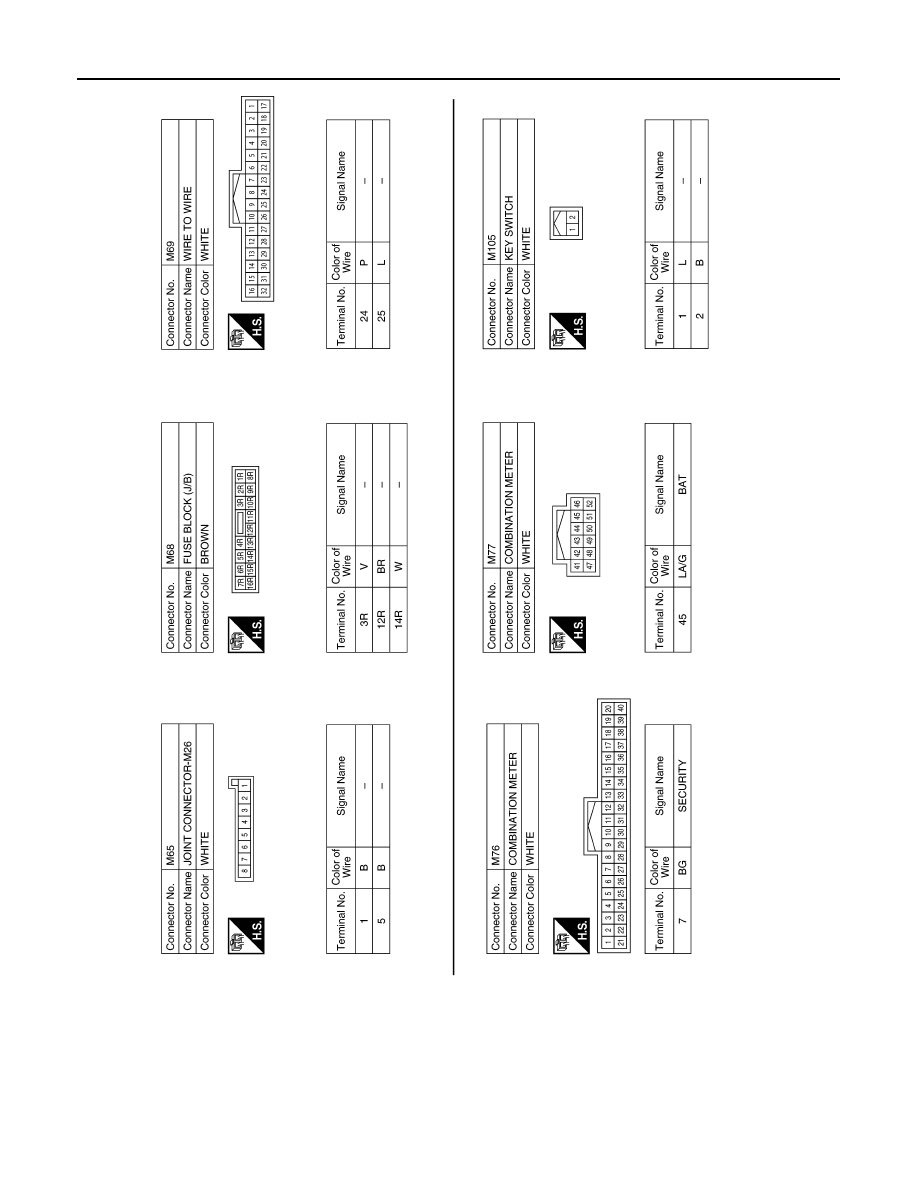

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

AAKIA2343GB

2015 Rogue NAM
