Nissan Rogue. Manual - part 1063

ENGINE START FUNCTION

SEC-31

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0972GB

2015 Rogue NAM

SEC-32

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

ENGINE START FUNCTION

AAKIA2335GB

2015 Rogue NAM

ENGINE START FUNCTION

SEC-33

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA2310GB

2015 Rogue NAM

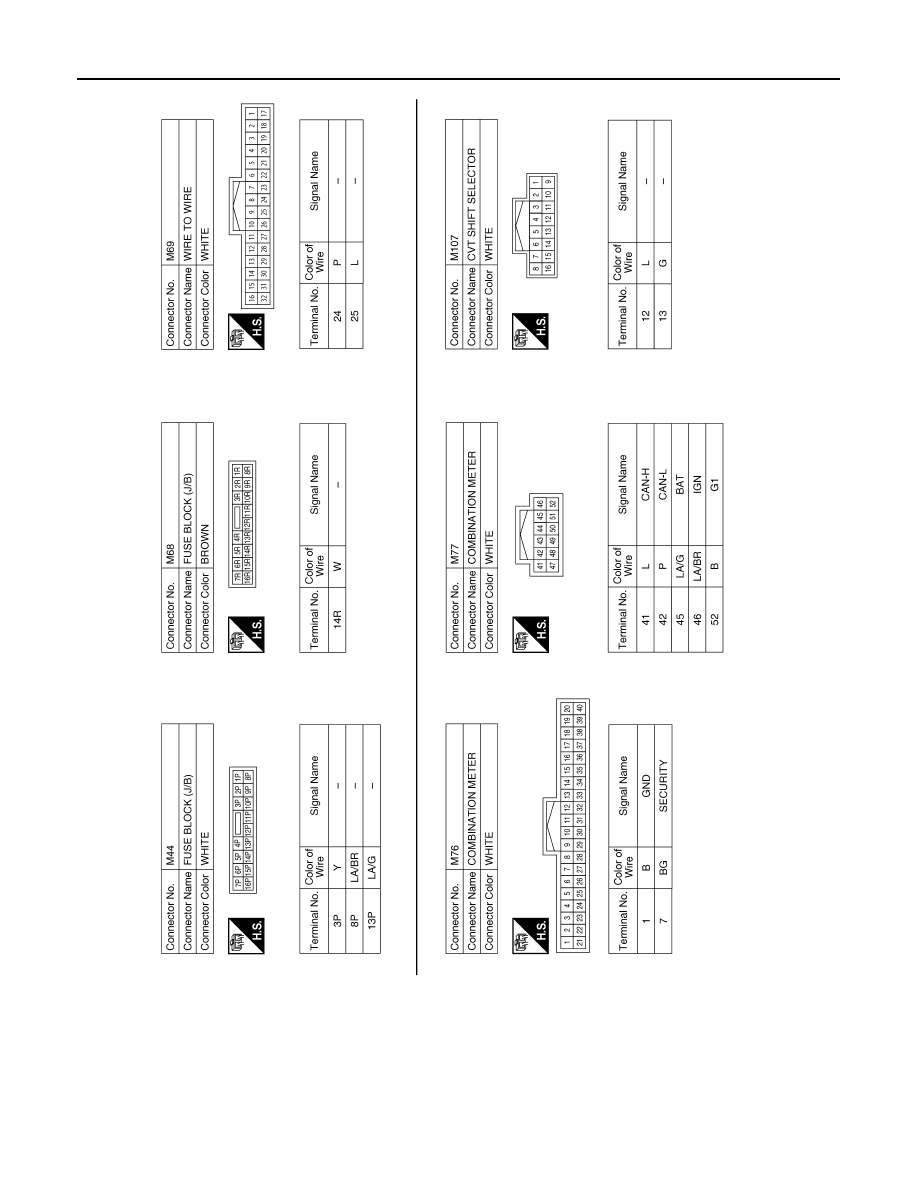

SEC-34

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

ENGINE START FUNCTION

AAKIA2311GB

2015 Rogue NAM
