ECM, IPDM E/R, BCM

SEC-27

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ECU DIAGNOSIS INFORMATION

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000011278452

ECU

Reference

ECM

EC-80, "Reference Value"

EC-92, "Fail Safe"

EC-95, "DTC Inspection Priority Chart"

EC-96, "DTC Index"

IPDM E/R

PCS-14, "Reference Value"

PCS-21, "Fail-safe"

PCS-22, "DTC Index"

BCM

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

2015 Rogue NAM

SEC-28

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

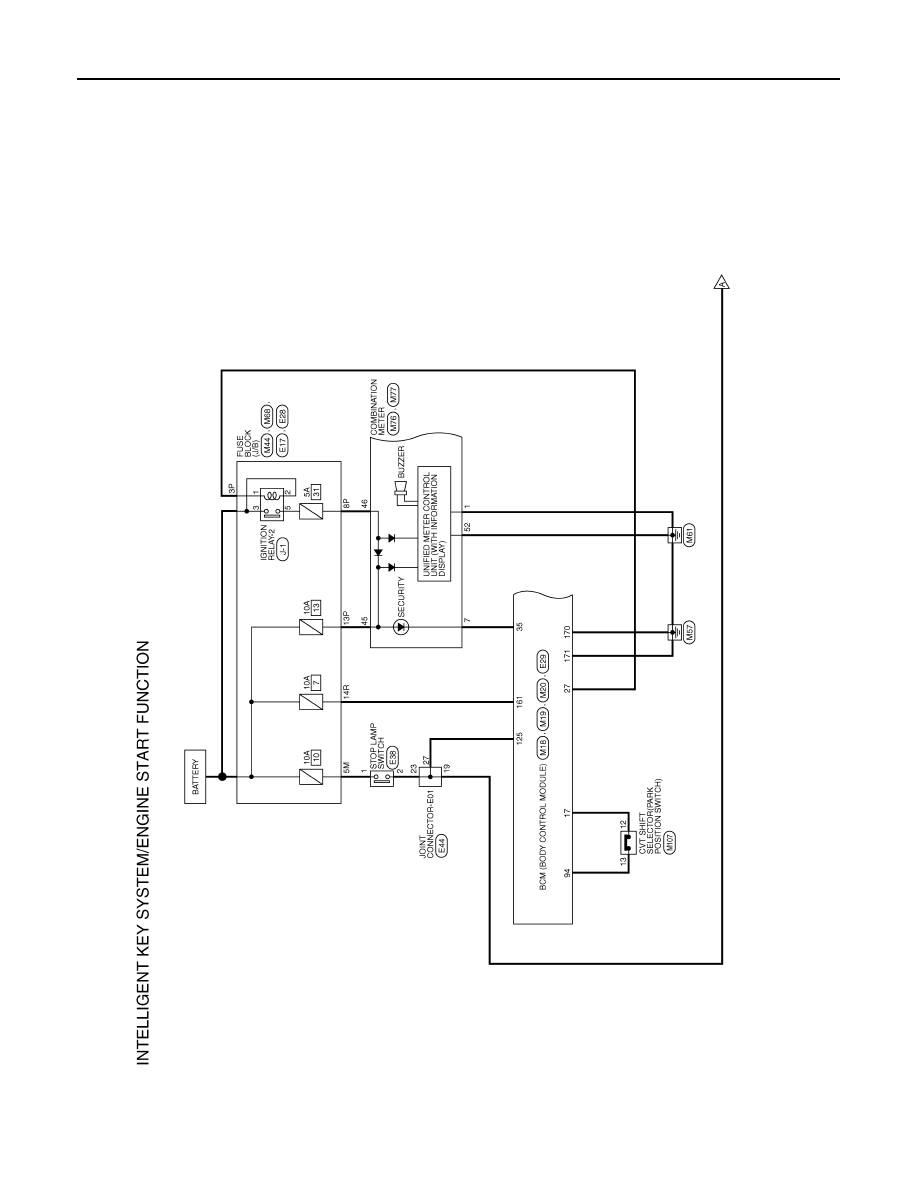

ENGINE START FUNCTION

WIRING DIAGRAM

ENGINE START FUNCTION

Wiring Diagram

INFOID:0000000011278453

AAKWA0969GB

2015 Rogue NAM

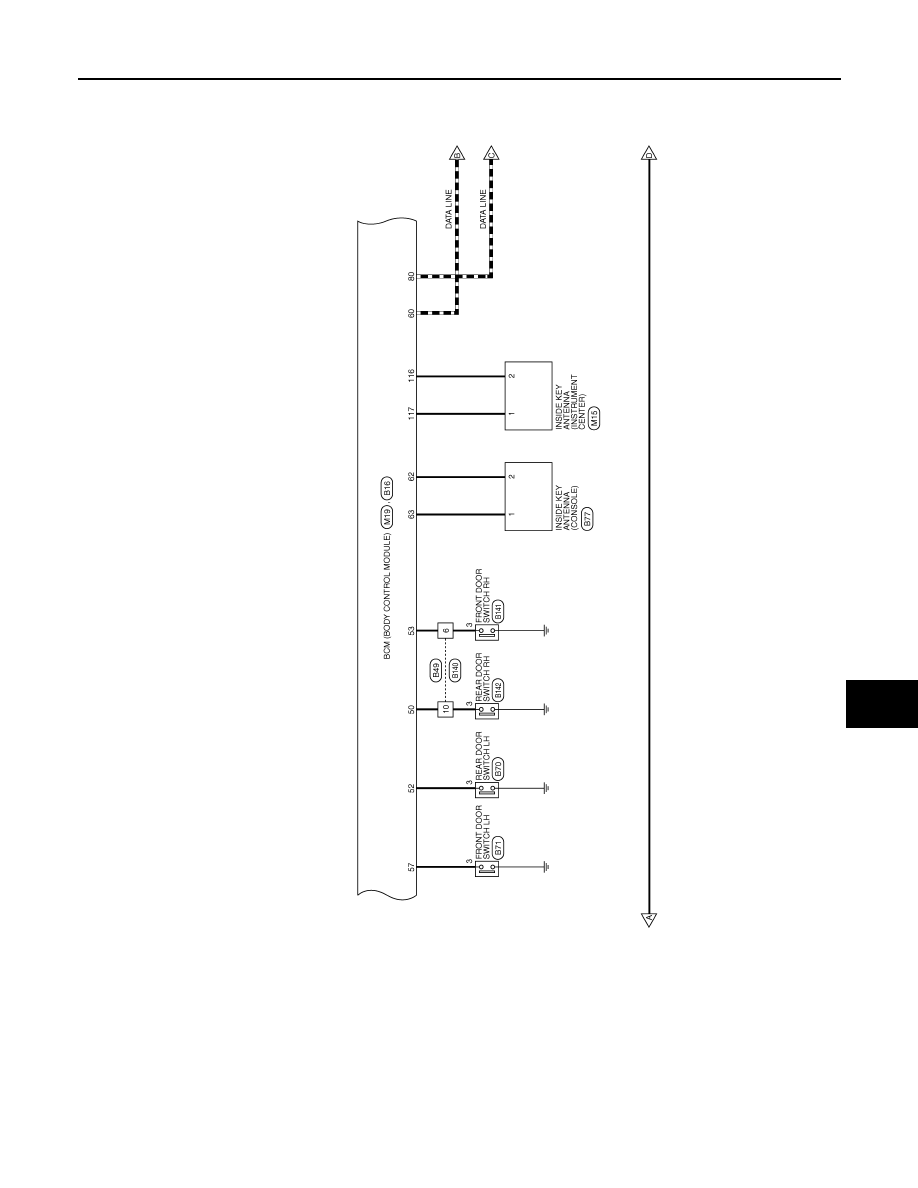

ENGINE START FUNCTION

SEC-29

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0970GB

2015 Rogue NAM

SEC-30

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

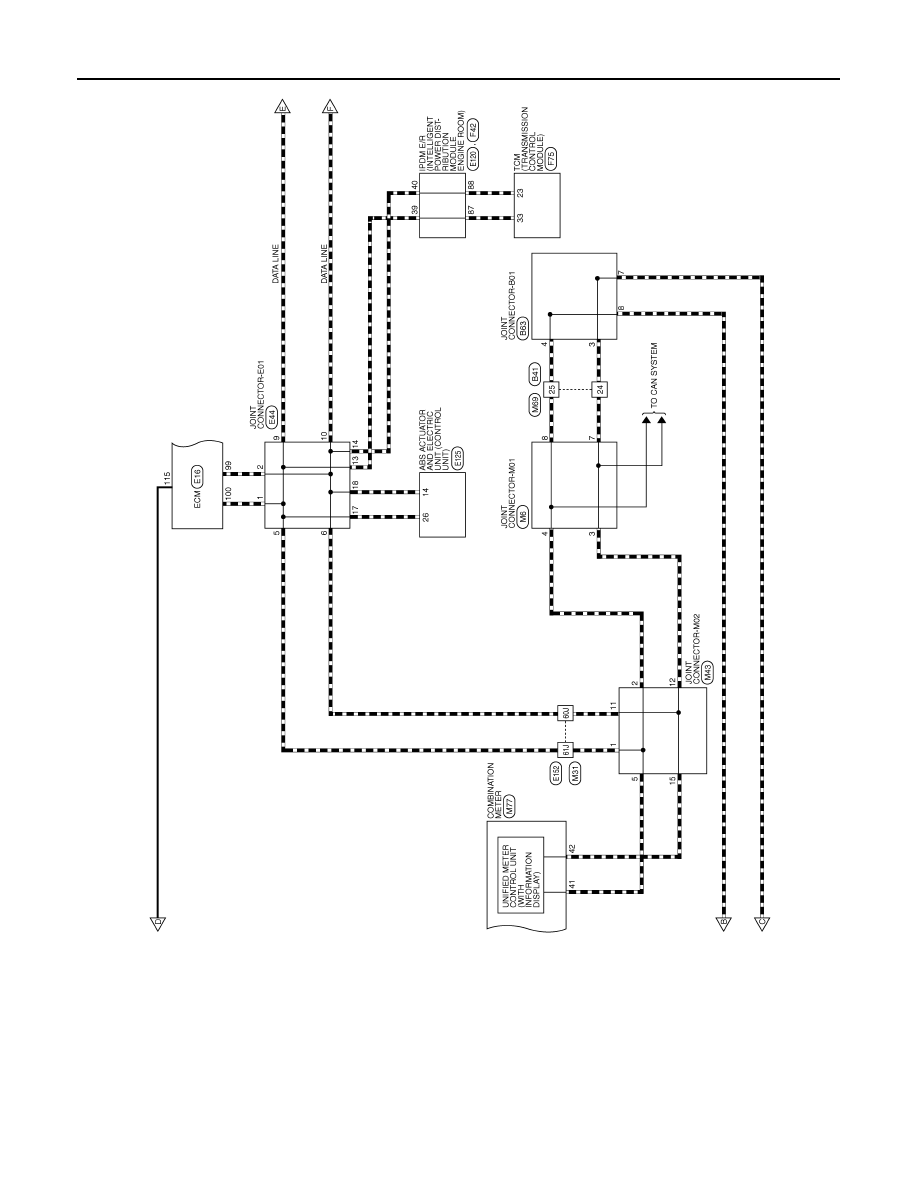

ENGINE START FUNCTION

AAKWA0971GB

2015 Rogue NAM
