SE-66

< UNIT DISASSEMBLY AND ASSEMBLY >

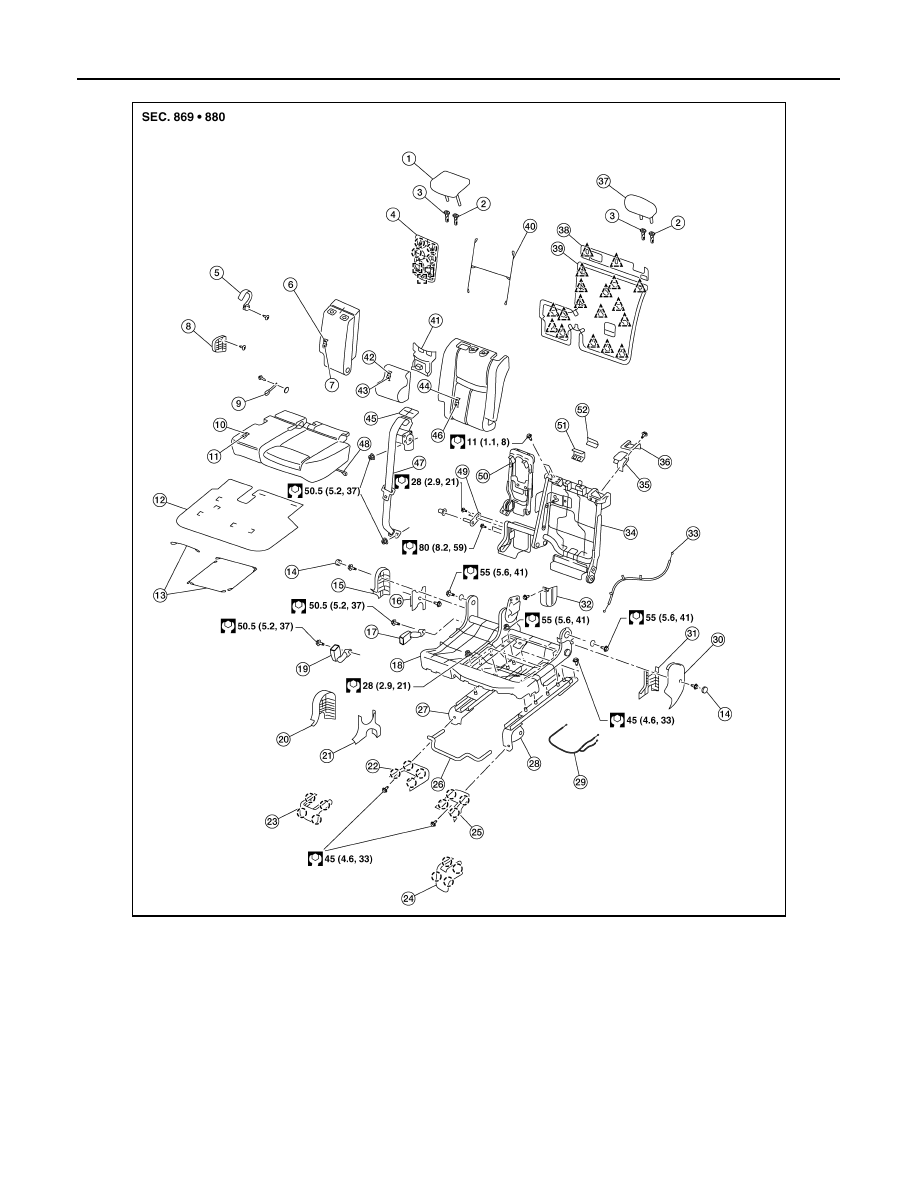

SECOND ROW SEAT

LH SEAT

AWJIA1619ZZ

1.

Headrest (center)

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Cup holder

5.

Armrest inner finisher

6.

Armrest trim

7.

Armrest pad

8.

Armrest outer finisher

9.

Armrest fold flat strap

10. Seat cushion trim

11. Seat cushion pad

12. Seat cushion silencer

13. Seat cushion pad wire

14. Bolt cover

15. Seat cushion outer finisher (RH)

16. Seat cushion inner finisher (RH) 17. Seat belt buckle (center)

18. Seat cushion frame

19. Seat belt buckle (LH)

20. Seat cushion center finisher (RH) 21. Seat cushion center finisher (LH)

22. Rear bolt cover (RH) (with third

row seat)

23. Front bolt cover (RH)

24. Front bolt cover (LH)

25. Rear bolt cover (LH) (with third

row seat)

26. Seat slide control lever

27. Seat cushion slide (RH)

SECOND ROW SEAT

SE-67

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

LH SEAT

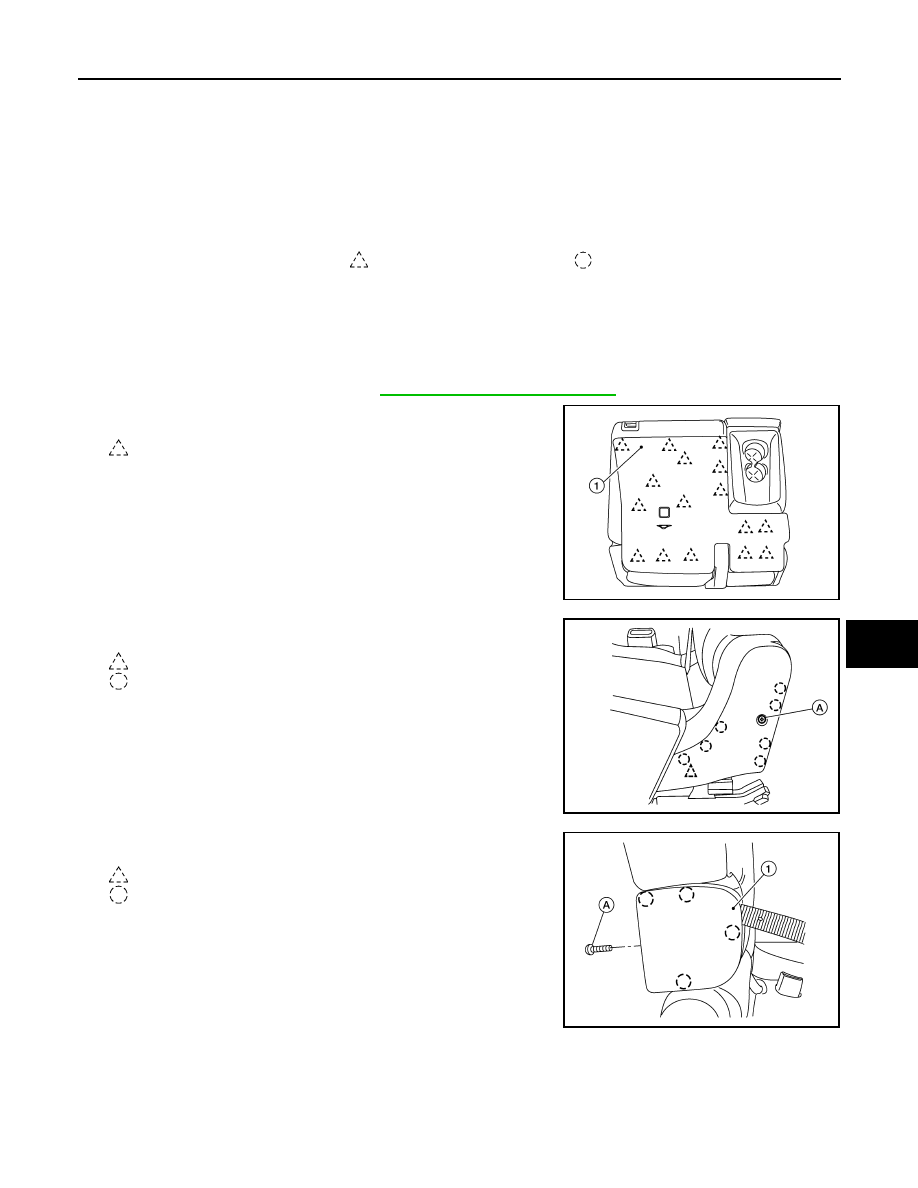

LH SEAT : Seatback

INFOID:0000000011280471

DISASSEMBLY

1. Remove second row seat LH. Refer to

SE-39, "Removal and Installation"

.

2. Using a suitable tool release clips and remove seatback board

(1).

: Clip

3. Remove screw (A), then using a suitable tool release clip and

pawls, then remove seat cushion outside finisher (LH).

: Clip
: Pawl

4. Remove screw (A), then using a suitable tool release clips and

pawls and remove armrest finisher (1).

: Clip
: Pawl

28. Seat cushion slide (LH)

29. Seat cushion slide cable

30. Seat cushion outer finisher (LH)

31. Seat cushion inner finisher (LH) 32. Armrest inner finisher

33. Recline release cable

34. Seatback frame

35. Recline device

36. Recline device finisher

37. Headrest (LH)

38. Seatback luggage upper board

39. Seatback luggage board

40. Seatback pad wire

41. Armrest lower pad

42. Seatback center trim

43. Seatback center pad

44. Seatback trim

45. Seat belt retractor finisher

46. Seatback pad

47. Seat belt retractor (center)

48. Fold flat strap

49. Armrest bracket

50. Armrest frame

51. Seat belt retractor inner finisher

52. Seat belt retractor outer finisher

Clip

Pawl

ALJIA1413ZZ

ALJIA1451ZZ

ALJIA1411ZZ

SE-68

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

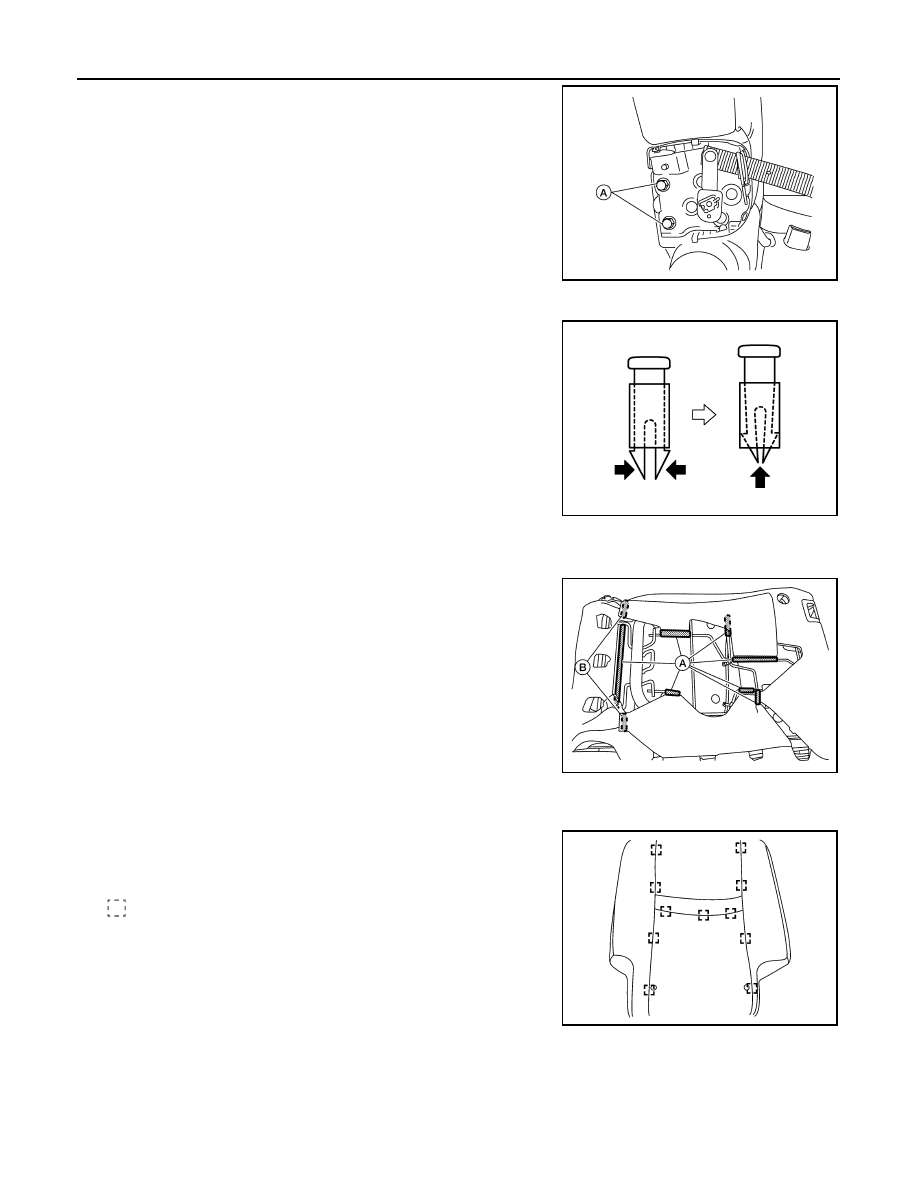

5. Remove bolts (A) and armrest.

6. Press the headrest holder lock button, then lift headrest up and remove.
7. Reach up behind the seatback pad, release the headrest holder

locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

8. Release pawls and remove recline handle finisher.
9. Release pawls and remove seatbelt retractor outer finisher.
10. Release J-hooks (A) then release fastener (B) and remove seat-

back pad and seatback trim.

11. Remove seat belt retractor (center) bottom anchor bolt then route seat belt retractor (center) through rear

seat cushion and seatback.

12. Remove hog rings, then separate seatback trim from seatback

pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

ALJIA1412ZZ

PIIB4084J

ALJIA1448ZZ

ALJIA1449ZZ

SECOND ROW SEAT

SE-69

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

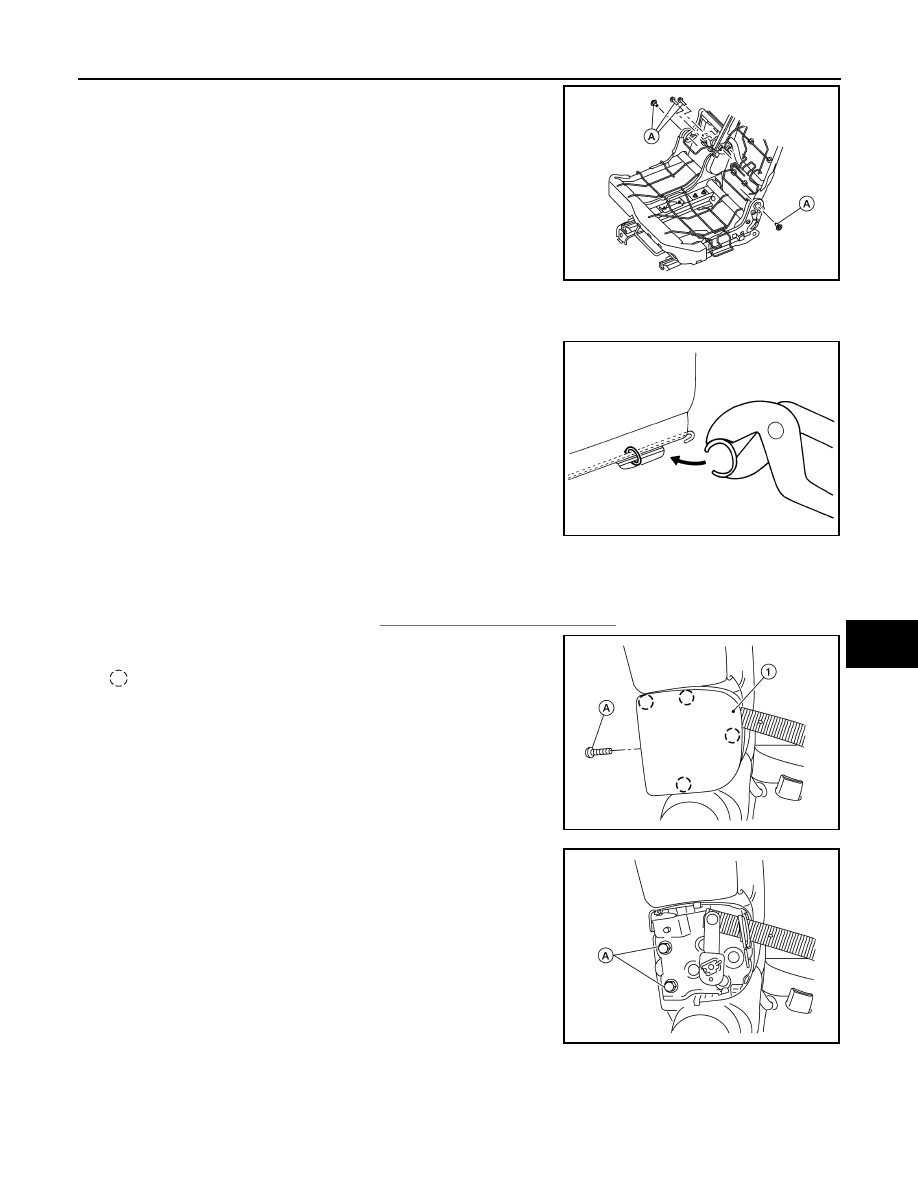

13. Remove bolts (A) and seatback frame from seat cushion frame.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembly.

LH SEAT : Seat Cushion

INFOID:0000000011280472

DISASSEMBLY

1. Remove second row seat LH. Refer to

SE-39, "Removal and Installation"

.

2. Remove screw (A), then using a suitable tool release pawls and

remove armrest finisher (1).

: Pawl

3. Remove bolts (A) and armrest.

ALJIA1450ZZ

PIIB3356J

ALJIA1411ZZ

ALJIA1412ZZ
