SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

Removal and Installation

INFOID:0000000011280172

REMOVAL

1. Remove the headlining. Refer to.

INT-30, "Removal and Installation"

.

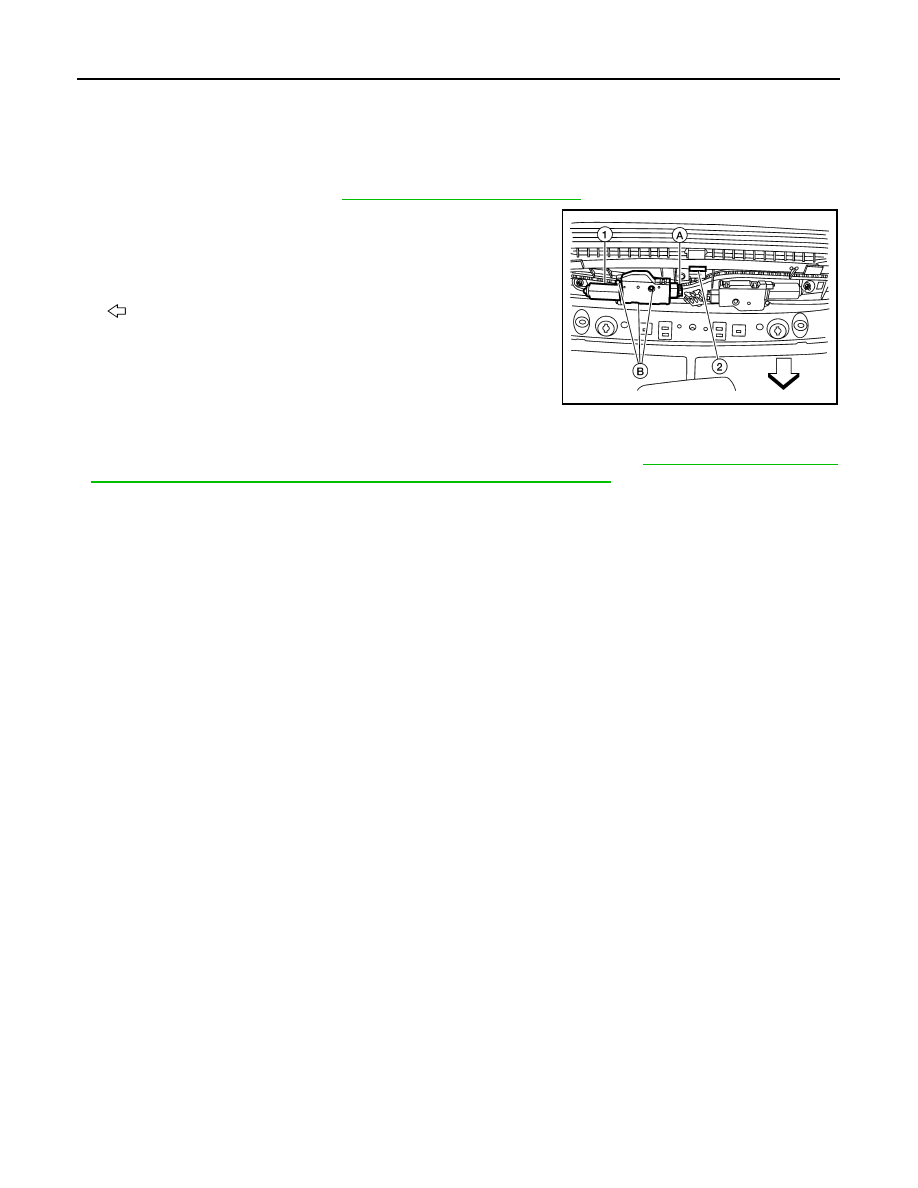

2. Disconnect the harness connector (A) from the sunshade motor

assembly (1).

3. Remove sunshade motor assembly screws (B).
4. Remove the sunshade motor assembly from the moonroof unit

assembly (2).

 Front

INSTALLATION

Installation is in the reverse order of removal.

• Synchronize sunshade motor assembly with moonroof unit assembly. Refer to

RF-25, "ADDITIONAL SER-

VICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

ALKIA3465ZZ

WIND DEFLECTOR

RF-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

WIND DEFLECTOR

Removal and Installation

INFOID:0000000011280173

REMOVAL

1. Open the glass lid to view the wind deflector.

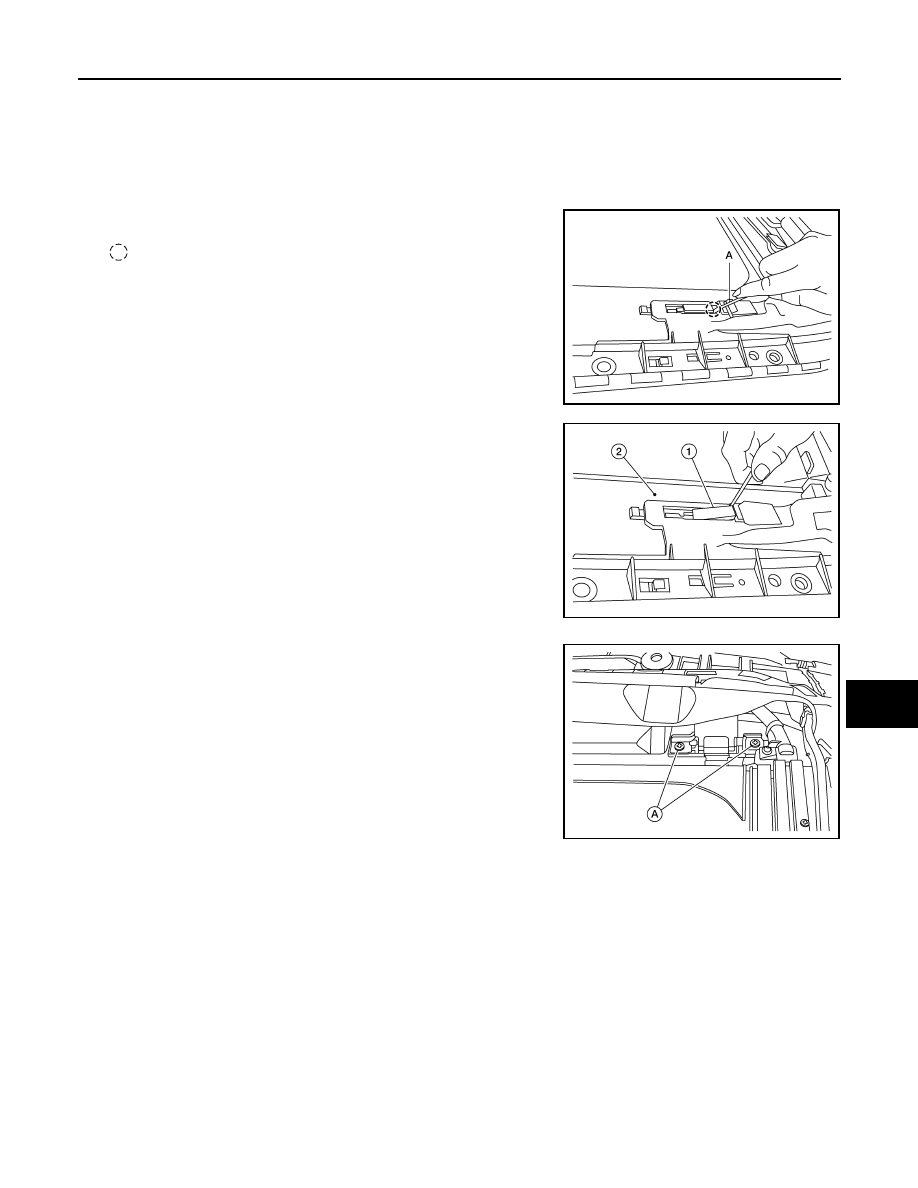

2. Use suitable tool (A) release pawl on LH/RH side of wind deflec-

tor.

: Pawl

3. Release wind deflector retainer (1) from moonroof unit (2).

4. Remove screws (A) on both LH/RH sides of wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3495ZZ

ALKIA3496ZZ

ALKIA3497ZZ

RF-62

< REMOVAL AND INSTALLATION >

MOONROOF SWITCH

MOONROOF SWITCH

Removal and Installation

INFOID:0000000011280174

REMOVAL

1. Remove map lamp assembly. Refer to

INL-55, "Removal and Installation"

.

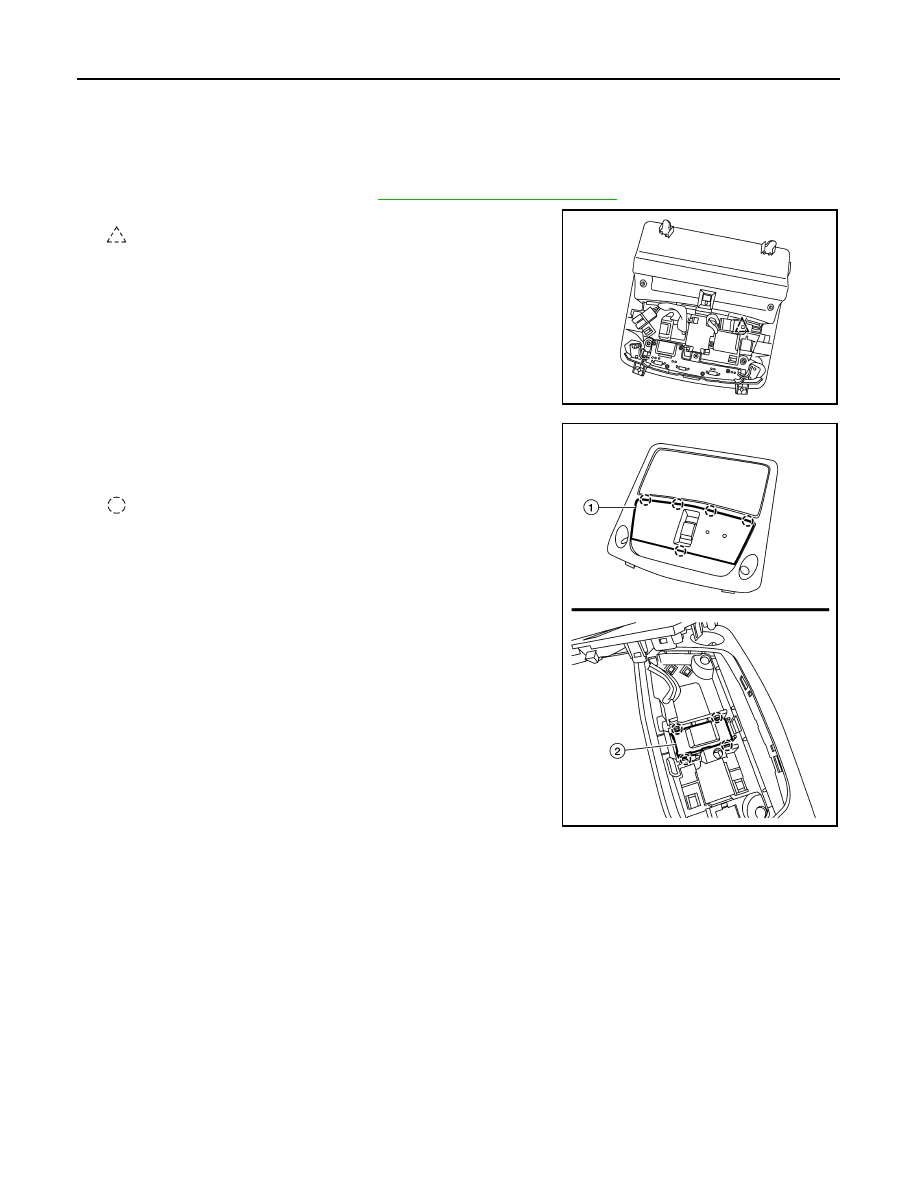

2. Using a suitable tool release clip from harness connector.

: Clip

3. Using a suitable tool release pawls and remove moonroof switch

finisher (1).

4. Using a suitable tool release pawls and remove moonroof switch

(2) from the front room/map lamp.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

AWKIA2914ZZ

ALKIA2754ZZ

PANORAMIC ROOF GLASS

RF-63

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

PANORAMIC ROOF GLASS

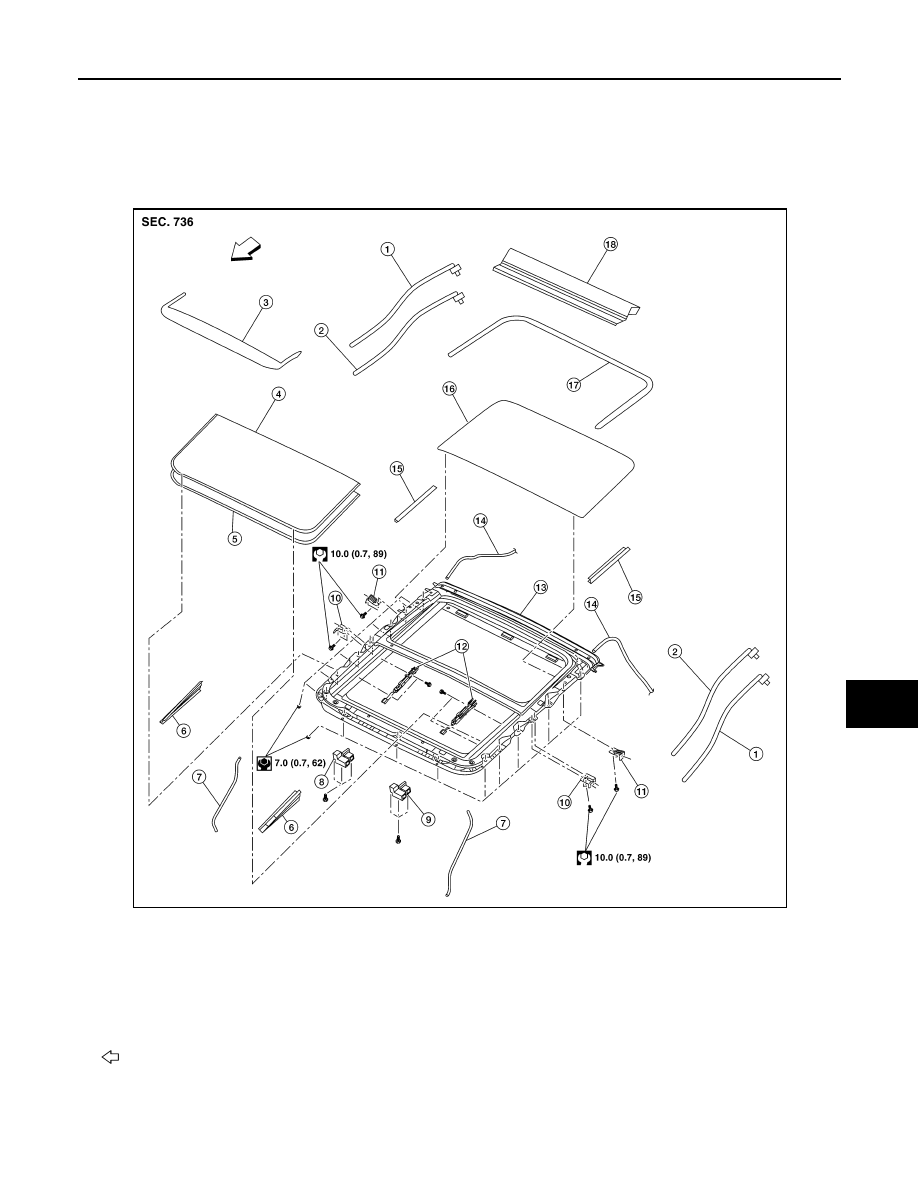

Exploded View

INFOID:0000000011583511

Disassembly and Assembly

INFOID:0000000011583512

CAUTION:

1.

Sunshade cable (LH/RH)

2.

Glass lid cable (LH/RH)

3.

Wind deflector

4.

Glass lid

5.

Glass lid weatherstrip

6.

Side trim cover (LH/RH)

7.

Front drain hose (LH/RH)

8.

Moonroof motor assembly

9.

Sunshade motor assembly

10. Moonroof front bracket (LH/RH)

11. Moonroof rear bracket (LH/RH)

12. Cable guide (LH/RH)

13. Moonroof unit assembly

14. Rear drain hose (LH/RH)

15. Rear trim covers (LH/RH)

16. Panoramic roof glass

17. Panoramic roof glass weatherstrip

18. Sunshade

Front

AWJIA1645ZZ
