RF-52

< REMOVAL AND INSTALLATION >

MOONROOF MOTOR ASSEMBLY

MOONROOF MOTOR ASSEMBLY

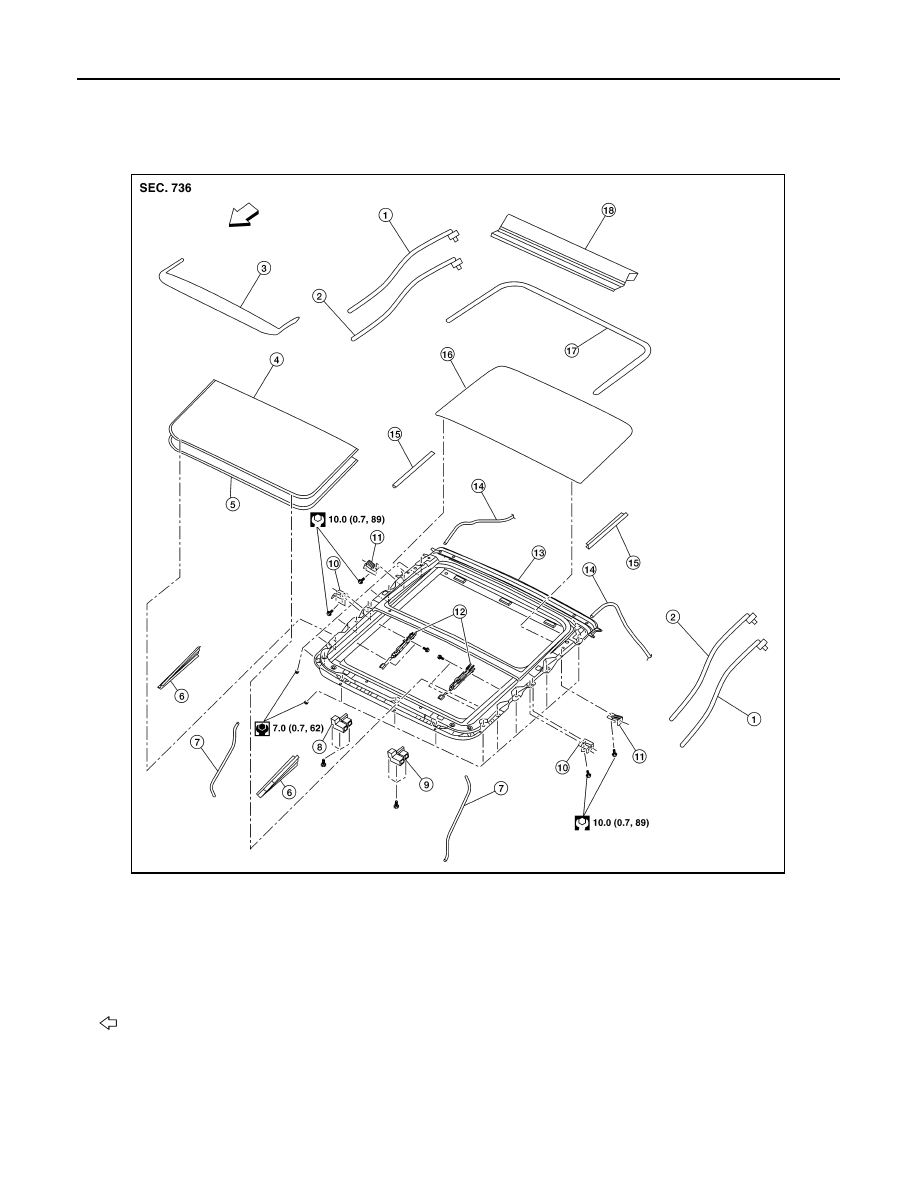

Exploded View

INFOID:0000000011280166

Removal and Installation

INFOID:0000000011280167

REMOVAL

1. Close glass lid.

1.

Sunshade cable (LH/RH)

2.

Glass lid cable (LH/RH)

3.

Wind deflector

4.

Glass lid

5.

Glass lid weatherstrip

6.

Side trim cover (LH/RH)

7.

Front drain hose (LH/RH)

8.

Moonroof motor assembly

9.

Sunshade motor assembly

10. Moonroof front bracket (LH/RH)

11. Moonroof rear bracket (LH/RH)

12. Cable guide (LH/RH)

13. Moonroof unit assembly

14. Rear drain hose (LH/RH)

15. Rear trim covers (LH/RH)

16. Panoramic roof glass

17. Panoramic roof glass weatherstrip

18. Sunshade

Front

AWJIA1645ZZ

MOONROOF MOTOR ASSEMBLY

RF-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

2. Remove the headlining. Refer to

INT-30, "Removal and Installation"

.

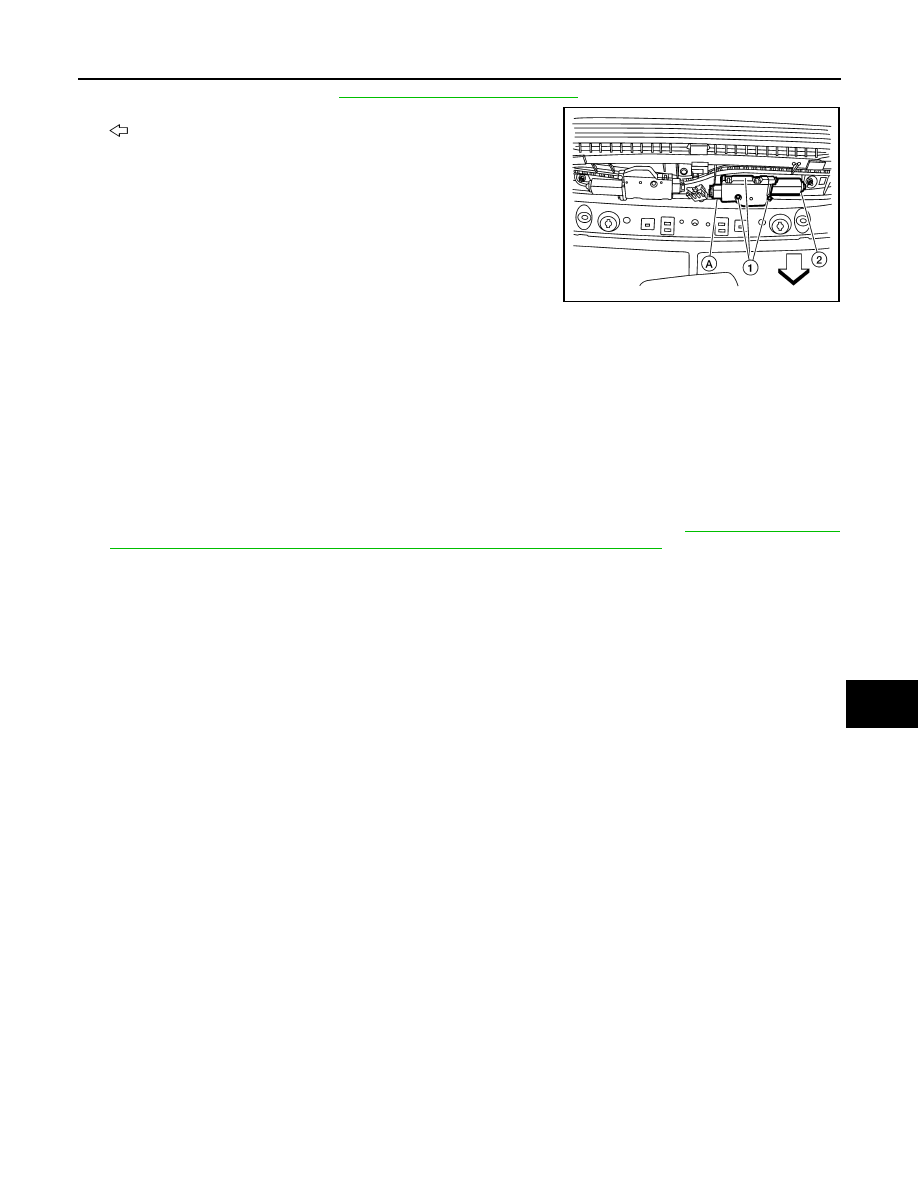

3. Remove moonroof motor assembly screws (1).

 Front

4. Disconnect harness connector (A) and remove moonroof motor

assembly (2) from moonroof unit assembly front end rail.

CAUTION:

Do not run the removed moonroof motor assembly as a sin-

gle unit.

INSTALLATION

1. Move moonroof motor assembly laterally little by little so that the gear is completely engaged into the wire

on the moonroof unit assembly, and the mounting surfaces become parallel. Install the moonroof motor

assembly screws and tighten.

CAUTION:

Before installing the motor, be sure to place the link and wire assembly in the symmetrical and

fully closed position.

NOTE:

If necessary, insert a suitable tool into the drive key and rotate right or left slightly to assist in complete

moonroof motor gear alignment.

2. Remainder of installation is in the reverse order of removal.
3. Synchronize moonroof motor assembly with moonroof unit assembly. Refer to

RF-25, "ADDITIONAL

SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

ALKIA3464ZZ

RF-54

< REMOVAL AND INSTALLATION >

MOONROOF UNIT ASSEMBLY

MOONROOF UNIT ASSEMBLY

Inspection

INFOID:0000000011280168

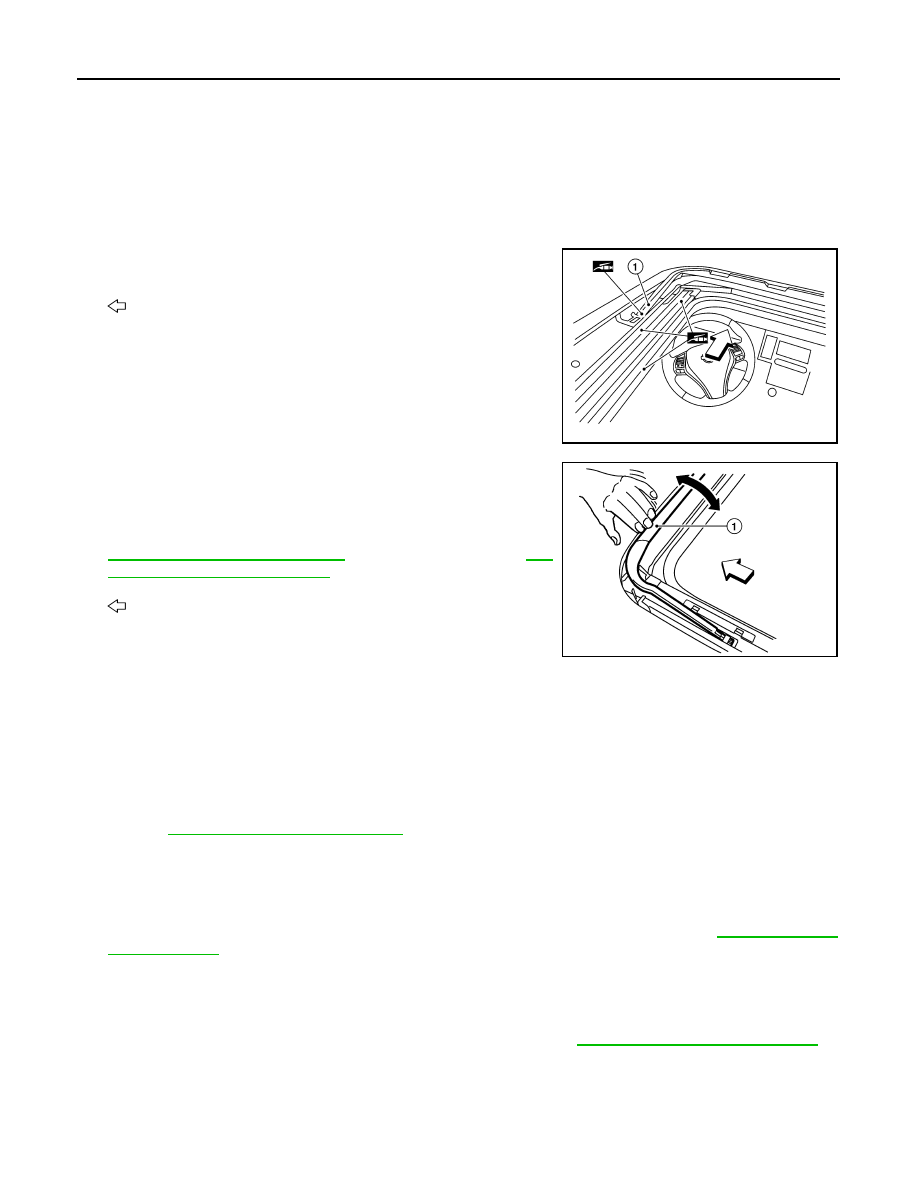

WIND DEFLECTOR

1. Open glass lid fully.
2. Visually check for proper installation, damaged/deteriorated components, or foreign objects within mecha-

nism. Correct as required for smooth operation.

3. Check for grease at the wind deflector arm (1) and pivot areas. If

necessary, apply a sufficient amount of grease for non-binding

operation.

 Front

4. Check that the wind deflector (1) moves freely within the moon-

roof unit assembly while manually pressing down and releasing.

If a malfunction is detected, remove the moonroof unit assembly

and visually inspect. If damage is found, replace either wind

deflector (1) or moonroof unit assembly as required. Refer to

RF-61, "Removal and Installation"

 (WIND DEFLECTOR) or

RF-

58, "Removal and Installation"

 (MOONROOF UNIT ASSEM-

BLY).

 Front

LINK AND WIRE ASSEMBLY

NOTE:

Before replacing a suspect part, make sure it is the source of noise being experienced.
1. Check link to determine if coating film has peeled off excessively enough that substrate is visible. Check

also to determine if link is the source of noise. Replace as necessary.

2. Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not,

add grease as required.

3. Check wire for any damage or deterioration. If any damage is found, replace moonroof unit assembly.

Refer to

RF-58, "Removal and Installation"

WEATHERSTRIP

1. Visually check weatherstrip for damage, deterioration, or deformation.

• Open glass lid partially to inspect front edge of weatherstrip.

• Tilt up glass lid fully to inspect sides and rear edge of weatherstrip.

If any area of the weatherstrip is found to be damaged, replace the glass lid. Refer to

RF-50, "Removal

and Installation"

.

2. Check for leaks around glass lid.

• Close glass lid.

• Pour water around surface to determine area of concern.

- For gaps or misalignment, adjust glass lid to specifications. Refer to ADJUSTMENT in this section.

- For damaged sealing surfaces, either replace glass lid, refer to

RF-50, "Removal and Installation"

 or

repair the panel.

DRAIN HOSES

ALJIA1504ZZ

WIIA0849E

MOONROOF UNIT ASSEMBLY

RF-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1. Remove the headlining. Refer to

INT-30, "Removal and Installation"

.

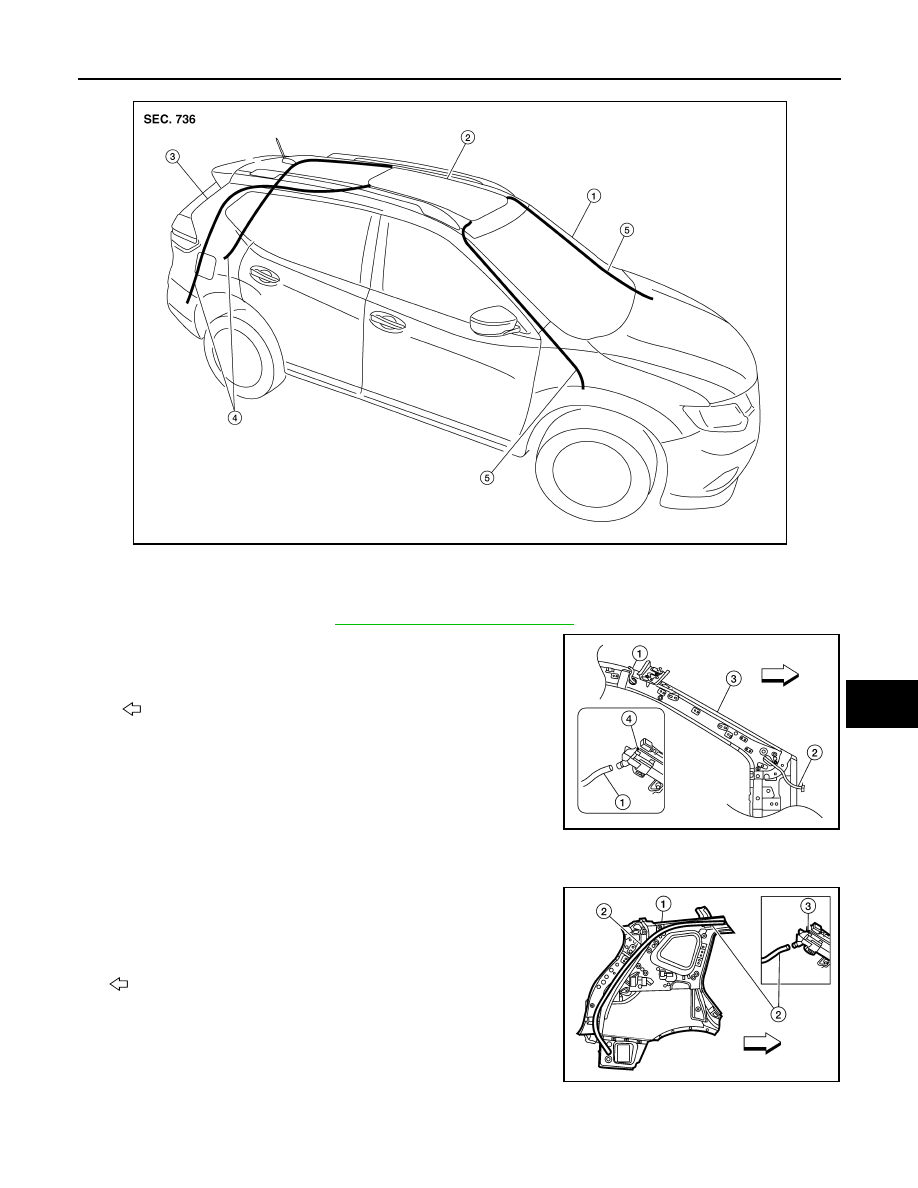

2. From the inside front pillar (3) visually check drain hoses (1) for:

• Proper connection at moonroof unit assembly (4) and drain

hose connection at the exit base (2).

• Damage, pinch, cracks, deterioration.

 Front

3. Pour water through drain hoses to determine watertight performance.

If damaged or leaking portions in any drain hose is found, replace entire drain hose as necessary.

4. From the inside of the rear quarter panel (1) visually check drain

hoses (2) for damage, pinching, cracks, or deterioration.

5. Check for proper connection at moonroof unit assembly (3) and

drain hose (2) and for proper routing along the rear inner quarter

panel (1).

 Front

ADJUSTMENT

CAUTION:

1.

Front pillar

2.

Moonroof unit assembly

3.

Rear pillar

4.

Rear drain hoses (LH/RH)

5.

Front drain hoses (LH/RH)

ALKIA3460ZZ

ALKIA3461ZZ

ALKIA3462ZZ
