RF-48

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

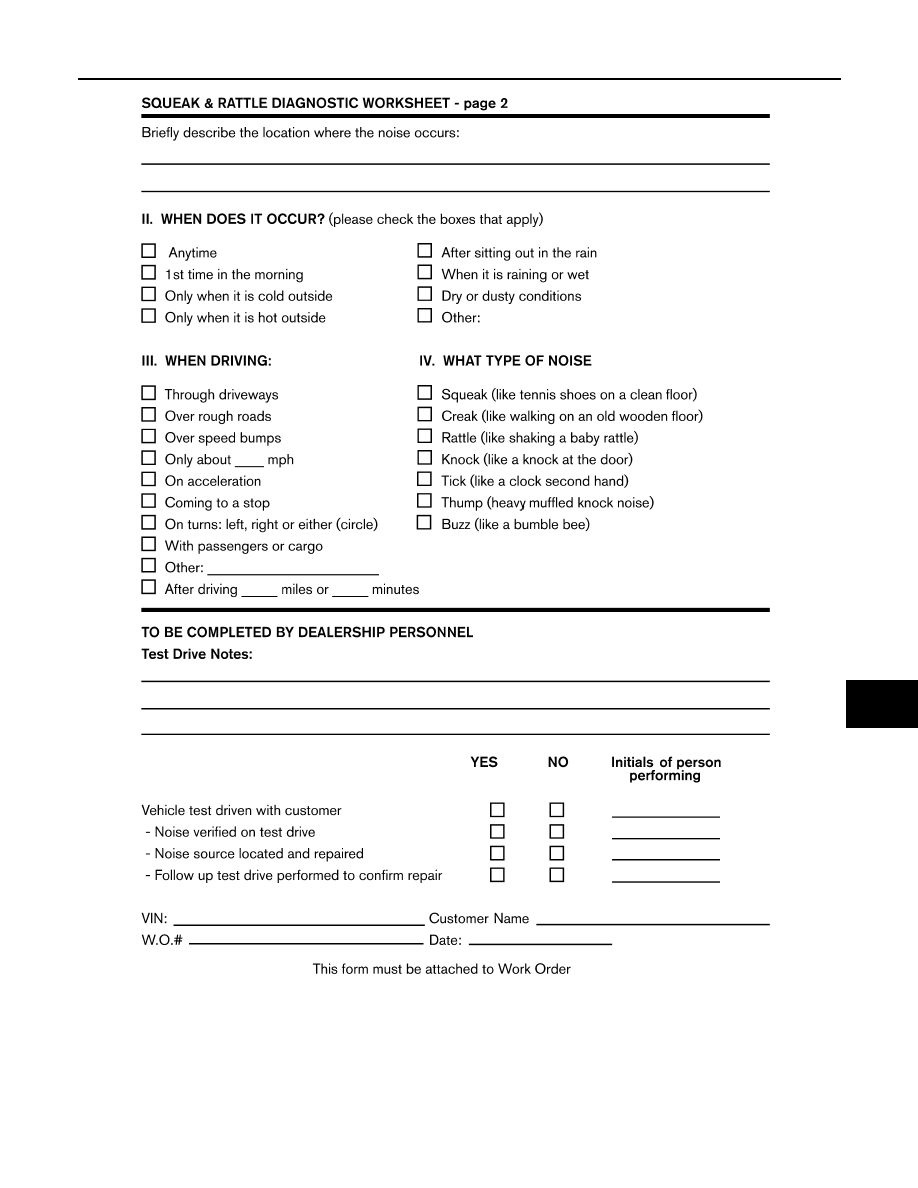

Diagnostic Worksheet

INFOID:0000000011280161

LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-49

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

LAIA0071E

RF-50

< REMOVAL AND INSTALLATION >

GLASS LID

REMOVAL AND INSTALLATION

GLASS LID

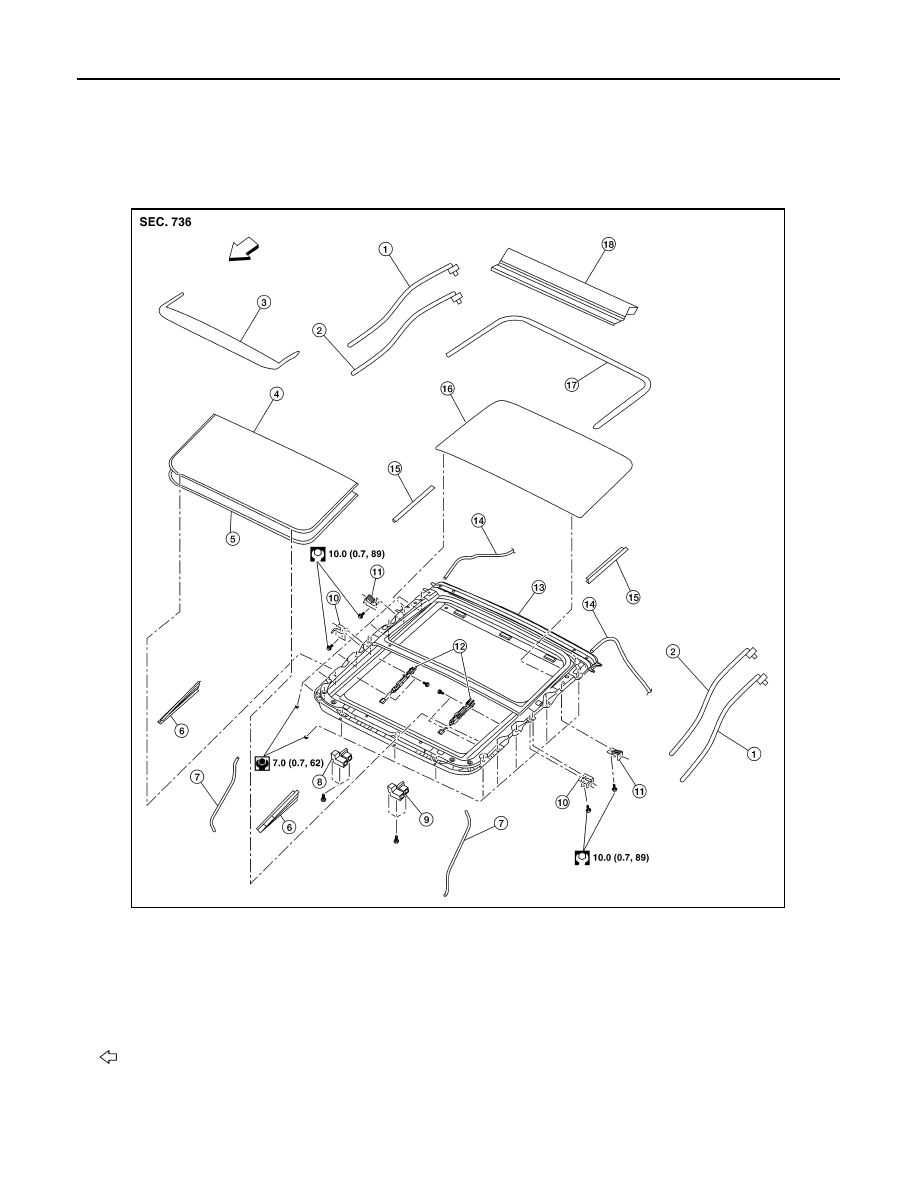

Exploded View

INFOID:0000000011280162

Removal and Installation

INFOID:0000000011280163

CAUTION:

1.

Sunshade cable (LH/RH)

2.

Glass lid cable (LH/RH)

3.

Wind deflector

4.

Glass lid

5.

Glass lid weatherstrip

6.

Side trim cover (LH/RH)

7.

Front drain hose (LH/RH)

8.

Moonroof motor assembly

9.

Sunshade motor assembly

10. Moonroof front bracket (LH/RH)

11. Moonroof rear bracket (LH/RH)

12. Cable guide (LH/RH)

13. Moonroof unit assembly

14. Rear drain hose (LH/RH)

15. Rear trim covers (LH/RH)

16. Panoramic roof glass

17. Panoramic roof glass weatherstrip

18. Sunshade

Front

AWJIA1645ZZ

GLASS LID

RF-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Handle glass lid with care to prevent damage.

REMOVAL

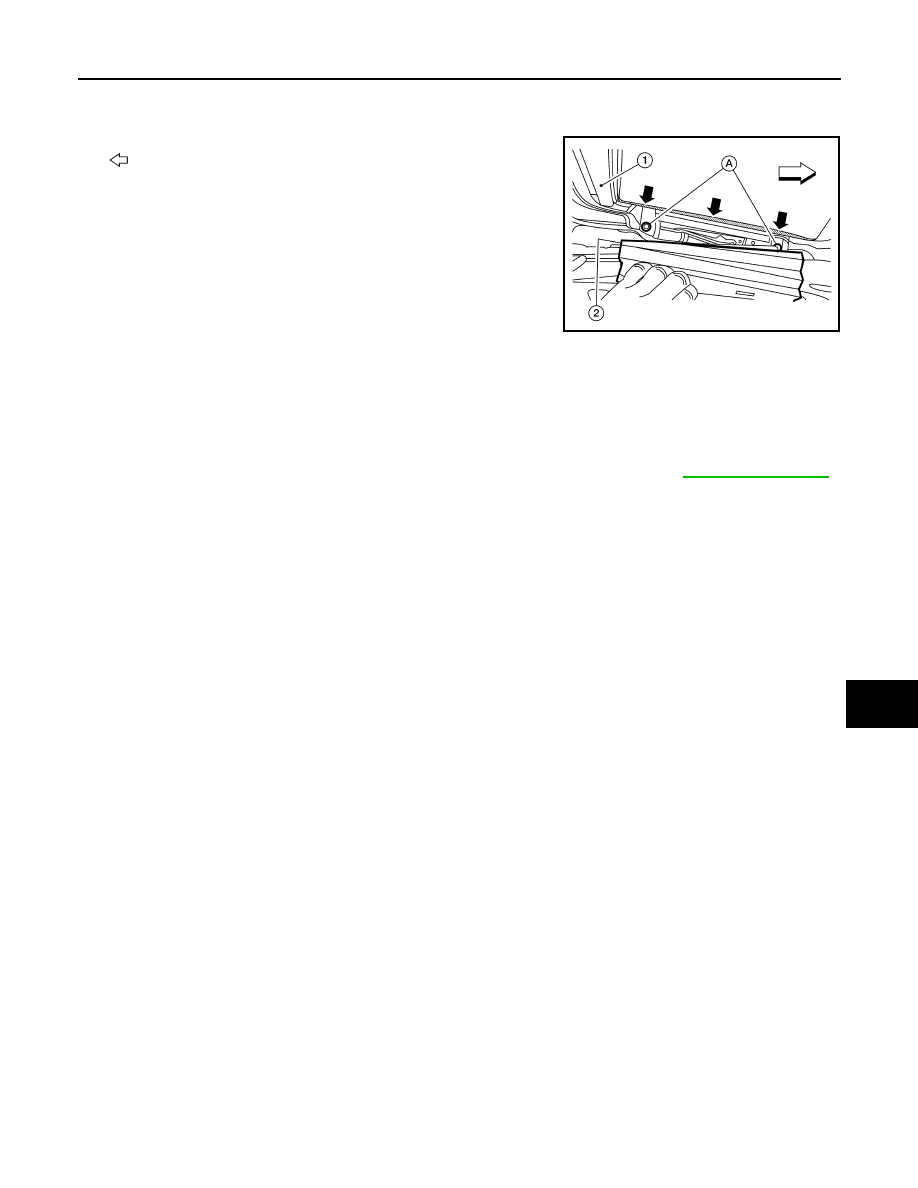

1. Open sunshade (1) and close glass lid.

 Front

2. Slide the side trim covers (2) (LH/RH) inward, then release from

the glass lid inside edge and set aside.

3. Remove the glass lid bolts (A) on the (LH/RH) sides.

4. Remove glass lid from moonroof unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• First tighten left front bolt, then right rear bolt to prevent uneven alignment while tightening remain-

ing bolt.

• After installing glass lid, check gap/height adjustments and operation. Refer to

RF-54, "Inspection"

.
