Nissan Rogue. Manual - part 1021





RF-64

< UNIT DISASSEMBLY AND ASSEMBLY >

PANORAMIC ROOF GLASS

Handle panoramic roof glass with care to prevent damage.

DISASSEMBLY

1. Remove moonroof unit assembly. Refer to

RF-58, "Removal and Installation"

.

2. Remove four screws and panoramic roof glass.

ASSEMBLY

Installation is in the reverse order of removal.

CAUTION:

• First tighten left front screw, then right rear screw to prevent uneven alignment then tighten remain-

ing screws.

• After installing panoramic roof glass, check gap/height adjustments and operation. Refer to

RF-54,

"Inspection"

.

SUNSHADE

RF-65

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

Disassembly and Assembly

INFOID:0000000011583513

CAUTION:

• Do not rotate sunshade retainer and moonroof unit bases or damage to components may occur.

• Do not over tighten screws on the moonroof unit bases or damage may occur.

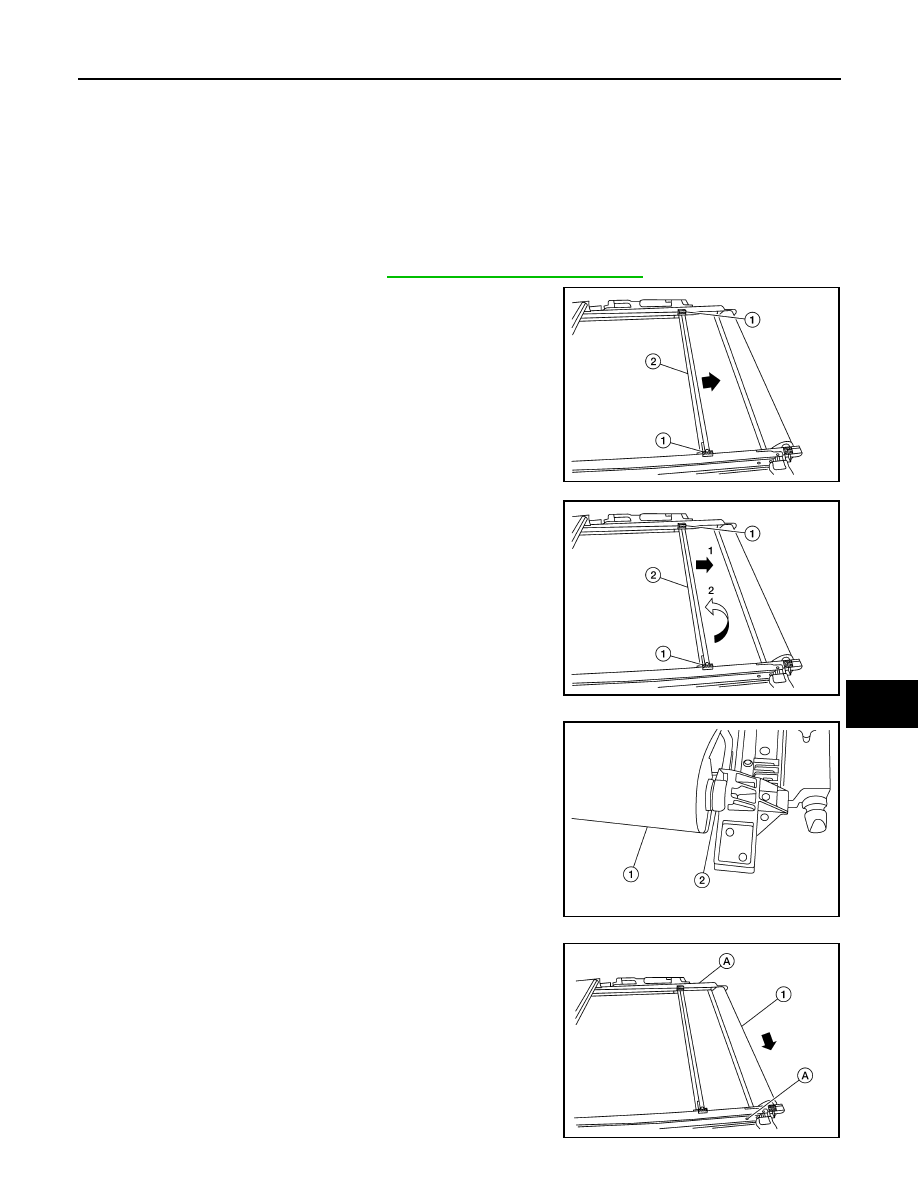

DISASSEMBLY

1. Open the sunshade leaving eight inches showing.
2. Remove panoramic roof glass. Refer to

RF-63, "Disassembly and Assembly"

.

3. Release sunshade retainer (2) from sunshade retainer couplings

(1) (LH/RH).

a. Release the sunshade retainer from both couplings (LH/RH) by

pulling rearward as shown.

b. Rotate the sunshade retainer 90 degrees as shown.
c. Pull back the sunshade retainer (2) to remove ends from each

sunshade coupling (1) (LH/RH).

4. Using a suitable tool, press up on the sunshade spacer (2)

located between the sunshade (1) and moonroof unit bases.

5. Remove sunshade (1) by applying pressure toward the drivers

side and pulling rearward from the moonroof bases.

6. Remove moonroof unit base screws (A).
7. Disassemble by pulling off both moonroof unit bases (LH/RH)

from the moonroof unit tracks.

AWJIA1644ZZ

AWJIA1640ZZ

AWBIA2347ZZ

AWJIA1647ZZ

RF-66

< UNIT DISASSEMBLY AND ASSEMBLY >

SUNSHADE

8. Manually disengage the sunshade motor and moonroof motor assembly using a suitable tool then remove

both sunshade cables and glass lid cables by pulling rearward.

9. Remove the cable guides (LH/RH) by pulling rearward from the moonroof unit tracks.

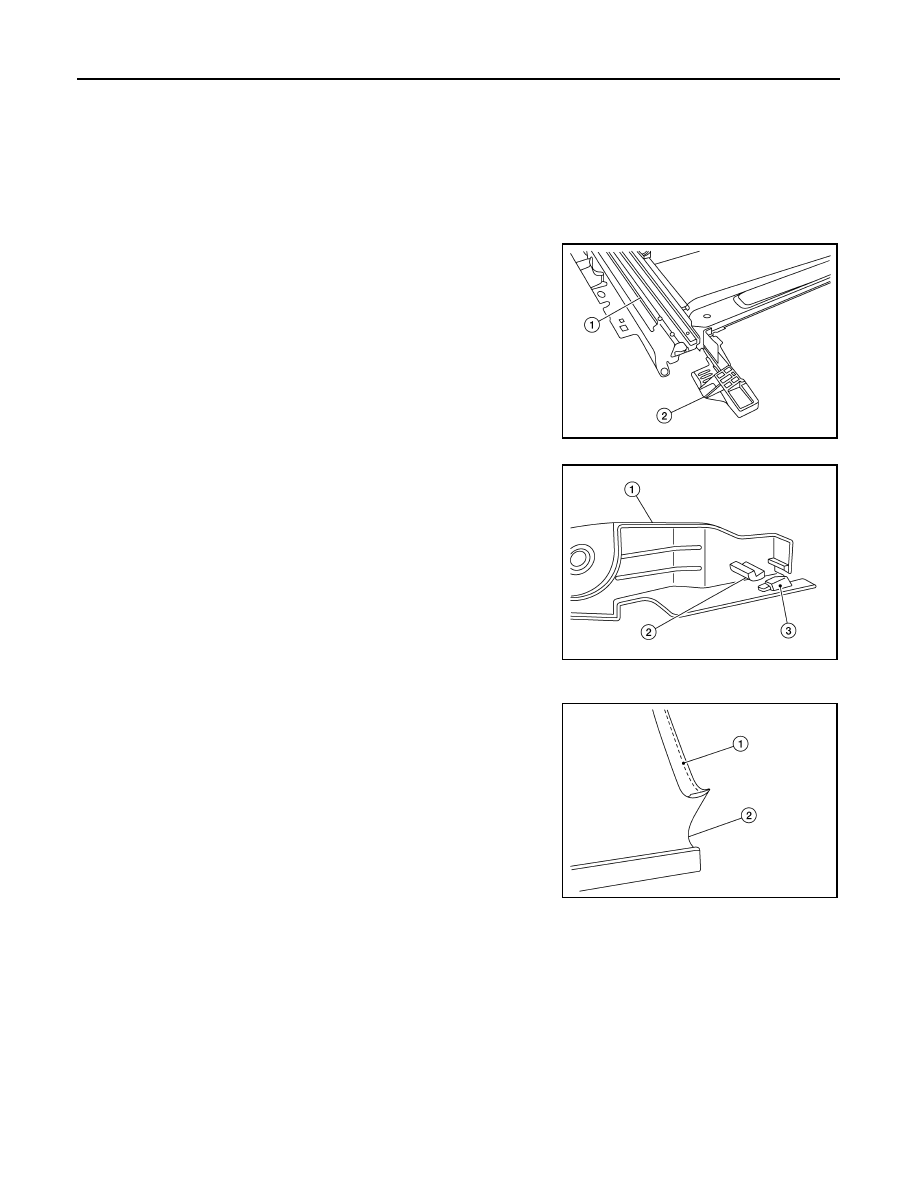

ASSEMBLY

CAUTION:

Do not remove the sunshade retainer pin or damage may occur.
1. Insert the sunshade and glass lid cables guides by sliding forward on the moonroof unit track.
2. Assembly moonroof unit bases (2) (LH/RH) by pushing forward

on the moonroof unit tracks (1) (LH/RH).

NOTE:

RH side shown; LH similar.

3. Insert sunshade black hem over lower guide (3) and under

upper guide (2) on the moonroof unit bases (1) (LH/RH).

(1) Sunshade black hem.

(2) Sunshade fabric.

4. Assemble the sunshade by applying pressure towards the drivers and inserting both ends into the moon-

roof unit bases (LH/RH).

AWBIA2351ZZ

AWJIA1641ZZ

AWBIA2352ZZ

SUNSHADE

RF-67

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

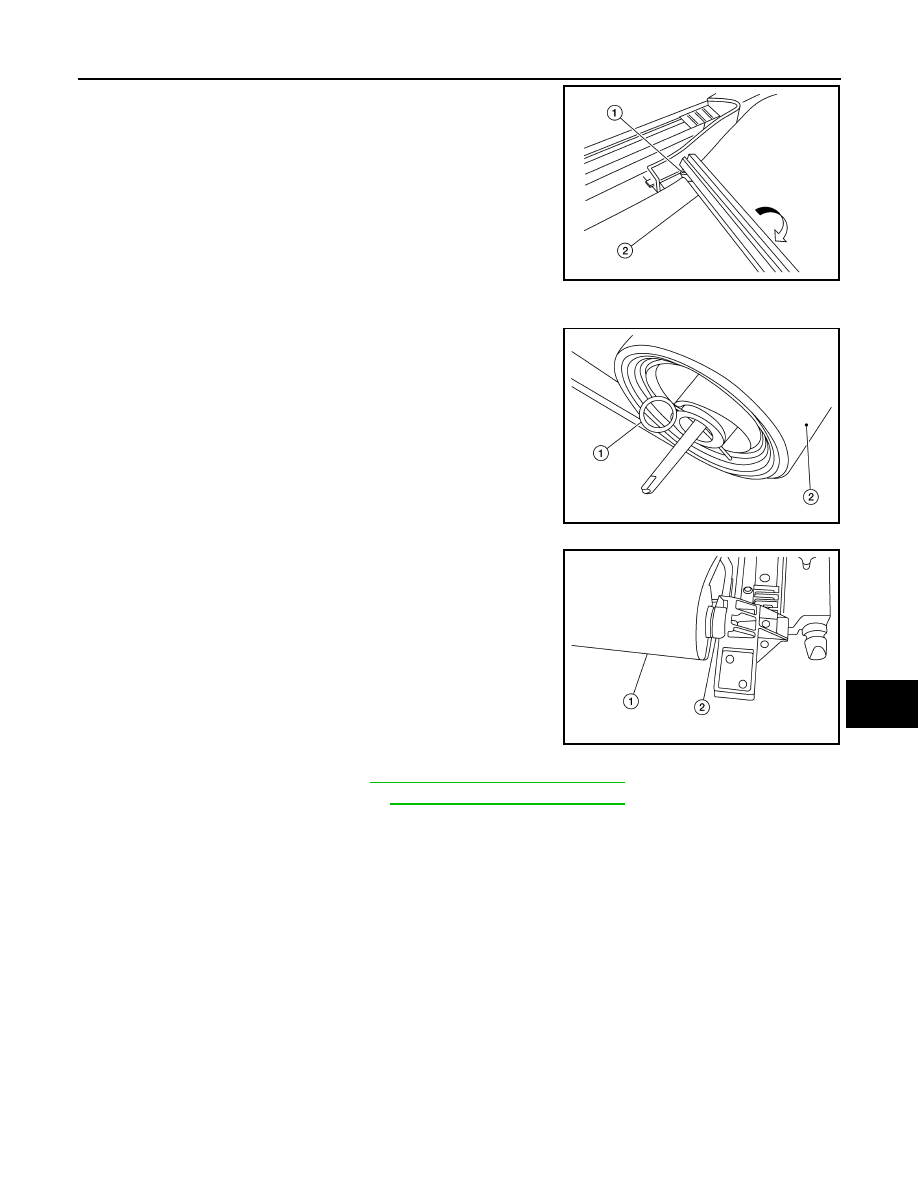

5. Assemble sunshade retainer.
a. Position the sunshade retainer on the backside of the moonroof

unit couplings then position the moonroof unit couplings inside

the sunshade stays open channel.

b. Rotate the sunshade 90 degrees.
c. Snap in place both ends of the sunshade stay on both LH/RH

sunshade couplings.

6. Manually engage the sunshade motor and moonroof motor assembly using a suitable tool
7. With the sunshade (2) assembled remove the sunshade spring

retainer pin (1).

8. Install sunshade spacer (2) between sunshade (1) and moon-

roof unit base..

9. Install panoramic roof glass. Refer to

RF-63, "Disassembly and Assembly"

.

10. Install moonroof unit assembly. Refer to

RF-58, "Removal and Installation"

.

AWJIA1642ZZ

AWBIA2350ZZ

AWBIA2347ZZ
