AV-380

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

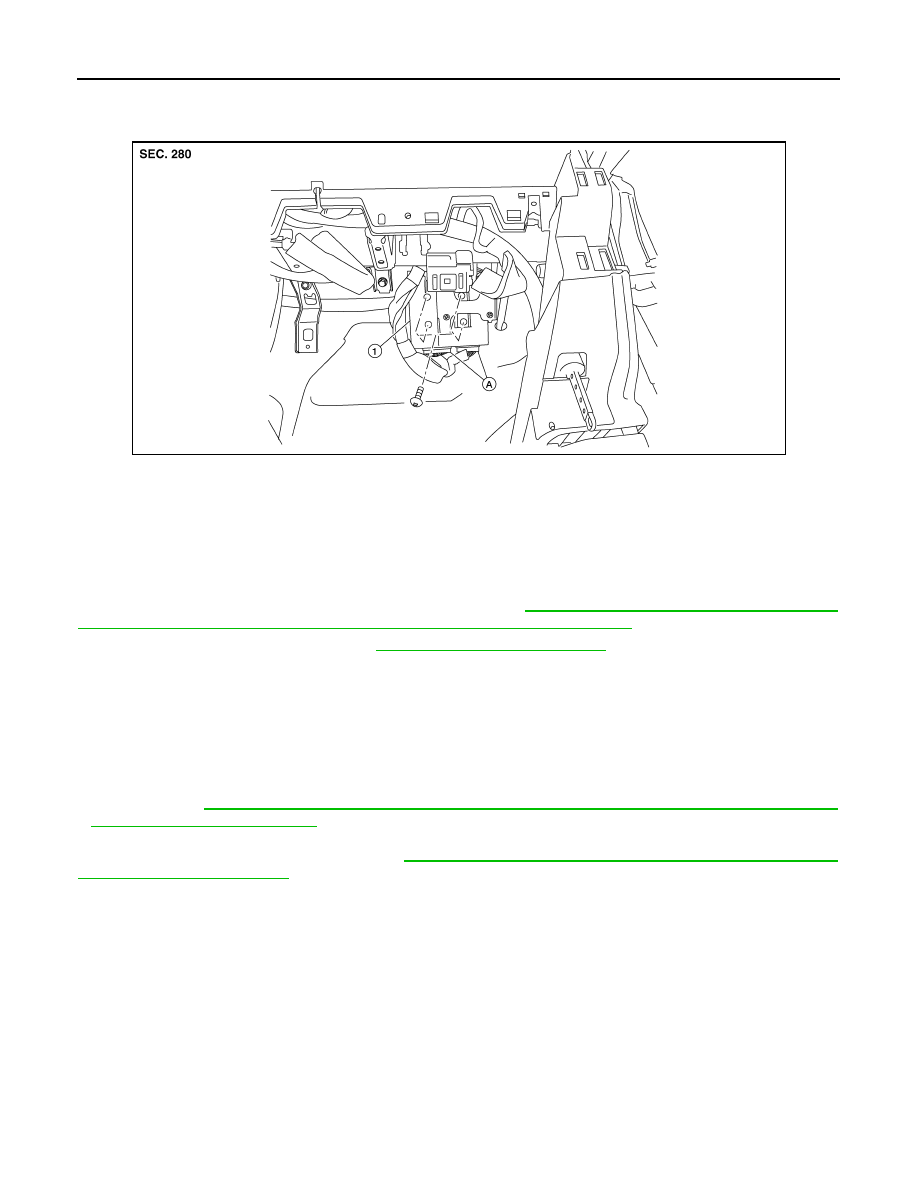

AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Exploded View

INFOID:0000000011277032

Removal and Installation

INFOID:0000000011277033

REMOVAL

CAUTION:

Before replacing around view monitor control unit, save or print current vehicle specification with

CONSULT configuration before replacement. Refer to

AV-279, "ADDITIONAL SERVICE WHEN

REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure"

.

1. Remove glove box assembly. Refer to

IP-24, "Removal and Installation"

.

2. Remove around view monitor control unit screws.
3. Disconnect the harness connector from the around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace the around view monitor control unit if it has been dropped or sustained an impact.

• When replacing around view monitor control unit, you must perform "After Replace ECU" with CON-

SULT. Refer to

AV-279, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-

TROL UNIT : Work Procedure"

.

NOTE:

Perform camera image calibration. Refer to

AV-284, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

AWNIA3694ZZ

1.

Around view monitor control unit A. Harness connector

AV

FRONT CAMERA

AV-381

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

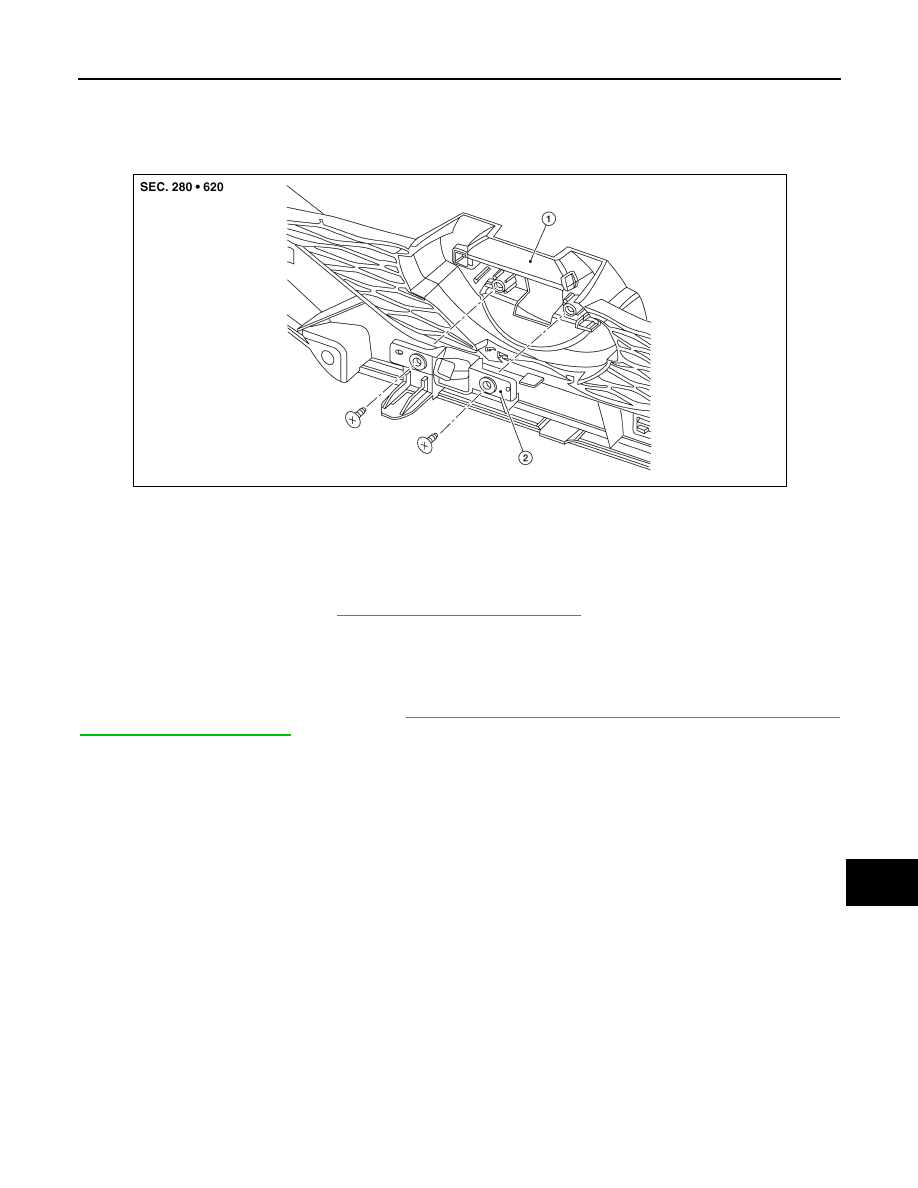

FRONT CAMERA

Exploded View

INFOID:0000000011277034

Removal and Installation

INFOID:0000000011277035

REMOVAL

1. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Remove screws and front camera.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-284, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

1.

Front grille

2.

Front camera

ALOIA0238ZZ

AV-382

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

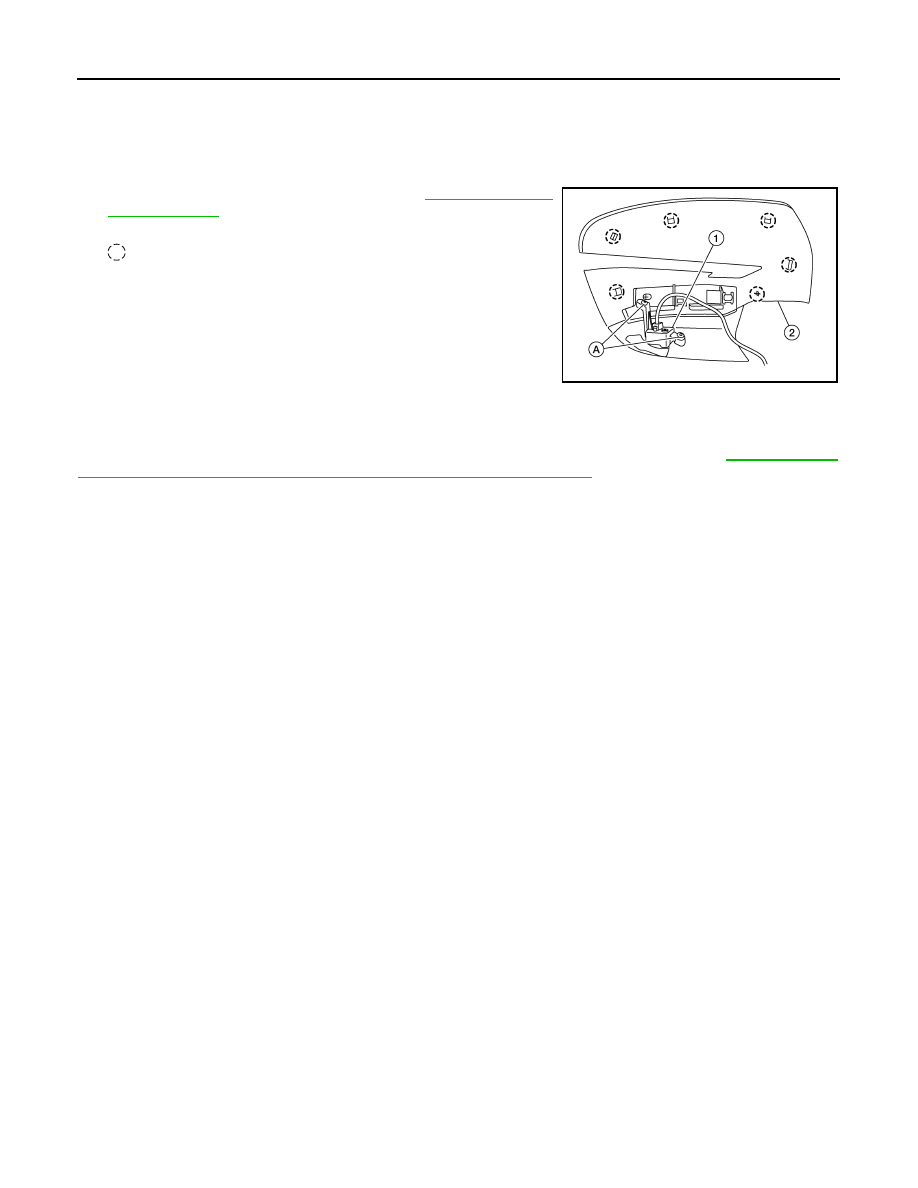

SIDE CAMERA

SIDE CAMERA

Removal and Installation

INFOID:0000000011277036

REMOVAL

1. Remove door mirror rear finisher (2). Refer to

MIR-26, "Removal

and Installation"

.

2. Remove screws (A) and side camera (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform camera image calibration (if equipped with around view camera). Refer to

AV-135, "CALI-

BRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description"

.

ALLIA1383ZZ

AV

REAR VIEW CAMERA

AV-383

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

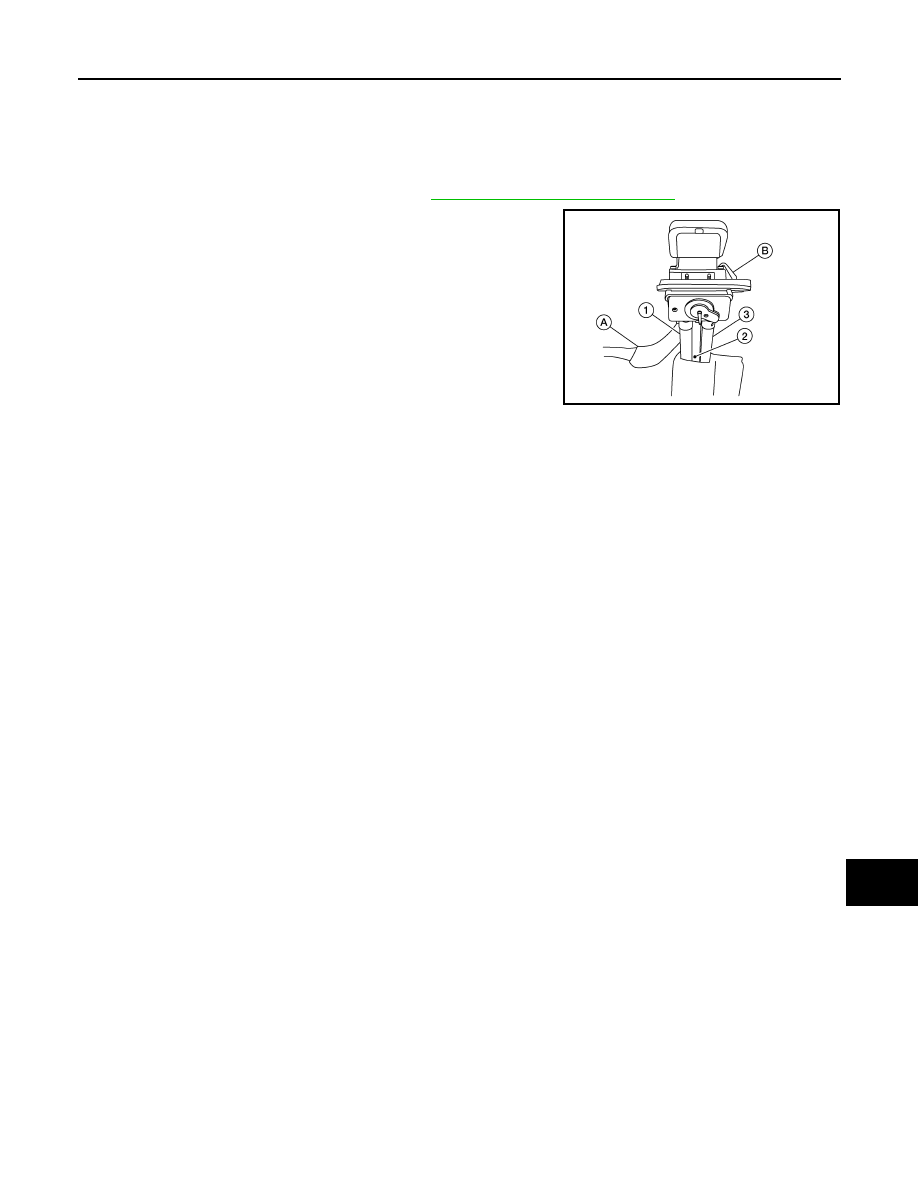

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000011277037

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-51, "Removal and Installation"

.

2. Disconnect washer tubes (1,3) and air tube (2) (if equipped).
3. Release pawl (B), disconnect harness connector (A) from rear

view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3329ZZ
