BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000011277022

REMOVAL

1. Slide the passenger seat to the full forward position.

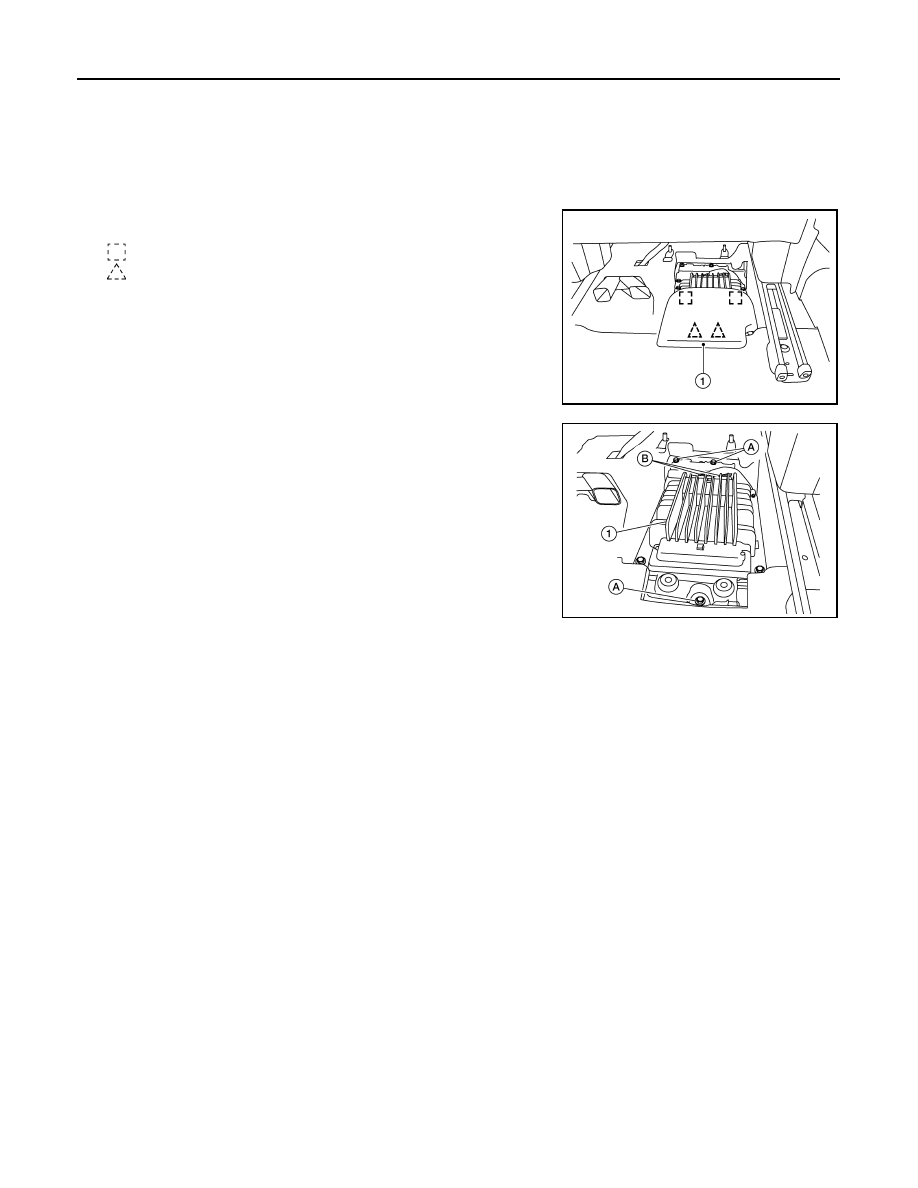

2. Release the clips using a suitable tool and remove Bose

speaker amp cover (1).

: Metal clip
: Clip

3. Remove Bose speaker amp bolts (A).
4. Disconnect the harness connectors (B) from the Bose speaker

amp (1).

5. Remove the Bose speaker amp. and bracket as an assembly.
6. Remove the bolts and the Bose speaker amp. from the Bose speaker amp. bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1577ZZ

ALNIA1578ZZ

AV

FRONT TWEETER

AV-373

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Removal and Installation

INFOID:0000000011277023

REMOVAL

1. Remove defroster grille. Refer to

VTL-12, "DEFROSTER GRILLE : Removal and Installation"

.

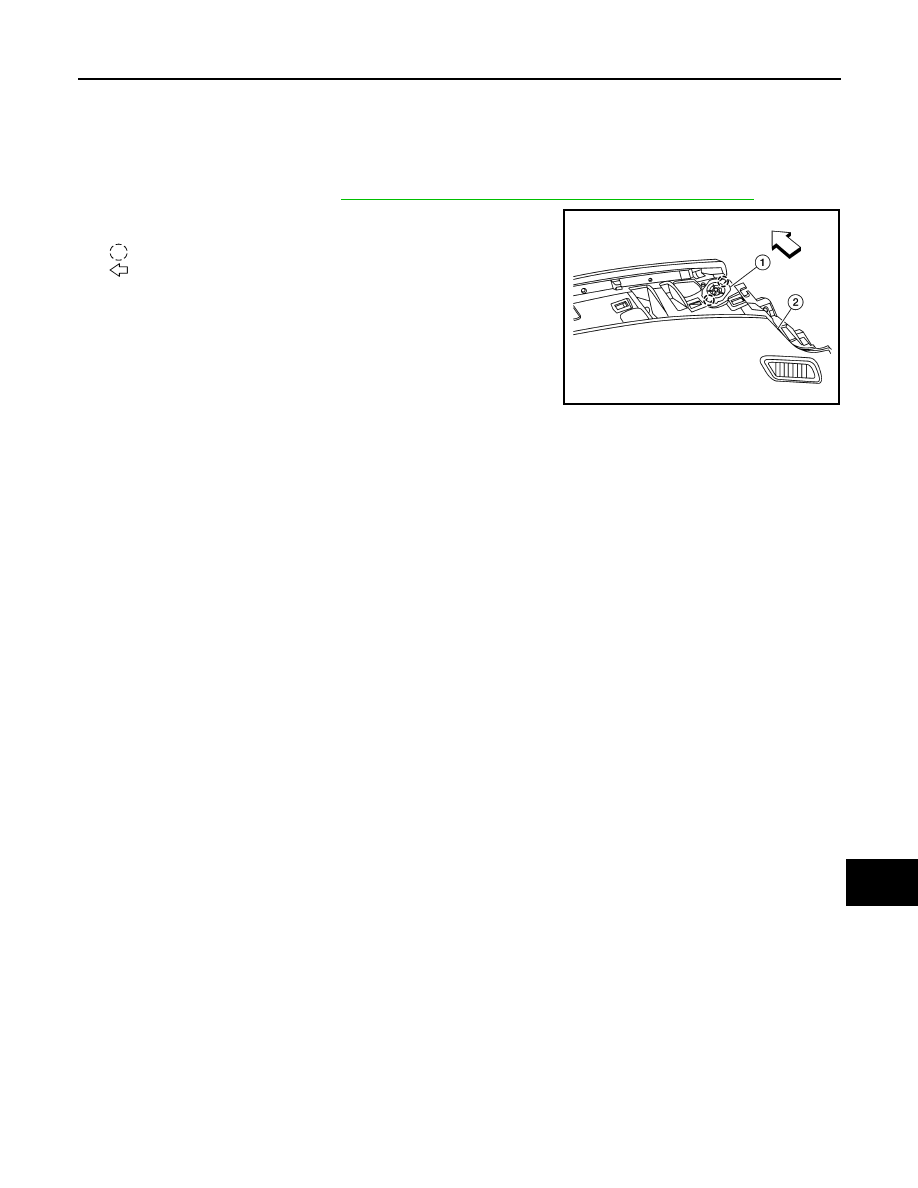

2. Release pawls and pull out the front tweeter (1) from the instru-

ment panel assembly (2).

 : Pawl

 : Front

3. Disconnect the harness connector from the front tweeter and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1663ZZ

AV-374

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

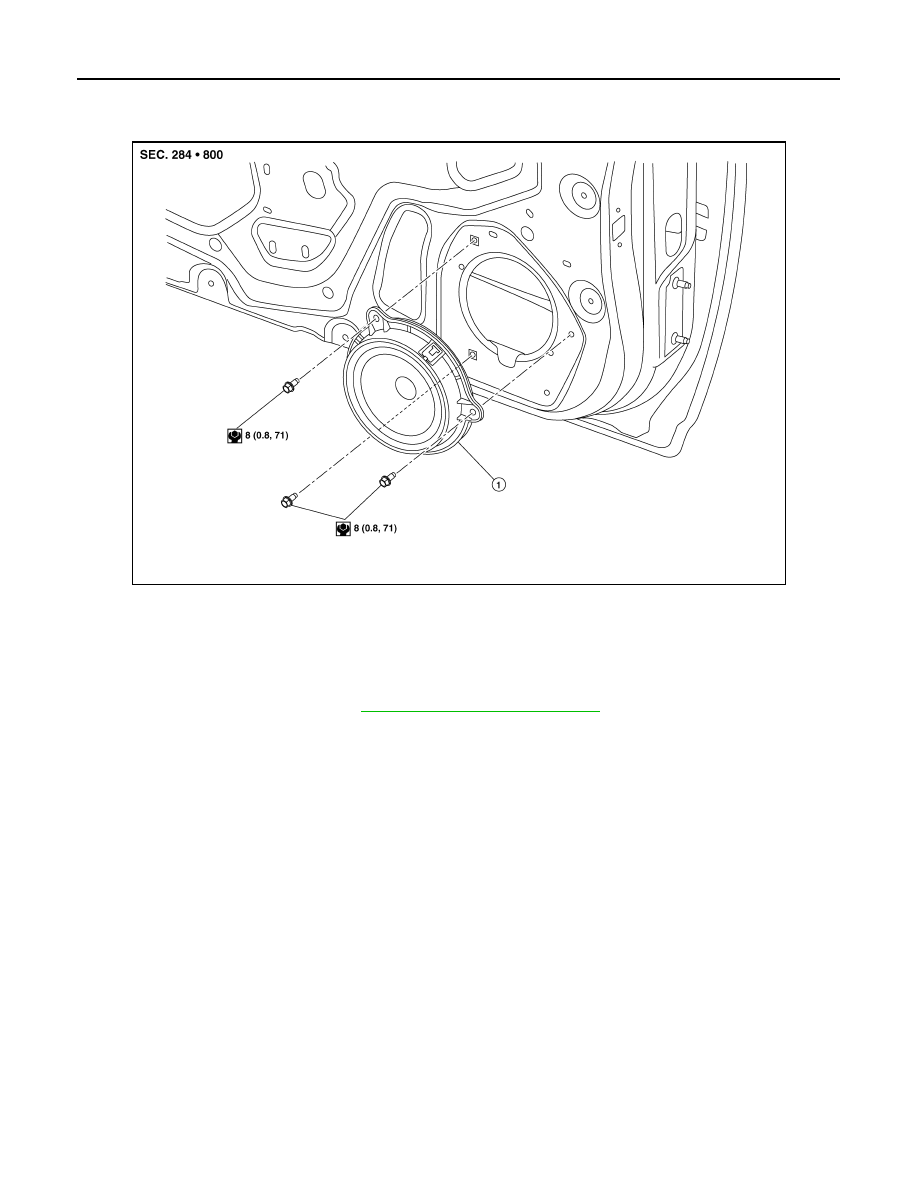

Exploded View

INFOID:0000000011277024

Removal and Installation

INFOID:0000000011277025

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove front door speaker bolts, then pull out front door speaker.
3. Disconnect the harness connector from front door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1580ZZ

1. Front door speaker

AV

CENTER SPEAKER

AV-375

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CENTER SPEAKER

Removal and Installation

INFOID:0000000011277026

REMOVAL

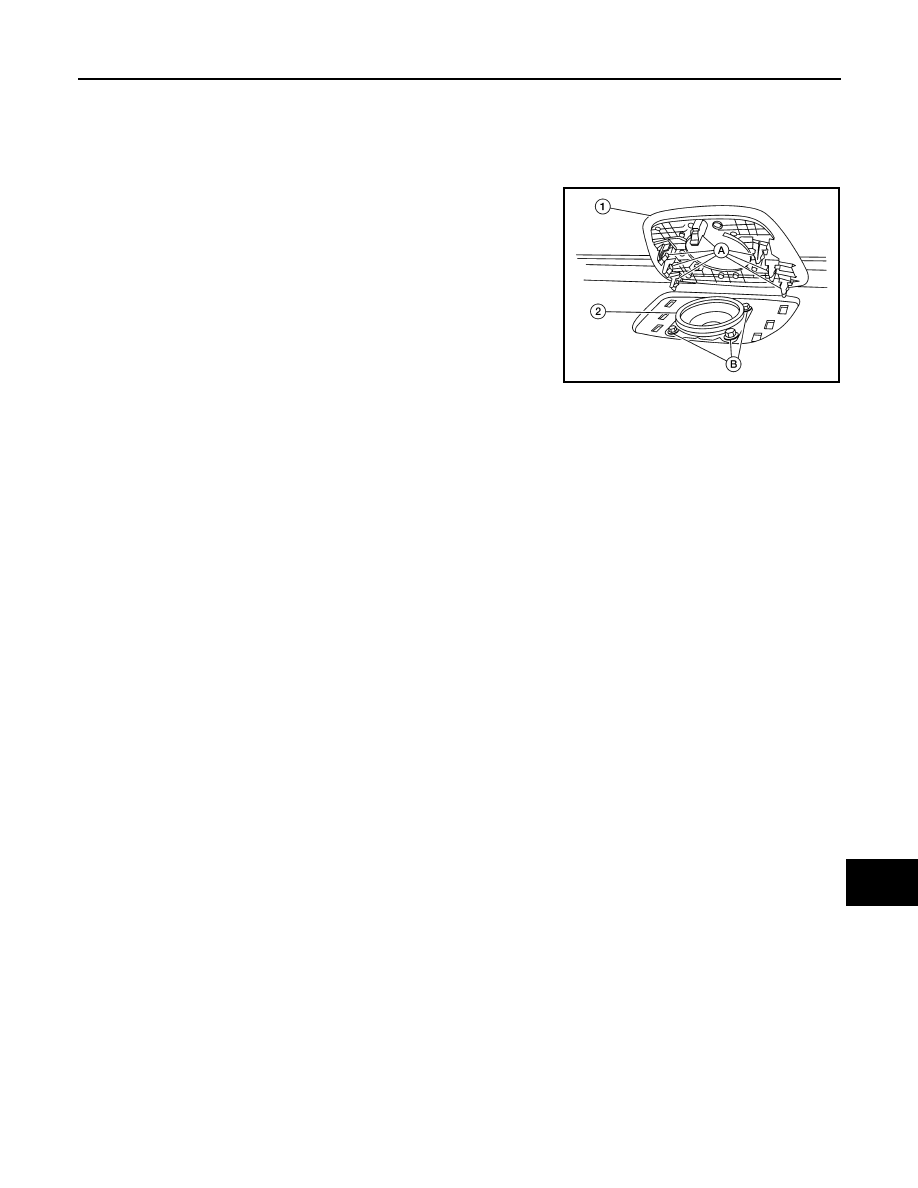

1. Release the metal clips (A) using a suitable tool and remove

center speaker grille (1).

2. Remove the center speaker bolts (B).
3. Pull out the center speaker (2).

4. Disconnect the harness connector from the center speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1579ZZ
