Nissan Rogue. Manual - part 96





AV-376

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

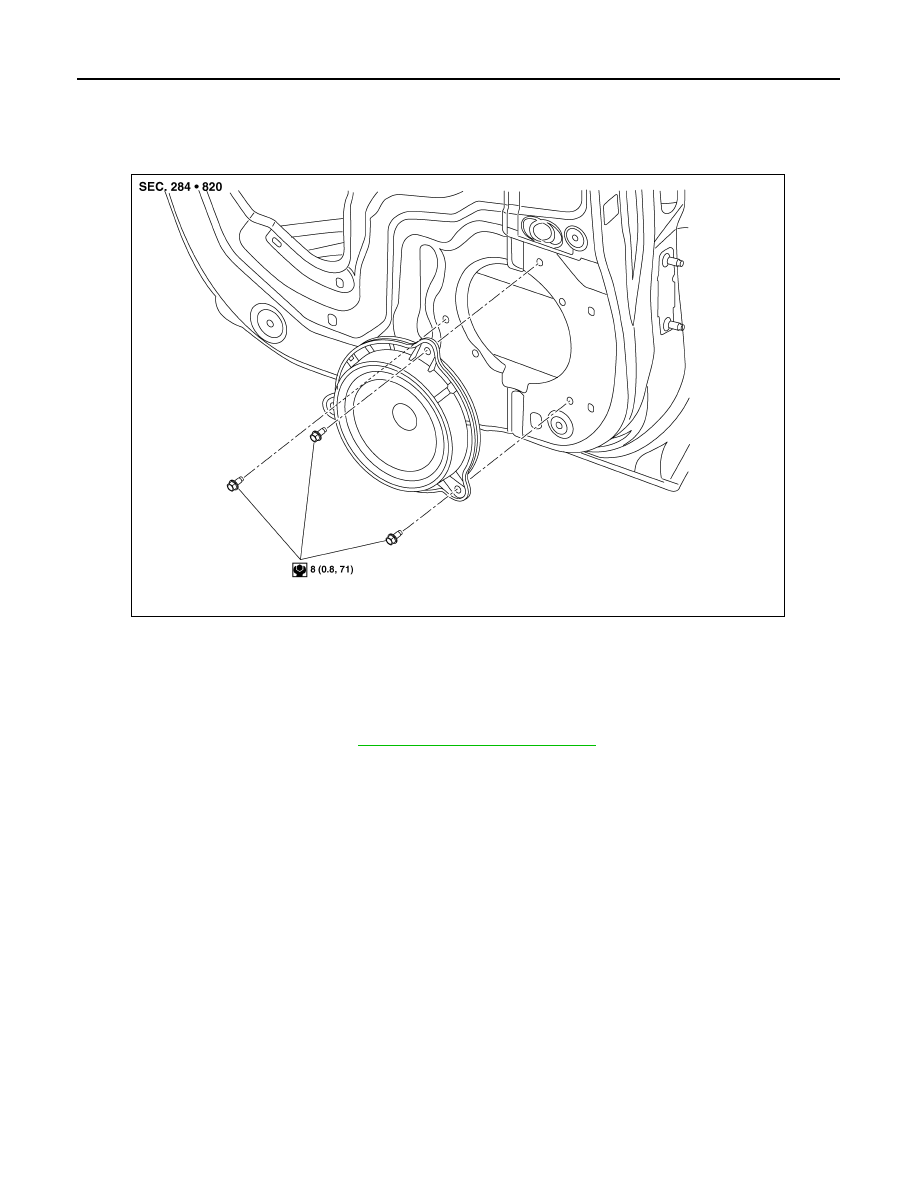

Exploded View

INFOID:0000000011277027

Removal and Installation

INFOID:0000000011277028

REMOVAL

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove rear door speaker bolts, then pull out rear door speaker.
3. Disconnect the harness connector from the rear door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

1. Rear door speaker

ALNIA1581ZZ

AV

SUBWOOFER

AV-377

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Removal and Installation

INFOID:0000000011277029

REMOVAL

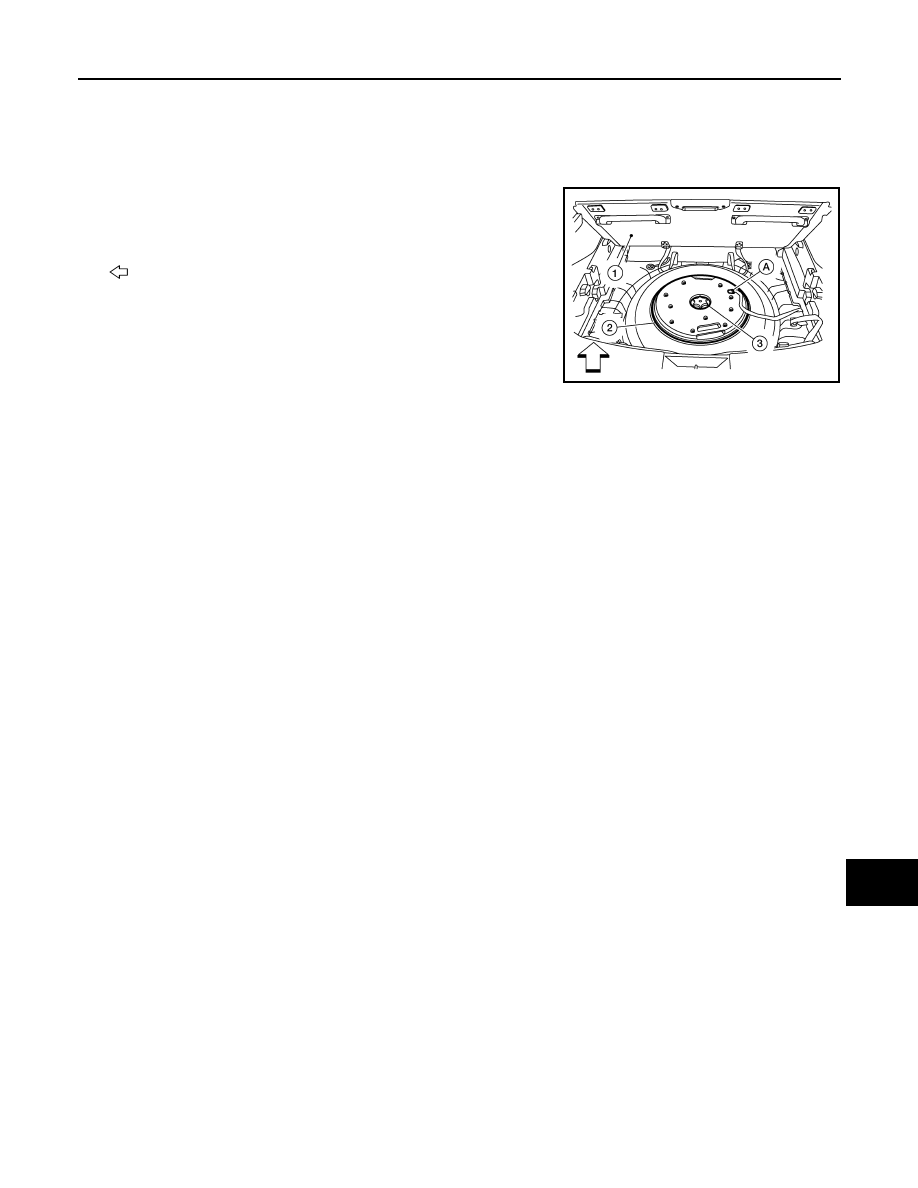

1. Open the rear luggage floor finisher (1).
2. Remove the spare tire clamp (3) by rotating counterclockwise.
3. Disconnect the harness connector (A) from the subwoofer (2)

and remove.

: Front

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1576ZZ

AV-378

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

USB INTERFACE AND AUX IN JACK

USB INTERFACE AND AUX IN JACK

Removal and Installation

INFOID:0000000011277030

REMOVAL

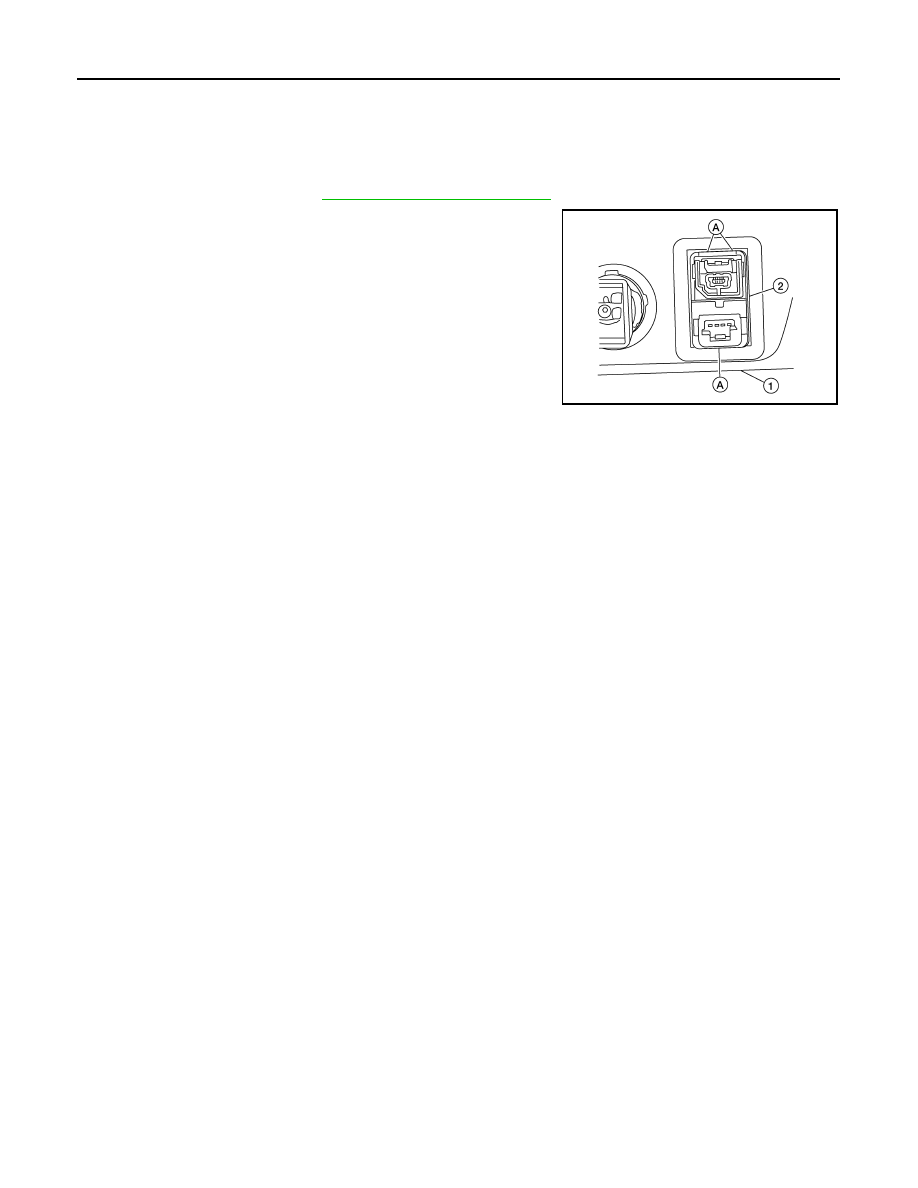

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Release the pawls (A) on the back of USB interface and AUX in

jack (2), then remove from the front of cluster lid C (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1582ZZ

AV

MICROPHONE

AV-379

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000011277031

REMOVAL

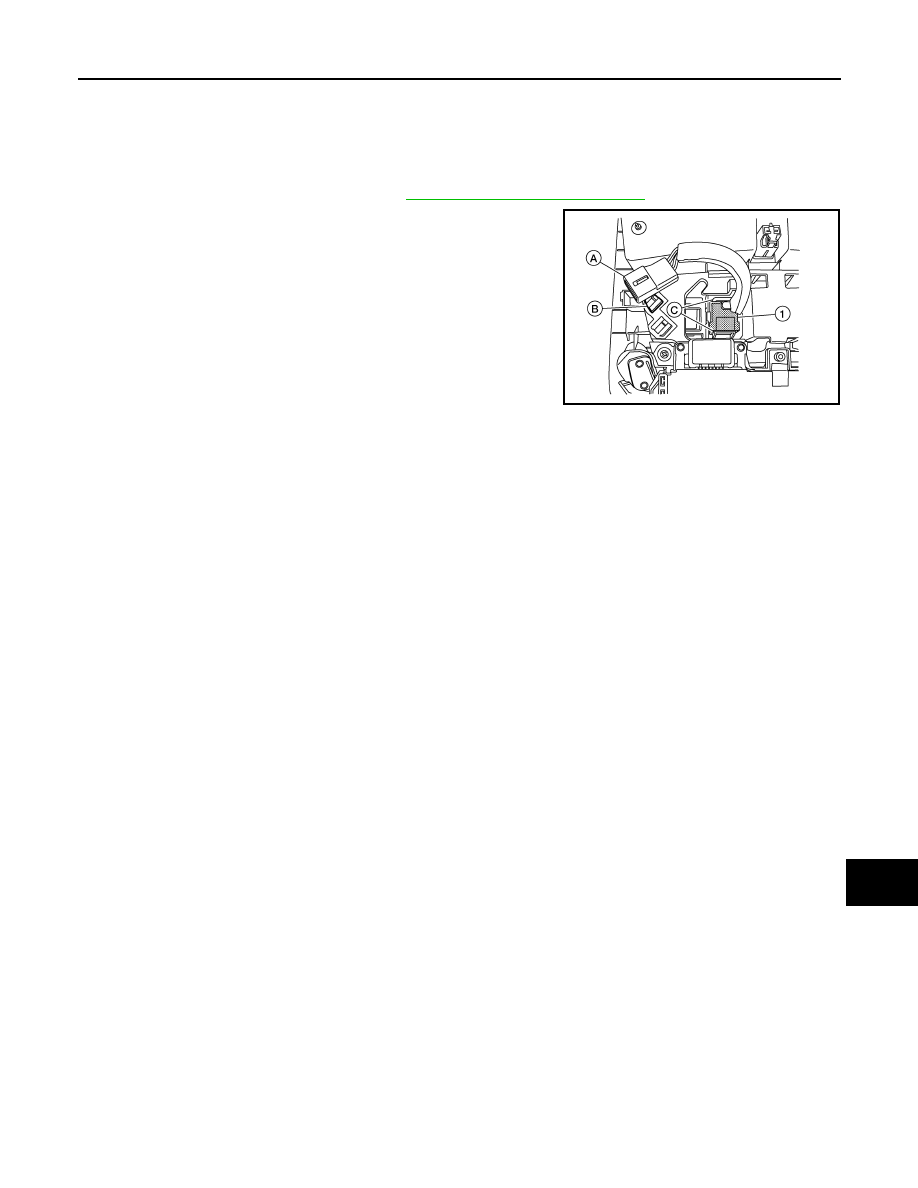

1. Remove the map lamp assembly. Refer to

INL-55, "Removal and Installation"

.

2. Release harness connector (A) by sliding rearward to remove

from the pawl (B).

3. Release pawls (C) and remove the microphone (1) from the

front room/map lamp assembly.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1583ZZ
