AV-340

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

FRONT DOOR SPEAKER

YES

>> Replace Bose speaker amp. Refer to

AV-372, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-369, "Removal and Installation"

.

AV

REAR DOOR SPEAKER

AV-341

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Diagnosis Procedure

INFOID:0000000011277009

Regarding Wiring Diagram information, refer to

AV-253, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit, Bose speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK REAR DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY (BOSE SPEAKER AMP.)

1. Disconnect Bose speaker amp. connectors and suspect rear door speaker connector.

2. Check continuity between Bose speaker amp. connectors and suspect rear door speaker connector.

3. Check continuity between Bose speaker amp. connectors and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK REAR DOOR SPEAKER SIGNAL (BOSE SPEAKER AMP.)

1. Connect Bose speaker amp. connectors and suspect rear door speaker connector.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of Bose speaker amp. connectors.

Bose speaker amp.

Rear door speaker

Continuity

Connector

Terminal

Connector

Terminal

B137

1

D203 (LH)

1

Yes

10

2

2

D303 (RH)

1

3

2

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B137

1

—

No

10

2

3

Bose speaker amp. connector B137

Condition

Reference value

(+)

(

−)

Terminal

Terminal

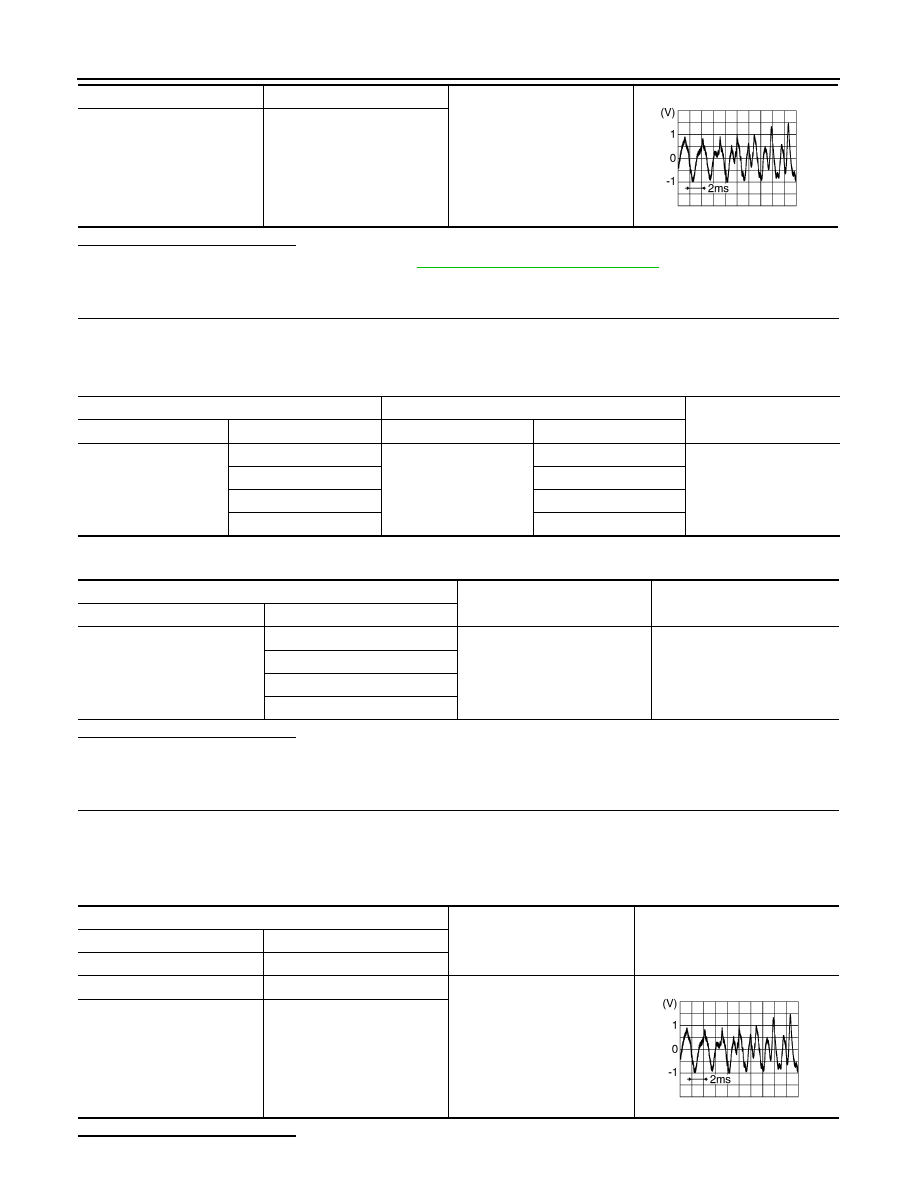

AV-342

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

REAR DOOR SPEAKER

Is the inspection result normal?

YES

>> Replace rear door speaker. Refer to

AV-376, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK REAR DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY (AV CONTROL UNIT)

1. Turn ignition switch to OFF.

2. Disconnect Bose speaker amp. connector B138 and AV control unit connector M108.

3. Check continuity between Bose speaker amp. connector B138 and AV control unit connector M108.

4. Check continuity between Bose speaker amp. connector B138 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK REAR DOOR SPEAKER SIGNAL (AV CONTROL UNIT)

1. Connect Bose speaker amp. connector B138 and AV control unit connector M108.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between AV control unit connector M108 and ground.

Is the inspection result normal?

1

10

Audio signal output

2

3

SKIB3609E

Bose speaker amp.

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B138

21

M108

4

Yes

22

5

23

13

33

14

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B138

21

—

No

22

23

33

AV control unit connector M108

Condition

Reference value

(+)

(

−)

Terminal

Terminal

4

5

Audio signal output

13

14

SKIB3609E

AV

REAR DOOR SPEAKER

AV-343

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

YES

>> Replace Bose speaker amp. Refer to

AV-372, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-369, "Removal and Installation"

.
