AV-336

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

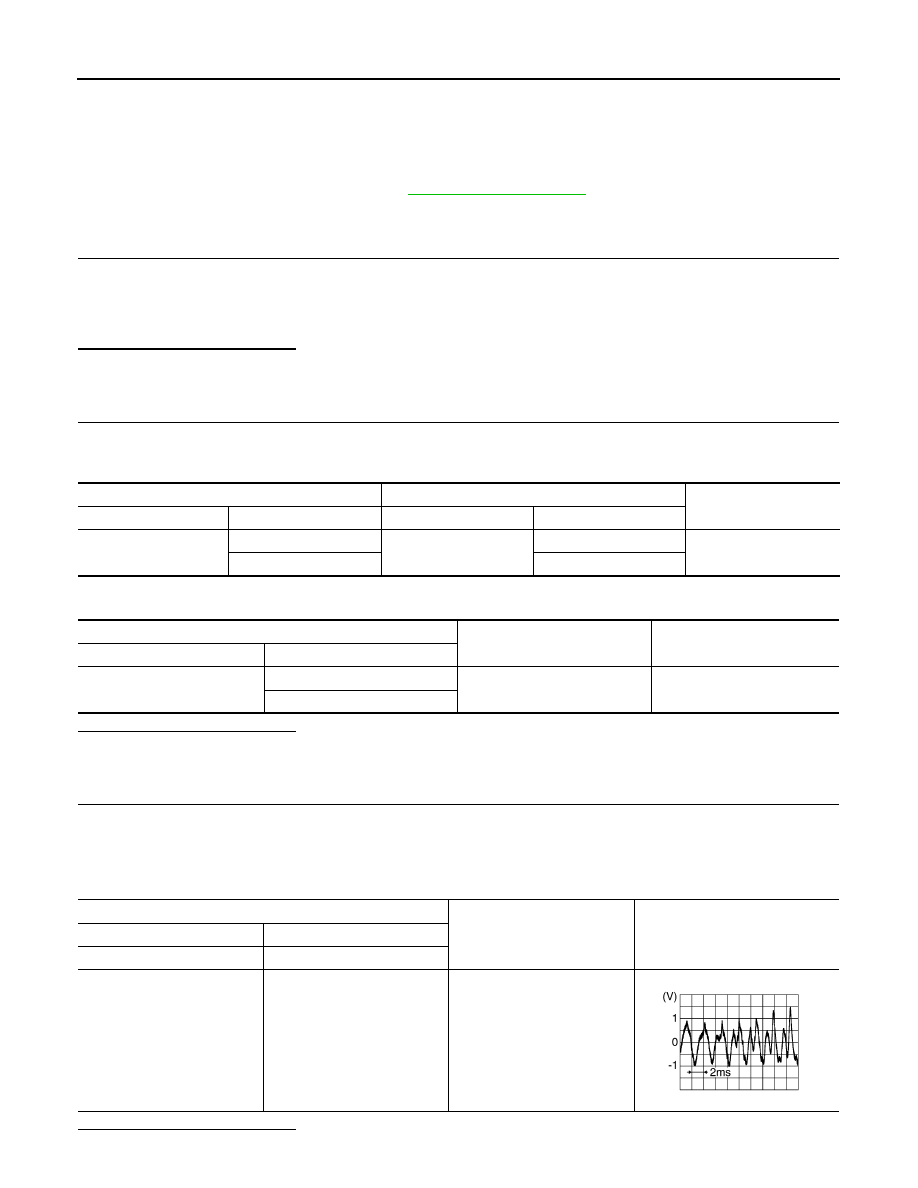

CENTER SPEAKER

CENTER SPEAKER

Diagnosis Procedure

INFOID:0000000011277007

Regarding Wiring Diagram information, refer to

AV-253, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit, Bose speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK CENTER SPEAKER SIGNAL CIRCUIT CONTINUITY (BOSE SPEAKER AMP.)

1. Disconnect Bose speaker amp. connector B138 and center speaker connector M70.

2. Check continuity between Bose speaker amp. connector B138 and center speaker connector M70.

3. Check continuity between Bose speaker amp. connector B138 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK CENTER SPEAKER SIGNAL (BOSE SPEAKER AMP.)

1. Connect Bose speaker amp. connector B138 and center speaker connector M70.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between Bose speaker amp. connector B138 and ground.

Is the inspection result normal?

Bose speaker amp.

Center speaker

Continuity

Connector

Terminal

Connector

Terminal

B138

15

M70

1

Yes

28

2

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B138

15

—

No

28

Bose speaker amp. connector B138

Condition

Reference value

(+)

(

−)

Terminal

Terminal

15

28

Audio signal output

SKIB3609E

AV

CENTER SPEAKER

AV-337

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

YES

>> Replace center speaker. Refer to

AV-375, "Removal and Installation"

.

NO

>> GO TO 4.

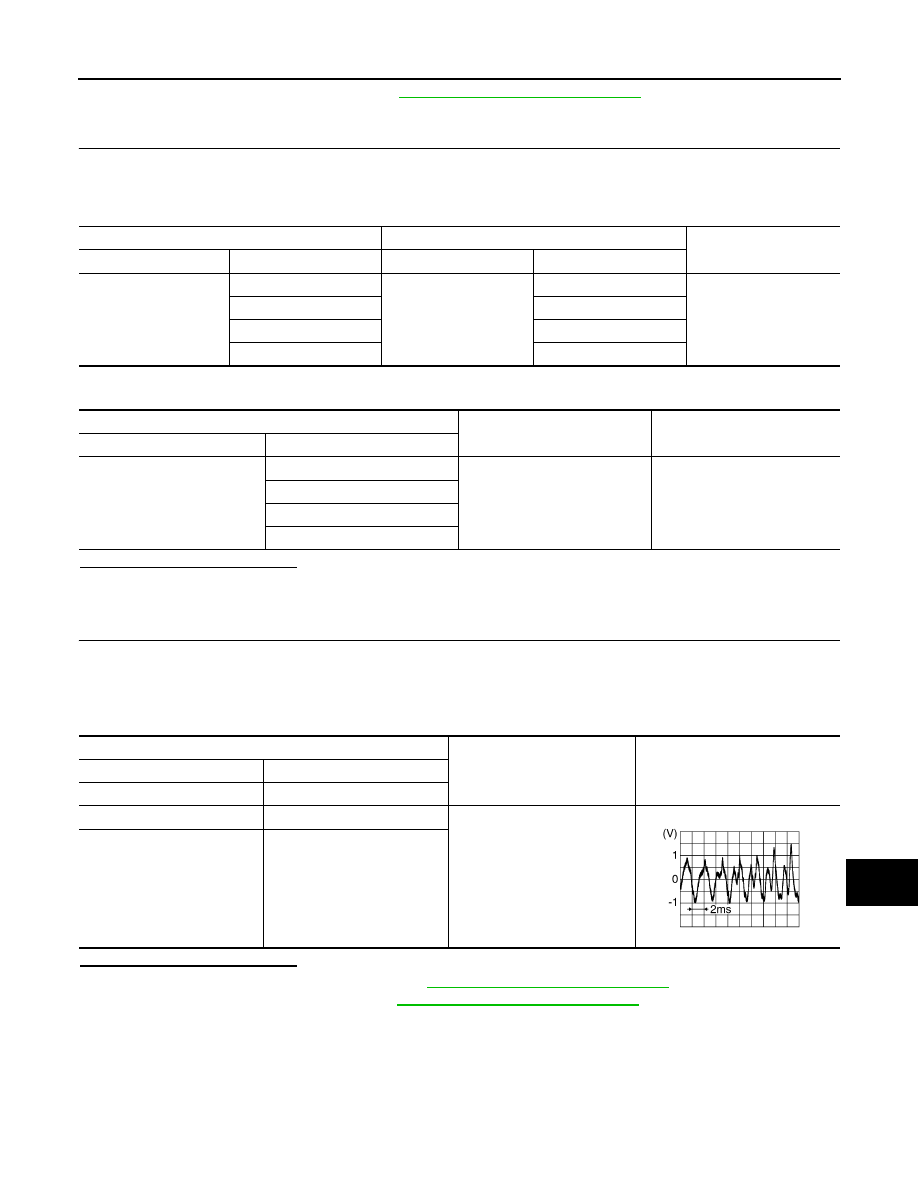

4.

CHECK CENTER SPEAKER SIGNAL CIRCUIT CONTINUITY (AV CONTROL UNIT)

1. Turn ignition switch to OFF.

2. Disconnect Bose speaker amp. connector B138 and AV control unit connector M108.

3. Check continuity between Bose speaker amp. connector B138 and AV control unit connector M108.

4. Check continuity between Bose speaker amp. connector B138 and ground.

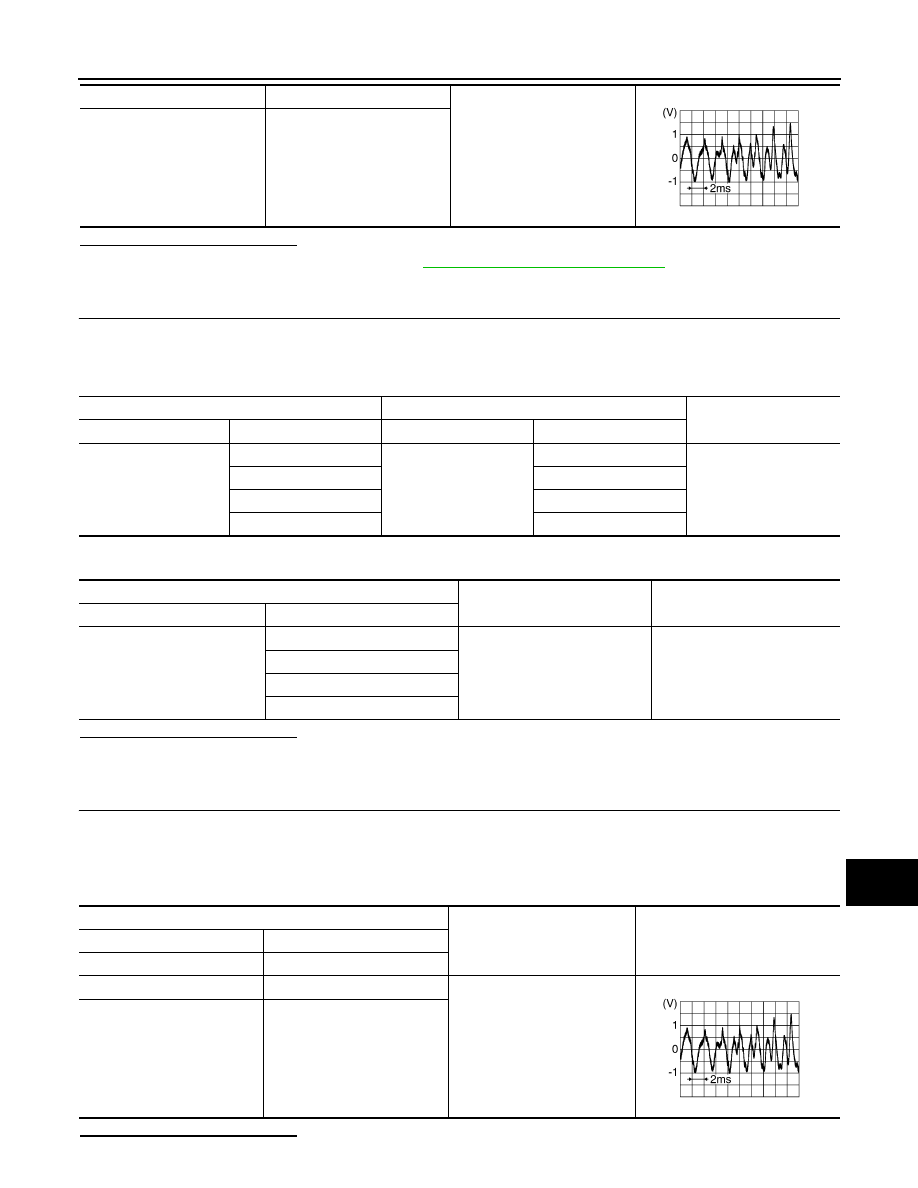

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK CENTER SPEAKER SIGNAL (AV CONTROL UNIT)

1. Connect Bose speaker amp. connector B138 and AV control unit connector M108.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between AV control unit connector M108 and ground.

Is the inspection result normal?

YES

>> Replace Bose speaker amp. Refer to

AV-372, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-369, "Removal and Installation"

.

Bose speaker amp.

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B138

18

M108

2

Yes

32

3

19

11

20

12

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B138

18

—

No

32

19

20

AV control unit connector M108

Condition

Reference value

(+)

(

−)

Terminal

Terminal

2

3

Audio signal output

11

12

SKIB3609E

AV-338

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Diagnosis Procedure

INFOID:0000000011277008

Regarding Wiring Diagram information, refer to

AV-253, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit, Bose speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK FRONT DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY (BOSE SPEAKER AMP.)

1. Disconnect Bose speaker amp. connectors and suspect front door speaker connector.

2. Check continuity between Bose speaker amp. connectors and suspect front door speaker connector.

3. Check continuity between Bose speaker amp. connectors and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK FRONT DOOR SPEAKER SIGNAL (BOSE SPEAKER AMP.)

1. Connect Bose speaker amp. connectors and suspect front door speaker connector.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of Bose speaker amp. connectors.

Bose speaker amp.

Front door speaker

Continuity

Connector

Terminal

Connector

Terminal

B137

4

D9 (LH)

1

Yes

5

2

8

D114 (RH)

1

13

2

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B137

4

—

No

5

8

13

Bose speaker amp. connector B137

Condition

Reference value

(+)

(

−)

Terminal

Terminal

AV

FRONT DOOR SPEAKER

AV-339

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> Replace front door speaker. Refer to

AV-374, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK FRONT DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY (AV CONTROL UNIT)

1. Turn ignition switch to OFF.

2. Disconnect Bose speaker amp. connector B138 and AV control unit connector M108.

3. Check continuity between Bose speaker amp. connector B138 and AV control unit connector M108.

4. Check continuity between Bose speaker amp. connector B138 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK FRONT DOOR SPEAKER SIGNAL (AV CONTROL UNIT)

1. Connect Bose speaker amp. connector B138 and AV control unit connector M108.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between AV control unit connector M108 and ground.

Is the inspection result normal?

4

5

Audio signal output

8

13

SKIB3609E

Bose speaker amp.

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B138

18

M108

2

Yes

32

3

19

11

20

12

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B138

18

—

No

32

19

20

AV control unit connector M108

Condition

Reference value

(+)

(

−)

Terminal

Terminal

2

3

Audio signal output

11

12

SKIB3609E
