Nissan Rogue. Manual - part 85





AV-332

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

POWER SUPPLY AND GROUND CIRCUIT

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between around view monitor control unit connector M103 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connectors.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK FUSE

Check that the following fuses are not blown:

Are the fuses blown?

YES

>> Replace the blown fuse after repairing the affected circuit.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit connector M113.

3. Check voltage between around view monitor control unit connector M113 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between around view monitor control unit connector M113 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connectors.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M103

1

Yes

Terminal No.

Signal name

Fuse No.

2

Battery power supply

15 (20A)

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M113

2

Ignition switch: OFF

Battery voltage

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M113

1

Yes

AV

FRONT TWEETER

AV-333

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Diagnosis Procedure

INFOID:0000000011277006

Regarding Wiring Diagram information, refer to

AV-253, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit, Bose speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK FRONT TWEETER SIGNAL CIRCUIT CONTINUITY (BOSE SPEAKER AMP.)

1. Disconnect Bose speaker amp. connectors and suspect front tweeter connector.

2. Check continuity between Bose speaker amp. connectors and suspect front tweeter connector.

3. Check continuity between Bose speaker amp. connectors and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

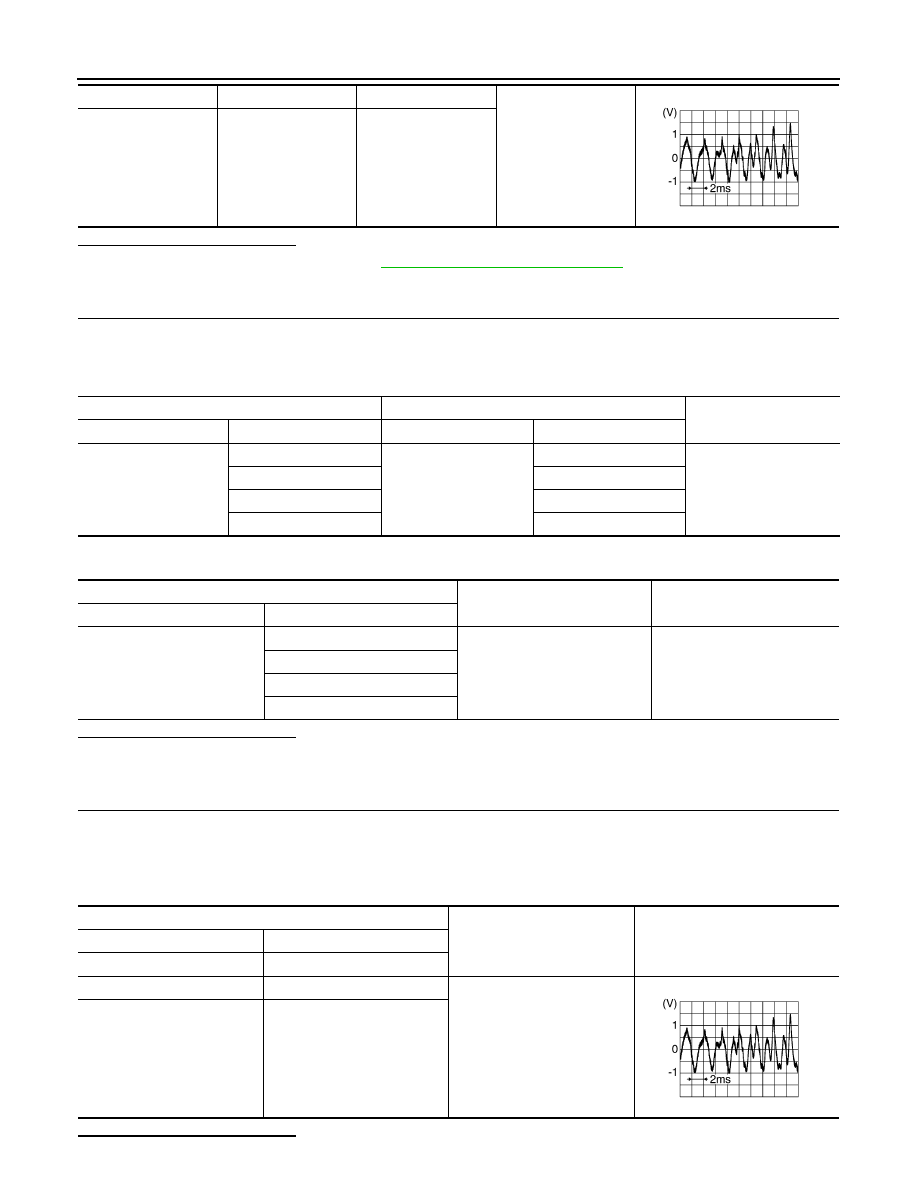

CHECK FRONT TWEETER SIGNAL (BOSE SPEAKER AMP.)

1. Connect Bose speaker amp. connectors and suspect front tweeter connector.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of Bose speaker amp. connectors.

Bose speaker amp.

Front tweeter

Continuity

Connector

Terminal

Connector

Terminal

B137

6

M80 (LH)

1

Yes

7

2

B138

37

M23 (RH)

1

27

2

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B137

6

No

7

B138

37

27

Bose speaker amp.

Condition

Reference value

Connector

(+)

(

−)

Terminal

Terminal

AV-334

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

FRONT TWEETER

Is the inspection result normal?

YES

>> Replace front tweeter. Refer to

AV-373, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK FRONT TWEETER SIGNAL CIRCUIT CONTINUITY (AV CONTROL UNIT)

1. Turn ignition switch to OFF.

2. Disconnect Bose speaker amp. connector B138 and AV control unit connector M108.

3. Check continuity between Bose speaker amp. connector B138 and AV control unit connector M108.

4. Check continuity between Bose speaker amp. connector B138 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK FRONT TWEETER SIGNAL (AV CONTROL UNIT)

1. Connect Bose speaker amp. connector B138 and AV control unit connector M108.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between AV control unit connector M108 and ground.

Is the inspection result normal?

B137

6

7

Audio signal output

B138

37

27

SKIB3609E

Bose speaker amp.

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B138

18

M108

2

Yes

32

3

19

11

20

12

Bose speaker amp.

Ground

Continuity

Connector

Terminal

B138

18

No

32

19

20

AV control unit connector M108

Condition

Reference value

(+)

(

−)

Terminal

Terminal

2

3

Audio signal output

11

12

SKIB3609E

AV

FRONT TWEETER

AV-335

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

YES

>> Replace Bose speaker amp. Refer to

AV-372, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-369, "Removal and Installation"

.
