AV-252

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

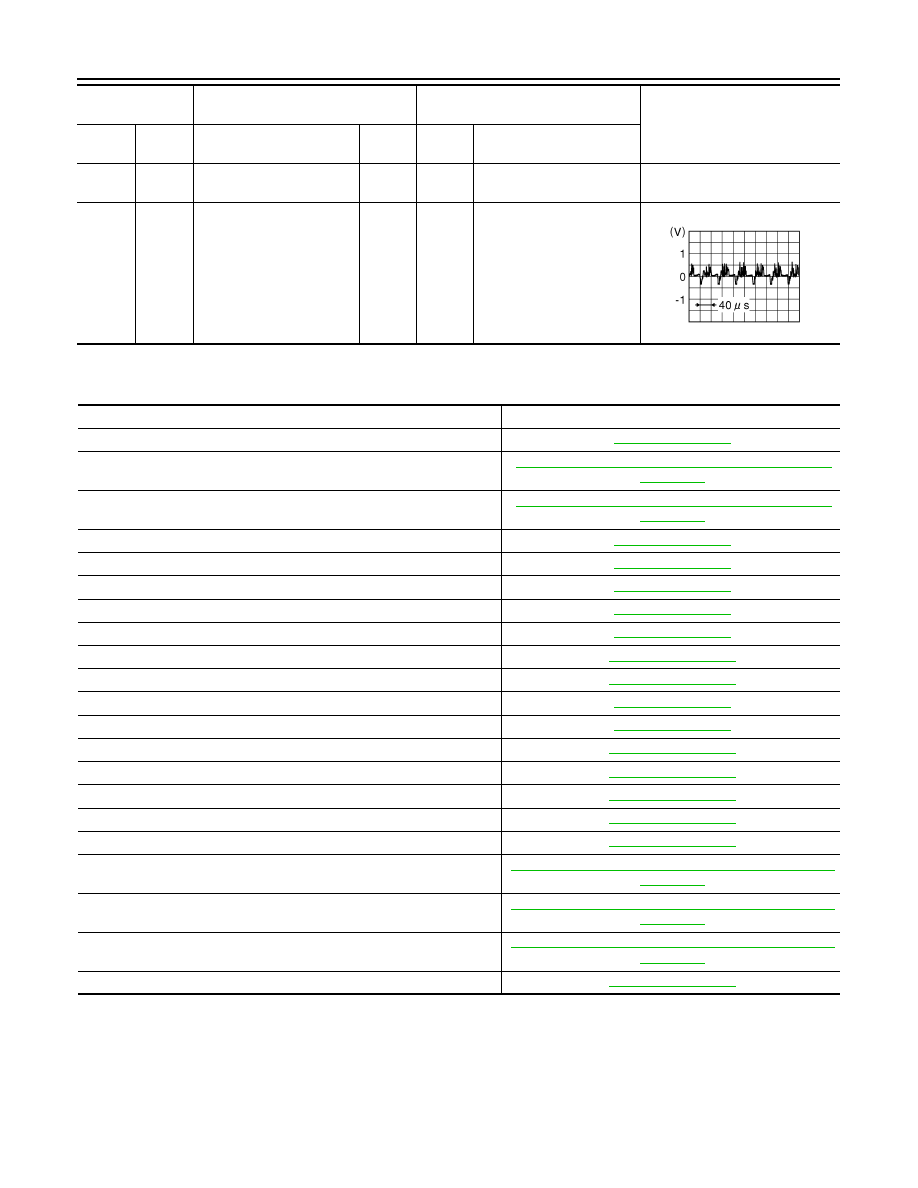

AROUND VIEW MONITOR CONTROL UNIT

WITH DRIVER ASSISTANCE SYSTEM : DTC Index

INFOID:0000000011276936

70

(V)

Ground Front camera ground

—

ON

—

0 V

71

(LG)

72

(Shield)

Front camera image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

JSNIA0834GB

CONSULT Display

Reference Page

U0428: ST ANG SEN CALIB

AV-141, "DTC Logic"

U1000: CAN COMM CIRCUIT

AV-142, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

U1010: CONTROL UNIT (CAN)

AV-143, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

U111A: Rear display output signal diagnosis (Harness disconnection)

AV-144, "DTC Logic"

U111B: Right side display output signal diagnosis (Harness disconnection)

AV-146, "DTC Logic"

U111C: Front display output signal diagnosis (Harness disconnection)

AV-148, "DTC Logic"

U111D: Left side display output signal diagnosis (Harness disconnection)

AV-150, "DTC Logic"

U1232: ST ANG SEN CALIB

AV-155, "DTC Logic"

U1302: Camera supply power supply voltage abnormality

DAS-125, "DTC Logic"

U1303: LED supply power supply voltage abnormality

DAS-129, "DTC Logic"

U1304: Non-completion of the calibration

AV-169, "DTC Logic"

U1305: Non-completion of the configuration

AV-170, "DTC Logic"

U1308: Rear camera judgment

DAS-132, "DTC Logic"

U1309 PUMP UNIT CURRENT

DAS-133, "DTC Logic"

U130A: PUMP ECU JUDGE

DAS-135, "DTC Logic"

U0122: VDC CAN CIR1 (LDP)

DAS-100, "DTC Logic"

U0416: VDC CAN CIR2 (LDP)

DAS-104, "DTC Logic"

C1A03: VHCL SPEED SE CIRC

DAS-139, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

C1A39: STRG SEN CIR

DAS-151, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

C1A04: ABS/TCS/VDC CIRC

DAS-140, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

U130B: Rear camera serial communication err

DAS-136, "DTC Logic"

AV

NAVIGATION WITH BOSE

AV-253

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

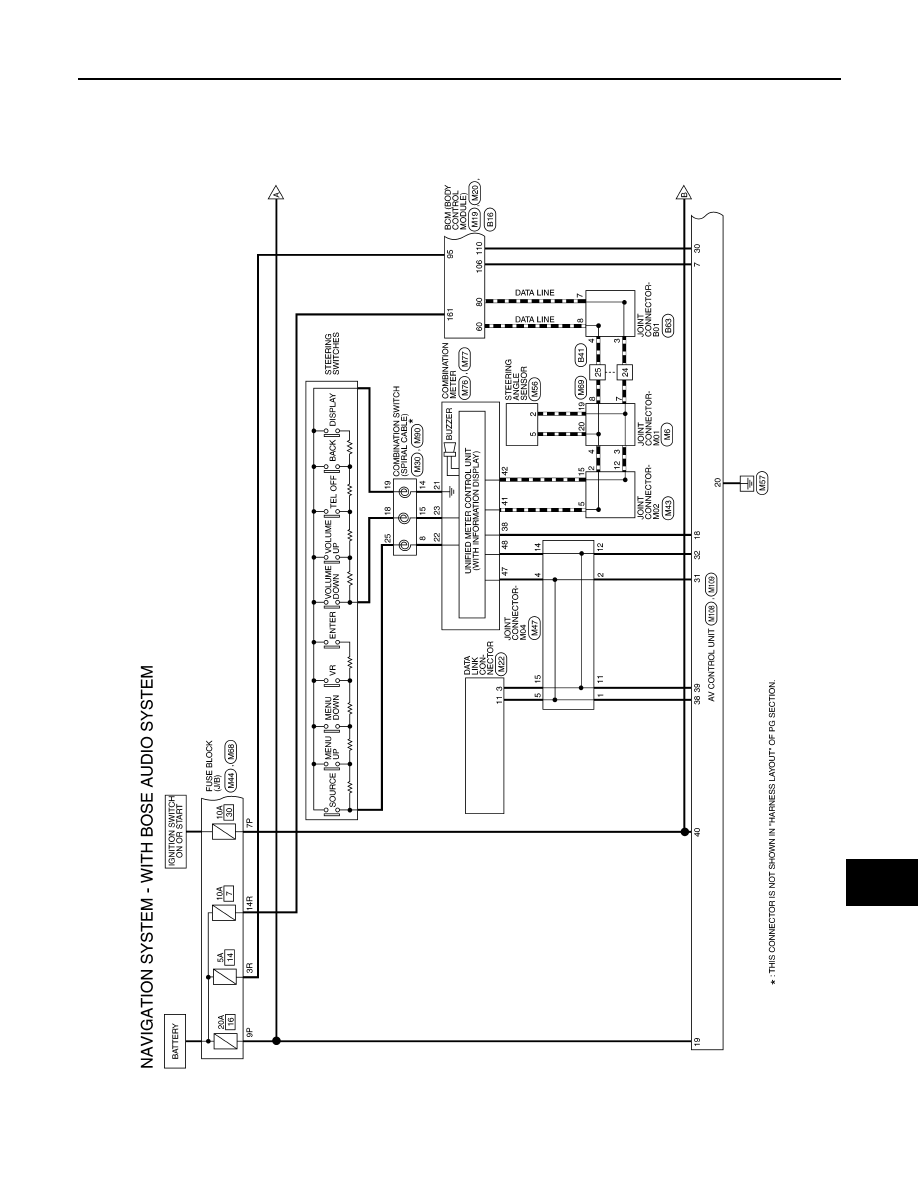

WIRING DIAGRAM

NAVIGATION WITH BOSE

Wiring Diagram

INFOID:0000000011276937

AANWA1213GB

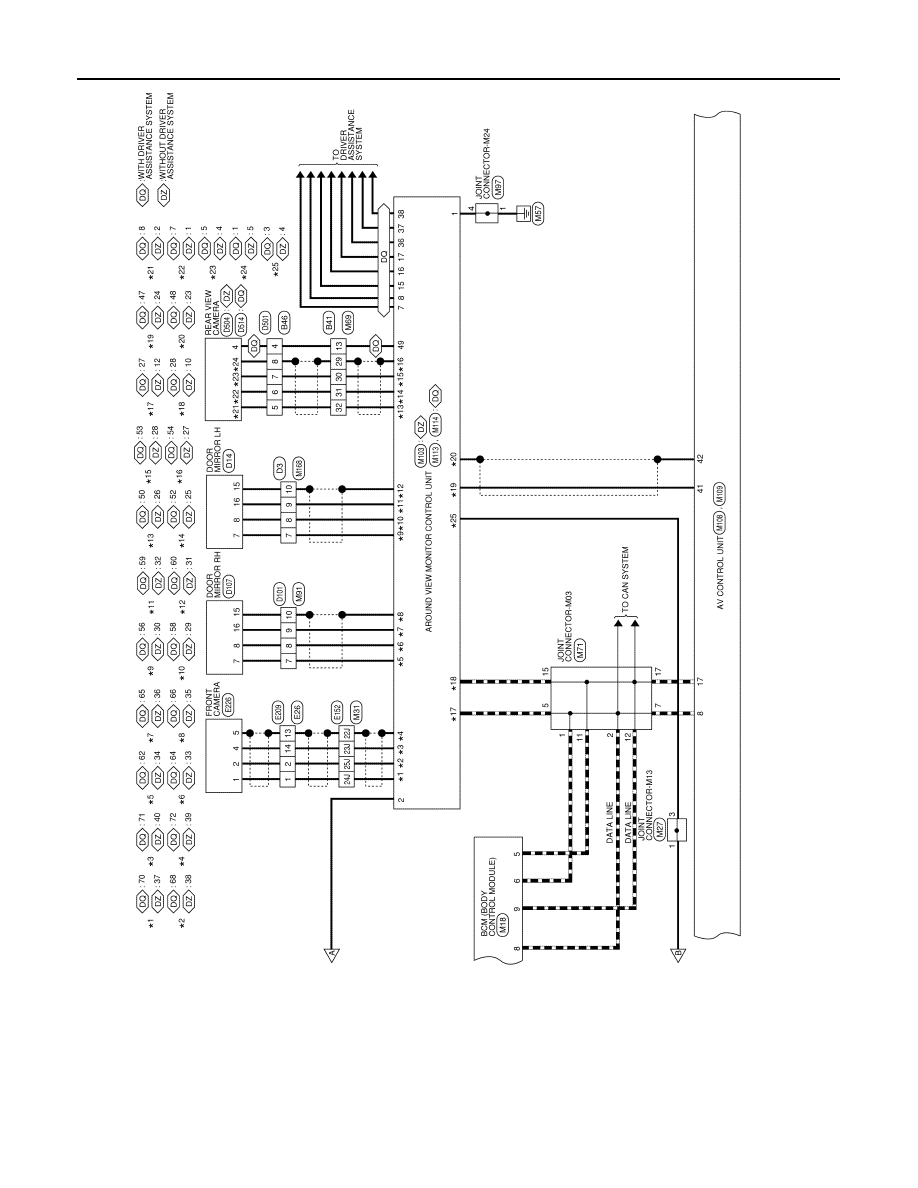

AV-254

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

NAVIGATION WITH BOSE

AANWA1007GB

AV

NAVIGATION WITH BOSE

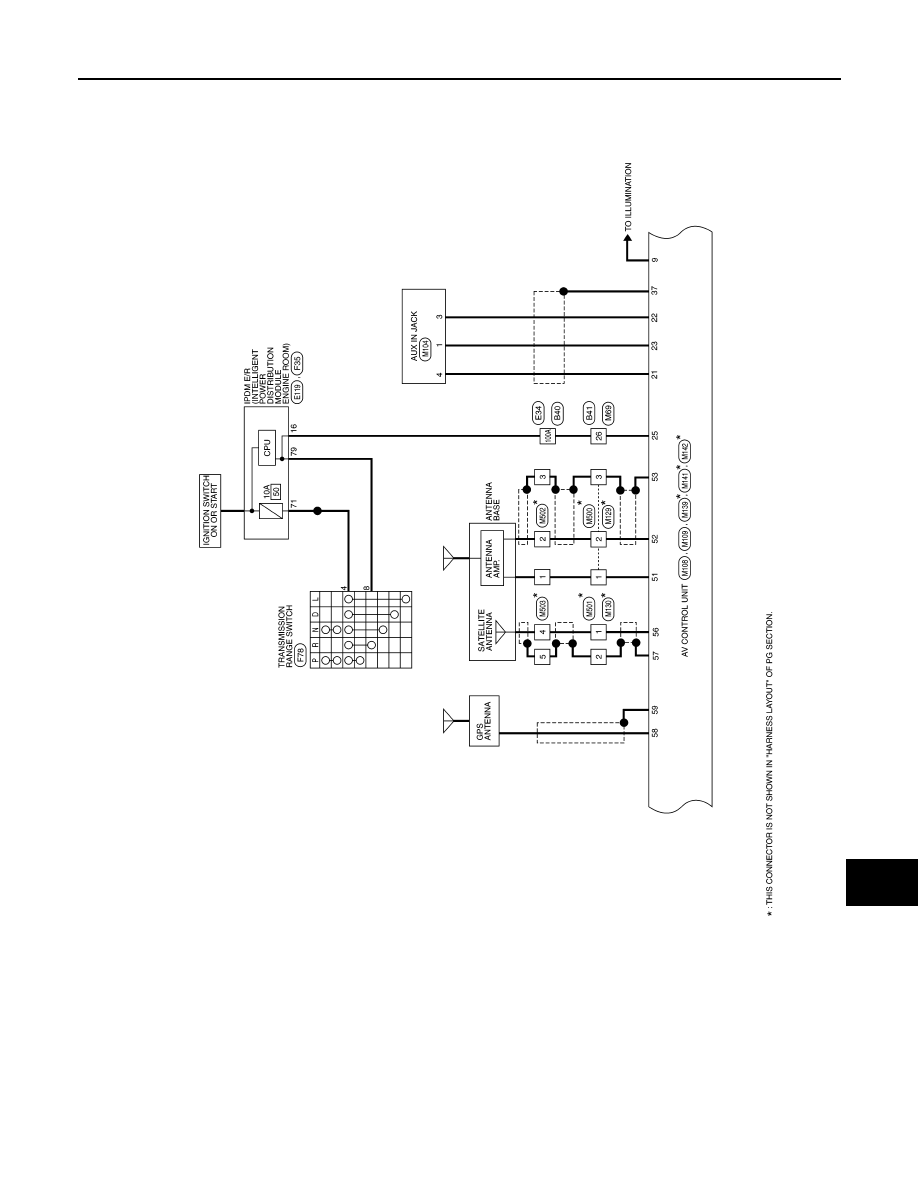

AV-255

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANWA1214GB
