Nissan Rogue. Manual - part 66





AV-256

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

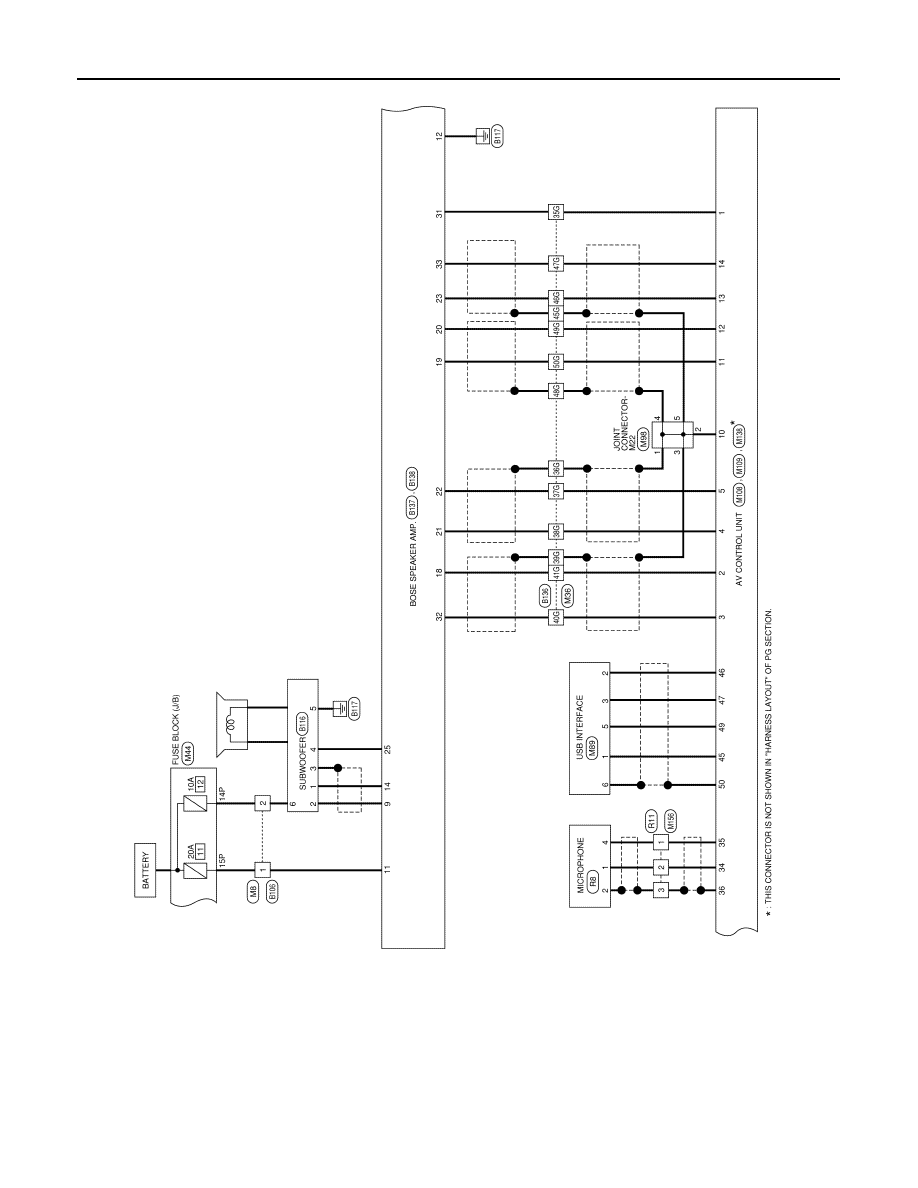

NAVIGATION WITH BOSE

AANWA1009GB

AV

NAVIGATION WITH BOSE

AV-257

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANWA1010GB

AV-258

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

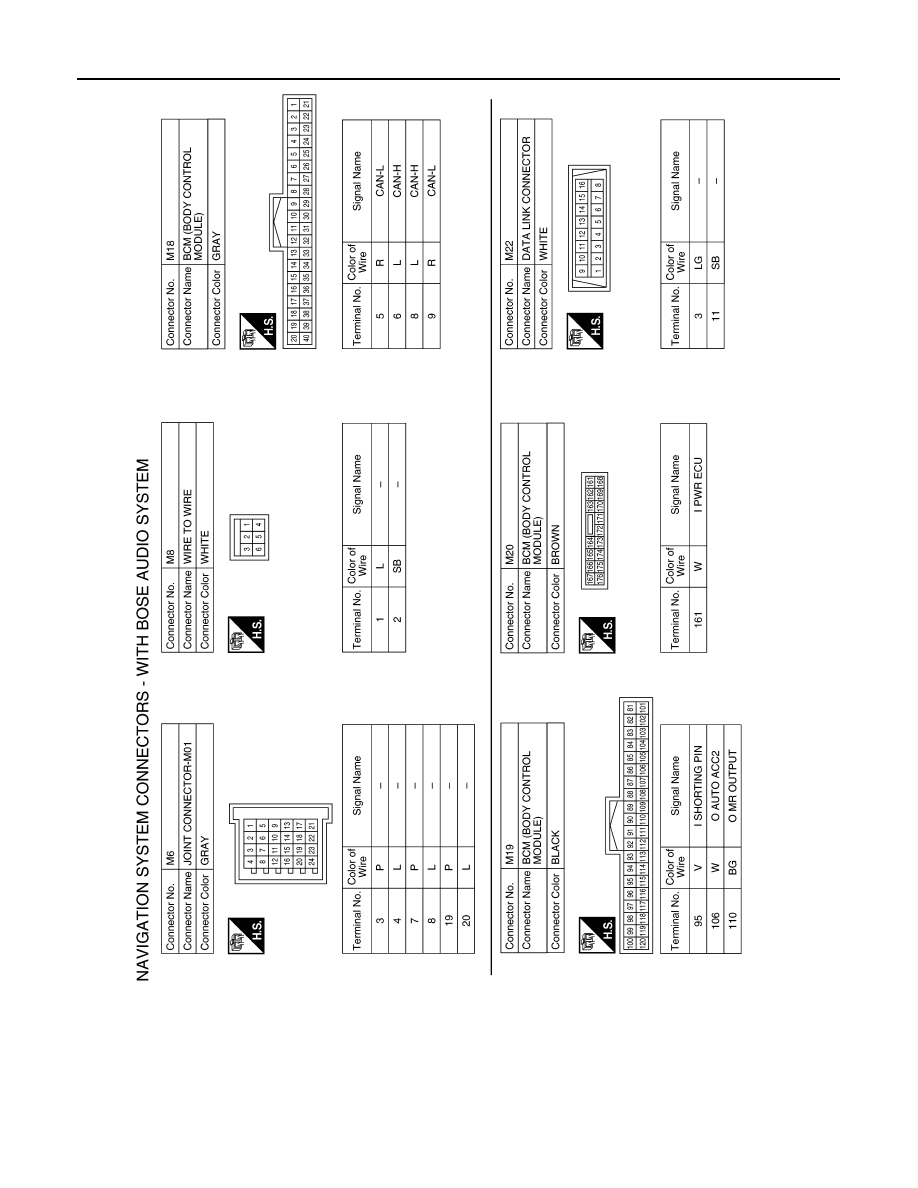

NAVIGATION WITH BOSE

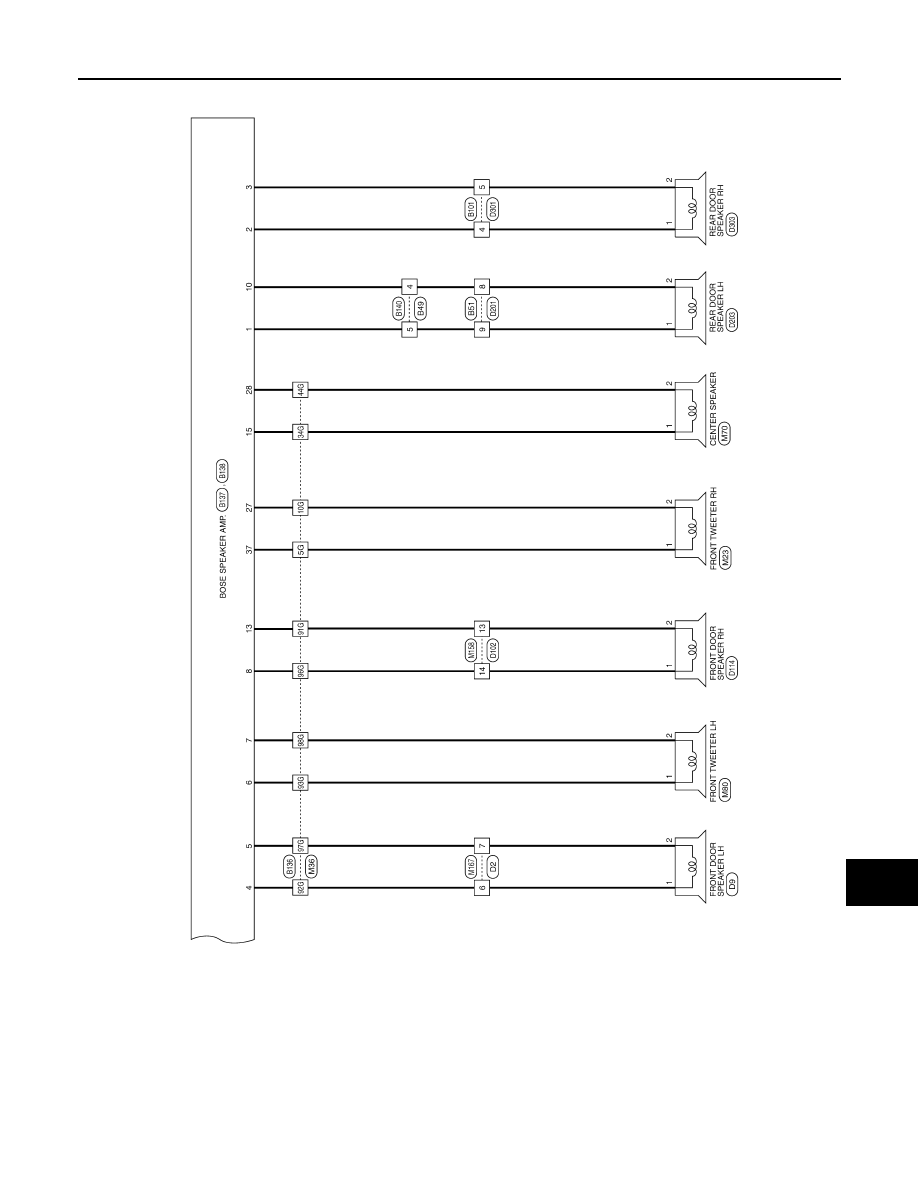

AANIA3286GB

AV

NAVIGATION WITH BOSE

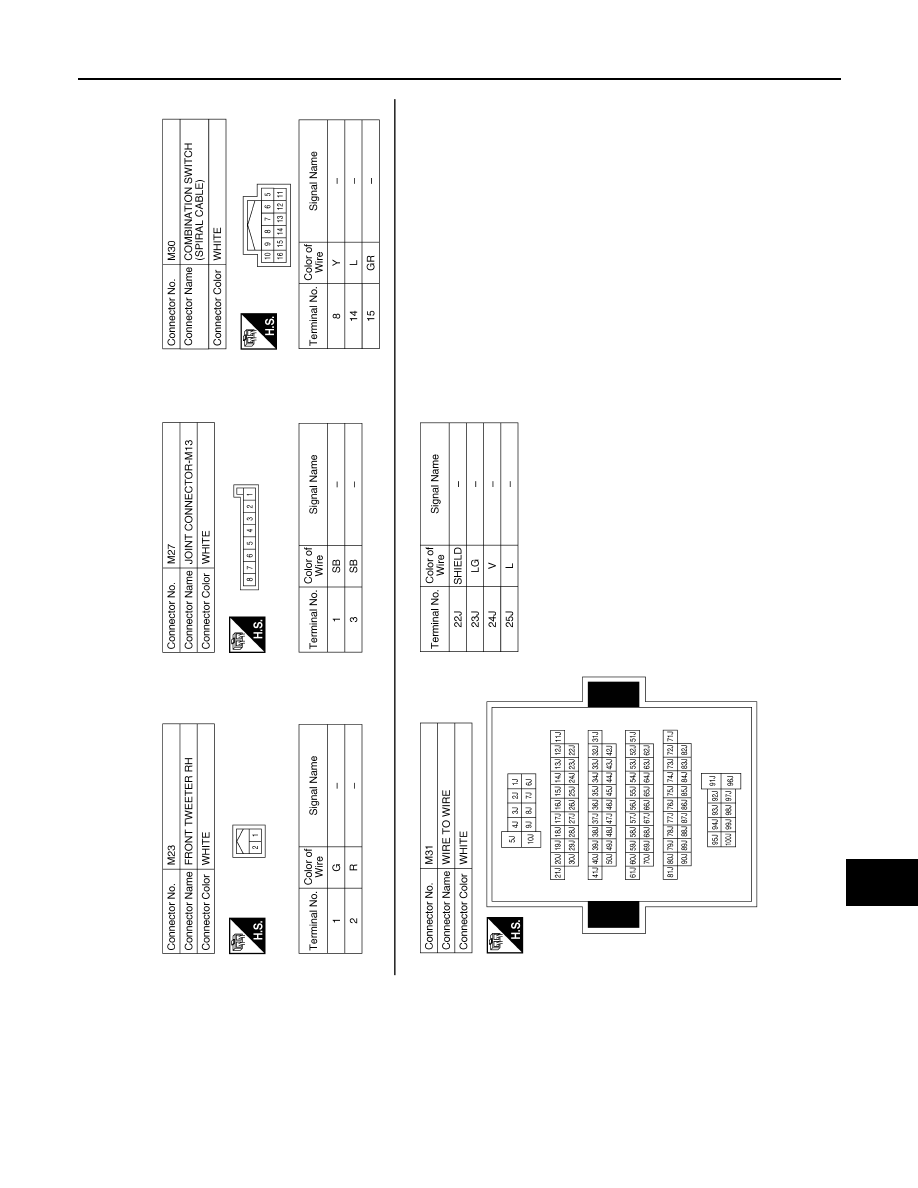

AV-259

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA2440GB
