AV-224

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

COMPONENT PARTS

GPS Antenna

INFOID:0000000011276922

• GPS antenna is installed in the instrument panel, behind the com-

bination meter.

• Power is supplied from the AV control unit.

SD Card

INFOID:0000000011276923

• Map data is memorized in the SD card.

• Map data is sent to the AV control unit from the SD slot.

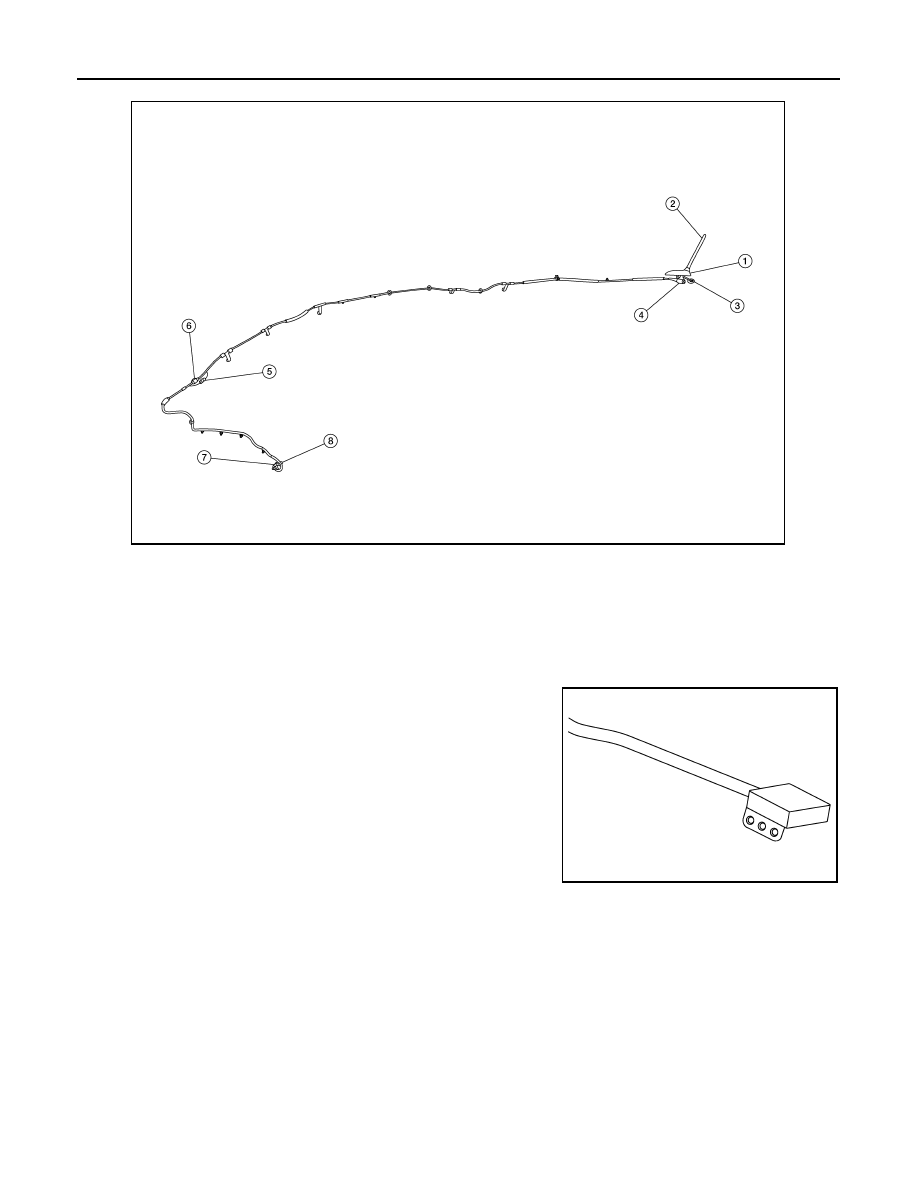

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M503

4.

M502

5.

M130, M501

6.

M129, M500

7.

M142

8.

M139

ALNIA1595ZZ

JSNIA3303ZZ

AV

SYSTEM

AV-225

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

System Description

INFOID:0000000011276924

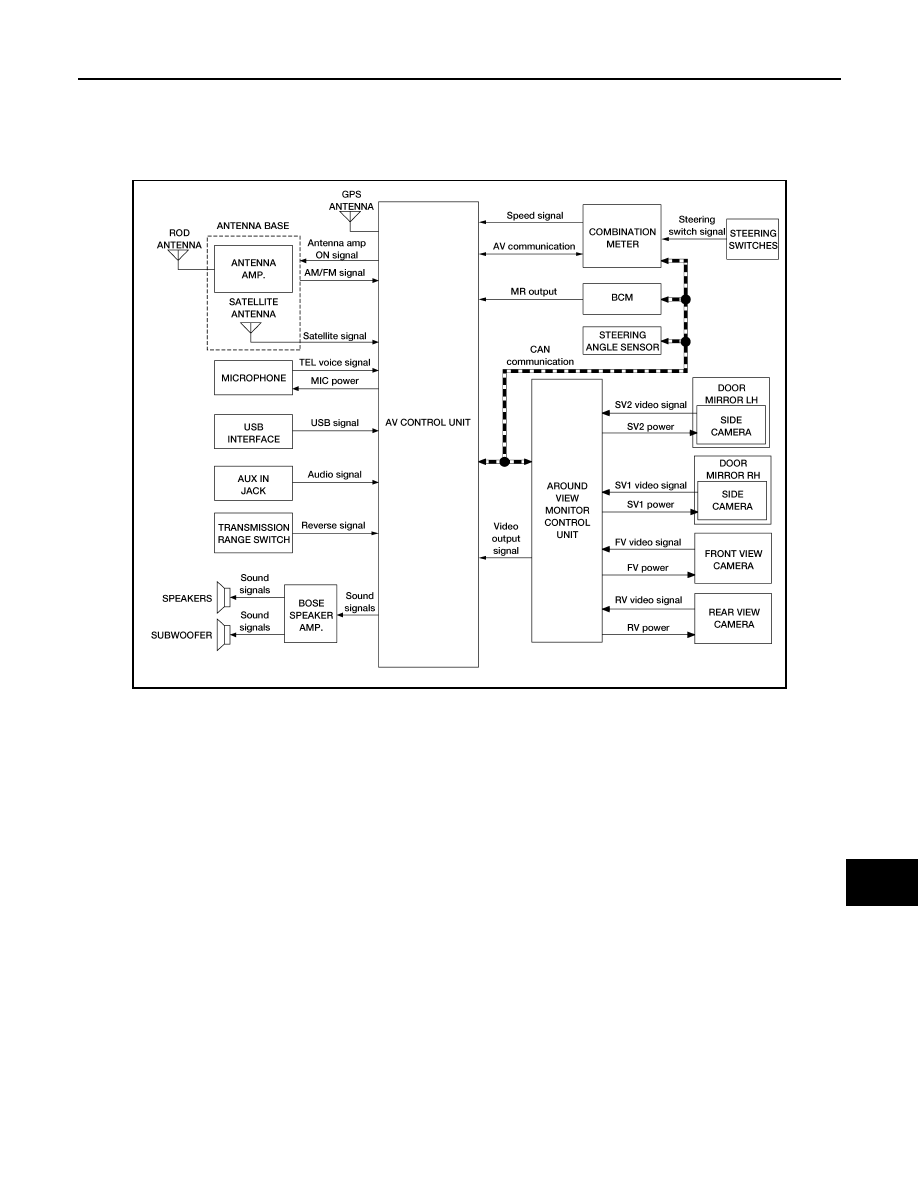

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following component:

• AV control unit

• Bose speaker amp.

• Front tweeters

• Center speaker

• Front door speakers

• Rear door speakers

• Subwoofer

• USB  interface

• AUX in jack

• Antenna base (rod antenna, antenna amp. and satellite antenna)

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the AV control unit. The AV control unit sends the audio signals to the Bose speaker amp. The

Bose speaker amp. then sends the audio signals to the tweeters, speakers and subwoofer.

Refer to Owner's Manual for audio system operating instructions.

NAVIGATION SYSTEM

Description

• The navigation system can be operated by control panel of the AV control unit and display (touch panel) of

the AV control unit.

• Guide sound during the operation of the navigation system is output from AV control unit to front tweeters.

• AV control unit calculates the vehicle location based on the signals from GYRO (angle speed sensor), vehi-

cle sensor, and GPS satellite, as well as the map data from map SD-card. The vehicle location is displayed

on the AV control unit.

AWNIA3351GB

AV-226

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

SYSTEM

POSITION DETECTION PRINCIPLE

The navigation system periodically calculates the vehicle's current position according to the following three

signals:

• Travel distance of the vehicle as determined by the vehicle speed sensor

• Turning angle of the vehicle as determined by the gyroscope (angular velocity sensor)

• Direction of vehicle travel as determined by the GPS antenna (GPS information)

The current position of the vehicle is then identified by comparing the calculated vehicle position with map data

read from the map SD-card (map-matching), and indicated on the screen as a vehicle mark. More accurate

data is judged and used by comparing vehicle position detection results found by the GPS with the result by

map-matching.

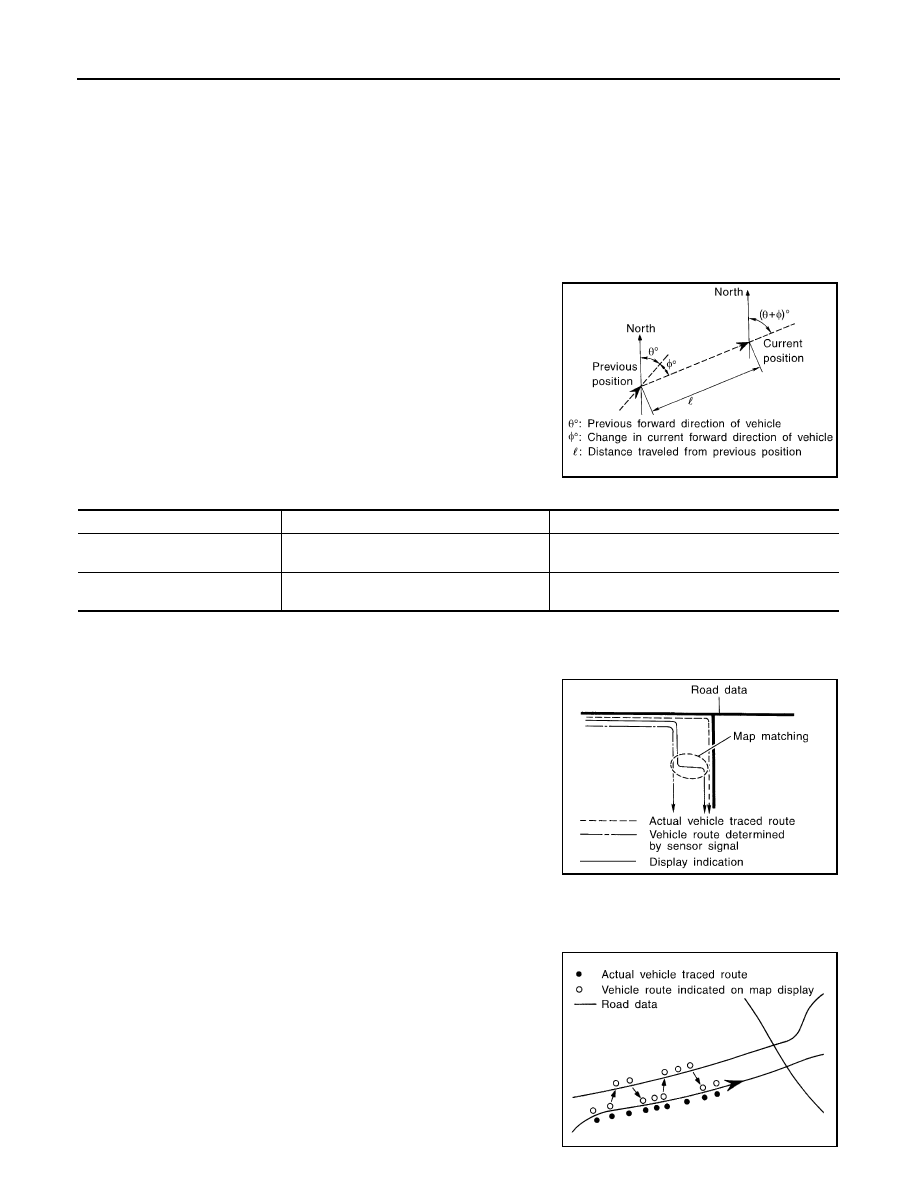

The current vehicle position will be calculated by detecting the dis-

tance the vehicle moved from the previous calculation point and its

direction.

• Travel distance

Travel distance calculations are based on the vehicle speed sen-

sor input signal. Therefore, the calculation may become incorrect

as the tires wear down. To prevent this, an automatic distance cor-

rection function has been adopted.

• Travel direction

Change in the travel direction of the vehicle is calculated by a gyro-

scope (angular velocity sensor) and a GPS antenna (GPS informa-

tion). They have both advantages and disadvantages.

More accurate traveling direction is detected because priorities are set for the signals from these two

devices according to the situation.

MAP-MATCHING

Map-matching compares a current location detected by the method

in the “Location Detection Principle” with a road map data from map

SD-card.

NOTE:

The road map data is based on data stored in the map SD-card.

The vehicle position may not be corrected under the following circumstances and after driving for a certain

time when GPS information is difficult to receive. In this case, the vehicle mark on the display must be cor-

rected manually:

• In map-matching, alternative routes to reach the destination will be

shown and prioritized, after the road on which the vehicle is cur-

rently driven has been judged and the vehicle mark has been repo-

sitioned.

Alternative routes will be shown in different order of priority, and

the incorrect road can be avoided if there is an error in distance

and/or direction.

Routes are of the same priority if two roads are running in parallel.

Therefore, the vehicle mark may appear on either of them alter-

nately, depending on maneuvering of the steering wheel and con-

figuration of the road.

SEL684V

Type

Advantage

Disadvantage

Gyroscope
(angular velocity sensor)

Can detect the vehicle's turning angle quite
accurately.

Direction errors may accumulate when vehicle is
driven for long distances without stopping.

GPS antenna
(GPS information)

Can detect the vehicle's travel direction
(North/South/East/West).

Correct direction cannot be detected when vehicle
speed is low.

SEL685V

SEL686V

AV

SYSTEM

AV-227

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

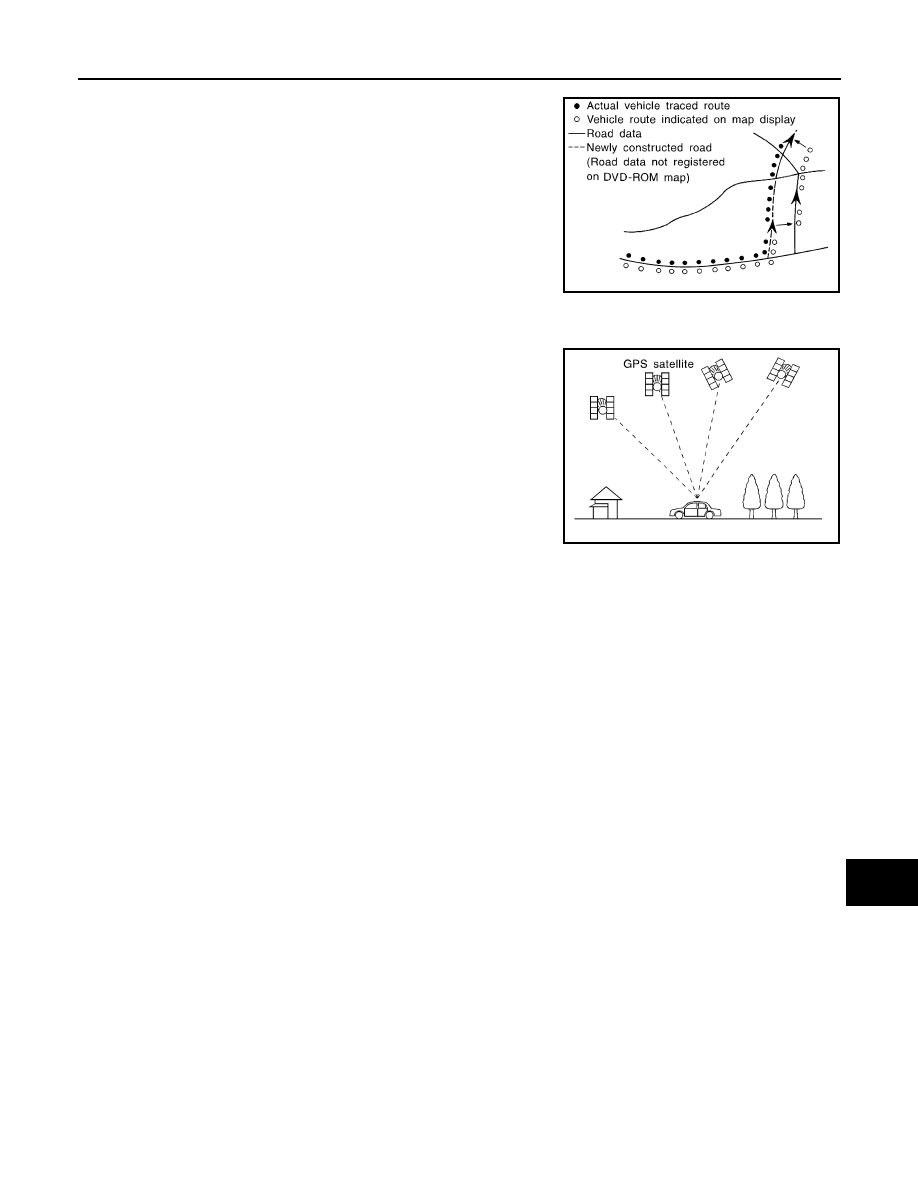

• Map-matching does not function correctly when a road on which

the vehicle is driving is new and not recorded in the map SD-card,

or when road pattern stored in the map data and the actual road

pattern are different due to repair.

The map-matching function may find another road and position the

vehicle mark on it when driving on a road not present in the map.

Then, the vehicle mark may change to it when the correct road is

detected.

• Effective range for comparing the vehicle position and travel direc-

tion calculated by the distance and direction with the road data

read from the map SD-card is limited. Therefore, correction by

map-matching is not possible when there is an excessive gap

between current vehicle position and the position on the map.

GPS (Global Positioning System)

GPS (Global Positioning System) is developed for and is controlled

by the US Department of Defense. The system utilizes GPS satel-

lites (NAVSTAR), transmitting out radio waves while flying on an orbit

around the earth at an altitude of approximately 21,000 km (13,049

mile).

The receiver calculates the travel position in three dimensions (lati-

tude/longitude/altitude) according to the time lag of the radio waves

that four or more GPS satellites transmit (three-dimensional position-

ing). The GPS receiver calculates the travel position in two dimen-

sions (latitude/longitude) with the previous altitude data if the GPS

receiver receives only three radio waves (two-dimensional position-

ing). GPS position correction is not performed while stopping the

vehicle.

Accuracy of the GPS will deteriorate under the following conditions:

• In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position changes.

• The position of GPS satellite affects GPS detection precision. The position detection may not be precisely

performed.

• The position detection is not performed if GPS receiver does not receive radio waves from GPS satellites.

(Inside a tunnel, parking in a building, under an elevated highway etc.) GPS receiver may not receive radio

waves from GPS satellites if any object is placed on the GPS antenna.

NOTE:

• The detection result has an error of approximately 10 m (32.81 ft) even with a high-precision three dimen-

sional positioning.

• There may be cases when the accuracy is lowered and radio waves are stopped intentionally because the

GPS satellite signal is controlled by the US trace control center.

USB INTERFACE

• iPod

®

 or music files in USB memory can be played.

• Sound signals are transmitted from USB interface to the AV control unit and output to each speaker.
• iPod

®

 is recharged when connected to USB interface.

AUX IN JACK

• Sound can be output from an external device by connecting a device to the AUX in jack.

• AUX sound signals are transmitted to each speaker via AV control unit.

SPEED SENSITIVE VOLUME SYSTEM

• Volume level of this system goes up and down automatically in proportion to the vehicle speed.

• The control level can be selected by the customer.

HANDS-FREE PHONE SYSTEM

• Bluetooth

®

 control is built into AV control unit.

• The connection between cellular phone and AV control unit is performed with Bluetooth

®

 communication.

• The voice guidance signal is input from the AV control unit and output to the front speakers when operating

the cellular phone.

SKIA0613E

SEL526V
