AV-220

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

COMPONENT PARTS

Speakers

INFOID:0000000011276912

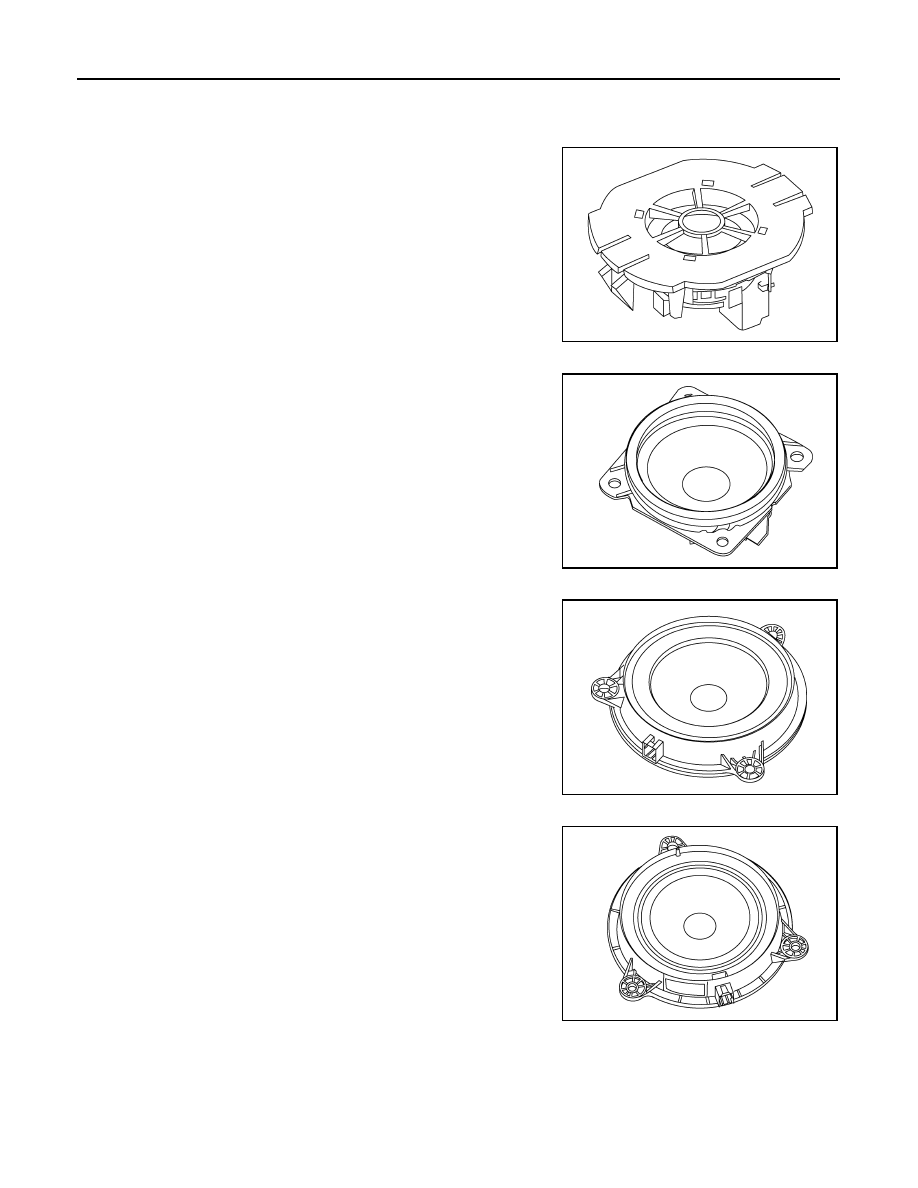

FRONT TWEETER

• 2.5 cm (1 in) tweeters are installed in the top front corners of the

instrument panel.

• Sound signals are input from the Bose speaker amp. to output high

range sounds.

CENTER SPEAKER

• 7.6 cm (3 in) speaker is installed in the top center of the instrument

panel.

• Sound signals are input from the Bose speaker amp. to output mid

range sounds.

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front

doors.

• Sound signals are input from the Bose speaker amp. to output

high, mid and low range sounds.

REAR DOOR SPEAKER

• 12.7 cm (5 in) speakers are installed in the bottom of the rear

doors.

• Sound signals are input from the Bose speaker amp. to output

high, mid and low range sounds.

SUBWOOFER

ALNIA1586ZZ

ALNIA1588ZZ

ALNIA1587ZZ

ALNIA1589ZZ

AV

COMPONENT PARTS

AV-221

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

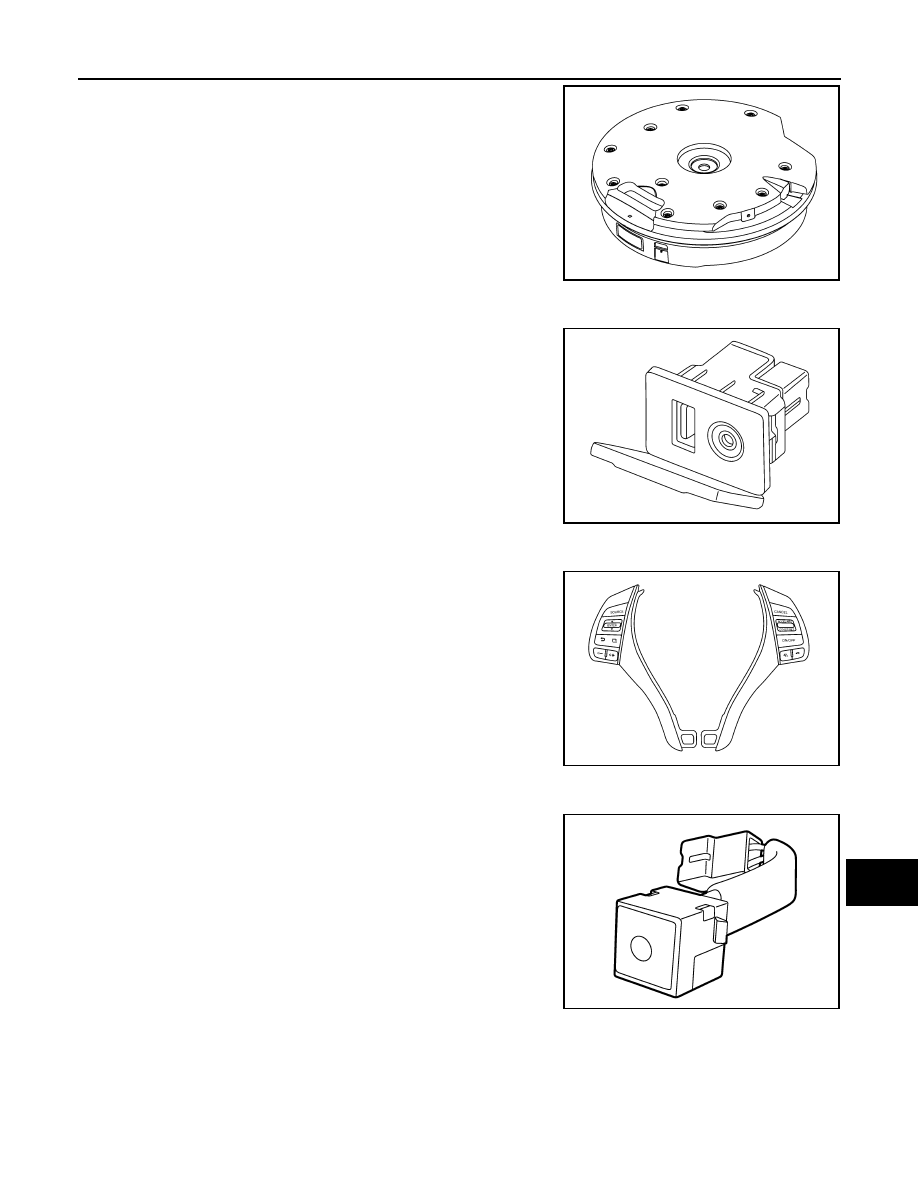

• Installed on top of the spare tire underneath the spare tire cover.

• Sound signals are input from the Bose speaker amp. to output low

range sounds.

USB Interface and AUX In Jack

INFOID:0000000011276913

• USB Interface and AUX in jack is installed in the console.
• iPod

®

 and USB memory can be connected to the AV control unit

through the USB interface.

• An external audio device can be connected to the AV control unit

through the AUX in jack.

Steering Switches

INFOID:0000000011276914

• Steering switches are installed in the steering wheel.

• Operations for audio and hands-free phone are possible.

• Switches are connected to the combination meter.

• Combination meter is connected to the AV control unit via AV com-

munication.

Microphone

INFOID:0000000011276915

• The microphone is installed in the map lamp assembly.

• Power is supplied from the AV control unit.

ALNIA1597ZZ

ALNIA1523ZZ

ALNIA1594ZZ

JPNIA1448ZZ

AV-222

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

COMPONENT PARTS

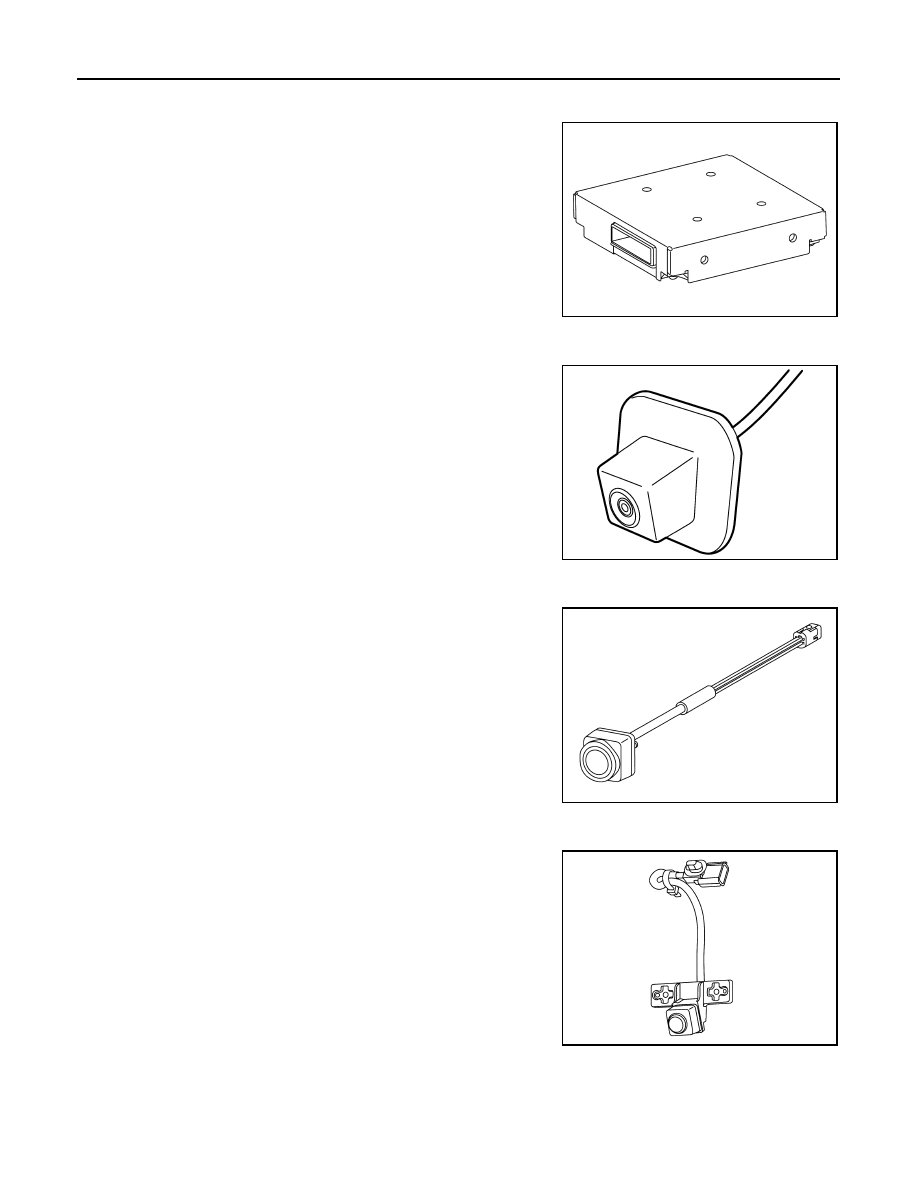

Around View Monitor Control Unit

INFOID:0000000011276916

• The around view monitor control unit is installed behind the glove

box.

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are displayed and

combined with camera images.

Rear View Camera

INFOID:0000000011276917

• The rear view camera is installed in the back door finisher.

• Power is supplied from the around view monitor control unit.

Side Cameras

INFOID:0000000011276918

• The side cameras are installed in the door mirrors.

• Power is supplied from the around view monitor control unit.

Front Camera

INFOID:0000000011276919

• The front camera is installed in the front grille.

• Power is supplied from the around view monitor control unit.

JSNIA5395ZZ

JPNIA1452ZZ

JSNIA5397ZZ

JSNIA5398ZZ

AV

COMPONENT PARTS

AV-223

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

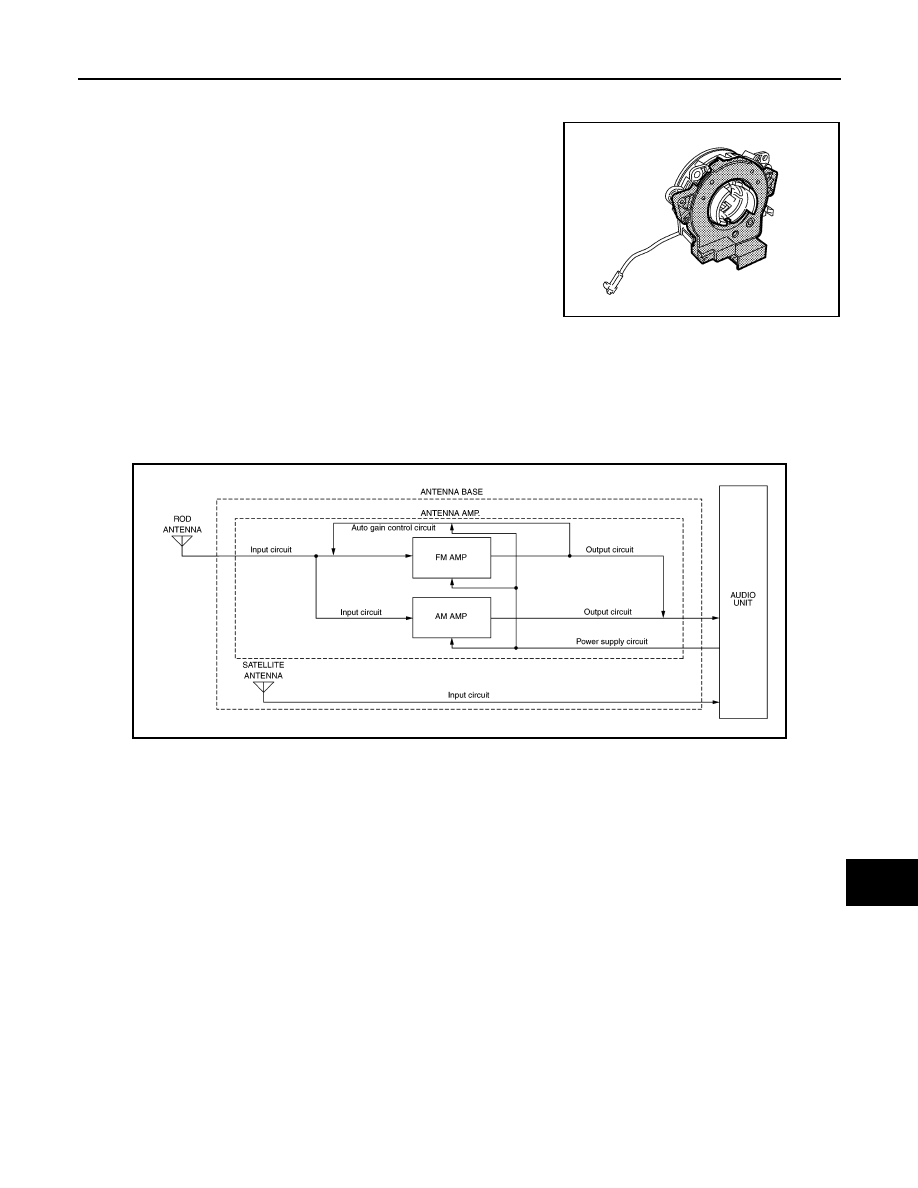

Steering Angle Sensor

INFOID:0000000011276920

• Steering sensor is installed to the spiral cable.

• Steering angle sends the steering signal necessary for predictive

course line via CAN communication.

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000011276921

RADIO ANTENNA AND SATELLITE ANTENNA

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna

amp. and satellite antenna are built into the antenna base.

ANTENNA FEEDER LAYOUT

JSNIA1571ZZ

AWNIA3133GB
