Nissan Rogue. Manual - part 20

AV-72

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

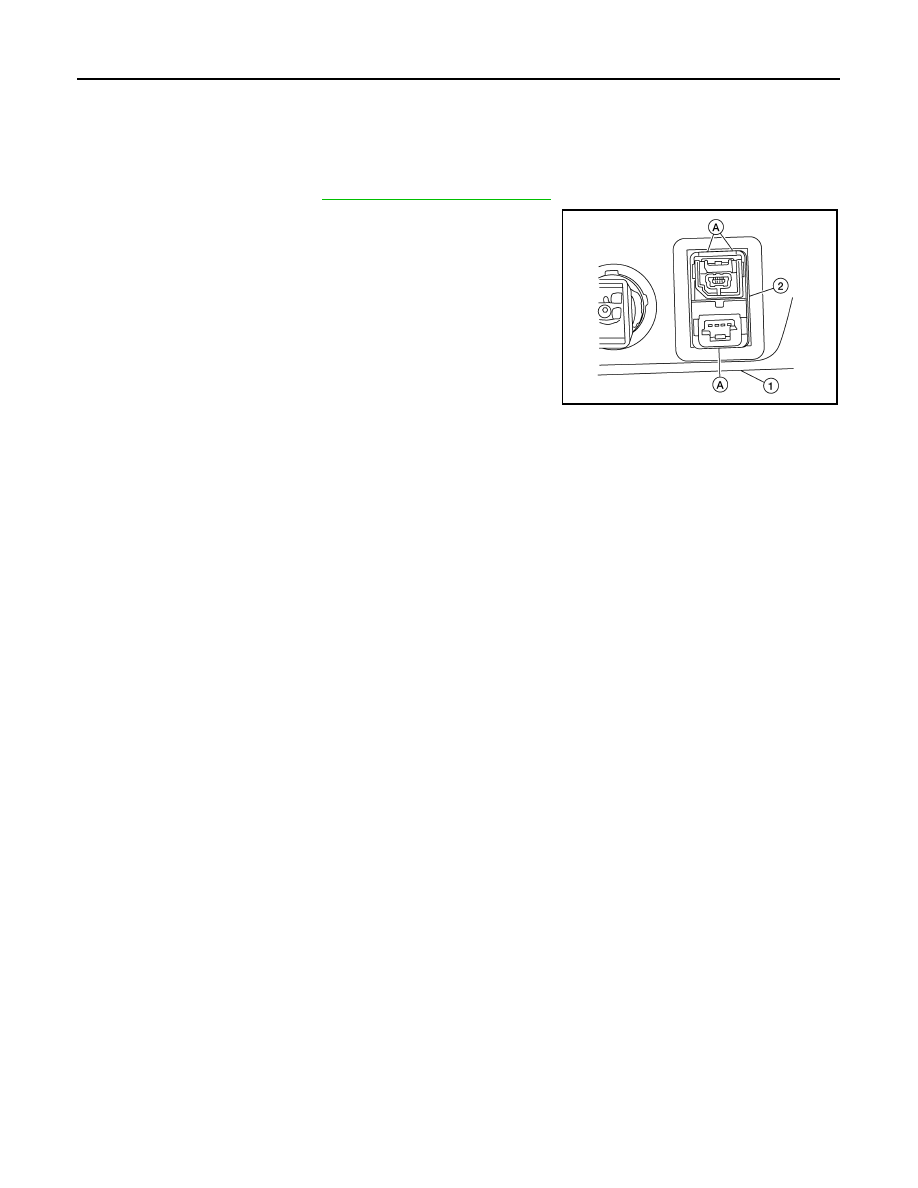

USB INTERFACE AND AUX IN JACK

USB INTERFACE AND AUX IN JACK

Removal and Installation

INFOID:0000000011276769

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Release the pawls (A) on the back of USB interface and AUX in

jack (2), then remove from the front of cluster lid C (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1582ZZ

AV

MICROPHONE

AV-73

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

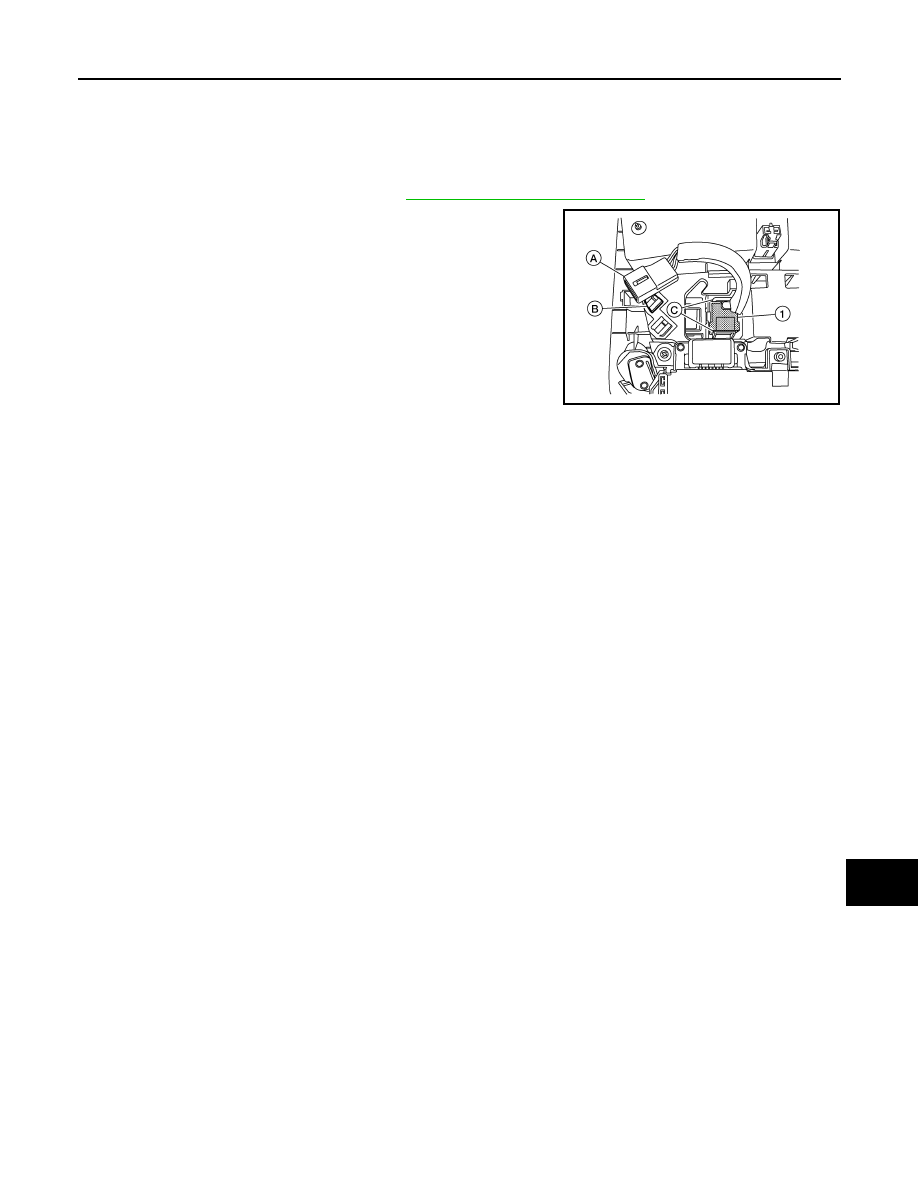

MICROPHONE

Removal and Installation

INFOID:0000000011276770

REMOVAL

1. Remove the map lamp assembly. Refer to

INL-55, "Removal and Installation"

.

2. Release harness connector (A) by sliding rearward to remove

from the pawl (B).

3. Release pawls (C) and remove the microphone (1) from the

front room/map lamp assembly.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1583ZZ

AV-74

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000011276771

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-51, "Removal and Installation"

.

2. Release pawl, disconnect harness connector from rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV

ANTENNA BASE

AV-75

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA BASE

Exploded View

INFOID:0000000011373313

Removal and Installation

INFOID:0000000011276772

REMOVAL

1. Remove the luggage side upper finisher (RH). Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

2. Partially lower headlining (rear). Refer to

INT-30, "Removal and Installation"

.

3. Disconnect harness connectors from antenna feeder.
4. Remove nut from antenna base and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the antenna base nut is not properly tightened, lower sensitivity of the antenna may be experienced.

If the nut is over tightened, this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000011373315

DISASSEMBLY

Insert a suitable tool into gaps between antenna base (2) and the

cover (1), then remove the cover (1) from antenna base (2).

ASSEMBLY

Assembly is in the reverse order of disassembly.

AWNIA3705ZZ

1. Antenna rod

2. Antenna base

A. Antenna nut

ALNIA1335ZZ
