AV-68

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

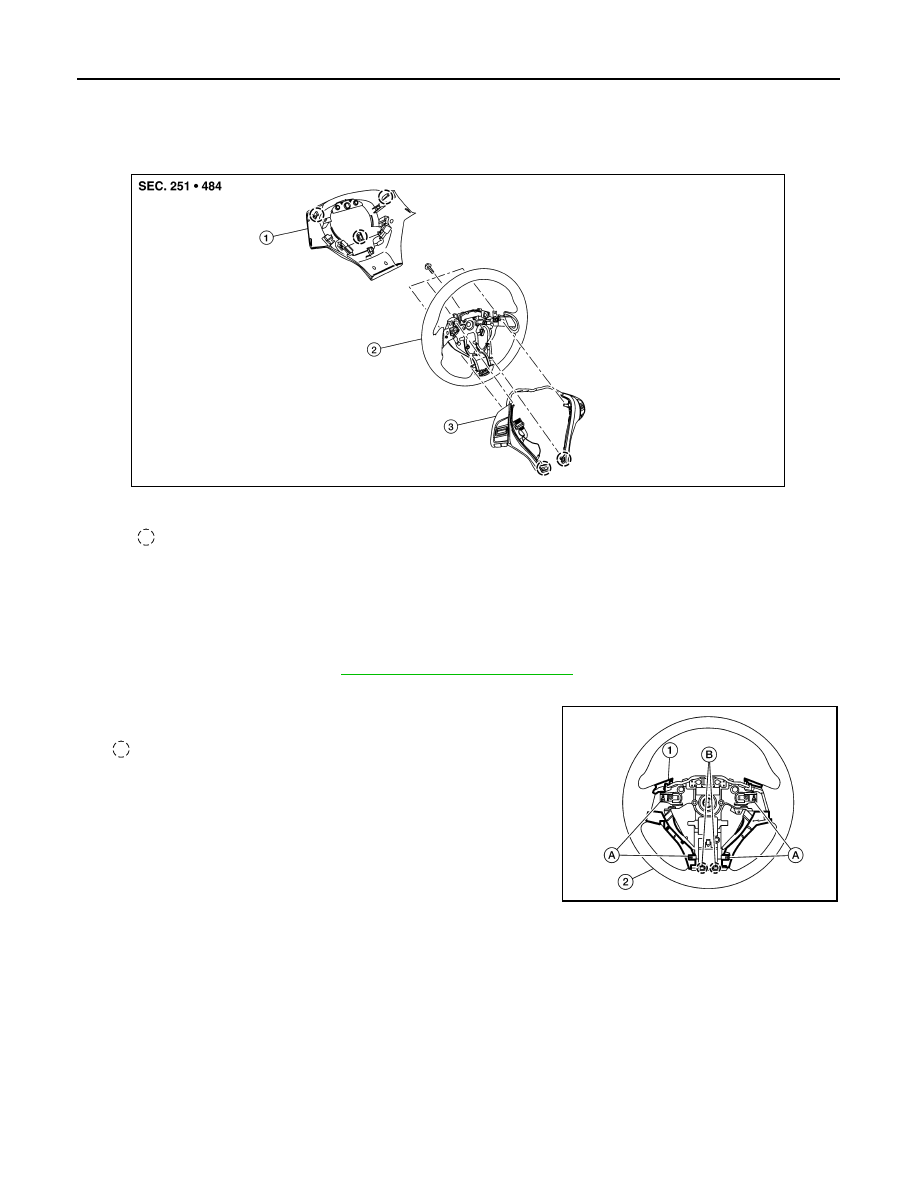

STEERING SWITCHES

STEERING SWITCHES

Exploded View

INFOID:0000000011276762

Removal and Installation

INFOID:0000000011276763

REMOVAL

NOTE:

The steering switches are serviced as an assembly.
1. Remove steering wheel. Refer to

ST-11, "Removal and Installation"

.

2. Release pawls on the steering wheel rear finisher and remove.
3. Remove screws (A) and release pawls (B) and remove steering

switches (1) from steering wheel (2).
 :

Pawls

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel rear finisher

2.

Steering wheel

3.

Steering switches

Pawl

AWNIA3722ZZ

AWNIA3723ZZ

AV

FRONT TWEETER

AV-69

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

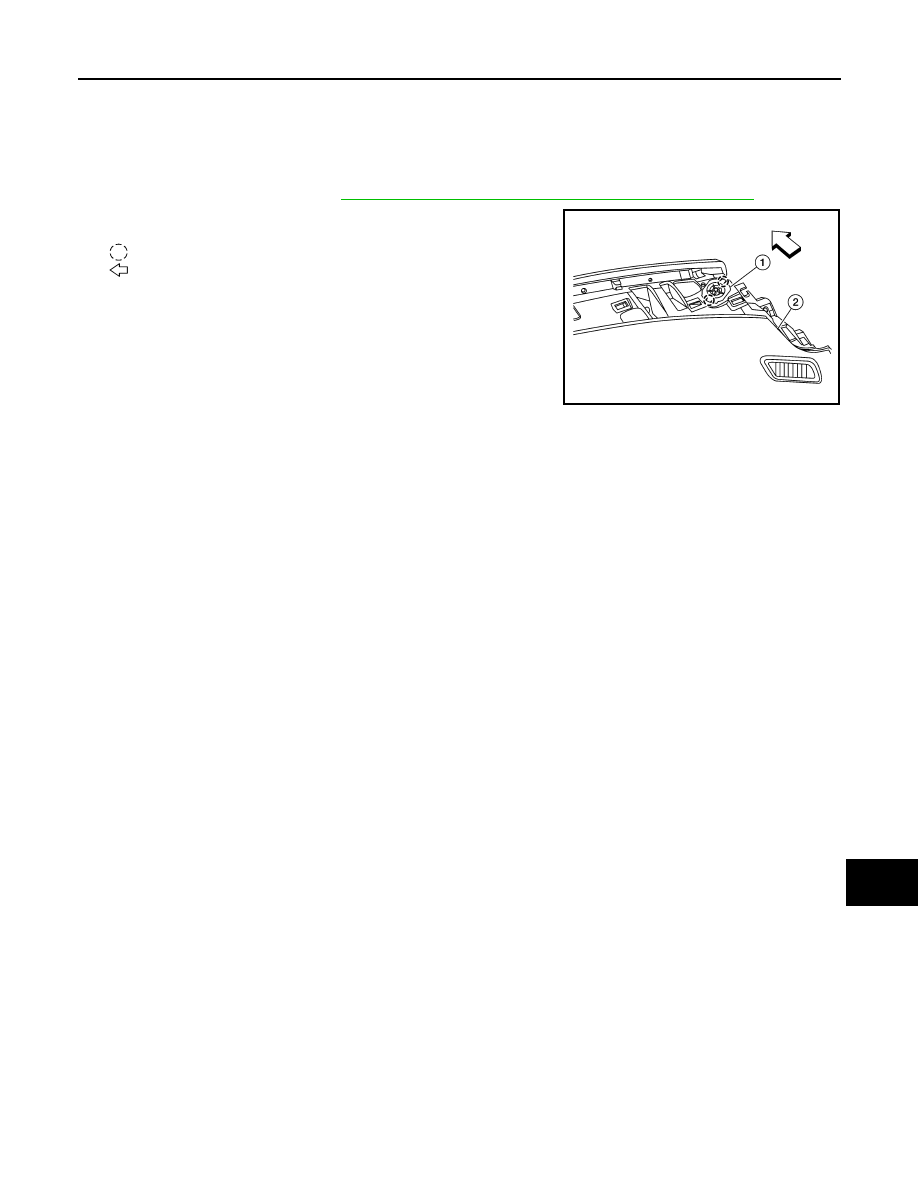

FRONT TWEETER

Removal and Installation

INFOID:0000000011276764

REMOVAL

1. Remove defroster grille. Refer to

VTL-12, "DEFROSTER GRILLE : Removal and Installation"

.

2. Release pawls and pull out the front tweeter (1) from the instru-

ment panel assembly (2).

 : Pawl

 : Front

3. Disconnect the harness connector from the front tweeter and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1663ZZ

AV-70

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

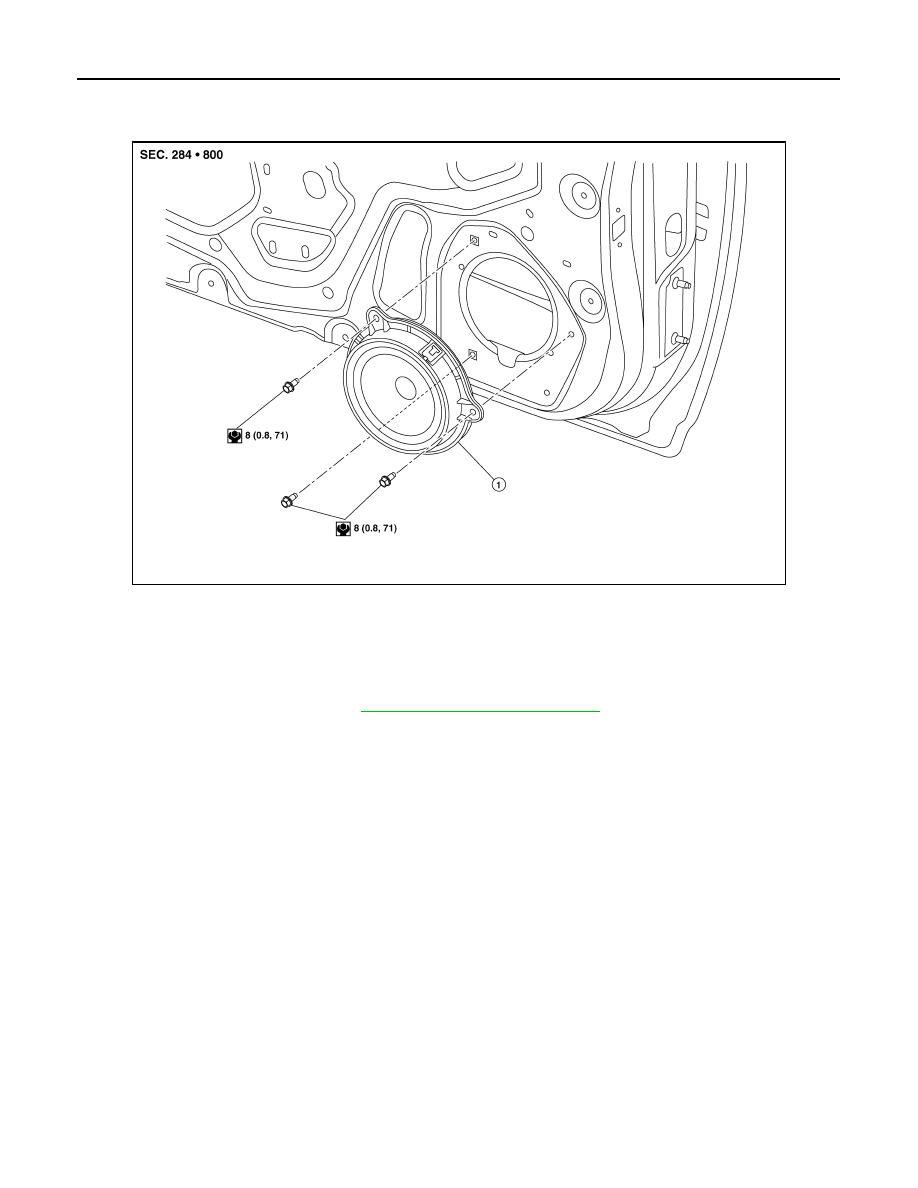

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000011276765

Removal and Installation

INFOID:0000000011276766

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove front door speaker bolts, then pull out front door speaker.
3. Disconnect the harness connector from front door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1580ZZ

1. Front door speaker

AV

REAR DOOR SPEAKER

AV-71

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

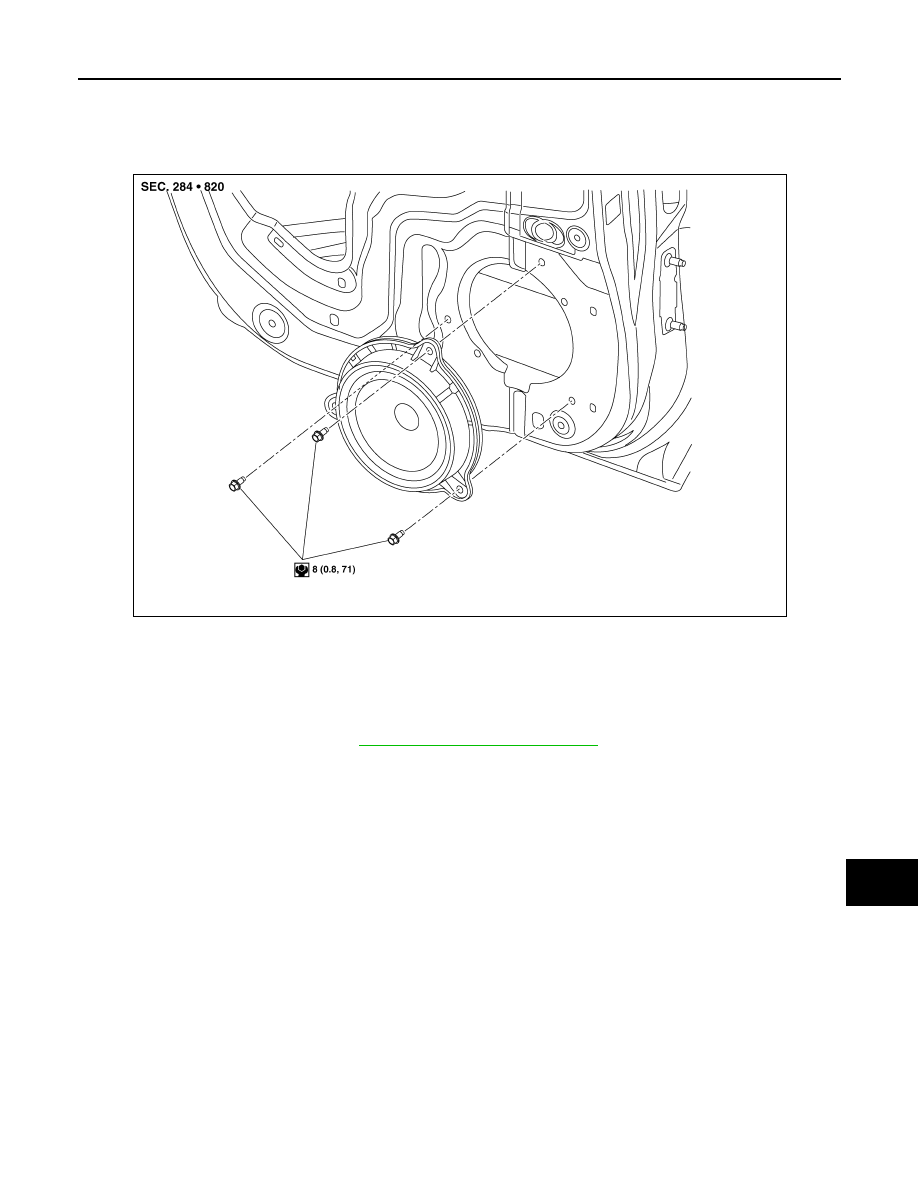

REAR DOOR SPEAKER

Exploded View

INFOID:0000000011276767

Removal and Installation

INFOID:0000000011276768

REMOVAL

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove rear door speaker bolts, then pull out rear door speaker.
3. Disconnect the harness connector from the rear door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

1. Rear door speaker

ALNIA1581ZZ
