13. Disconnect the harness connectors from the sunroof motor assembly and sunshade motor assembly.

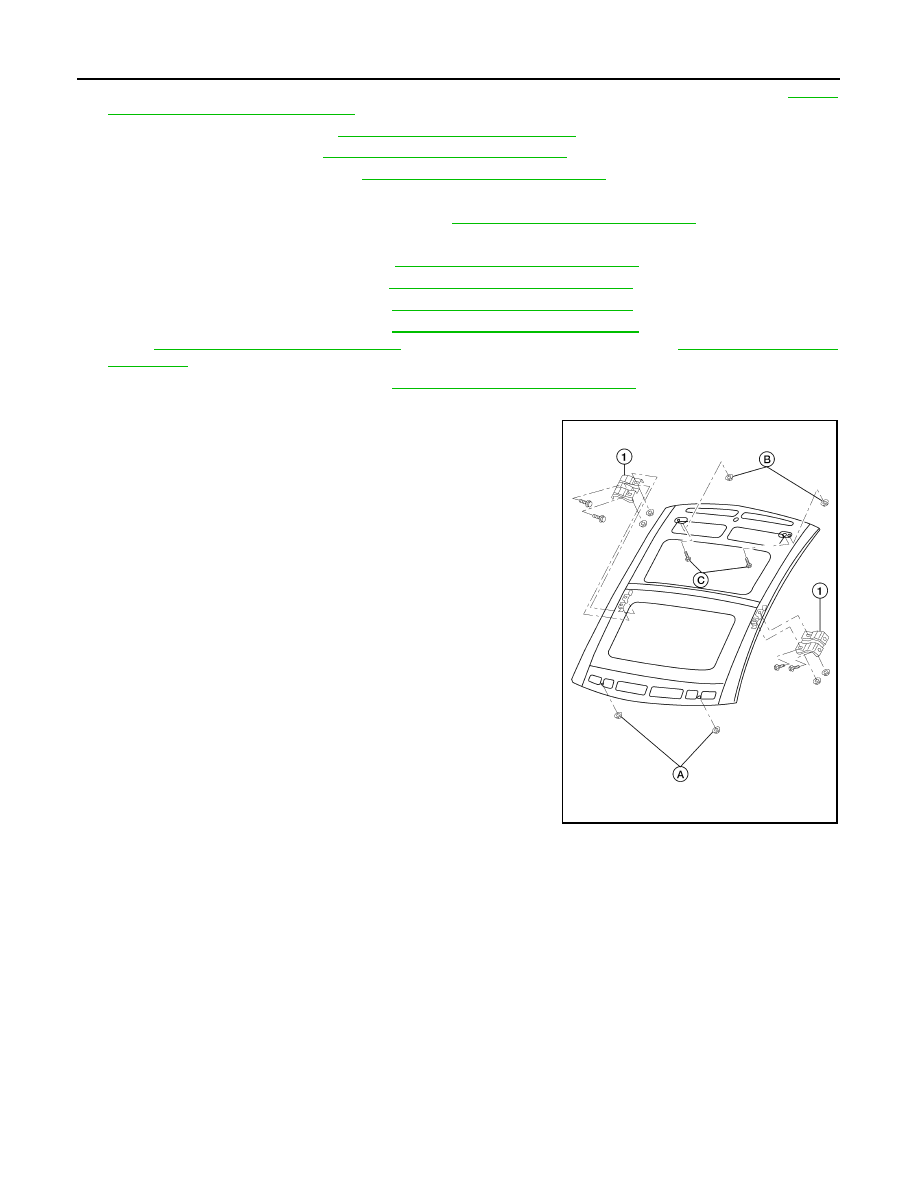

14. Remove the front nuts (A), the rear nuts (B), and the rear bolts

15. Cut adhesive.

• Pass piano wire though the adhesive with a wire pierce.

• Tie piano wire on both ends to assist in wire grip.

• Pull piano wire with sawing motion to cut through adhesive,

working around entire circumference.

16. Using a helper, carefully lift each side and remove sunroof frame

from vehicle.

INSTALLATION

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Do not let

them contact the skin or eyes.

• Use in an open, well ventilated location. Do not breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

CAUTION:

After installing the sunroof unit assembly and glass lid, perform the leak test and check that there is

no air or water intrusion.

NOTE:

• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions fur-

nished with it.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

AWKIA1550ZZ

SUNROOF UNIT ASSEMBLY

RF-159

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

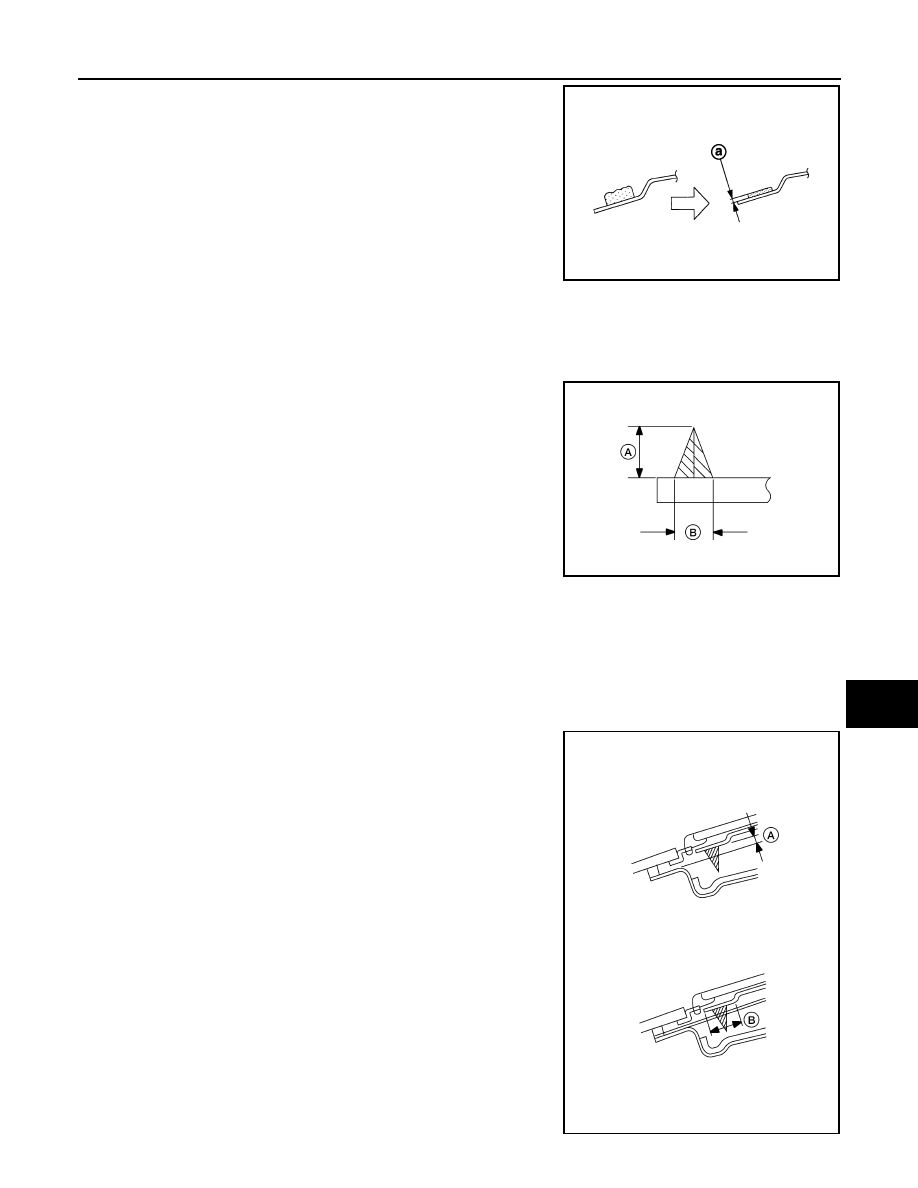

1. Using a knife or spatula, trim the adhesive (sealant) remaining

on body down to approximately 2 mm thick (a) so that the con-

tour becomes smooth.

CAUTION:

If bonded area on body is scratched, be sure to repair it

with a 2-component urethane. Do not use lacquer.

2. When installing new sunroof unit assembly frame, mount the roof frame dry (no adhesive) first onto the

vehicle and paint mating marks on body and sunroof frame, then remove sunroof frame again.

3. Thoroughly clean bonding area on sunroof frame and body with isopropyl alcohol or equivalent.
4. Apply primer to the body and the sunroof frame (lower) surfaces.
5. Apply adhesive along the entire circumference of the sunroof

unit assembly frame contact area of body within the time speci-

fied in the instructions for the adhesive.

• Open adhesive by cutting off the nozzle tip and set it in a seal-

ant gun.

• Form a continuous bead of adhesive resembling the measure-

ments in applied thickness (A), and in applied width (B) on the

body panel.

6. Using a helper, position the sunroof unit assembly frame over the body, visually aligning the paint mating

marks. Then, lower the studs at each corner through the body panel holes, carefully installing the sunroof

unit assembly to the body.

7. Press down lightly by hand only on the frame to expand the

adhesive contact completely so that it resembles a compressed

thickness (A), and a compressed width (B) between the sunroof

unit assembly frame and the body.

JMKIA0307ZZ

ALKIA1649ZZ

Adhesive applied thickness (A) : 13

± 1 mm (0.51 in ± 0.039 in)

Adhesive applied width (B)

: 8

± 1 mm (0.31 ± 0.039 in)

Adhesive com-
pressed thickness (A)

: 5 +2/-1 mm (0.20 +0.079/-0.039
in)

Adhesive com-
pressed width (B)

: Front edge 15 mm (0.59 in)
: Side edge 21 mm (0.83 in)
: Rear edge 15 mm (0.59 in)

ALKIA1650ZZ

RF-160

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

SUNROOF UNIT ASSEMBLY

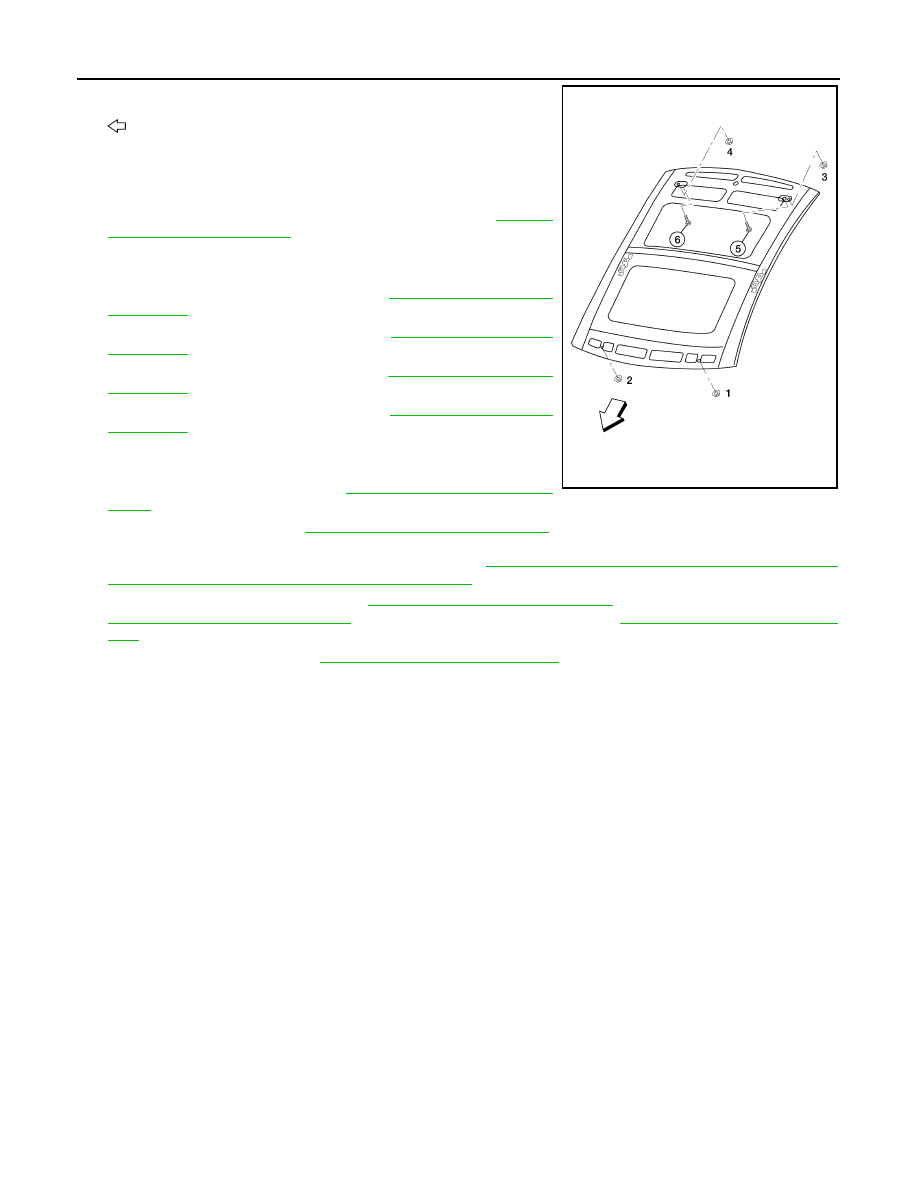

8. Install and tighten the sunroof unit assembly nuts and bolts in

the order shown within five minutes.

: Front

9. Install the sunshade carrier assembly. Refer to

RF-153,

"Removal and Installation"

10. Using a suitable tool, remove any adhesive overflow, or work

into pocket voids so as to make the surface edge smooth.

11. Install the rear sunroof glass. Refer to

RF-166, "Removal and

Installation"

12. Install the rear window glass. Refer to

GW-14, "Removal and

Installation"

13. Install the roof side finishers. Refer to

RF-162, "Removal and

Installation"

14. Install the front sunroof glass. Refer to

RF-164, "Removal and

Installation"

15. Connect the harness connectors to the sunroof motor assembly

and sunshade motor assembly.

16. Install the wind deflector. Refer to

RF-168, "Removal and Instal-

lation"

17. Install the glass lid. Refer to

RF-150, "Removal and Installation"

NOTE:

After installation, carry out fitting adjustment. Refer to

RF-76, "ADDITIONAL SERVICE WHEN REPLAC-

ING CONTROL UNIT : Special Repair Requirement"

18. Install the satellite antenna. Refer to

AV-174, "Removal and Installation"

(Bose W/Monochrome Display)

AV-494, "Removal and Installation"

(Bose W/Color Display W/O NAVI) or

AV-665, "Removal and Installa-

tion"

(Bose W/Color Display W/NAVI).

19. Install the headlining. Refer to

INT-33, "Removal and Installation"

20. Check for water leaks.

NOTE:

• Perform the water leakage check more than 2 hours after sunroof unit assembly installation.

• After glass lid fitting adjustment, carry out water leakage check by spreading water over entire roof sur-

face.

21. Remove the protective tape from the vehicle.

Sunroof unit assembly nuts
and bolts

: 17 N·m (1.7kg-m, 13 ft-lb)

AWKIA1551ZZ
