GLASS LID

RF-149

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

REMOVAL AND INSTALLATION

GLASS LID

Removal and Installation

INFOID:0000000009465744

REMOVAL

CAUTION:

• Always work with a helper.

• Handle glass lid with care to prevent damage.

NOTE:

For easier and more accurate installation, always mark each point before removal.
1. Open sunshade.
2. Tilt glass lid up, then slide rearward to expose all the glass lid bolts.

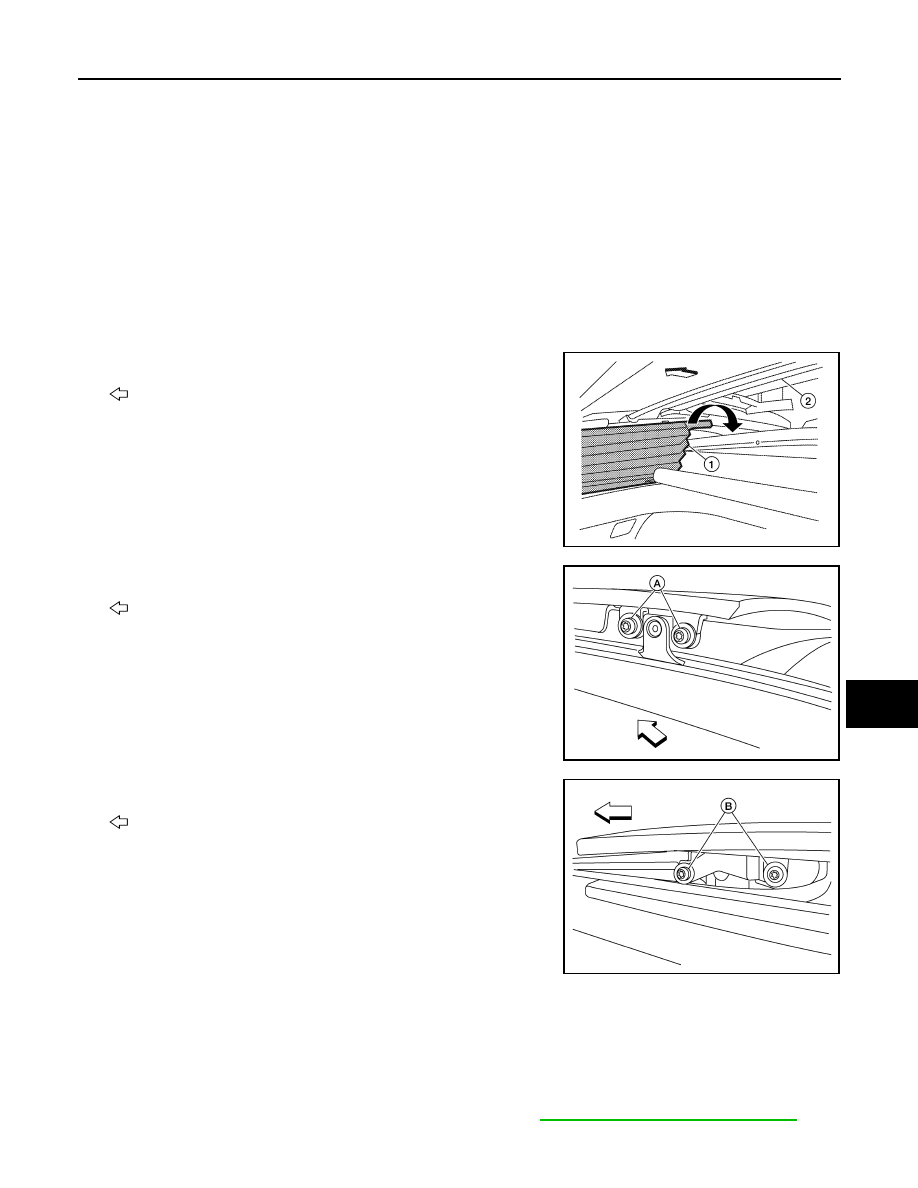

3. Release the slide clip, then remove inner blind (1) (LH/RH) from

the glass lid (2).

: Front

4. Remove the glass lid rear bolts (A), two on both the left and right

sides.

: Front

5. Remove the glass lid front bolts (B), two on both the left and

right sides.

: Front

6. Remove the glass lid from the vehicle.

INSTALLATION

CAUTION:

After installing the glass lid, perform the water leak test.

Installation is in the reverse order of removal.

NOTE:

• After installing, perform glass lid adjustment procedure. Refer to

RF-155, "Inspection and Adjustment"

.

ALKIA1654ZZ

ALKIA1652ZZ

ALKIA1653ZZ

RF-150

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

GLASS LID

• After adjustment, always check for proper sunroof operation. If necessary, perform initialization procedure to

synchronize entire system. Refer to

RF-76, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

: Special Repair Requirement"

.

SUNROOF MOTOR ASSEMBLY

RF-151

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF MOTOR ASSEMBLY

Removal and Installation

INFOID:0000000009465745

REMOVAL

CAUTION:

• Before removing sunroof motor, check that glass lid is fully closed.

• After removing sunroof motor, do not attempt to rotate sunroof motor assembly as a single unit.
1. Close glass lid.
2. Remove the headlining. Refer to

INT-33, "Removal and Installation"

.

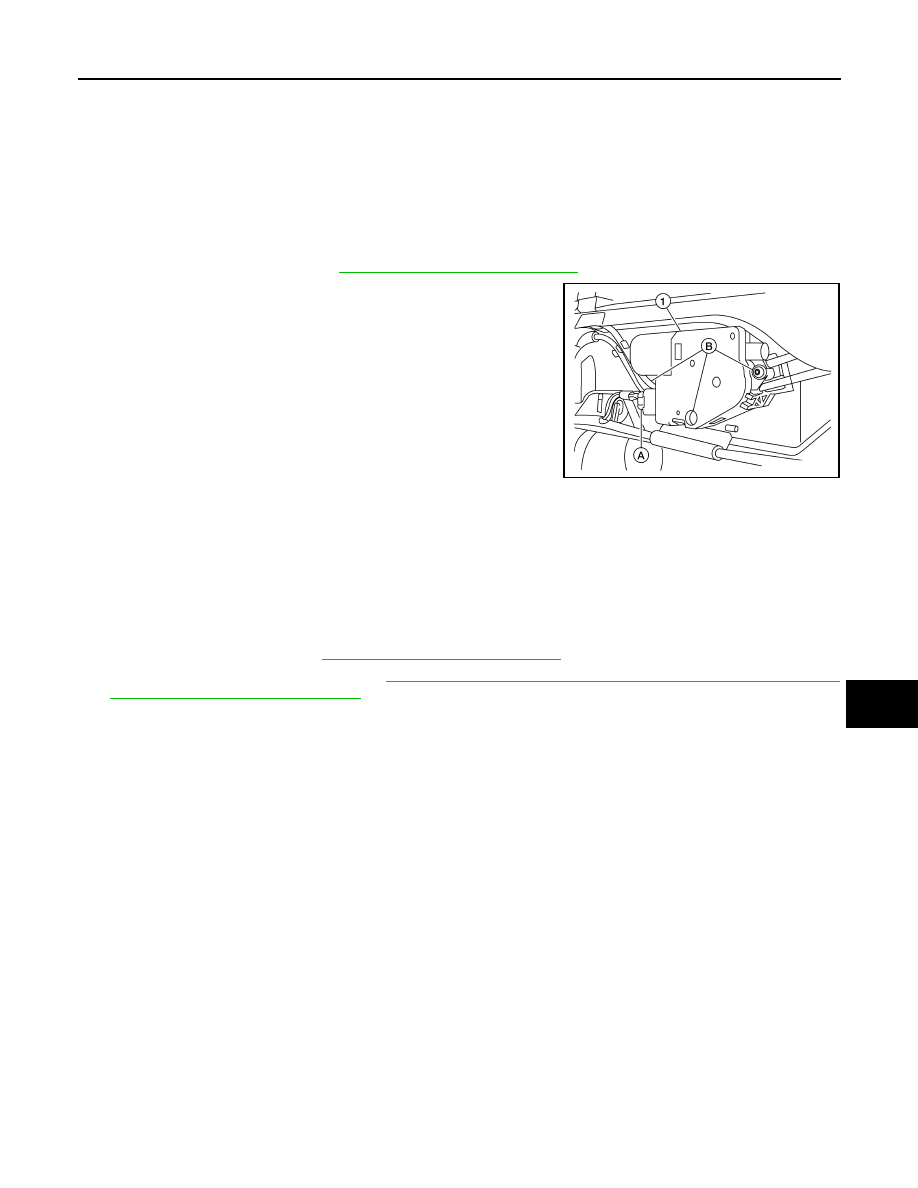

3. Disconnect the harness connector (A) from the sunroof motor

assembly.

4. Remove sunroof motor assembly screws (B), then remove sun-

roof motor assembly (1) from sunroof unit assembly frame.

INSTALLATION

CAUTION:

Before installing the sunroof motor assembly, be sure to the place the link and wire assembly in the

symmetrical and fully closed position.
1. Move the sunroof motor assembly laterally so that the gear is completely engaged into the wire on the

sunroof unit assembly frame, and mounting surface becomes parallel.

2. Install and tighten sunroof motor assembly screws.
3. Connect the harness connector to the sunroof motor assembly.
4. Install the headlining. Refer to

INT-33, "Removal and Installation"

.

5. Perform initilization procedure. Refer to

RF-76, "ADDITIONAL SERVICE WHEN REPLACING CONTROL

UNIT : Special Repair Requirement"

.

ALKIA1655ZZ

RF-152

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

Removal and Installation

INFOID:0000000009465746

REMOVAL

CAUTION:

• Before removing sunshade motor, check that glass lid is fully closed.

• After removing sunshade motor, do not attempt to rotate sunshade motor assembly as a single unit.
1. Close glass lid.
2. Remove the headlining. Refer to

INT-33, "Removal and Installation"

.

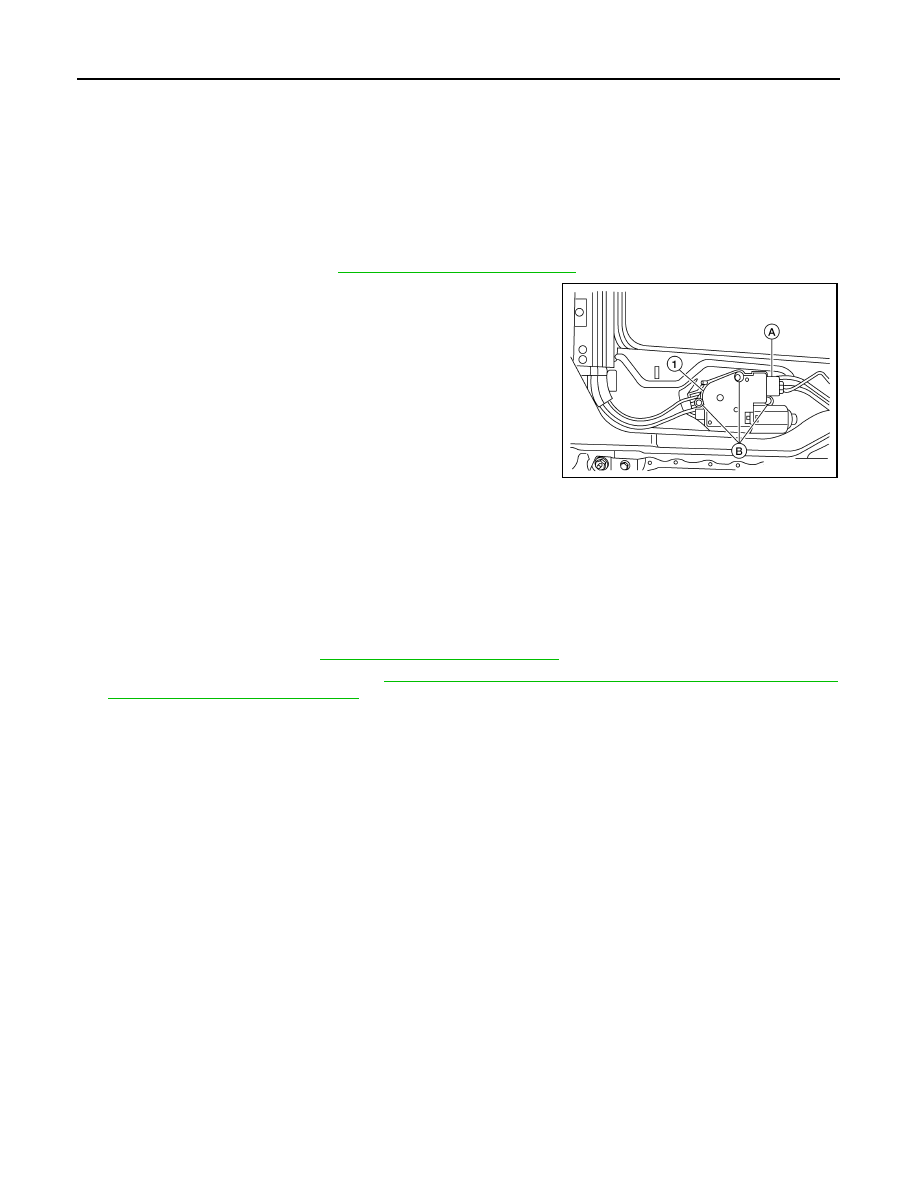

3. Disconnect the harness connector (A) from the sunshade motor

assembly.

4. Remove sunroof motor assembly screws (B), then remove sun-

roof motor assembly (1) from sunroof unit assembly frame.

INSTALLATION

CAUTION:

Before installing the sunshade motor assembly, be sure to the place the link and wire assembly in the

symmetrical and fully closed position.
1. Move the sunshade motor assembly laterally so that the gear is completely engaged into the wire on the

sunroof unit assembly frame, and mounting surface becomes parallel.

2. Install and tighten sunshade motor assembly screws.
3. Connect the harness connector to the sunshade motor assembly.
4. Install the headlining. Refer to

INT-33, "Removal and Installation"

.

5. Perform initilization procedure. Refer to

RF-76, "ADDITIONAL SERVICE WHEN REPLACING CONTROL

UNIT : Special Repair Requirement"

.

ALKIA1659ZZ
