ROOF LINK ASSEMBLY

Removal and Installation

INFOID:0000000009465747

Removal

1. Remove the sunshade. Refer to

RF-153, "Removal and Installation"

.

2. Remove the wind deflector. Refer to

RF-168, "Removal and Installation"

.

3. Remove the glass lid assembly. Refer to

RF-150, "Removal and Installation"

.

4. Remove the sunroof motor. Refer to

RF-152, "Removal and Installation"

.

5. Remove the sunshade motor. Refer to

RF-153, "Removal and Installation"

.

6. Remove the track assembly.

• Remove the 5 screws and 4 harness clips (LH).

• Remove the 5 screws (RH).

7. Slide the guide link out of the channels.

Installation

Installation is in the reverse order of removal.

RF-154

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

SUNROOF UNIT ASSEMBLY

SUNROOF UNIT ASSEMBLY

Inspection and Adjustment

INFOID:0000000009465748

INSPECTION

Wind Deflector

1. Open glass lid assembly fully.
2. Visually check for proper installation, damaged/deteriorated components, or foreign objects within mecha-

nism. Correct as required for smooth operation.

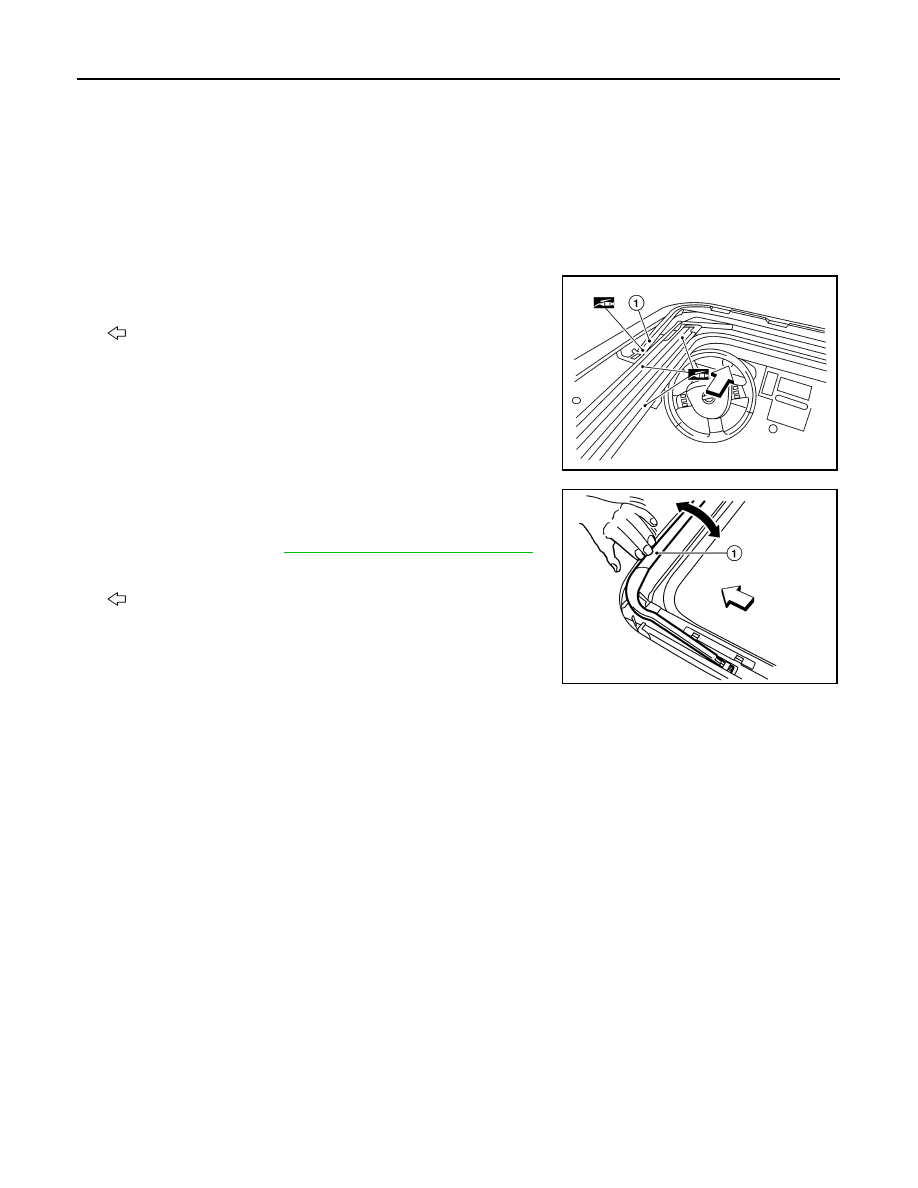

3. Check for grease at the wind deflector arm (1) and pivot areas. If

necessary, apply a sufficient amount of grease for non-binding

operation.

: Front

4. Check that the wind deflector (1) moves freely within the sunroof

unit assembly while manually pressing down and releasing. If a

malfunction is detected, remove the sunroof unit assembly and

visually inspect; refer to

RF-158, "Removal and Installation"

. If

damage is found, replace either wind deflector (1) or sunroof

unit assembly as required.

: Front

Link And Wire Assembly

NOTE:

Before replacing a suspect part, make sure it is the source of noise being experienced.
1. Check link to determine if coating film has peeled off excessively enough that substrate is visible. Check

also to determine if link is the source of noise. Replace as necessary.

2. Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not,

add grease as required.

3. Check wire for any damage or deterioration.

Weatherstrip

1. Visually check weatherstrip for damage, deterioration, or deformation.

• Open glass lid partially to inspect front edge of weatherstrip.

• Tilt up glass lid fully to inspect sides and rear edge of weatherstrip.

If any area of the weatherstrip is found to be damaged, replace as required.

2. Check for leakage around glass lid assembly.

• Close glass lid assembly.

• Pour water around surface to determine area of concern.

- For gaps or misalignment, adjust glass lid to specifications. Refer to ADJUSTMENT in this section.

- For damaged sealing surfaces, either replace glass lid weatherstrip, or repair the sealing panel.

ADJUSTMENT

CAUTION:

• Always work with a helper.

• Handle glass lid assembly with care to prevent damage.

NOTE:

LIIA2336E

WIIA0849E

SUNROOF UNIT ASSEMBLY

RF-155

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

• For easier and more accurate installation, always mark each point before removal.

• After any adjustment, check sunroof operation and glass lid assembly alignment.

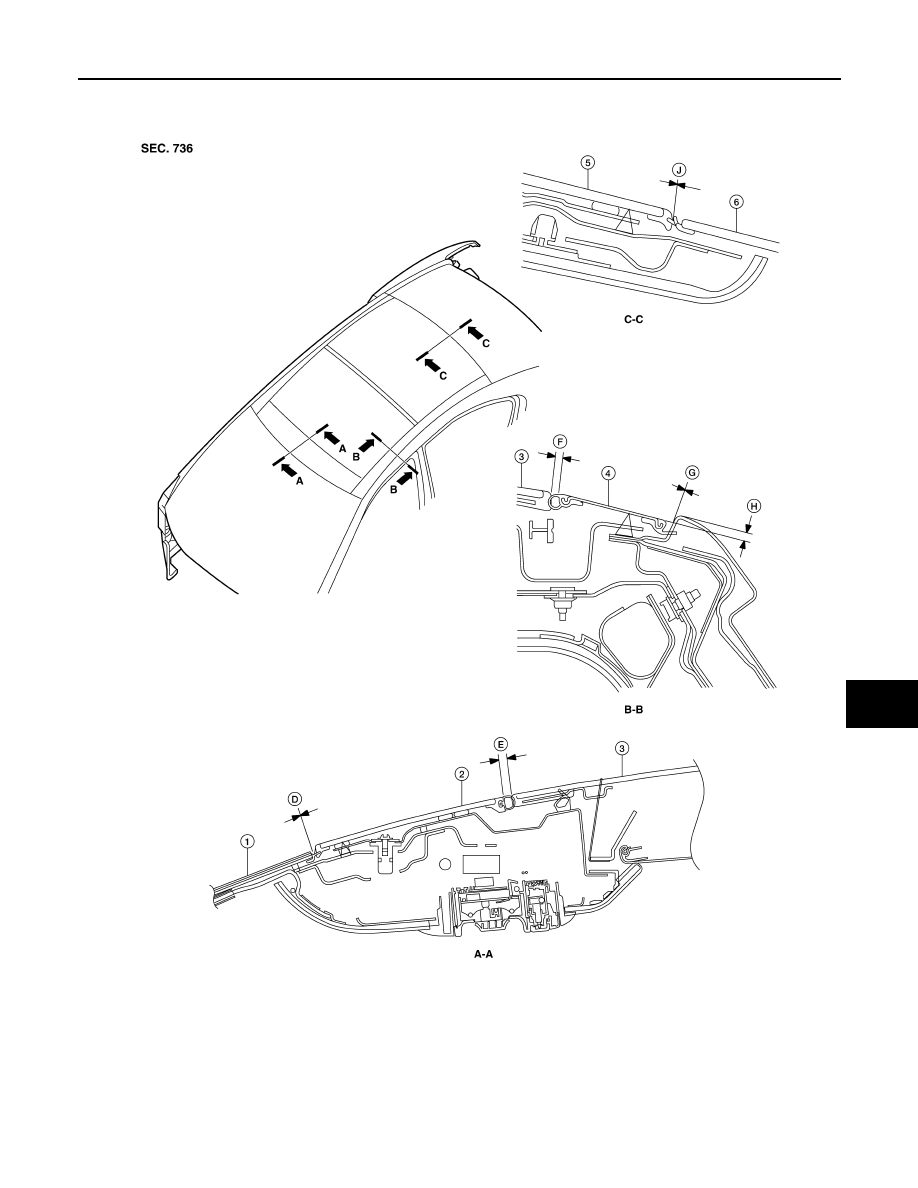

Unit: mm (in)

1.

Windshield

2.

Front sunroof glass

3.

Glass lid

4.

Roof side finisher

5.

Rear sunroof glass

6.

Rear window glass

D.

0.0 (No clearance)

E.

1.4

± 0.45 (0.055 ± 0.018)

F.

1.4

± 0.45 (0.055 ± 0.018)

G.

0.0 (No clearance)

H.

5.5 +2.5/ -1.5 (0.217 +0.098/ -0.059)

J.

0.0 (No clearance)

AWKIA1549ZZ

RF-156

< REMOVAL AND INSTALLATION >

[WITH DUAL PANEL SUNROOF]

SUNROOF UNIT ASSEMBLY

1. Open sunshade.
2. Tilt glass lid up, then slide rearward to expose all the glass lid bolts.
3. Loosen glass lid bolts (4 each on left and right sides), then fully

close glass lid.

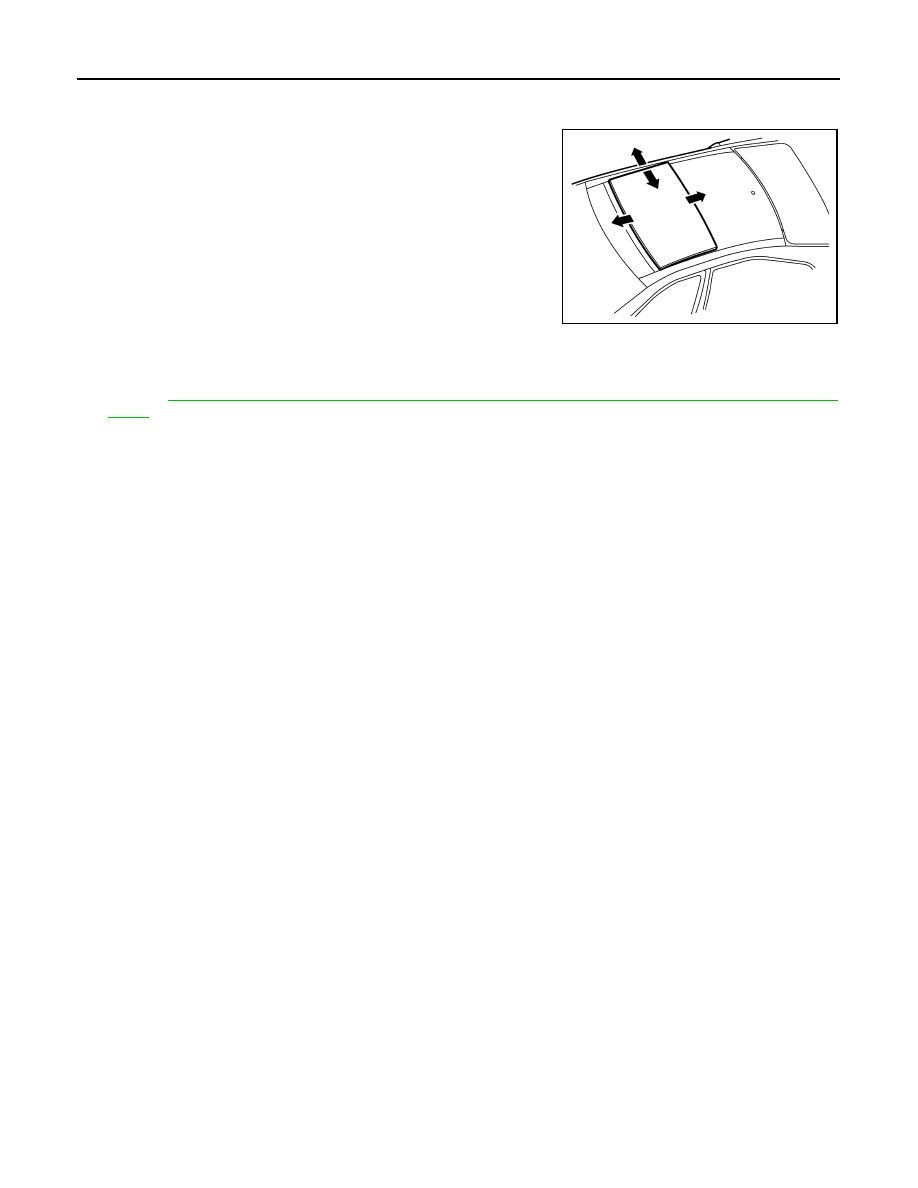

4. Manually adjust glass lid from outside of vehicle so gaps A-A

and B-B are within specifications.

NOTE:

Temporarily snug glass lid bolts to prevent movement between

each adjustment.

5. Tilt glass lid up and down several times using sunroof switch to

check that it operates smoothly.

6. Open glass lid up and tighten bolts to specification.

NOTE:

First tighten left front bolt, then right rear bolt on glass lid to pre-

vent uneven torque while tightening remaining bolts.

7. Perform initialization procedure to make sure the closing operation is accurate and synchronized properly.

Refer to

RF-76, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

8. Perform water leak test.

ALKIA1647ZZ
