BCM (BODY CONTROL MODULE)

MWI-55

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRMT ENG STRT

When the engine start is prohibited

RESET

When the engine start is permitted

SET

KEY SW -SLOT

When Intelligent Key is not inserted into key slot

OFF

When Intelligent Key is inserted into key slot

ON

RKE OPE COUN1

During the operation of Intelligent Key

Operation frequency of Intelligent Key

CONFRM ID ALL

The key ID that the key slot receives does not accord with any key
ID registered to BCM.

YET

The key ID that the key slot receives accords with any key ID regis-
tered to BCM.

DONE

CONFIRM ID4

The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.

YET

The key ID that the key slot receives accords with the fourth key ID
registered to BCM.

DONE

CONFIRM ID3

The key ID that the key slot receives does not accord with the third
key ID registered to BCM.

YET

The key ID that the key slot receives accords with the third key ID
registered to BCM.

DONE

CONFIRM ID2

The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.

YET

The key ID that the key slot receives accords with the second key
ID registered to BCM.

DONE

CONFIRM ID1

The key ID that the key slot receives does not accord with the first
key ID registered to BCM.

YET

The key ID that the key slot receives accords with the first key ID
registered to BCM.

DONE

TP 4

The ID of fourth key is not registered to BCM

YET

The ID of fourth key is registered to BCM

DONE

TP 3

The ID of third key is not registered to BCM

YET

The ID of third key is registered to BCM

DONE

TP 2

The ID of second key is not registered to BCM

YET

The ID of second key is registered to BCM

DONE

TP 1

The ID of first key is not registered to BCM

YET

The ID of first key is registered to BCM

DONE

AIR PRESS FL

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of front LH tire

AIR PRESS FR

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of front RH tire

AIR PRESS RR

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of rear RH tire

AIR PRESS RL

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of rear LH tire

ID REGST FL1

When ID of front LH tire transmitter is registered

DONE

When ID of front LH tire transmitter is not registered

YET

ID REGST FR1

When ID of front RH tire transmitter is registered

DONE

When ID of front RH tire transmitter is not registered

YET

ID REGST RR1

When ID of rear RH tire transmitter is registered

DONE

When ID of rear RH tire transmitter is not registered

YET

ID REGST RL1

When ID of rear LH tire transmitter is registered

DONE

When ID of rear LH tire transmitter is not registered

YET

Monitor Item

Condition

Value/Status

MWI-56

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

WARNING LAMP

Tire pressure indicator OFF

OFF

Tire pressure indicator ON

ON

BUZZER

Tire pressure warning alarm is not sounding

OFF

Tire pressure warning alarm is sounding

ON

Monitor Item

Condition

Value/Status

MWI

BCM (BODY CONTROL MODULE)

MWI-57

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

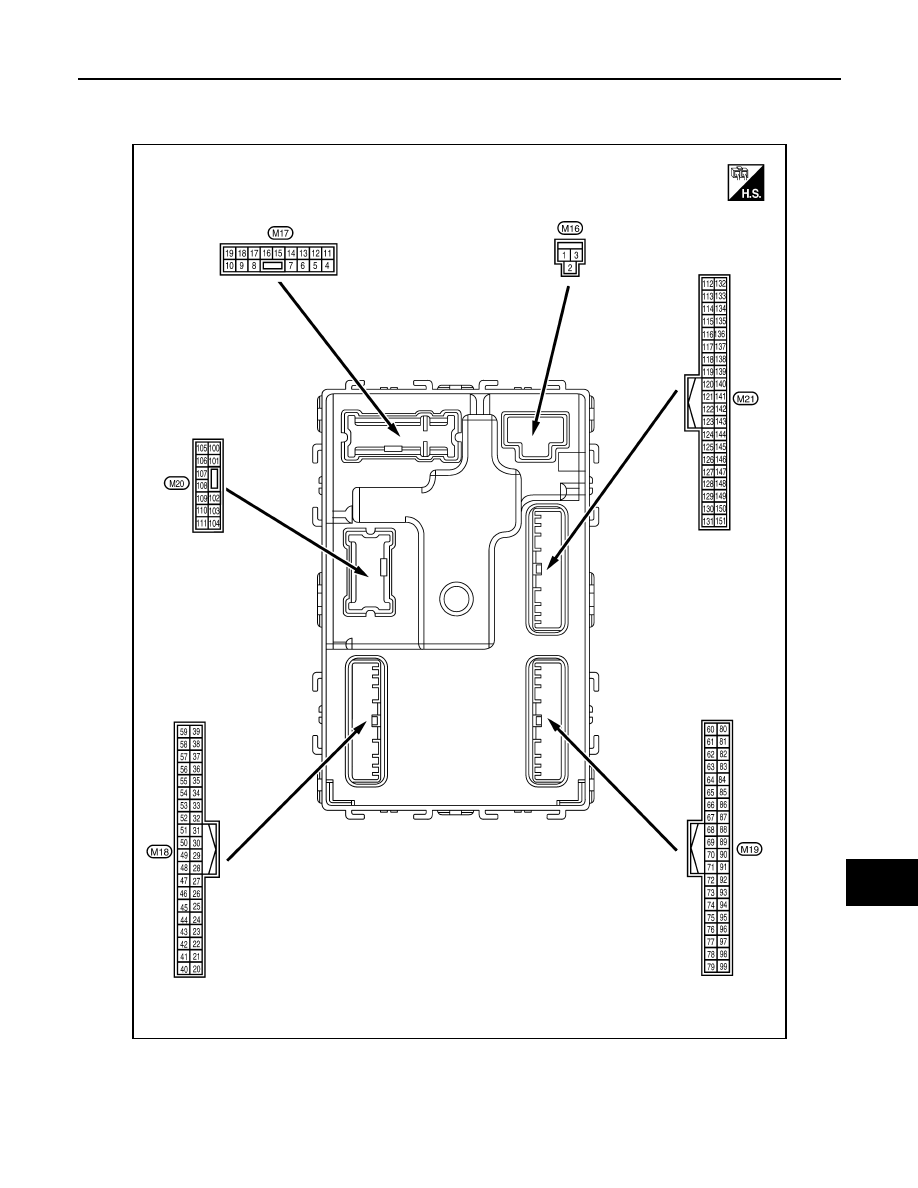

Terminal Layout

INFOID:0000000010062253

Physical Values

INFOID:0000000010062254

ALMIA0127ZZ

MWI-58

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

1

(W/B)

Ground Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(R/Y)

Ground

Battery power supply
output

Output Ignition switch OFF

Battery voltage

3

(L/W)

Ground

Ignition power supply
output

Output Ignition switch ON

Battery voltage

4

(P/W)

Ground

Interior room lamp
power supply

Output

After passing the interior room lamp battery sav-
er operation time

0V

Any other time after passing the interior room
lamp battery saver operation time

Battery voltage

5

(G)

Ground

Front door RH UN-
LOCK

Output Front door RH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

7

(R/W)

Ground Step lamp

Output Step lamp

ON

0V

OFF

Battery voltage

8

(V)

Ground All doors LOCK

Output All doors

LOCK (actuator is activat-
ed)

Battery voltage

Other than LOCK (actuator
is not activated)

0V

9

(L)

Ground

Front door LH UN-
LOCK

Output Front door LH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

10

(G)

Ground

Rear door RH and
rear door LH UN-
LOCK

Output

Rear door RH
and rear door LH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

11

(Y/R)

Ground Battery power supply

Input

Ignition switch OFF

Battery voltage

13

(B)

Ground Ground

Ignition switch ON

0V

14

(GR/

W)

Ground

Engine switch (push
switch) illumination
ground

Input

Tail lamp

OFF

0V

ON

NOTE:
When the illumination brighten-
ing/dimming level is in the neutral
position

15

(Y/L)

Ground ACC indicator lamp

Output Ignition switch

OFF

Battery voltage

ACC or ON

0V

JSNIA0010GB
