COMBINATION METER

MWI-47

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000010049599

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[km/h or mph]

While driving

Displays the value of the vehicle speed sig-
nal.

SPEED OUTPUT
[km/h or mph]

While driving

Displays the value of the vehicle speed sig-
nal which is transmitted to each unit with
CAN communication.

ODO OUTPUT
[kilometers or miles]

Equivalent to odometer reading in combina-
tion meter

TACHO METER
[rpm]

While driving

Displays the value of engine speed signal
which is input from the ECM.

FUEL METER
[L]

Displays the value processed from a resis-
tance signal from the fuel gauge.

W TEMP METER
[

°C] or [°F]

Displays the value of the engine coolant tem-
perature signal which is input from the ECM.

ABS W/L

ABS warning lamp ON

ON

ABS warning lamp OFF

OFF

VDC/TCS IND

VDC OFF indicator lamp ON

ON

VDC OFF indicator lamp OFF

OFF

SLIP IND

SLIP Indicator lamp ON

ON

SLIP indicator lamp OFF

OFF

BRAKE W/L*

Brake warning lamp ON

ON

Brake warning lamp OFF

OFF

DOOR W/L

Door warning lamp ON

ON

Door warning lamp OFF

OFF

TRUNK/GLAS-H

Trunk warning lamp ON

ON

Trunk warning lamp OFF

OFF

HI-BEAM IND

High-beam indicator lamp ON

ON

High-beam indicator lamp OFF

OFF

TURN IND

Turn signal indicator lamp ON

ON

Turn signal indicator lamp OFF

OFF

LIGHT IND

Light indicator lamp ON

ON

Light indicator lamp OFF

OFF

OIL W/L

Oil pressure warning lamp ON

ON

Oil pressure warning lamp OFF

OFF

MIL

Malfunction indicator lamp ON

ON

Malfunction indicator lamp OFF

OFF

CRUISE IND

CRUISE indicator ON

ON

CRUISE indicator OFF

OFF

CVT IND

CVT warning lamp ON

ON

CVT warning lamp OFF

OFF

MWI-48

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

FUEL W/L

Low-fuel warning lamp ON

ON

Low-fuel warning lamp OFF

OFF

WASHER W/L

Low washer fluid warning lamp ON

ON

Low washer fluid warning lamp OFF

OFF

AIR PRES W/L

Low tire pressure warning lamp ON

ON

Low tire pressure warning lamp OFF

OFF

KEY G/Y W/L

Key warning lamp ON

ON

Key warning lamp OFF

OFF

LCD

Intelligent Key information received

Displays the value of Intelligent Key system

message indication.

SHIFT IND

Range position indicator P display

P

Range position indicator R display

R

Range position indicator N display

N

Range position indicator D display

D

Range position indicator L display

L

FUEL CAP W/L

Status of fuel filler cap warning display de-
tected from fuel filler cap warning display sig-
nal received from ECM via CAN
communication.

M RANGE SW

Manual mode range switch ON

ON

Manual mode range switch OFF

OFF

NM RANGE SW

Except for manual mode range switch ON

ON

Except for manual mode range switch OFF

OFF

ST SFT UP SW

Steering shift-up switch ON

ON

Steering shift-up switch OFF

OFF

ST SFT DWN SW

Steering shift-down switch ON

ON

Steering shift-down switch OFF

OFF

AT SFT UP SW

CVT shift-up switch ON

ON

CVT shift-up switch OFF

OFF

AT SFT DWN SW

CVT shift-down switch ON

ON

CVT shift-down switch OFF

OFF

PKB SW

Parking brake switch ON

ON

Parking brake switch OFF

OFF

BUCKLE SW

Status of seat belt buckle switch LH.

BRAKE OIL SW

Brake fluid level switch ON

ON

Brake fluid level switch OFF

OFF

MODE A SW

Mode A switch ON

ON

Mode A switch OFF

OFF

MODE B SW

Mode B switch ON

ON

Mode B switch OFF

OFF

DISTANCE
[kilometers or miles]

Displays the value which is calculated by ve-
hicle speed signal, fuel gauge and fuel con-
sumption from ECM.

OUTSIDE TEMP
[

°C] or [°F]

Displays the ambient air temperature which
is input from the ambient sensor.

FUEL LOW SIG

Low fuel warning displayed

ON

Low fuel warning not displayed

OFF

Monitor Item

Condition

Value/Status

MWI

COMBINATION METER

MWI-49

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
* The monitor will indicate “OFF” even though the brake warning lamp is on if either of the following conditions exist:
• The parking brake is engaged
• The brake fluid level is low

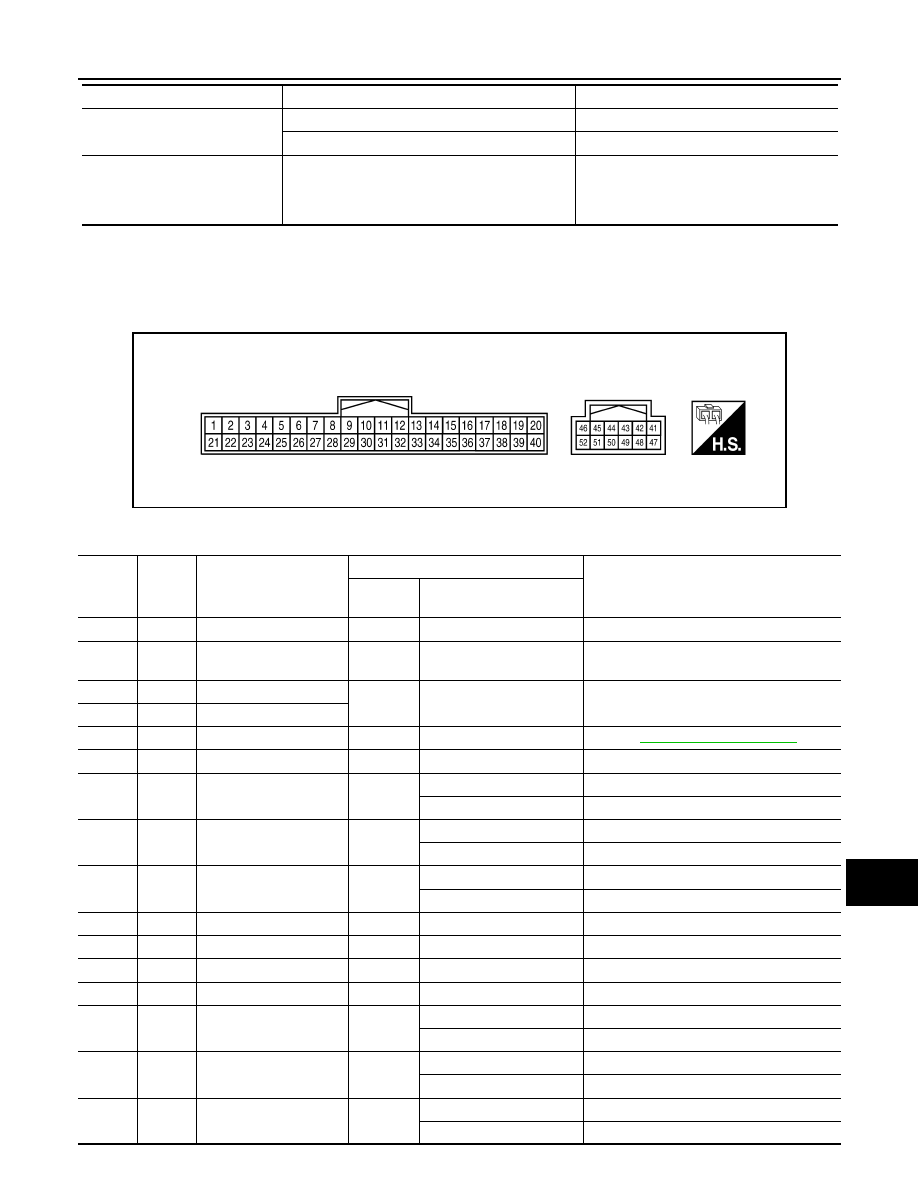

TERMINAL LAYOUT

PHYSICAL VALUES

BUZZER

Buzzer ON

ON

Buzzer OFF

OFF

TPMS PRESS L

Status of low tire pressure warning judged
from low tire pressure warning lamp signal
received from BCM with CAN  communica-
tion line.

Monitor Item

Condition

Value/Status

AWNIA2071ZZ

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

1

Y/R

Battery power supply

Battery voltage

2

O

Ignition switch ON or
START

ON

Battery voltage

3

B

Ground (Power)

0

4

B

Ground (Illumination)

5

B

Illumination output

Refer to

INL-9, "System Description"

.

10

O/L

Mode switch ground

ON

0

11

L/R

Mode switch A

ON

Switch pressed

0

Switch released

5

12

B/R

Mode switch B

ON

Switch pressed

0

Switch released

5

15

BR/W

Air bag warning lamp in-
put

ON

Air bag warning lamp ON

3

Air bag warning lamp OFF

0

21

L

CAN-H

22

P

CAN-L

23

B

Ground (Circuit)

0

24

B/W

Fuel level sensor ground

ON

0

25

BR

Generator

ON

Generator voltage low

0

Generator voltage normal

Battery voltage

26

G/R

Parking brake switch

ON

Parking brake depressed

0

Parking brake released

Battery voltage

27

V

Brake fluid level switch

ON

Brake fluid level low

0

Brake fluid level normal

Battery voltage

MWI-50

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Fail Safe

INFOID:0000000010049600

The combination meter performs a fail-safe operation for the functions listed below when communication is

lost.

28

L/O

Security indicator input

OFF

Security indicator ON

0

Security indicator OFF

Battery voltage

29

R

Washer fluid level switch

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

30

L/B

Vehicle speed signal out-
put (2-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 20 km/h (12 MPH)]

240 Hz

31

V/W

Vehicle speed signal out-
put (8-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
Maximum voltage may be 12V due to spec-
ifications (connected units).

34

G/B

Fuel level sensor signal

Refer to

MWI-15, "FUEL GAUGE : System

Description"

.

35

W/B

Seat belt buckle switch
LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

36

L/W

Seat belt buckle switch
RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

37

G

Not M range

ON

Manual mode switch OFF

0

Manual mode switch ON

Battery voltage

38

BR

CVT shift down

ON

• Manual mode switch ON
• Shift down operation

0

Other than above

Battery voltage

39

W

CVT shift up

ON

• Manual mode switch ON
• Shift up operation

0

Other than above

Battery voltage

40

LG/R

M range

ON

Manual mode switch OFF

Battery voltage

Manual mode switch ON

0

49

G

Paddle shifter signal
(shift down)

ON

Shift down operation

0

Switch released

Battery voltage

50

O

Paddle shifter signal
(shift up)

ON

Shift up operation

0

Switch released

Battery voltage

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

PKIC0643E

Function

Specifications

Speedometer

Zero indication.

Tachometer

Fuel gauge

Engine coolant temperature gauge

Illumination control

Meter illumination

Change to nighttime mode when communication is lost.
